Description:

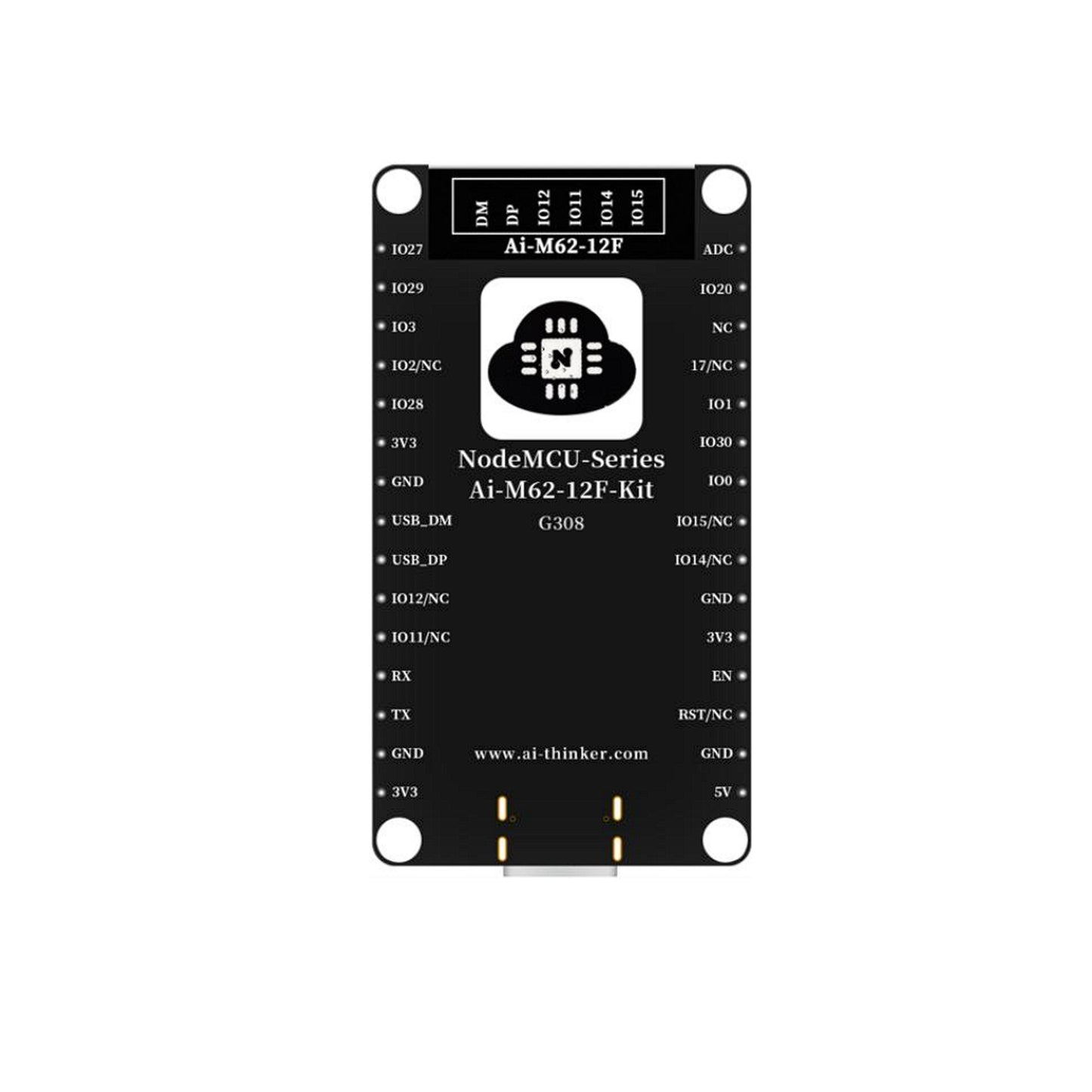

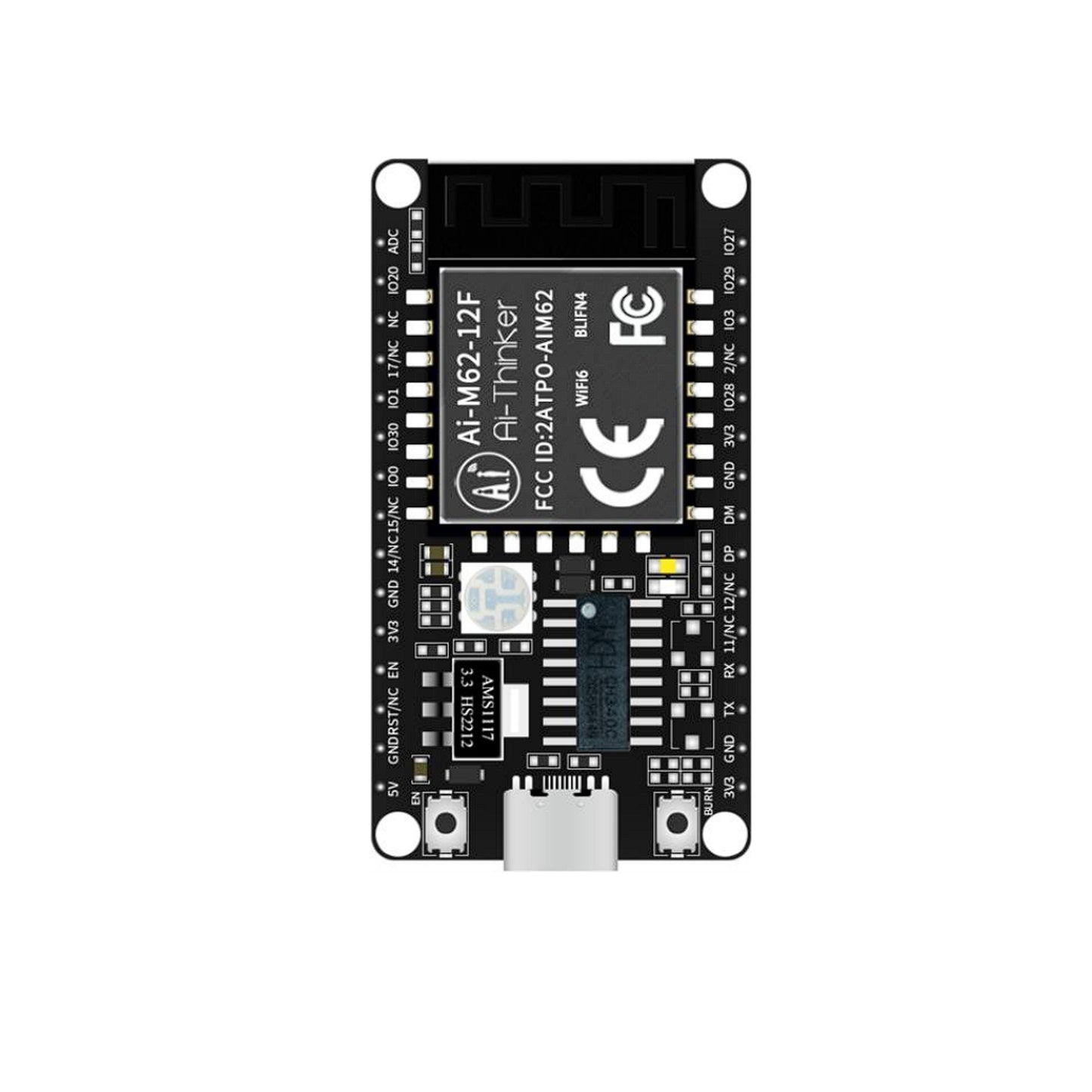

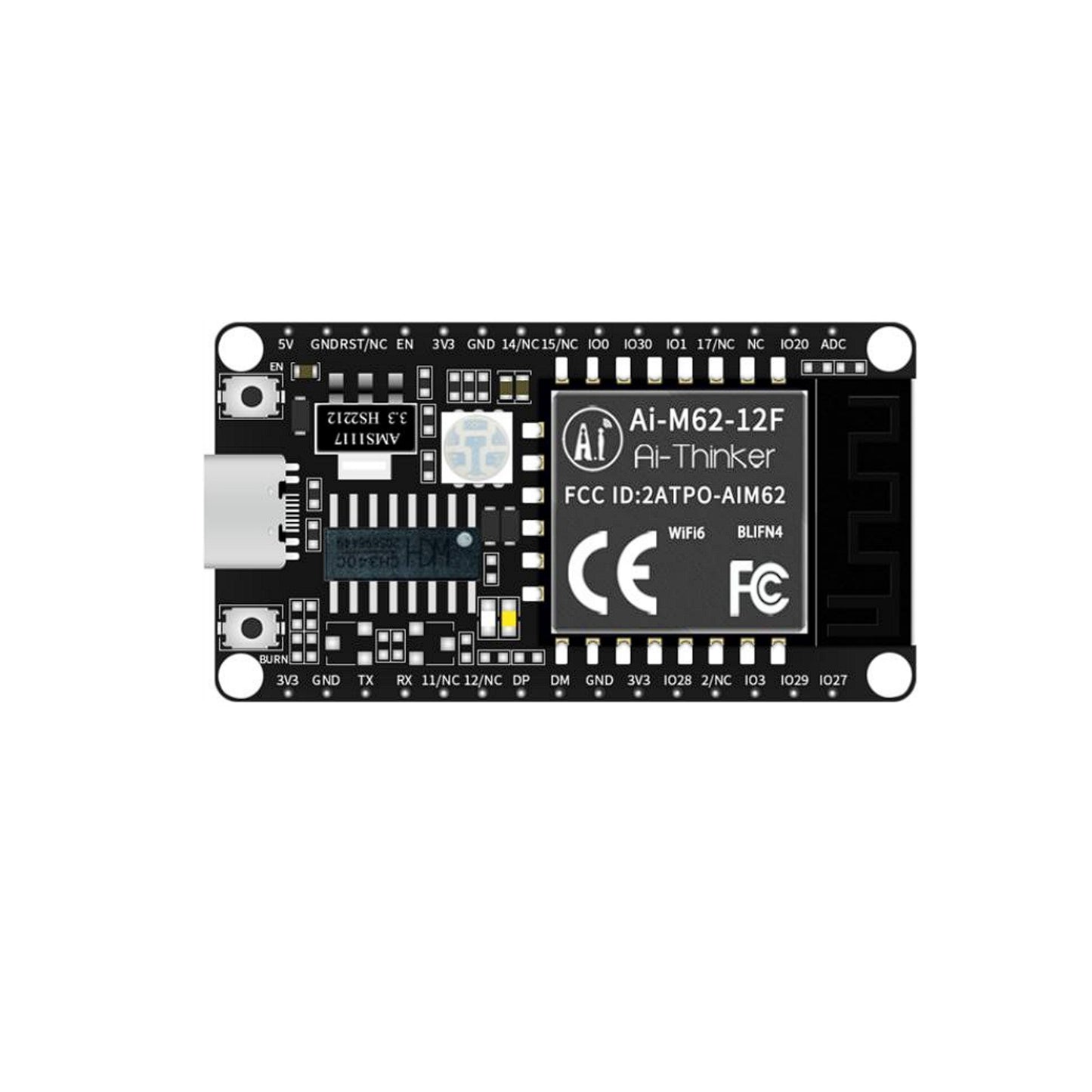

The Ai-M62-12F-Kit is a development board designed for the Ai-M62-12F module. Ai-M62-12F is a Wi-Fi 6 + BLE 5.3 module developed by Shenzhen Ai-Thinker TechnologyCo., Ltd. The module is equipped with BL616 chip as the core processor, supports Wi-Fi 802.11b/g/n/ax protocol and BLE protocol, and supports Thread protocol. The BL616 systemcontains a low-power 32-bit RISC-V CPU with floating point cells, DSP units, cache, andmemory, up to 320M.
Ai-M62-12F module has rich peripheral interfaces, including Audio Codec, USB2.0, SDU, SD/ MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP and GPIO. It canbewidely used in audio and video multimedia, Internet of Things (IoT), mobile devices, wearableelectronic devices, smart home and other fields.
Ai-M62-12F module Sec Eng module supports AES / SHA / PKA / TRNG and other functions, supports mirror encryption and signature startup, to meet the needs of various securityapplications in the field of the Internet of Things.
Specifications:
- Development Baord Model: Ai-M62-12F-Kit
- Development Board Package: DIP-30
- Size: 49.66*25.40(±0.2)mm
- Antenna: on-board PCB antenna
- Frequency: 2400 ~ 2483.5MHz
- Operating Temperature: -40℃ ~ 85℃
- Storage Temperature: -40℃ ~ 125℃ , 90%RH
- Power Supply: Support voltage 3.3V or 5V， supply current ≥500mA
- Interface: Audio Codec, USB2.0, SDU, SD/MMC(SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP and GPIO etc.
- IO: 15
- UART rate: Default 115200 bps
- Security: WPS/WEP/WPA/WPA2/WPA3
- Flash: 4MByte
Features:
- Support IEEE 802.11 b/g/n/ax protocol
- Ai-M62-12F-Kit support BLE 5.3
- Ai-M62-12F-Kit support Thread
- Support Wi-Fi/BLE/Thread coexistence
- Wi-Fi security support WPS/WEP/WPA/WPA2/WPA3
- Support 20/40MHz bandwidth, 1T1R，Maximum rate 229.4 Mbps
- Support STA, SoftAP, STA+SoftAP and sniffer mode
- 32-bit RISC-V CPU with FPU and DSP, the highest frequency can reach 320M
- 532KB SRAM, 128KB ROM, 4Kb eFuse
- Integrated RF Balun, PA/LNA
- Supports secure boot; secure debugging
- Support XIP QSPI On-The-Fly AES Decryption (OTFAD)
- Ai-M62-12F-Kit support TrustZone
- Support AES-CBC/CCM/GCM/XTS mode
- Support MD5, SHA-1/224/256/384/512
- Support TRNG (true random number generator)
- Support for PKA (Public Key Accelerator) for RSA/ECC
- Ai-M62-12F-Kit support Wi-Fi Quick Connect with BLE
- General AT commands can be used quickly
- Support secondary development, integrated Windows, Linux development environment
Package Included:
1 x Ai-Thinker Ai-M62-12F-Kit with Wi-Fi 6, BLE 5.3
