Description:

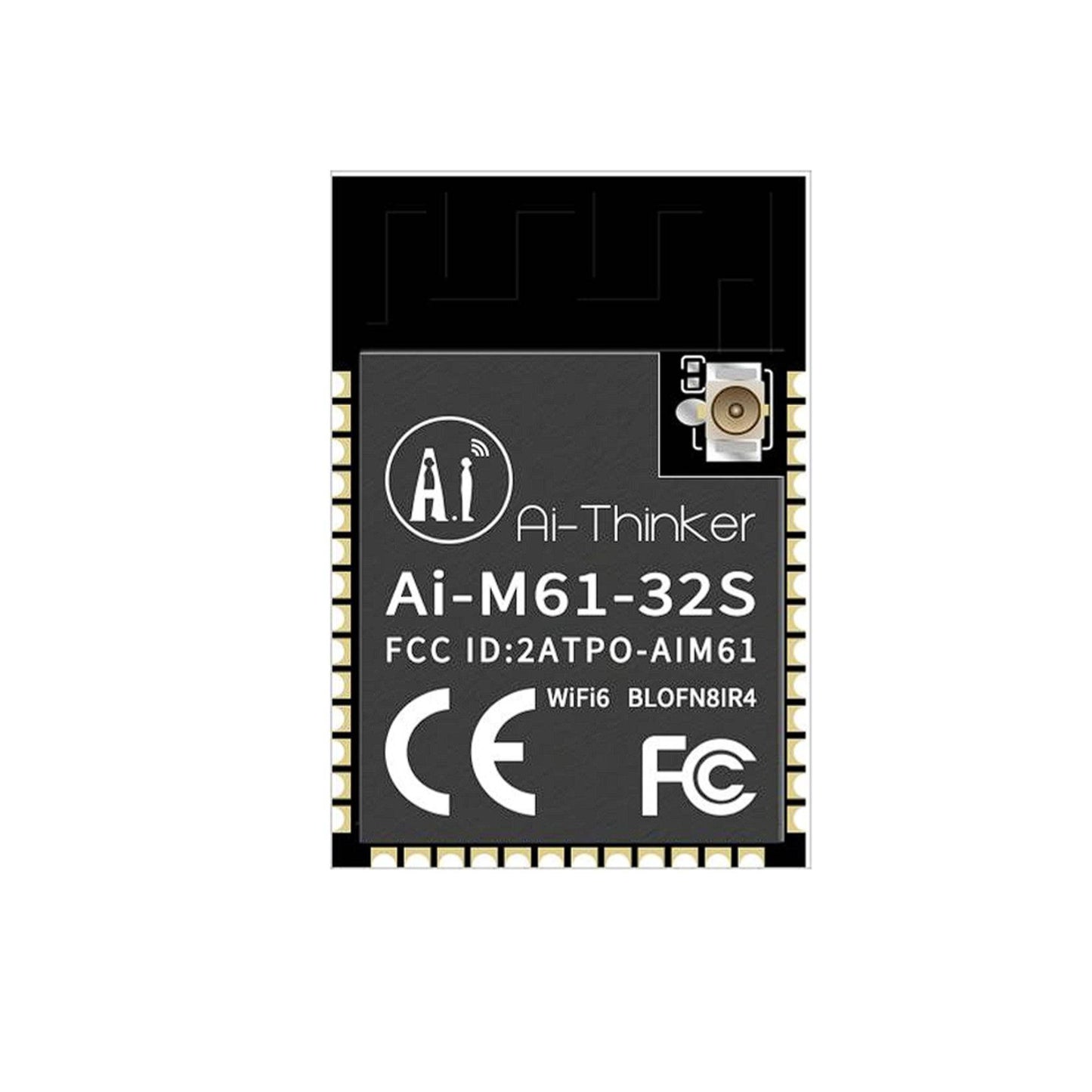

Ai-M61-32S is a Wi-Fi 6+BLE5.3 module developed by Ai-Thinker. The module is equipped with a BL618 chip as the core processor and supports Wi-Fi 802.11b/g/n/ax Protocol and BLE protocol, supporting Thread protocol. The BL618 system includes a low-power 32-bit RISC-V CPU with a floating-point unit, DSP unit, cache and memory, with a maximum frequency of 320M. The Ai-M61-32S module has rich peripheral interfaces, including DVP, MJPEG, Display, Audio Codec, USB2.0, SDU, Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO, etc. Ai-M61-32S can be widely used in audio and video multimedia, the Internet of Things (IoT), mobile devices, wearable electronic devices, smart homes and other fields. Ai-M61-32S module Sec Eng module supports AES/SHA/PKA/TRNG and other functions, supports image encryption and signature startup, and meets various security application requirements in the Internet of Things field
Specifications:
- Model: Ai-M61-32S
- Antenna: on-board PCB antenna/IPEX connector
- Frequency: 2400 ~ 2483.5MHz
- Operating Temperature:-40℃ ~ 85℃
- Storage Temperature: -40℃ ~ 125℃, < 90%RH
- Power Supply: Support voltage 2.97V ~ 3.6V，supply current ≥500mA
- IO: 29
- UART Rate: Default 115200 bps
- Security: WPS/WEP/WPA/WPA2/WPA3
- Flash: Default 8MByte，Support expansion
- Interface: Support DVP, MJPEG, Display, Audio Codec, USB2.0, SDU, Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP and GPIO, etc.
Features:
- Ai-M61-32S support BLE5.3
- Support Thread
- Support 2.4GHz working frequency band
- Support IEEE 802.11 b/g/n/ax
- Support Wi-Fi/BLE/Thread coexistenc
- Wi-Fi security supports WPS/WEP/WPA/WPA2/WPA3
- Support 20/40MHz bandwidth, 1T1R, maximum rate 229.4 Mbps
- Support STA, SoftAP, STA+SoftAP and sniffer mode
- 32-bit RISC-V CPU with FPU and DSP, the highest frequency can reach 320M
- 4MB pSRAM，532KB SRAM，128KB ROM，4Kb eFuse
- Support Camera Sensor DVP interface
- Support Video Codec MJPEG encoding
- Support LCD (QSPI, DBI and RGB)
- Support DVP, MJPEG, Display, Audio Codec, USB2.0, SDU, Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP and GPIO, etc.
Package Included:
1 x Ai-Thinker Ai-M61-32S WiFi BLE Module
