Description:

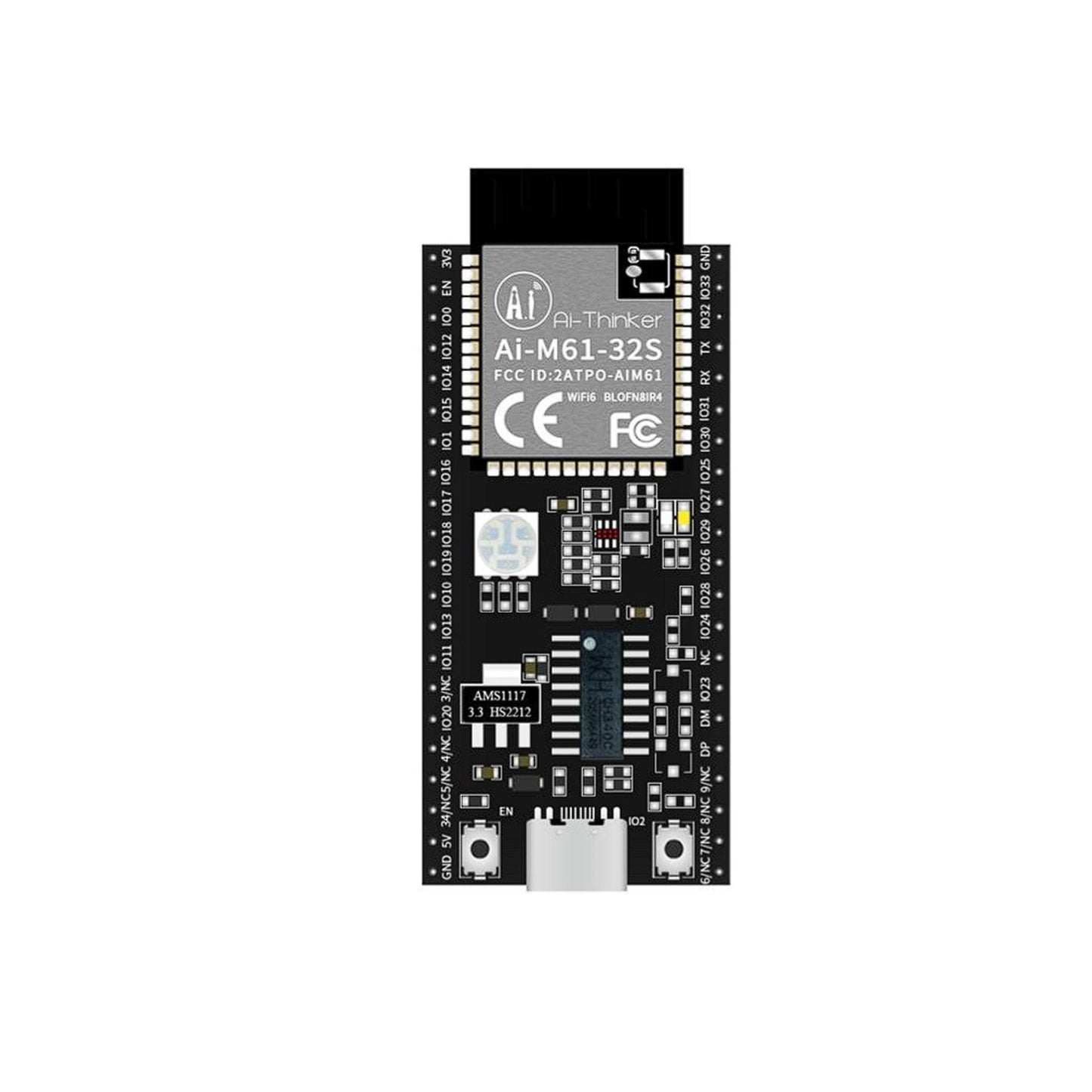

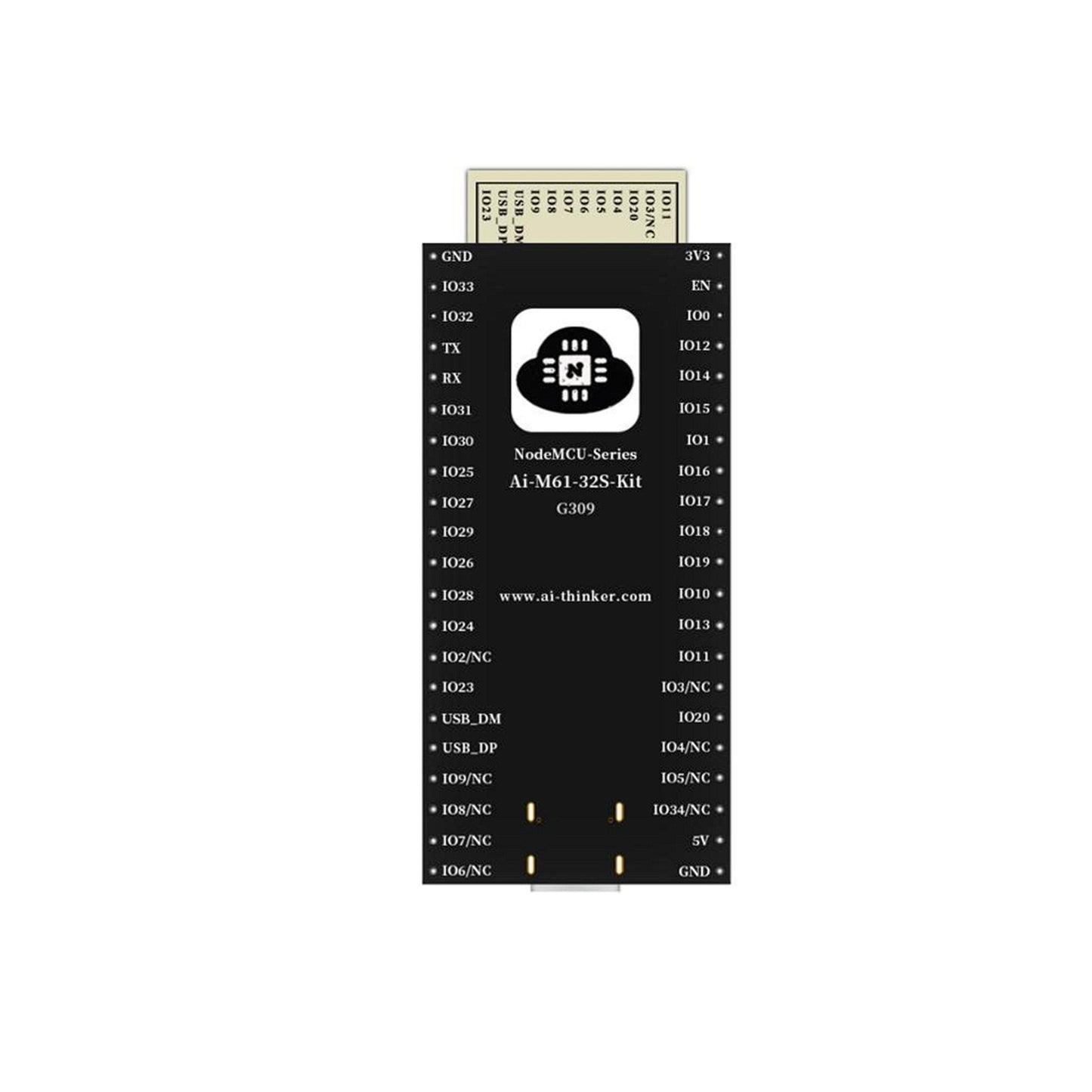

Ai-M61-32S-Kit is a development board designed for Ai-M61-32S modules. Ai-M61-32SisaWi-Fi 6 + BLE5.3 module developed by Ai-Thinker. The module is equipped with a BL618 chip as the core processor, supports Wi-Fi 802.11b/g/n/ax protocol and BLE protocol, and supports Thread protocol. The BL618 system includes a low-power 32-bit RISC-V CPU with floating-point unit, DSP unit, cache and memory, with a maximum dominant frequency of 320M.
The Ai-M61-32S module has rich peripheral interfaces, including DVP, MJPEG, Display, Audio Codec, USB2.0, SDU, Ethernet (EMAC), SD/MMC(SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO, etc. It can be widely used in audio and video multimedia, the Internet of Things (IoT), mobile devices, wearable electronic devices, smart homes and other fields.
The Ai-M61-32S module Sec Eng module supports AES/SHA/PKA/TRNG and other functions, supports image encryption and signature startup, and meets various security application requirements in the Internet of Things field.
Specifications:
- Model: Ai-M61-32S-Kit
- Antenna: Onboard antenna
- Frequency: 2400~2483.5MHz
- Operating Temperature: 40℃ ~ 85℃
- Storage Temperature: 40℃~125℃,<90%RH
- IO: 26
- UART Rate: Default 115200 bps
- Security: WPS/WEP/WPA/WPA2/WPA3
- Flash: 8MByte
- Power Supply: The power supply voltage is 3.3V or 5V, and the power supply current is≥500mA
- Interface: Supports DVP, MJPEG, Display, Audio Codec, USB2.0, SDU, Ethernet (EMAC), SD/MMC(SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO, etc
Features:
- Ai-M61-32S-Kit support Wi-Fi/BLE/Thread coexistence
- Wi-Fi security support WPS/WEP/WPA/WPA2/WPA3
- Ai-M61-32S-Kit supports 20/40MHz bandwidth, 1T1R, maximum rate 229.4 Mbps
- Ai-M61-32S-Kit support STA, SoftAP, STA + SoftAP, and sniffer modes
- 32-bit RISC-V CPU with FPU and DSP, with a maximum dominant frequency of 320M 4MB pSRAM,532KB SRAM,128KB ROM,4Kb eFuse
- Supports DVP, MJPEG, Display, Audio Codec, USB2.0, SDU, Ethernet (EMAC), SD/MMC(SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO, etc.
- Ai-M61-32S-Kit support Camera Sensor DVP interface
Package Included:
1 x Ai-Thinker Ai-M61-32S-Kit Wi-Fi 6+BLE5.3 Development Board
