Description:

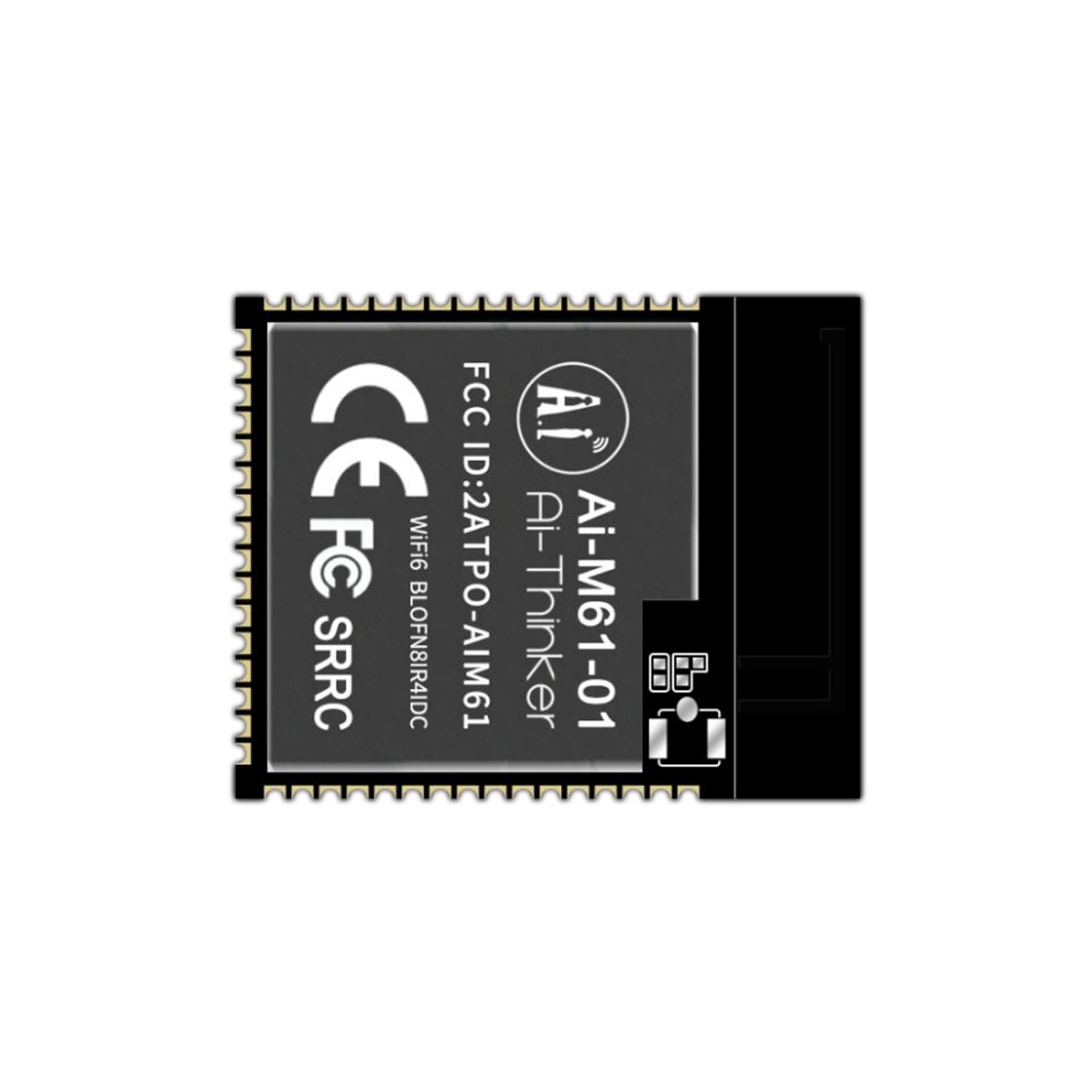

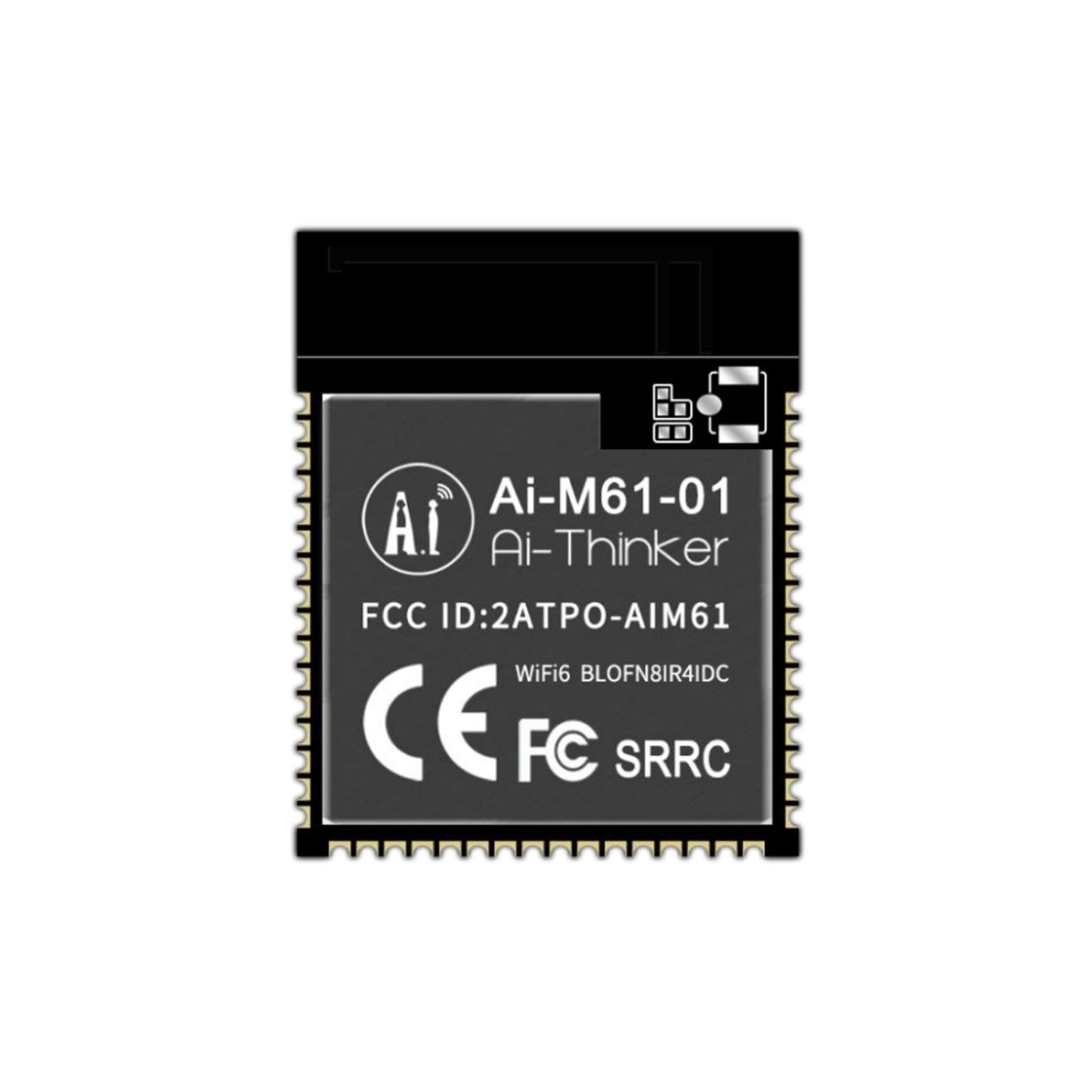

Ai-M61-01 is a Wi-Fi 6+BLE5.3 module developed by Ai-Thinker Technology. The module is equipped with a BL618 chip as the core processor and supports Wi-Fi 802.11b/g/n/ax Protocol and BLE protocol, supports Thread protocol. The BL618 system includes a low-power 32-bit RISC-V CPU with a floating point unit, DSP unit, cache and memory, and the highest frequency can reach 320M.
The Ai-M61-01 module has rich peripheral interfaces, including DVP, MJPEG, Display, AudioCodec, USB2.0, SDU, Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO, etc. It can be widely used in audio and video multimedia, the Internet of Things (IoT), mobile devices, wearable electronic devices, smart homes and other fields.
Specifications:
- Model: Ai-M61-01
- Package: SMD-48
- Size: 30.1*25.0*3.1(±0.2)mm
- Antenna: on-board PCB antenna/IPEX connector
- Frequency: 2400 ~ 2483.5MHz
- Operating Temperature: -40℃ ~ 85℃
- Storage Temperature: -40℃ ~ 125℃, 90%RH
- Power Supply: Support voltage 2.97V ~ 3.6V，supply current ≥500mA
- Interface: Support DVP, MJPEG, Display, Audio Codec, USB2.0, SDU, Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP and GPIO, etc.

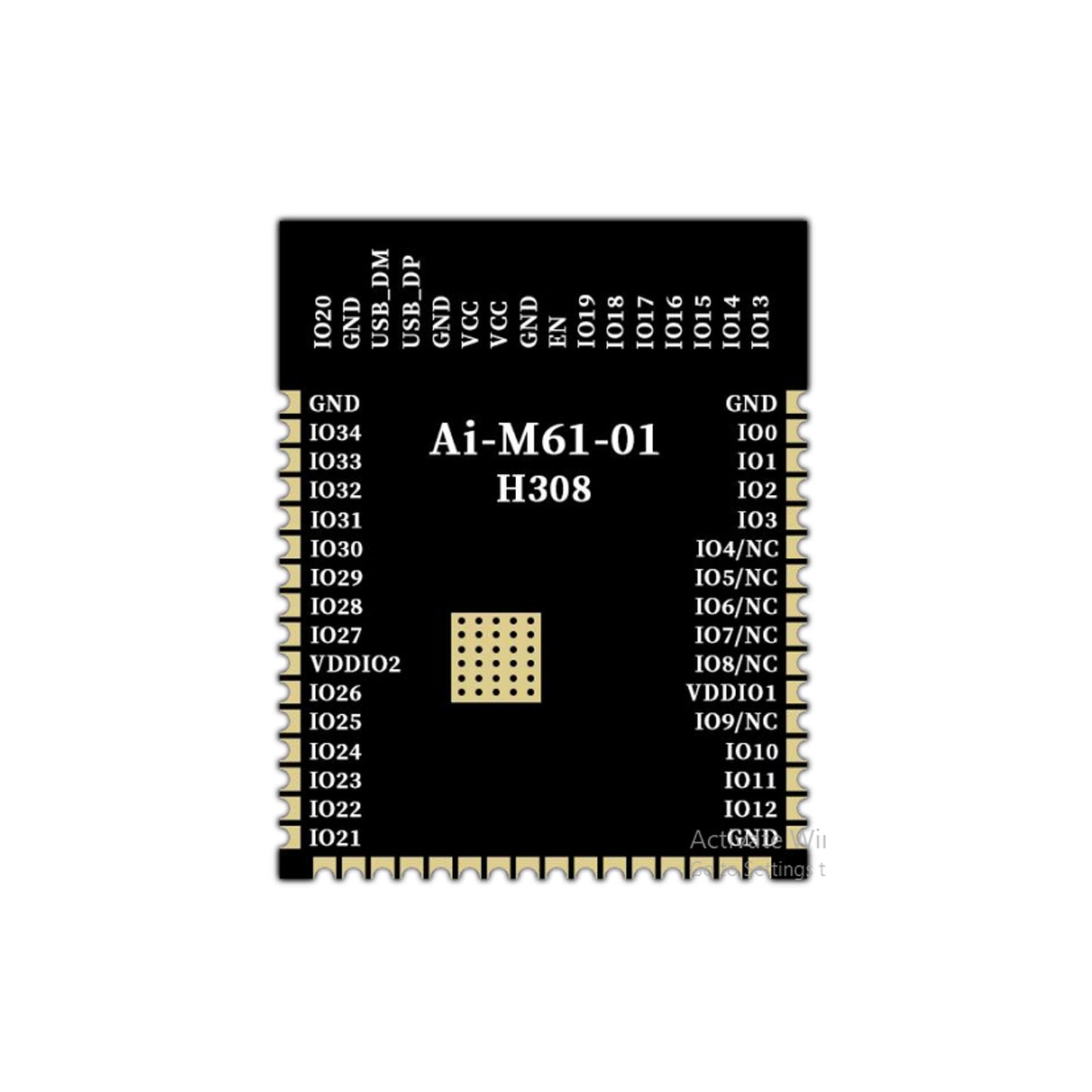

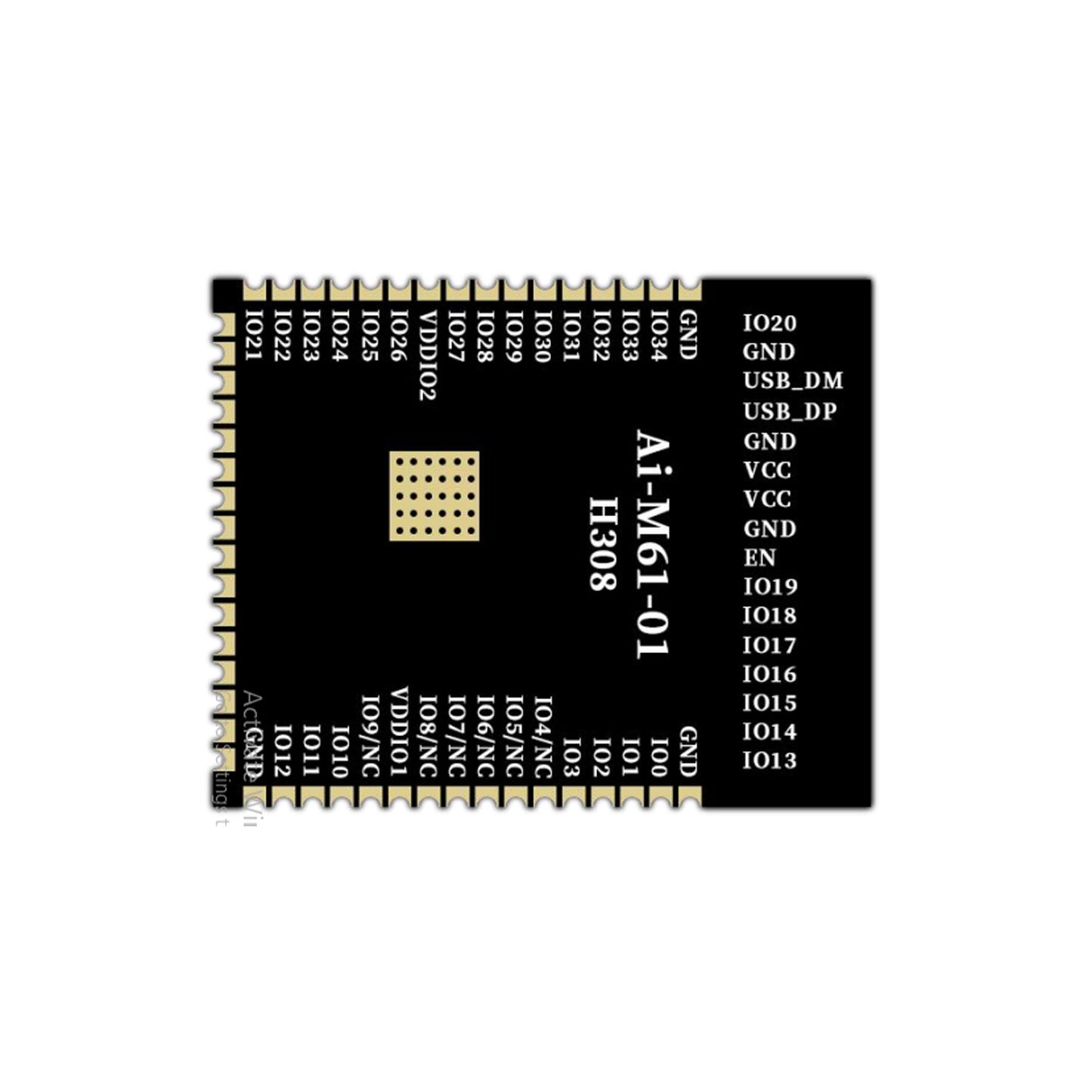

- IO: 29
- UART Rate: Default 115200 bps
- Security: WPS/WEP/WPA/WPA2/WPA3
- Flash: Default 8MByte，Support expansion
Features:
- The package is SMD-48
- Support 2.4GHz working frequency band
- Support IEEE 802.11 b/g/n/ax
- Support BLE5.3
- Support Thread
- Support Wi-Fi/BLE/Thread coexistence
- Wi-Fi security supports WPS/WEP/WPA/WPA2/WPA3
- Support 20/40MHz bandwidth，1T1R，maximum rate 229.4 Mbps
- Support ST, SoftAP、STA+SoftAP and sniffer mode
- 32-bit RISC-V CPU with FPU and DSP, the highest frequency can reach 320M
- 4MB pSRAM，532KB SRAM，128KB ROM，4Kb eFuse
- Support DVP, MJPEG, Dispaly, Audio Codec, USB2.0, SDU, Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP and GPIO, etc.
- Support Camera Sensor DVP interface
- Support Video Codec MJPEG encoding
- Support LCD display (QSPI, DBI and RGB)
- Integrated RF Balun, PA/LNA
- Support secure boot; secure debugging
- Support XIP QSPI On-The-Fly AES Decryption (OTFAD)
- Support TrustZone
- Support AES-CBC/CCM/GCM/XTS mode
- Support MD5, SHA-1/224/256/384/512
- Support TRNG（True Random Number Generator）
- Support PKA (Public Key Accelerator) for RSA/ECC
- BLE Fast Wi-Fi connection is supported
- Universal AT instruction for quick start
- Support secondary development, integrated Windows, Linux development environment
Package Included:
1 x Ai-thinker AI-M61-01 Wi-Fi 6 Module BLE 5.3 Module High-Performance Wi-Fi And BLE Module For Industrial IoT Arduino-compatible Wi-Fi and BLE Module With Rich Peripheral Interfaces
