ADS1115 Gain Amplifier ADS1115 16-Bit ADC- 4 Channel with Programmable Gain Amplifier - RS1120

ADS1115 Gain Amplifier ADS1115 16-Bit ADC- 4 Channel with Programmable Gain Amplifier - RS1120

SKU:RS1120

295 in stock

Regular price Rs. 349.00
Regular price Sale price Rs. 349.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Description:

ADS1115 Gain Amplifier is mostly used for microcontrollers project which needs an analog-to-digital converter or when you want a higher-precision ADC. ADS1115 Gain Amplifier provides 16-bit precision at 860 samples/second over I2C. The chip can be configured as 4 single-end input channels or two differential channels.

Additionally, ADS1115 Gain Amplifier also includes a programmable gain amplifier, up to x16, to help boost up smaller single/differential signals to the full range. This ADS1115 Gain Amplifier can run from 2V to 5V power/logic, can measure a large range of signals and it’s super easy to use. ADS1115 Gain Amplifier is a great general-purpose 16-bit converter.

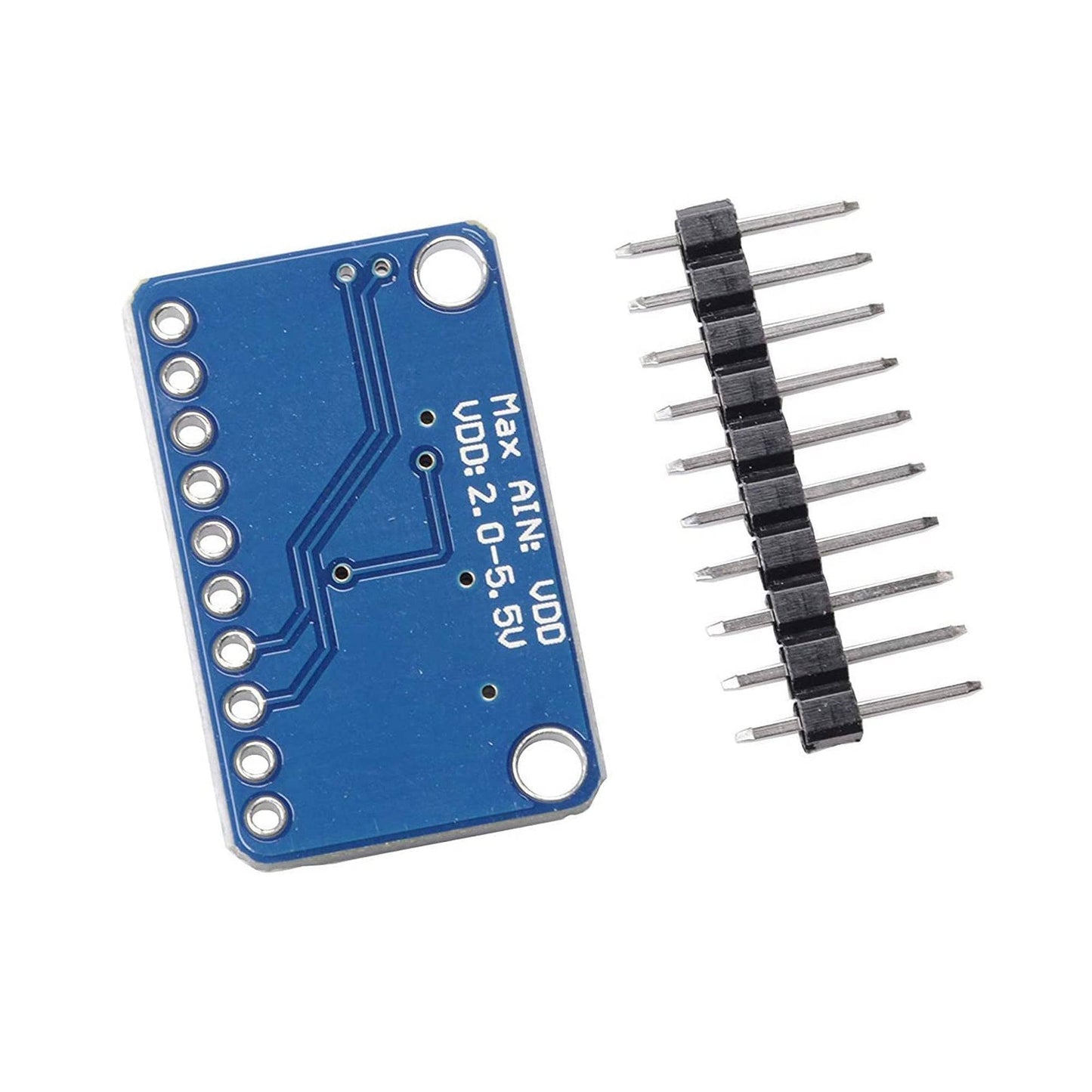

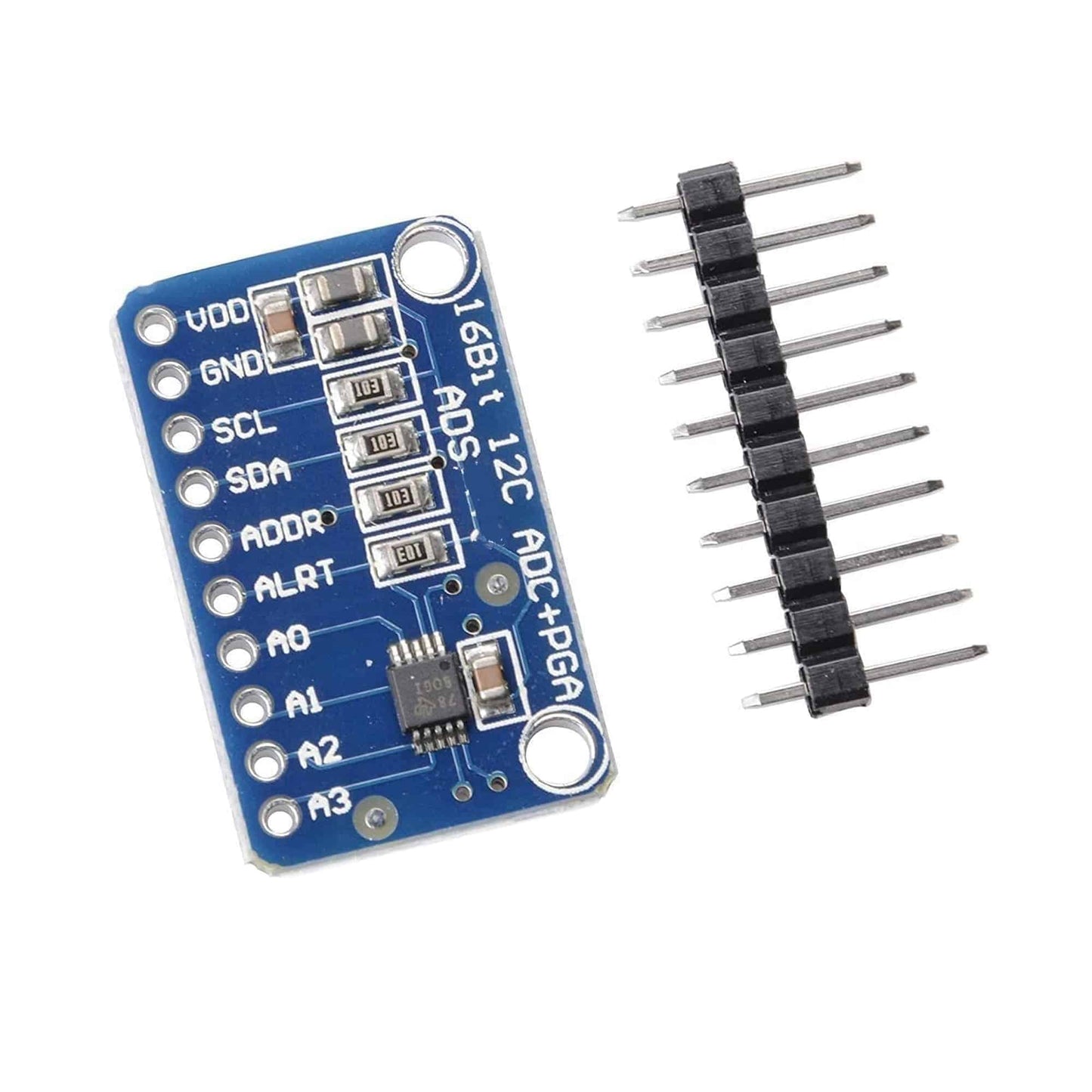

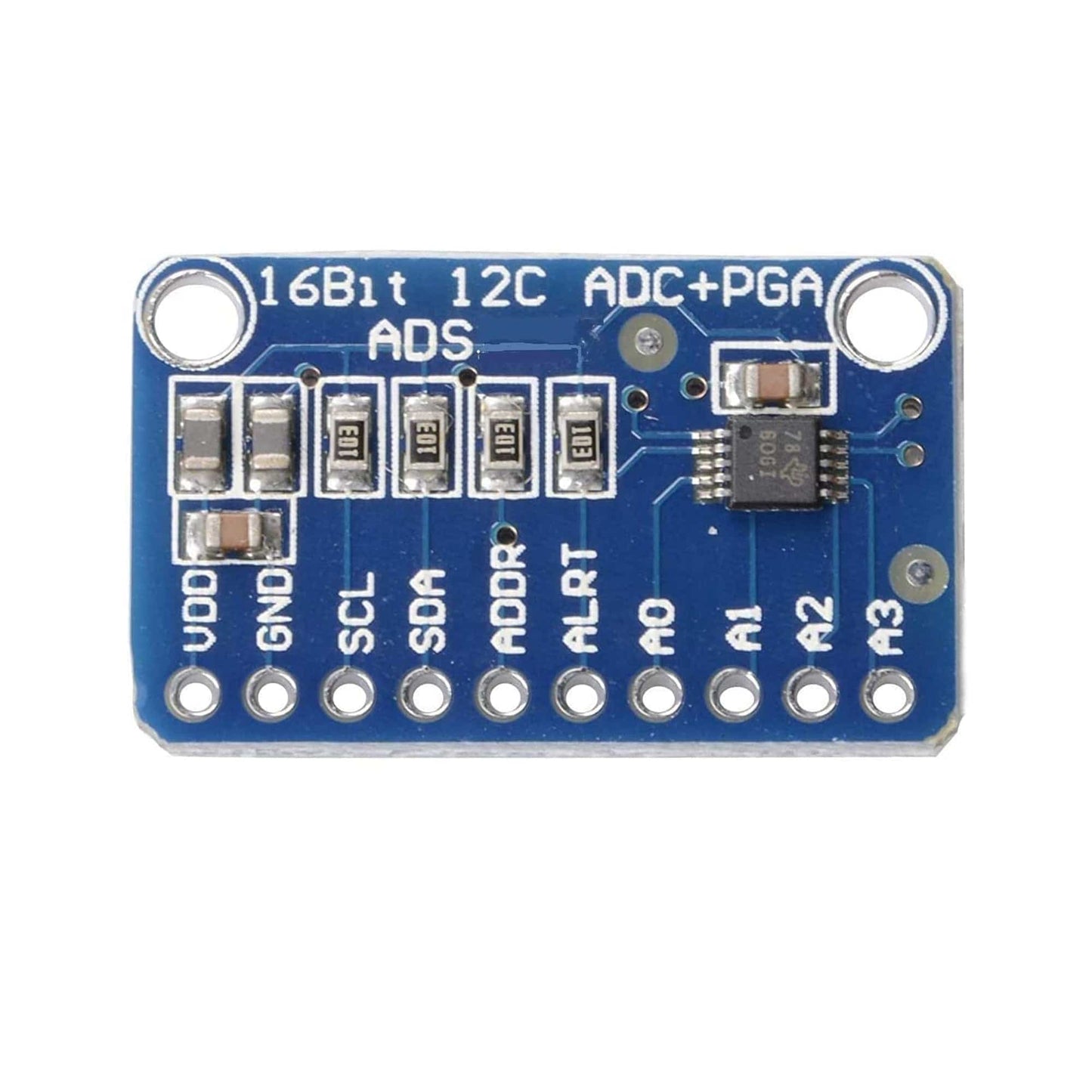

The ADS1115 chip is fairly small so it comes on a breakout board with ferrites to keep the AVDD and AGND quiet. Interfacing is done via I2C. The address can be changed to one of four options (see the datasheet table 5) so you can have up to 4 ADS1115s connect on a single 2-wire I2C bus for 16 single-end inputs.

Specifications:

  • Operating Voltage: 2~5.5V
  • ADC Bit Rate: 16-bit
  • Interface Type: I2C
  • Channels: 4 Channel AN0 AN1 AN2 AN3
  • Channel Input Voltage: 0-VDD
  • Continuous Mode: Only 150μA
  • Single-Shot Mode: Auto Shut Down
  • Programmable Data Rate: 8sps-860sps
  • Input range programmed control, 7 types input ranges: -0.256V ~ + 0.256V, -0.512V ~ + 0.512V, -1.024V ~ + 1.024V, -2.048V ~ + 2.048V, -4.096V ~ + 4.096 V, -6.144V ~ + 6.144V I2C 7-bit addresses between 0x48-0x4B

Applications:

  • Portable instrumentation
  • Consumer goods
  • Battery monitoring
  • Temperature measurement
  • Factory automation and process controls

Package Included:

1 x ADS1115 Gain Amplifier ADS1115 16-Bit ADC- 4 Channel with Programmable Gain Amplifier
