- Input Voltage: 8-60V
- Input Current: 0-15A
- Output Voltage: 10-120V
- Output Current: 0-15A
- Output Power: 900W(MAX)
- Conversion Efficiency: 85%
- Working Frequency: 150KHz
Description:

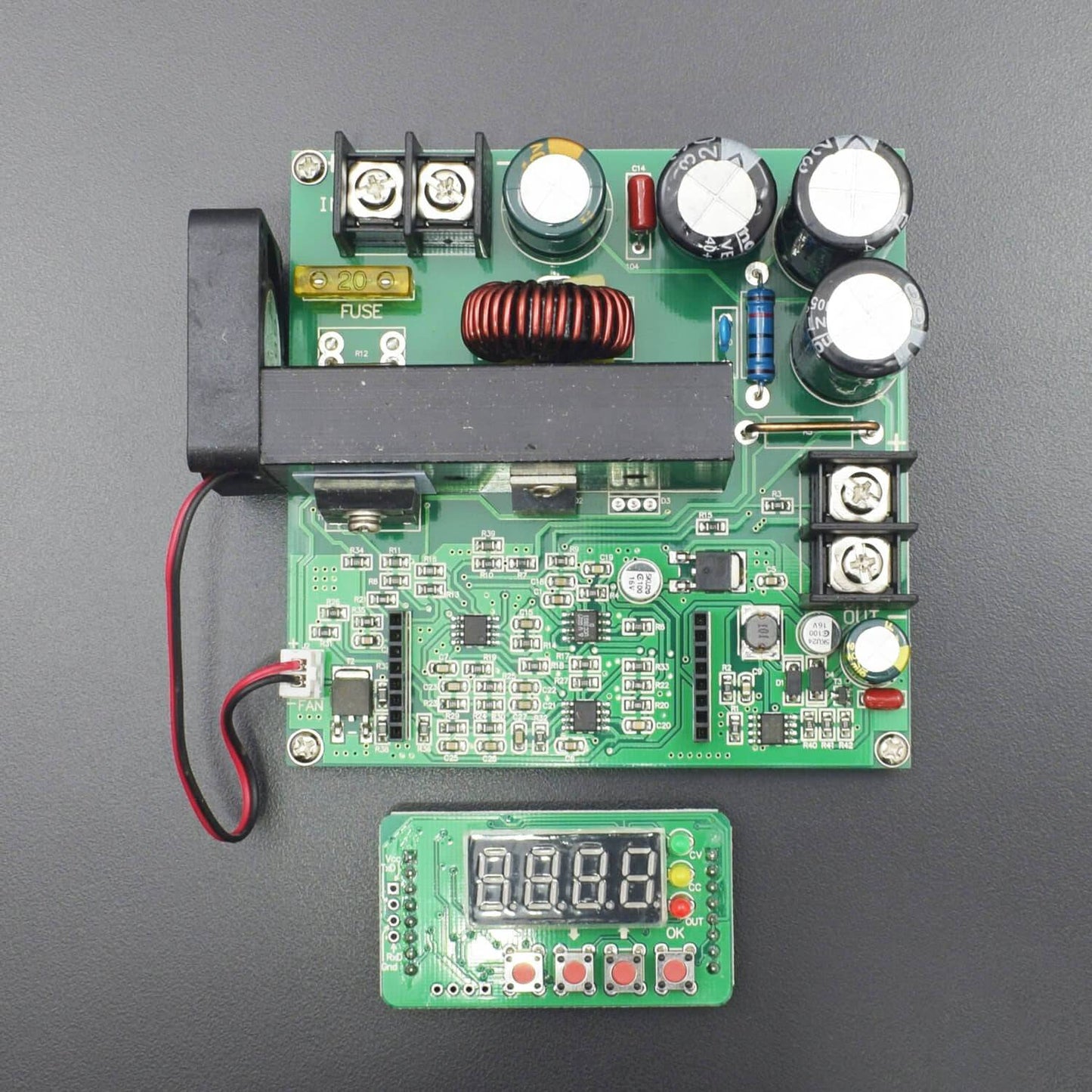

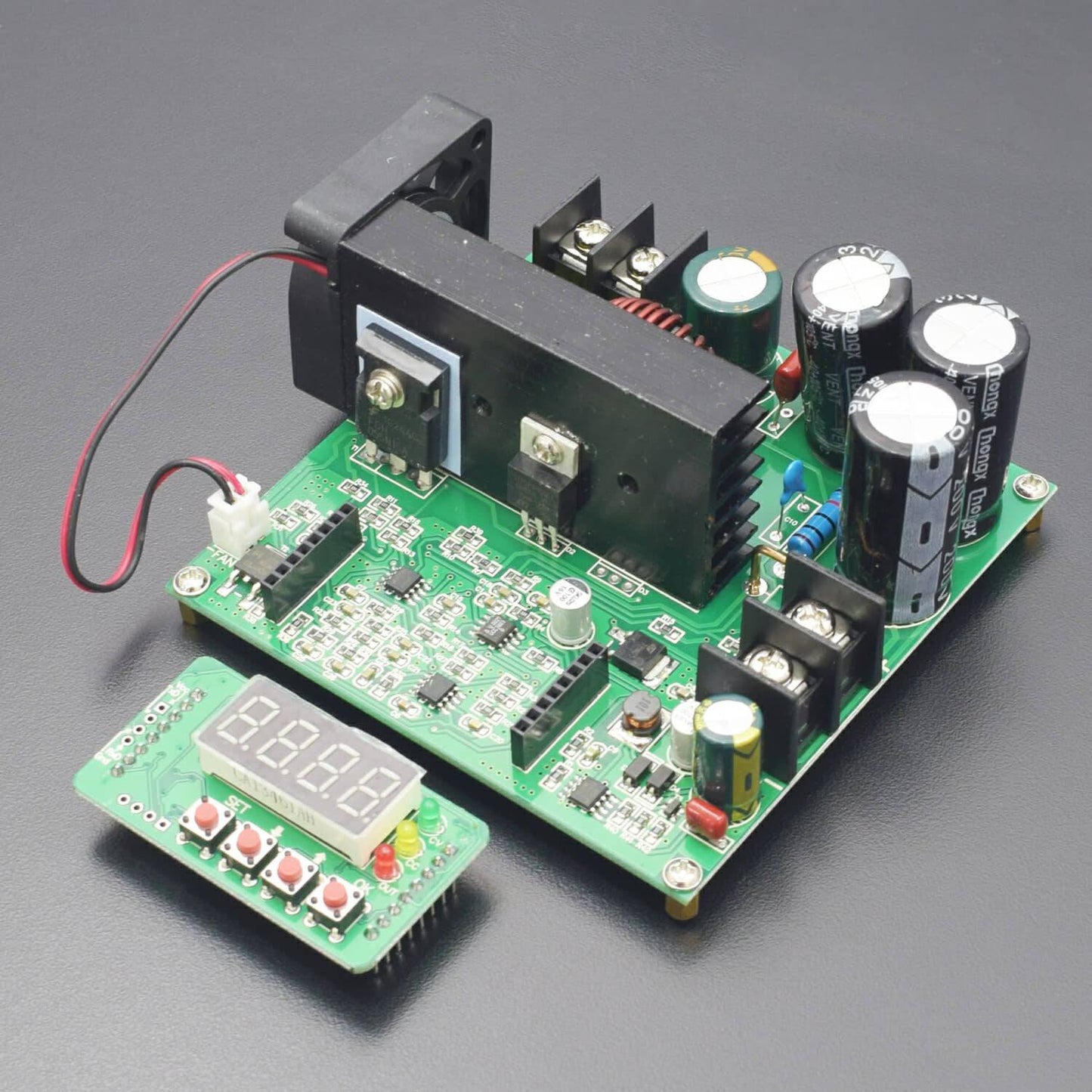

This is an adjustable DC 8-60V to 10-120V 900W numerical control CC CV step up module with LED Display & Heat sink Fan, maximum current is 15A, Constant Voltage Current. It has 4 digits brightness LED, can display output voltage, current, power and capacity and other parameters; Has OUT, CC, CV indicators, easy and convenient to check the working statues; 2 kinds of modes: simple mode and fully functional mode(default mode is simple mode).
Specification:
- Input voltage: 8-60V
- Input current: 0-15A
- Output voltage: 10-120V
- Output current: 0-15A
- Output power: 900W(MAX)
- Conversion efficiency: 85%
- Working frequency: 150KHz
- Short circuit protection: 20A fuse
- Operating temperature: -40℃-+85℃
- Control method: Numerical control+Digital tube monitor
- Voltage adjustment: <100V/0.01V
- Display resolution: >100V/0.1V
- Minimum resolution of power display: 0.001W
- Current adjustment: <10A/0.001A
- Display resolution: >10AS/0.01A
- Minimum resolution of capacity: 0.001AH
- Output ripple: ≤50mV
Features:
- Memory function, 10 sets of parameters can be saved.
- With OUT(output),CV(constant voltage),CC(constant current) indicators.
- Can manually set whether the booster output automatically when power on or not.
Package Included:
1 x Voltage Regulator Step Up Module Adjustable 8-60V to 10-120V 15A Output 48V 24V 12V with LED Display & Heatsink Fan
