Description:

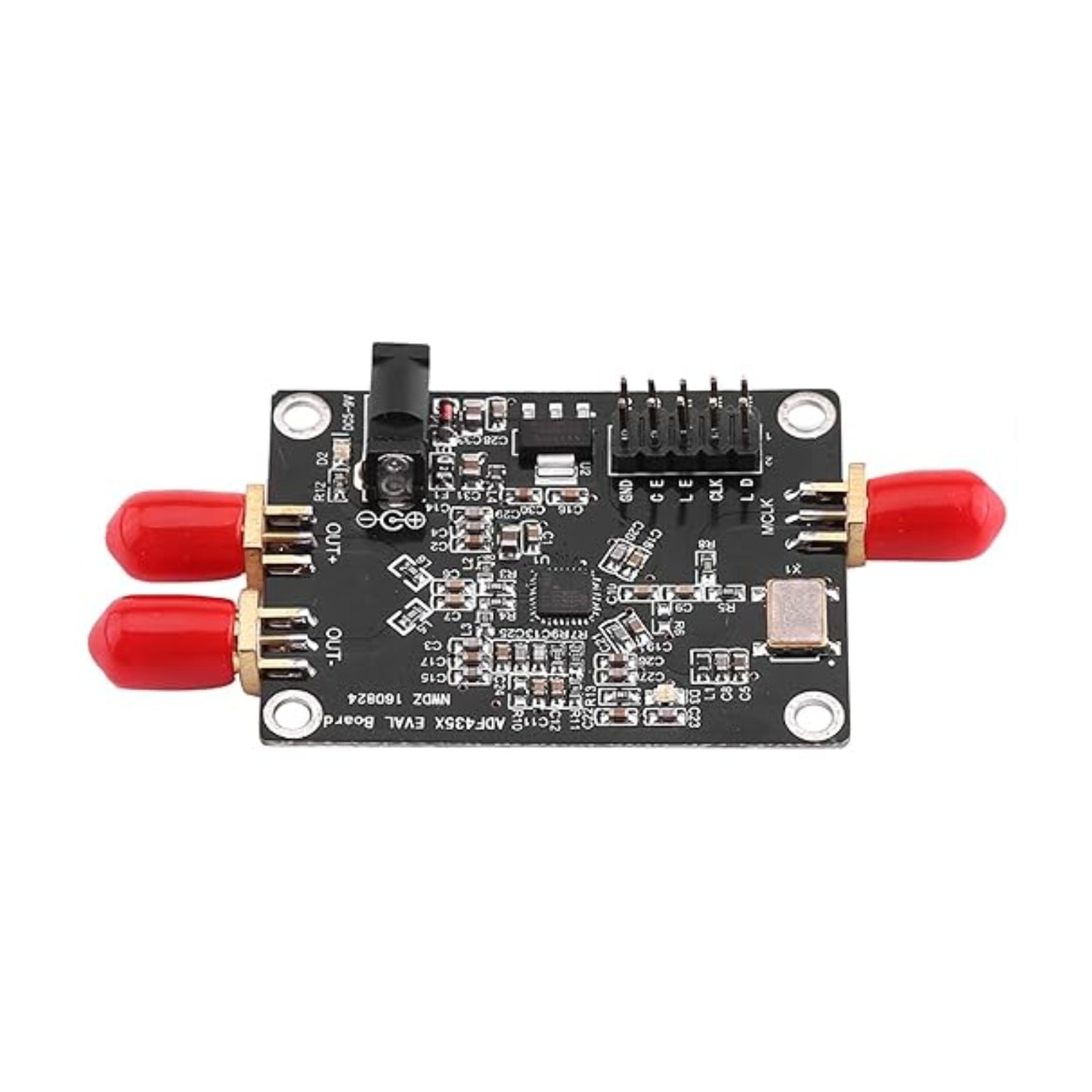

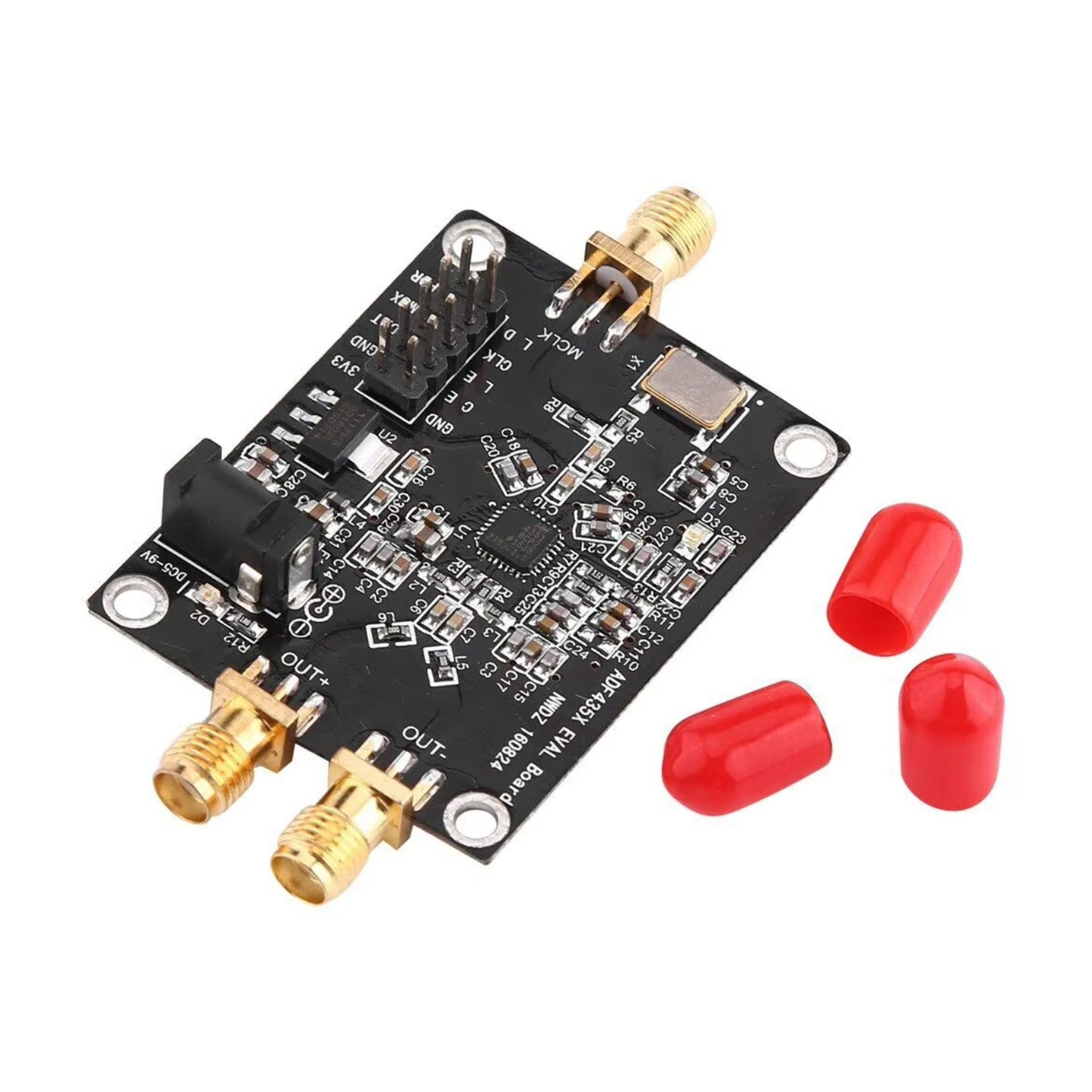

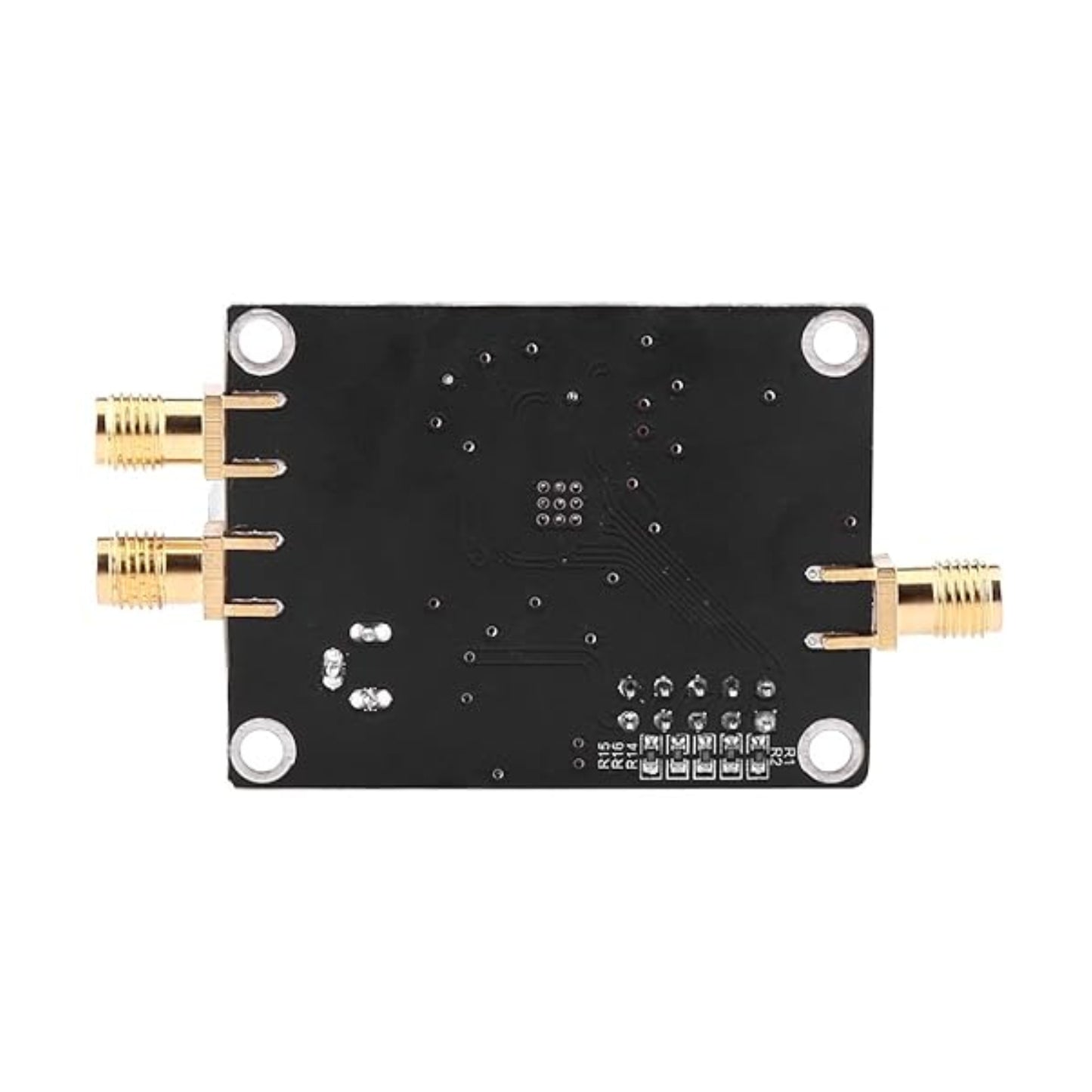

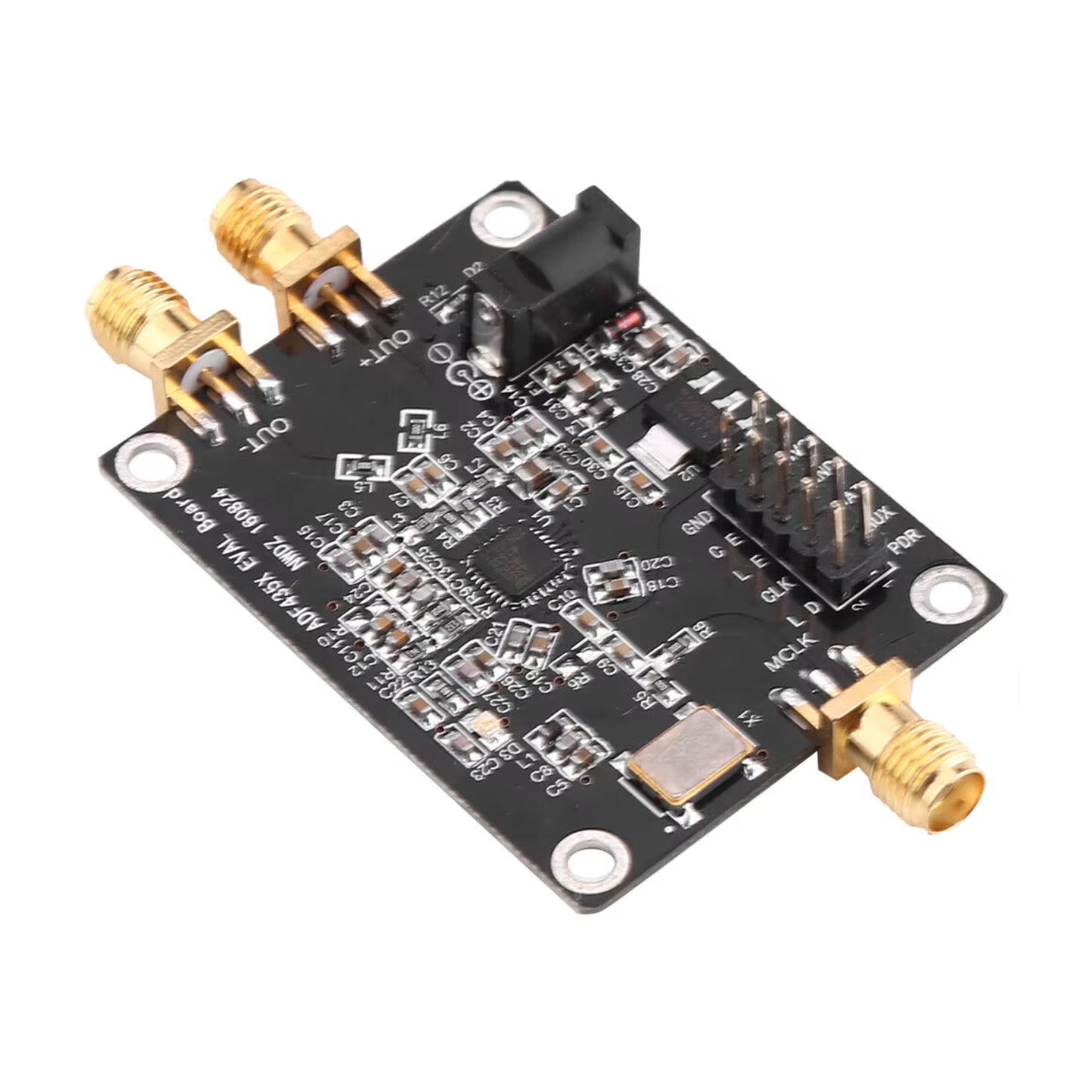

This ADF4351 Signal Source Development Board Adopts a three-wire serial peripheral interface design to provide easy operation. The three-wire SPI leads to the control pin and the state-lock pin, which can achieve all the features including point frequency sweep and frequency hopping, and according to the crystal frequency, the step frequency can be from 0.1K to 1K.
This RF Signal Generator Module is easy and convenient to operate. It can be controlled by the official software of the upper computer, so you can easily control it, and all the control pins are driven by three-wire SPI for convenient operation, you can control it via three-wire SPI easily.
Specifications:
- Model: ADF4351
- Material: Metal
- Colour: Black
Features:
- ADF4351 signal source development board has a well-designed circuit board layout.
- There is a default +-50ppm 25M active crystal oscillator, with which the circuit diagram in PDF format and STM32 test program are provided.
- ADF4351 RF Frequency Generator can be controlled by the upper computer official software.
- ADF4351 RF Signal Generator Kit is All control pins are led out for convenient operation.
Package Included:
1 x ADF4351 Signal Source Development Board RF Signal Generator Module With High Performance PLL And 35M-4400M RF Frequency Synthesizer For Wireless Communication And Test Applications
