Description:

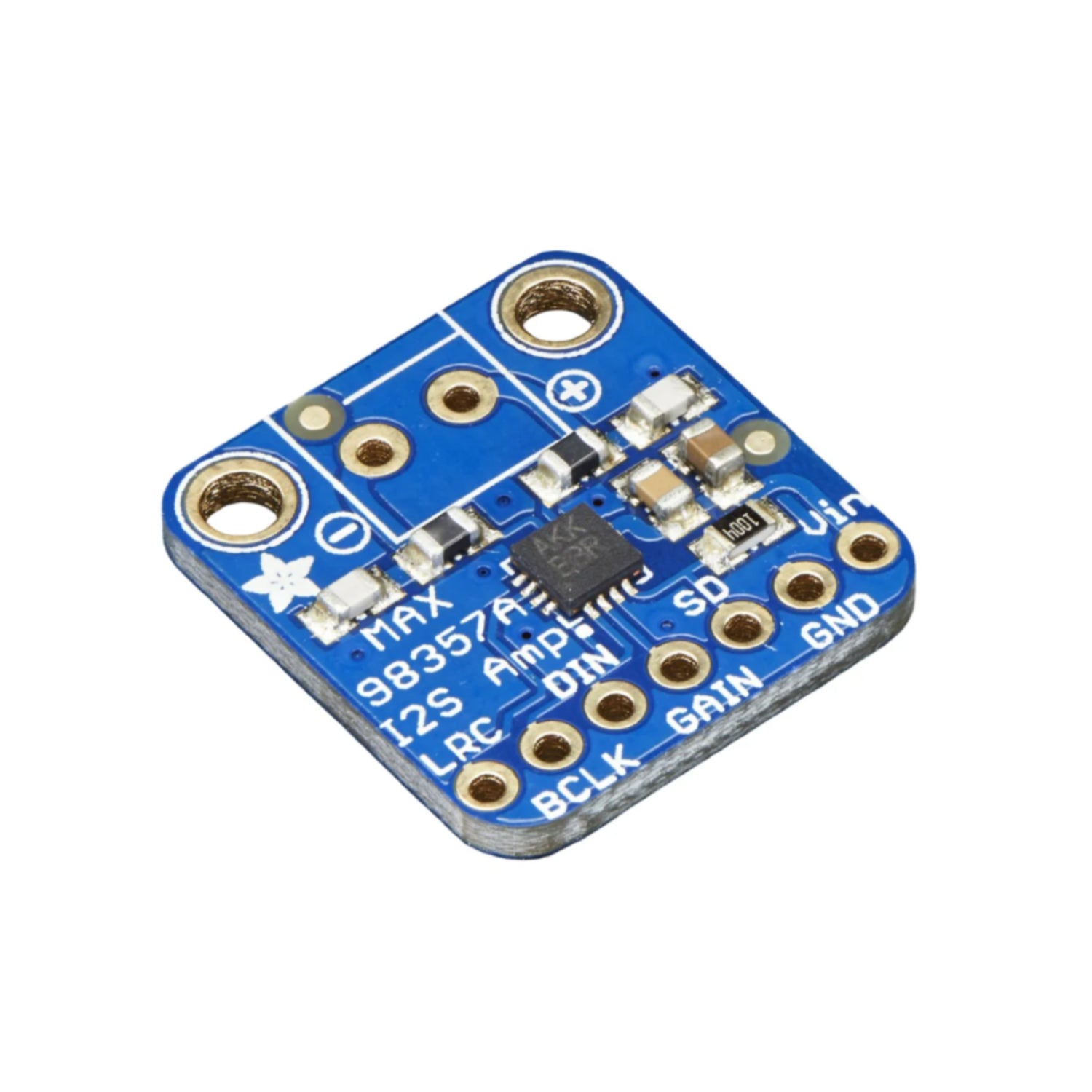

The Adafruit MAX98357A I2S Amplifier Board is a versatile audio amplifier designed for easy integration into your projects. This MAX98357A Amplifier Board is a compact board that features a powerful MAX98357A chip, capable of delivering up to 3 watts of audio output. With its I2S digital audio input, it's simple to connect to a variety of audio sources like microcontrollers, Raspberry Pi, and more. Perfect for I2S Class D Amplifier is creating small, battery-powered audio devices or adding sound to your existing projects.
Adafruit MAX98357A I2S 3W Class D Audio Amplifier Breakout saves time and effort with this pre-assembled audio solution. It adds impressive sound to your projects without the complexity. Create professional-quality audio output with ease and expand your project's capabilities with powerful audio amplification.
Specifications:
- Modal: MAX98357A
- Colour: Blue
- Amplifier Type: Class D
- Output Power: 3W (peak)
- Input: I2S digital audio
- Power Supply: 2.7V to 5.5V
Features:
- I2S sample rates from 8kHz to 96kHz
- No MCLK required
- Click + Pop reduction
- Excellent click-and-pop suppression
- Thermal shutdown protection
- Five pin-selectable gains: 3dB, 6dB, 9dB, 12dB, 15dB
Package Included:

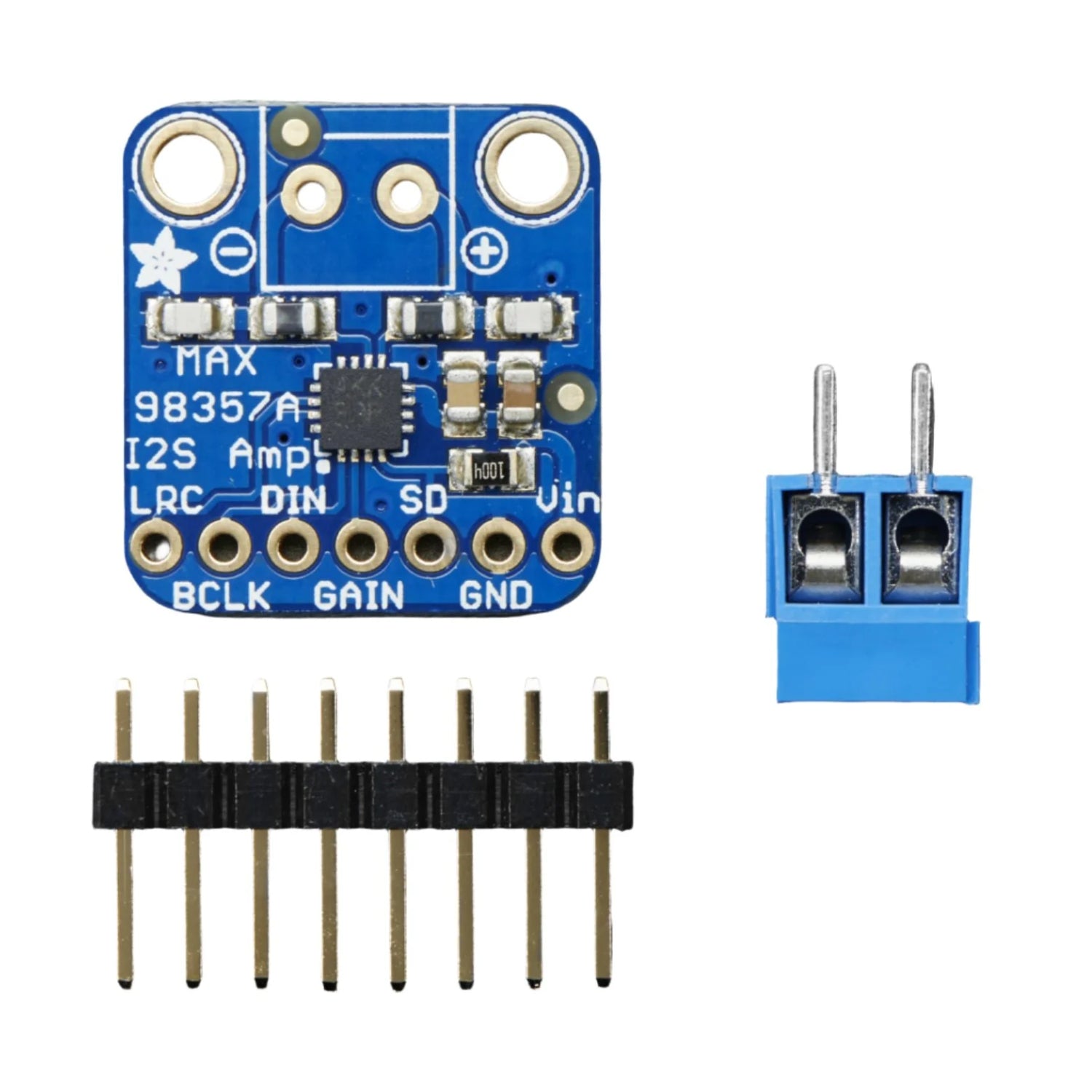

1 x Adafruit MAX98357A I2S Amplifier Board MAX98357A I2S 3W Class D Amplifier Breakout Board
