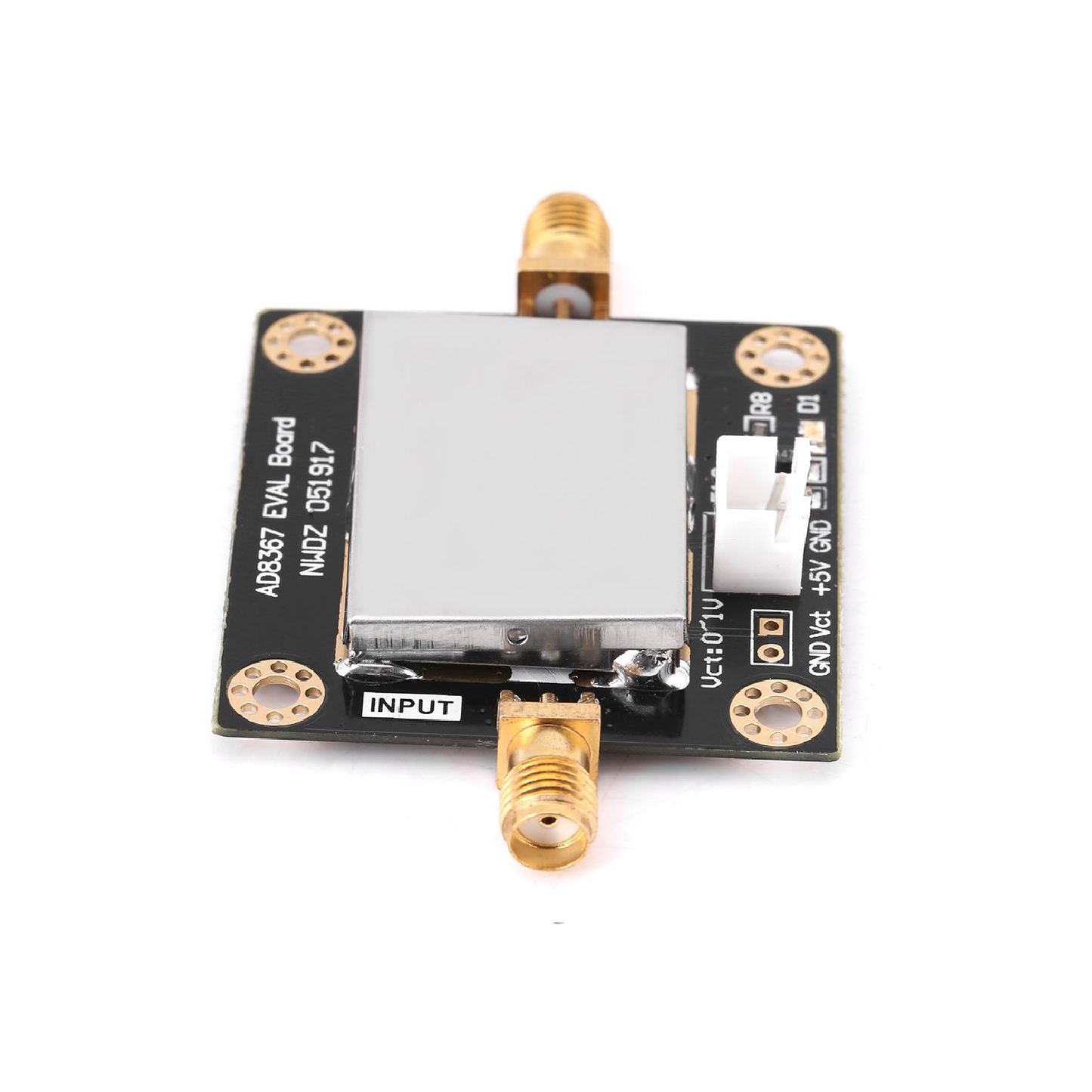

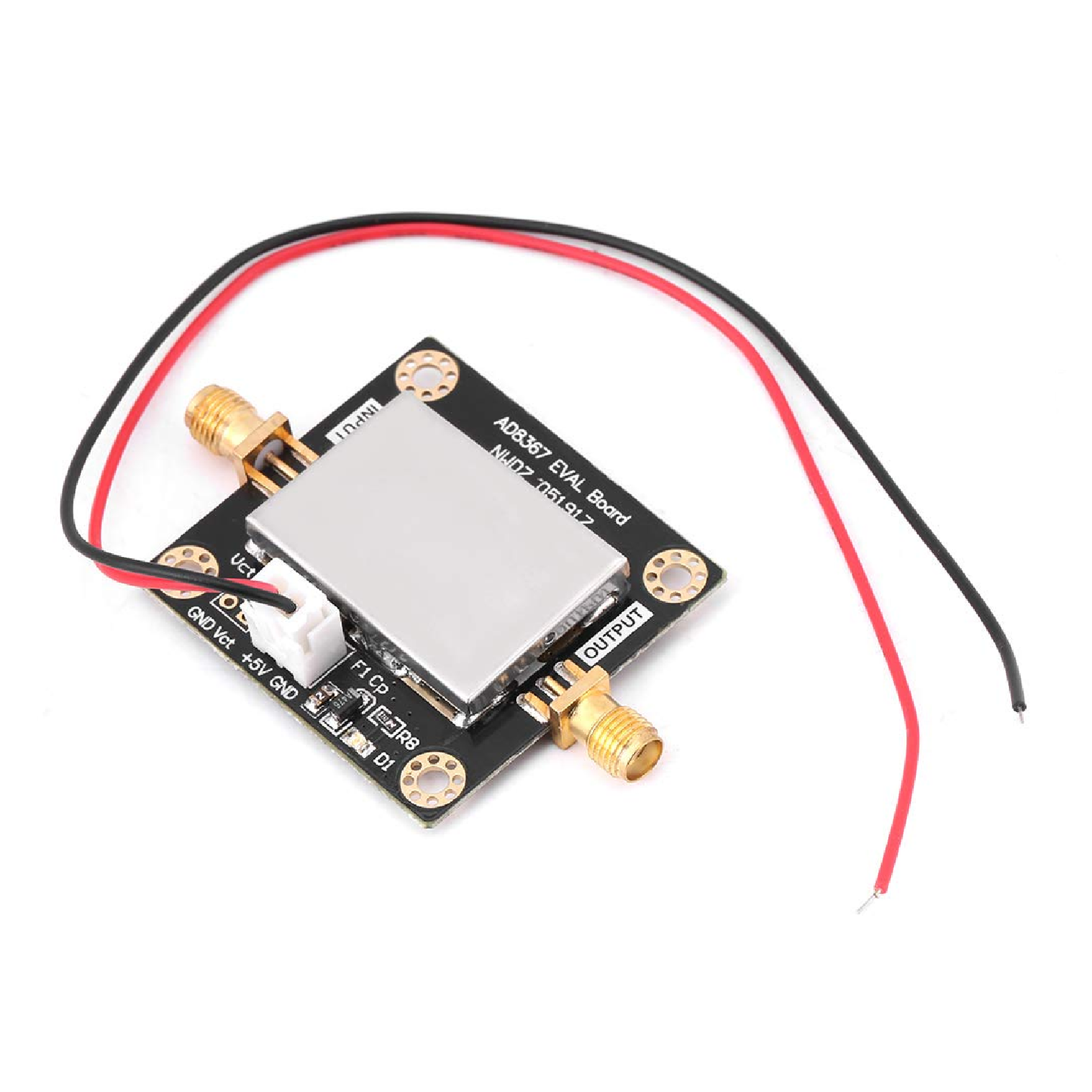

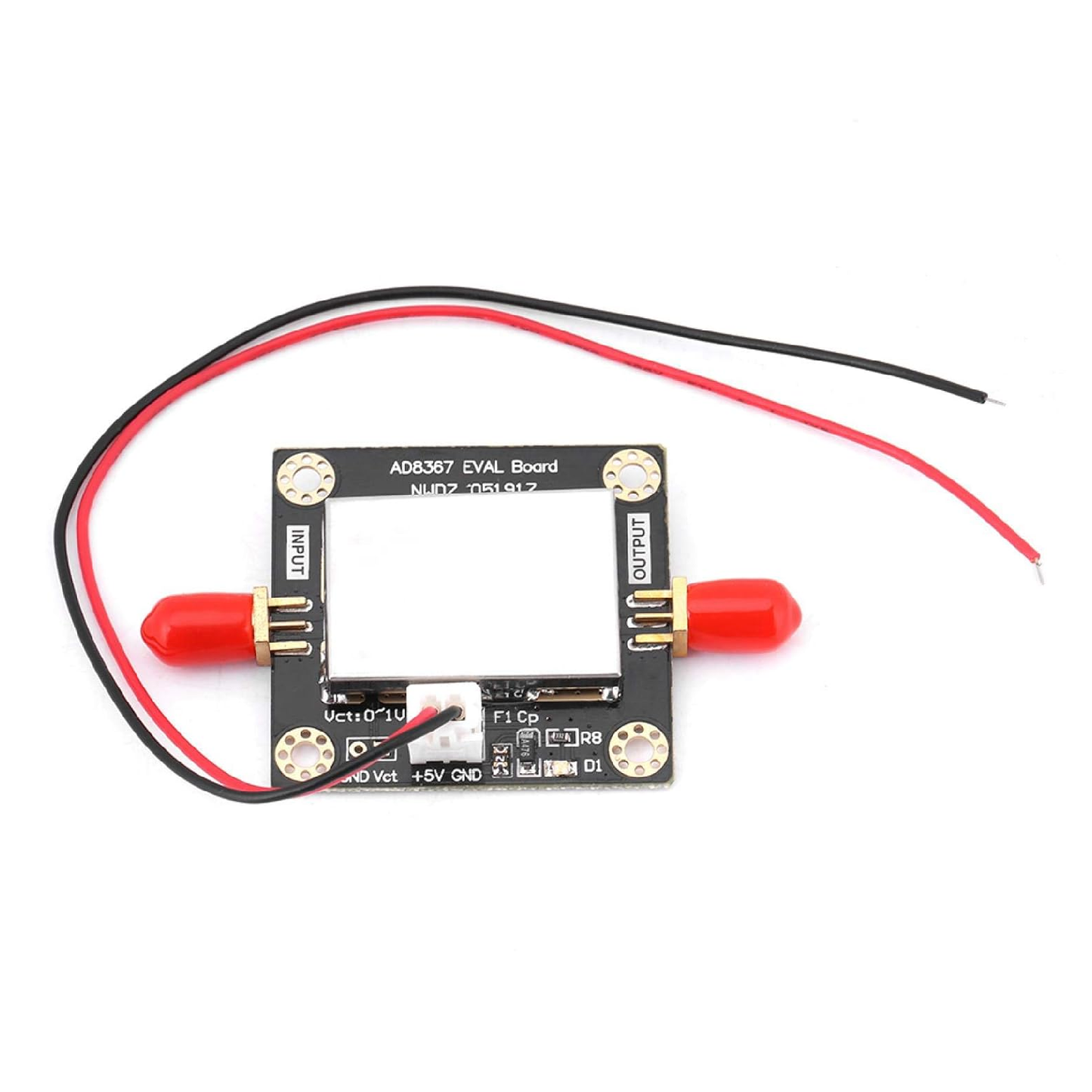

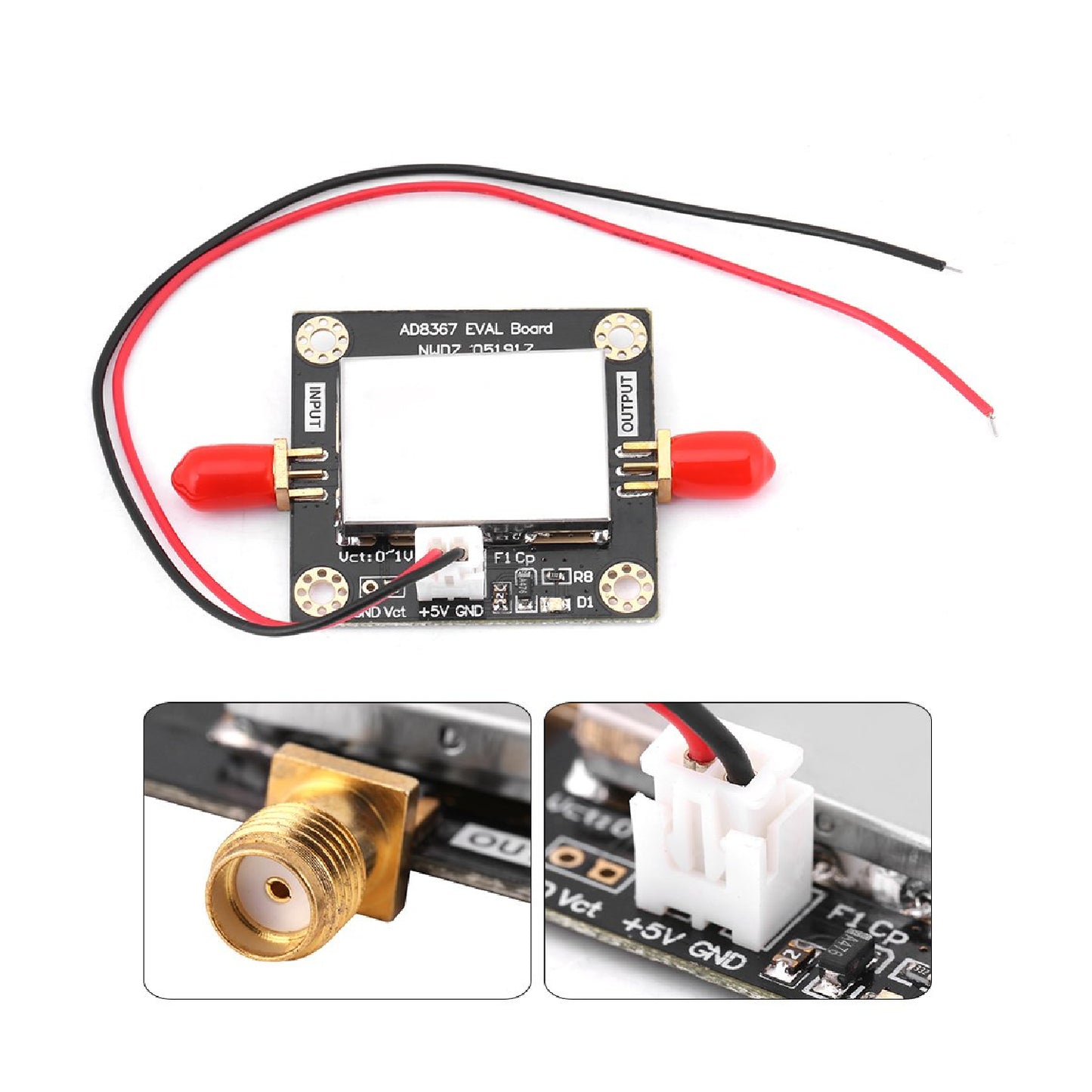

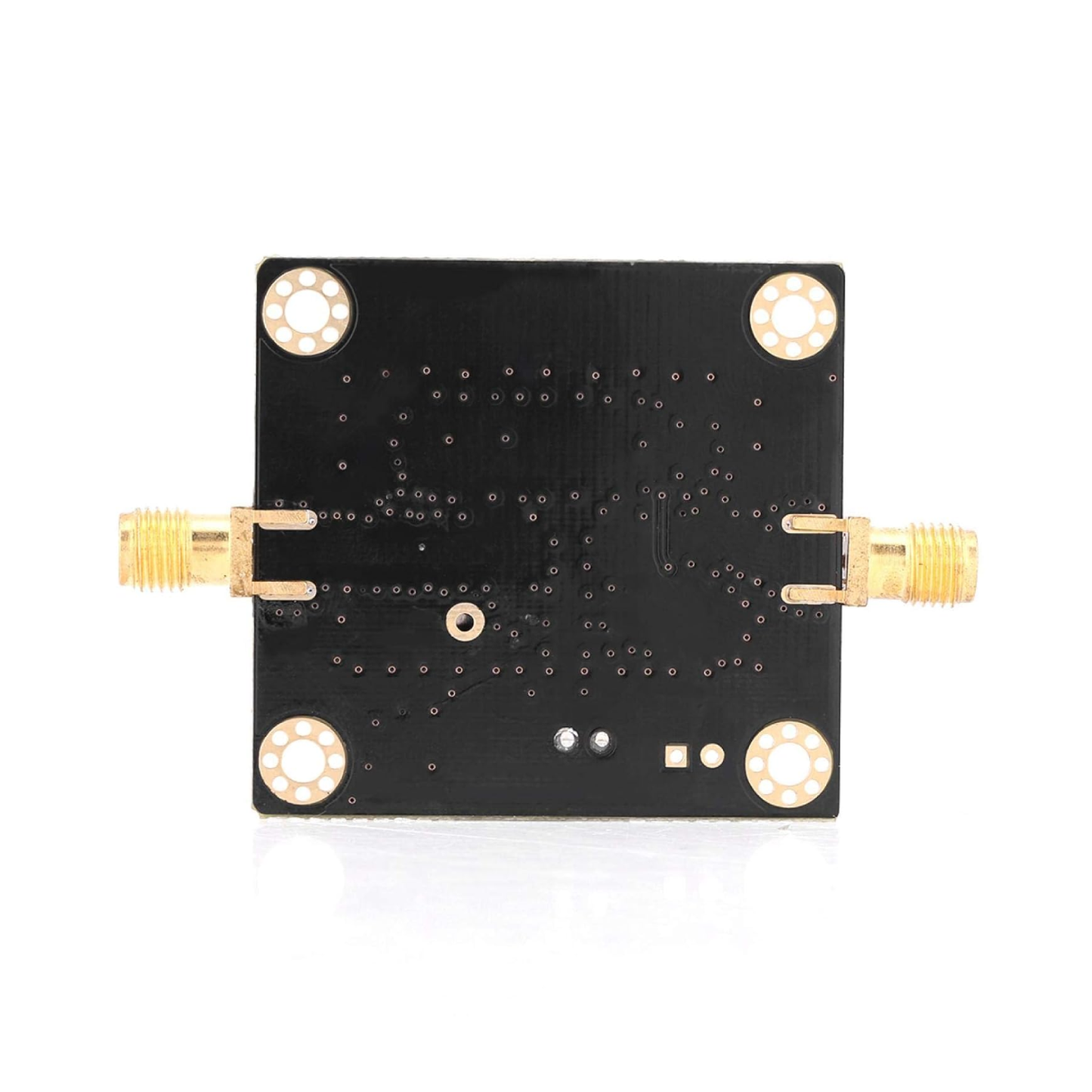

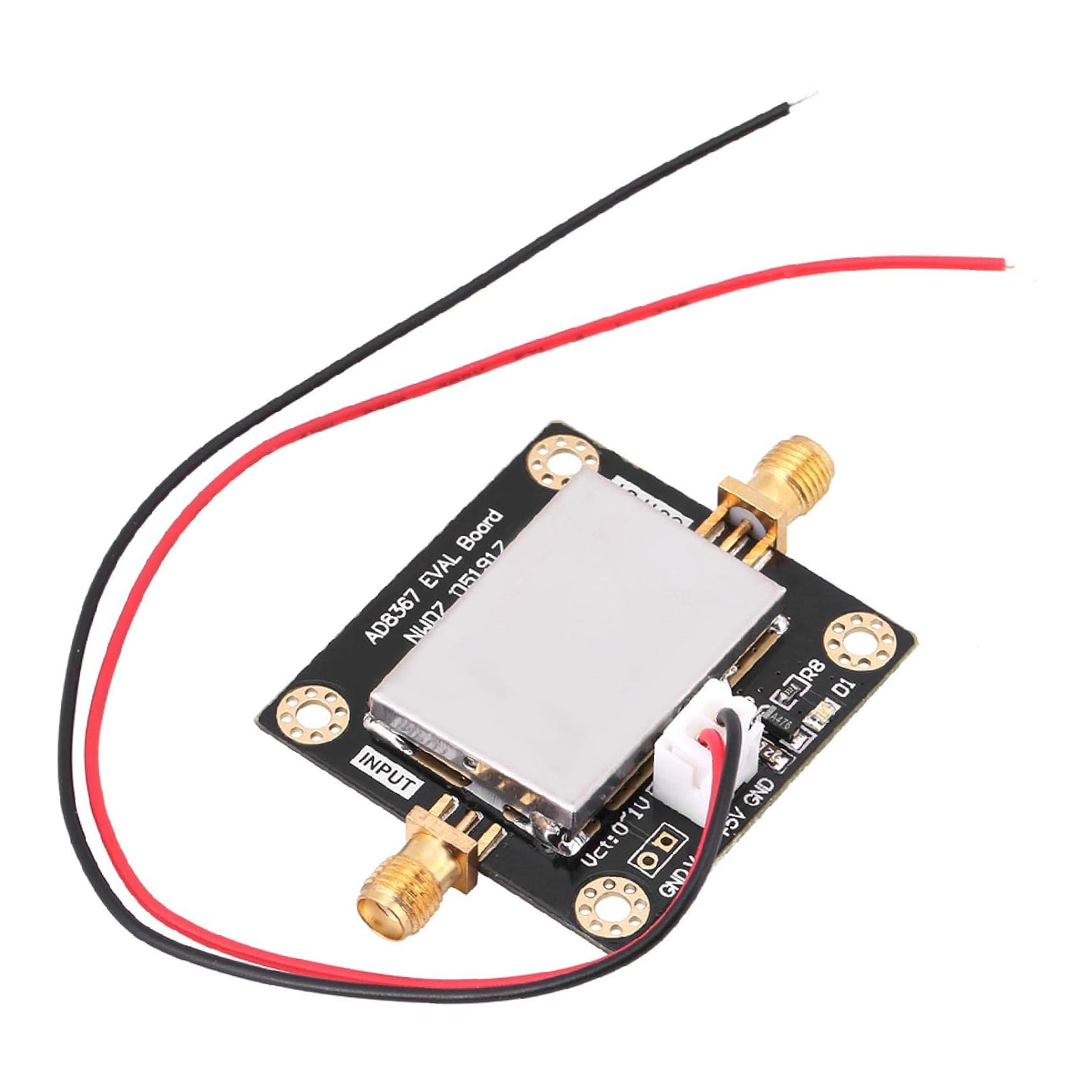

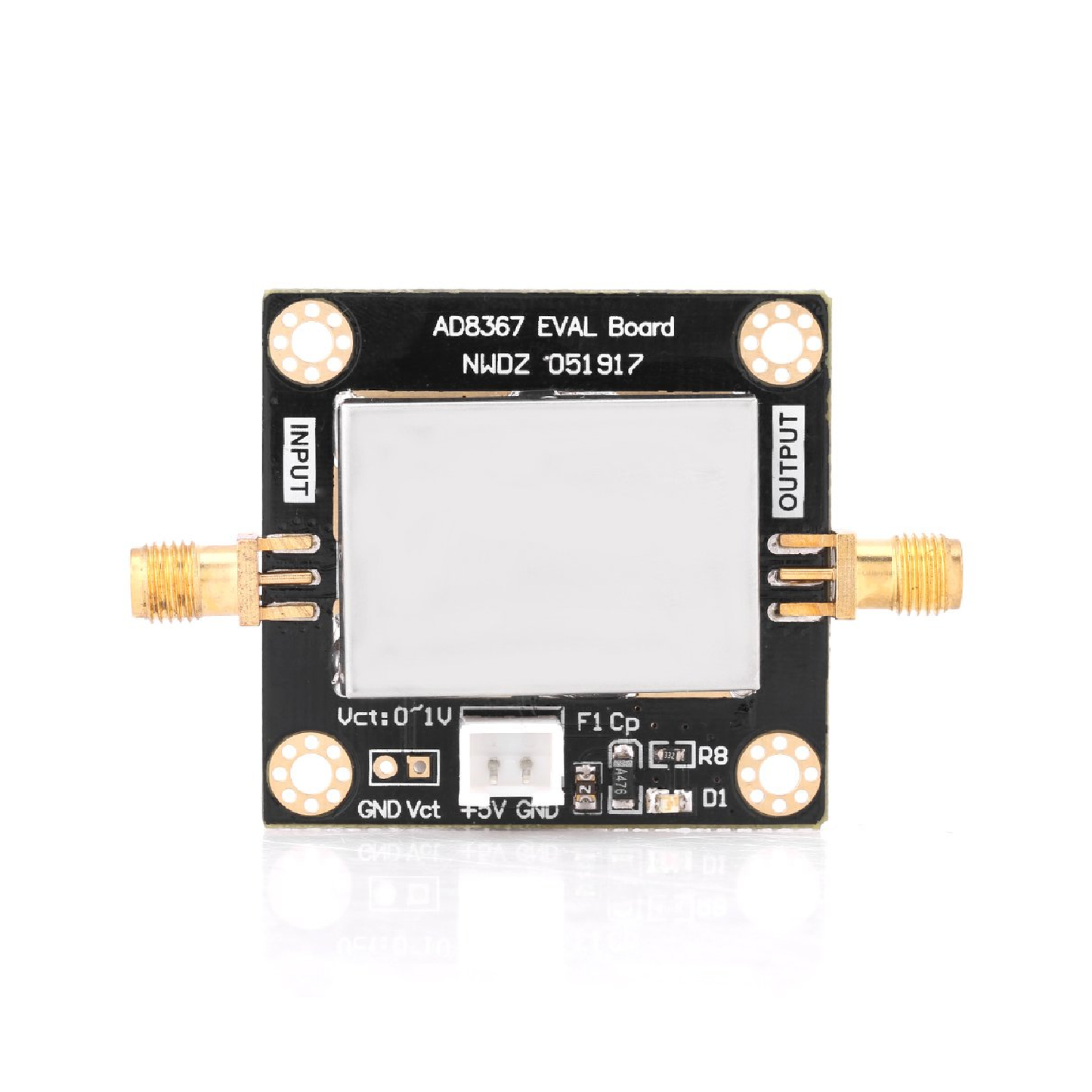

AD8367 500MHz Linear Variable Gain 45dB Low Noise Amplifier (LNA) Module High-Performance RF Low Distortion Module For Dynamically Controlled Amplification - RS5094

Description:

This RF Low Noise Amplifier is an on-chip integrated square root detector that can achieve single-chip AGC applications and it is also a VGA chip that enables single-chip closed-loop AGC. This chip features a high-performance 45dB variable gain amplifier that controls linear gain and operates stably from any low frequency to 500MHz.

This LNA Broadband uses AD advanced X-AMP structure which features excellent gain control and the amplifier module features ultra-low noise and high linearity characteristics

This High Gain Low Noise Amplifier Module features dB linear Gain control characteristics and the gain control features selection and power-down control and the operating frequency can be extended to any low frequency by an external capacitor very practical for use.

Specifications:

• CentimetersVoltage: 5
• Supply Voltage: 5
• Volts: Mounting
• Type: Surface Mount

Features:

• This Low Noise Amplifier adopts
• the input impedance is 200Î and the output impedance is 50Î you can use it within the ranges
• Single-end input, single-end output.
• The bandwidth of 3 dB is 500 MHz.
•  When the input is at zero level, the output level is half the supply voltage and is adjustable.
• Get function selection control and stop control.
• Integrated square root detector in the chip, can achieve single-chip AGC applications. Get linear dB control characteristics.
• The operating frequency can be extended to any low frequency through an external capacitor.

Package Included:

 1 x AD8367 Variable Gain LNA Module
