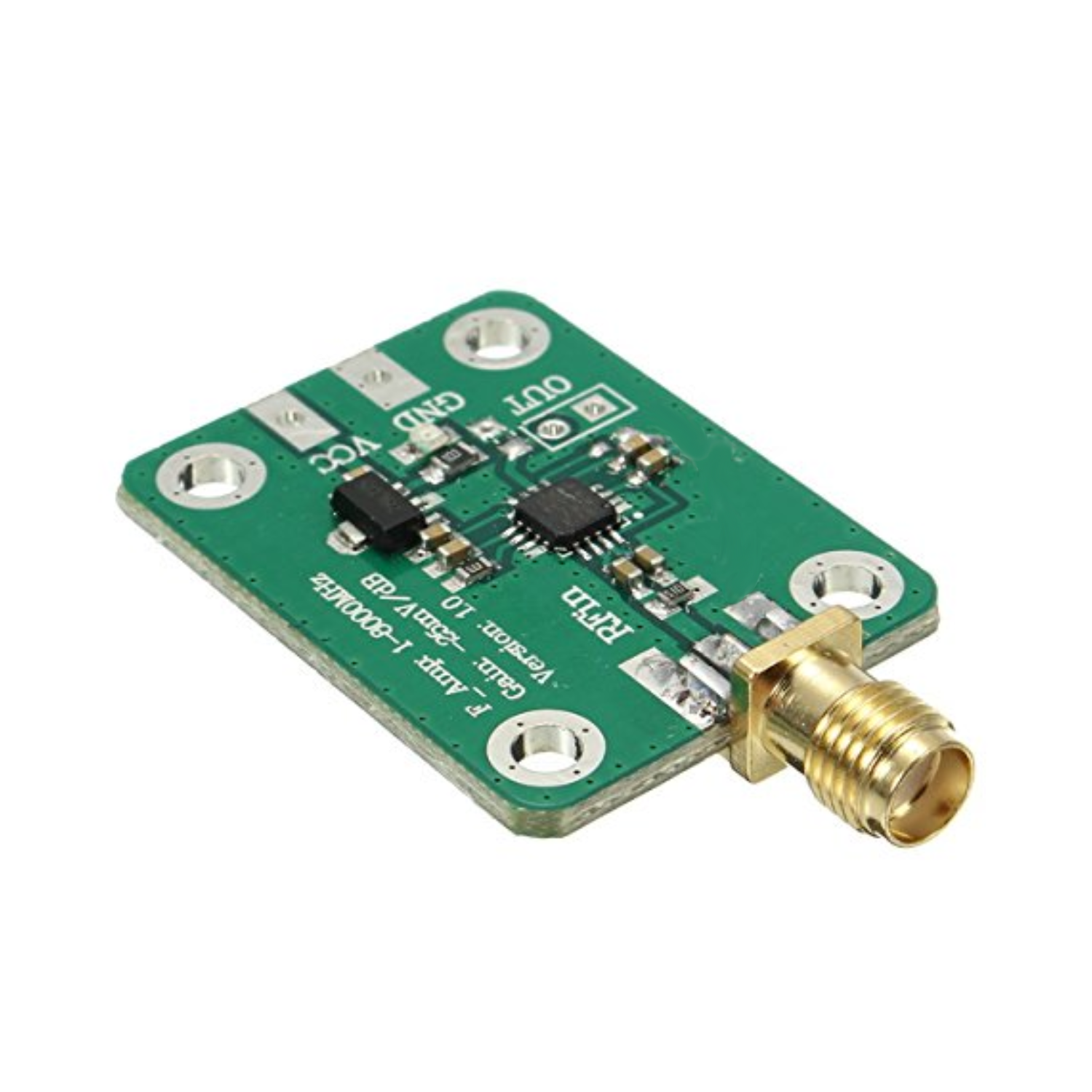

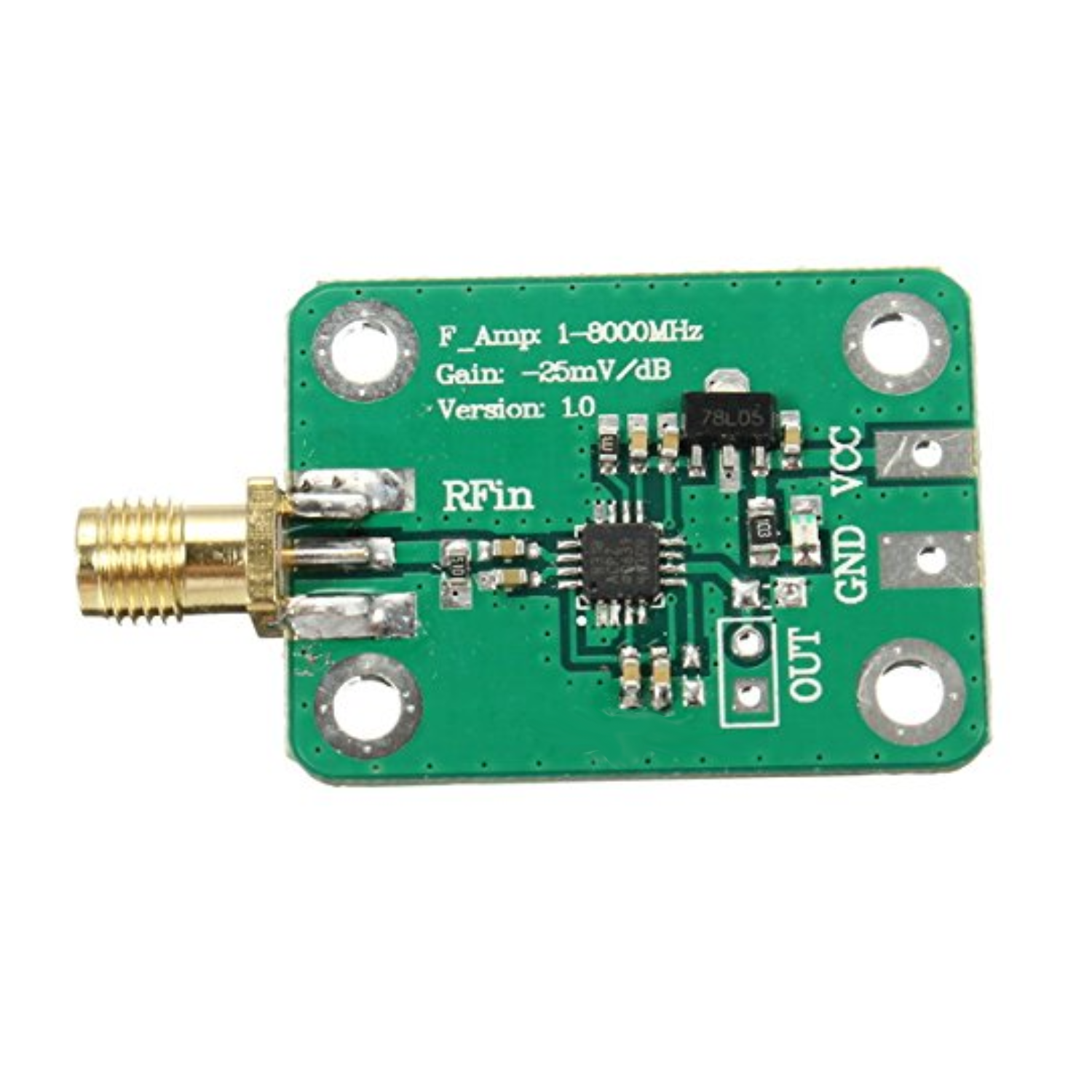

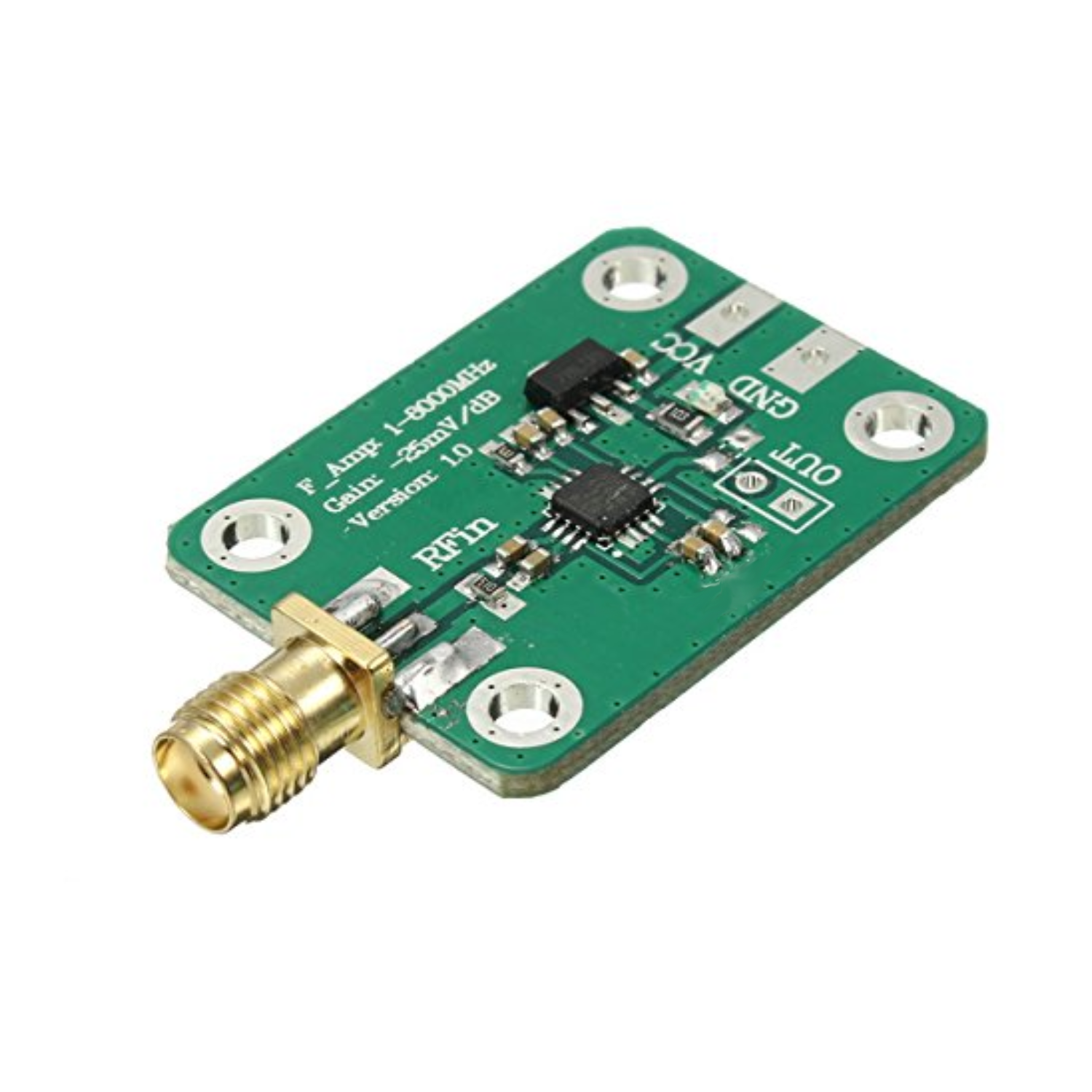

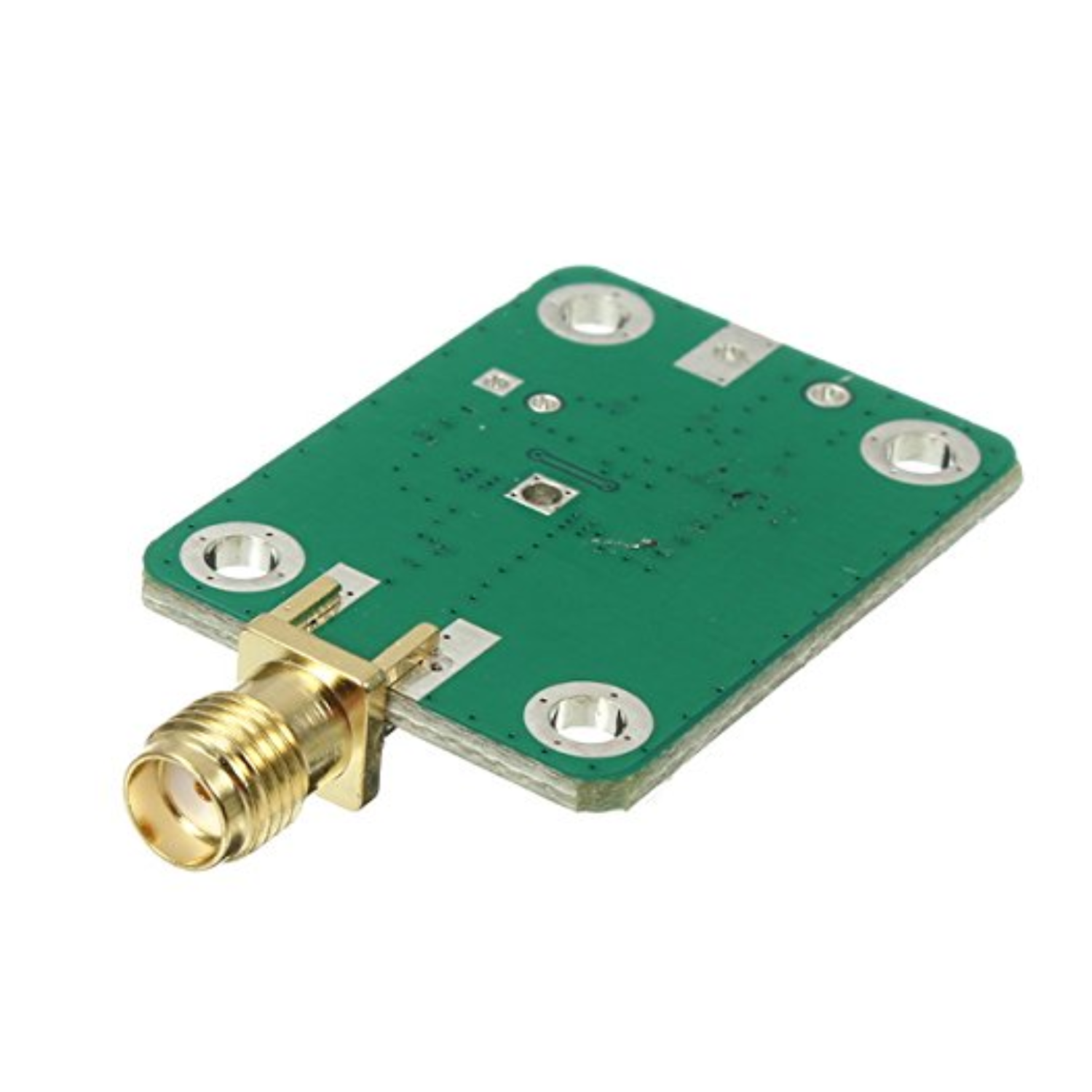

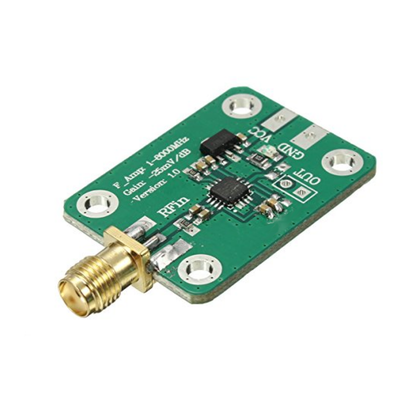

AD8318 RF Logarithmic Detector 1-8000MHz RF Logarithmic Detector 70dB RSSI Measurement Power Meter For Dynamometer - RS7403
AD8318 RF Logarithmic Detector 1-8000MHz RF Logarithmic Detector 70dB RSSI Measurement Power Meter For Dynamometer - RS7403
SKU:RS7403
Low stock: 6 left
Regular price
Rs. 1,459.00
Regular price
Sale price
Rs. 1,459.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:
The operating frequency range is 1-8000MHz, can detect -65 to 5dBm RF signal and with DC voltage output the detected signal strength (in dBm, logarithmic detection).
The RF signal is converted into a DC voltage output. RF signal corresponds to the amplitude or power of the output voltage. You can do signal strength indicator RSSI, spectrum analyzer, gain control.
Specification:
- Operating Frequency: 1-8000MHz
- Dynamic Range: -65dBm to + 5dBm
- Detection Slope: -25 mV / dB (Typical values)
- Detection Output Voltage Range: 0.5--2.1V
- Power Supply Voltage: 7-15VDC (containing the power regulator circuit)
- Input Impedance: 50 ohms

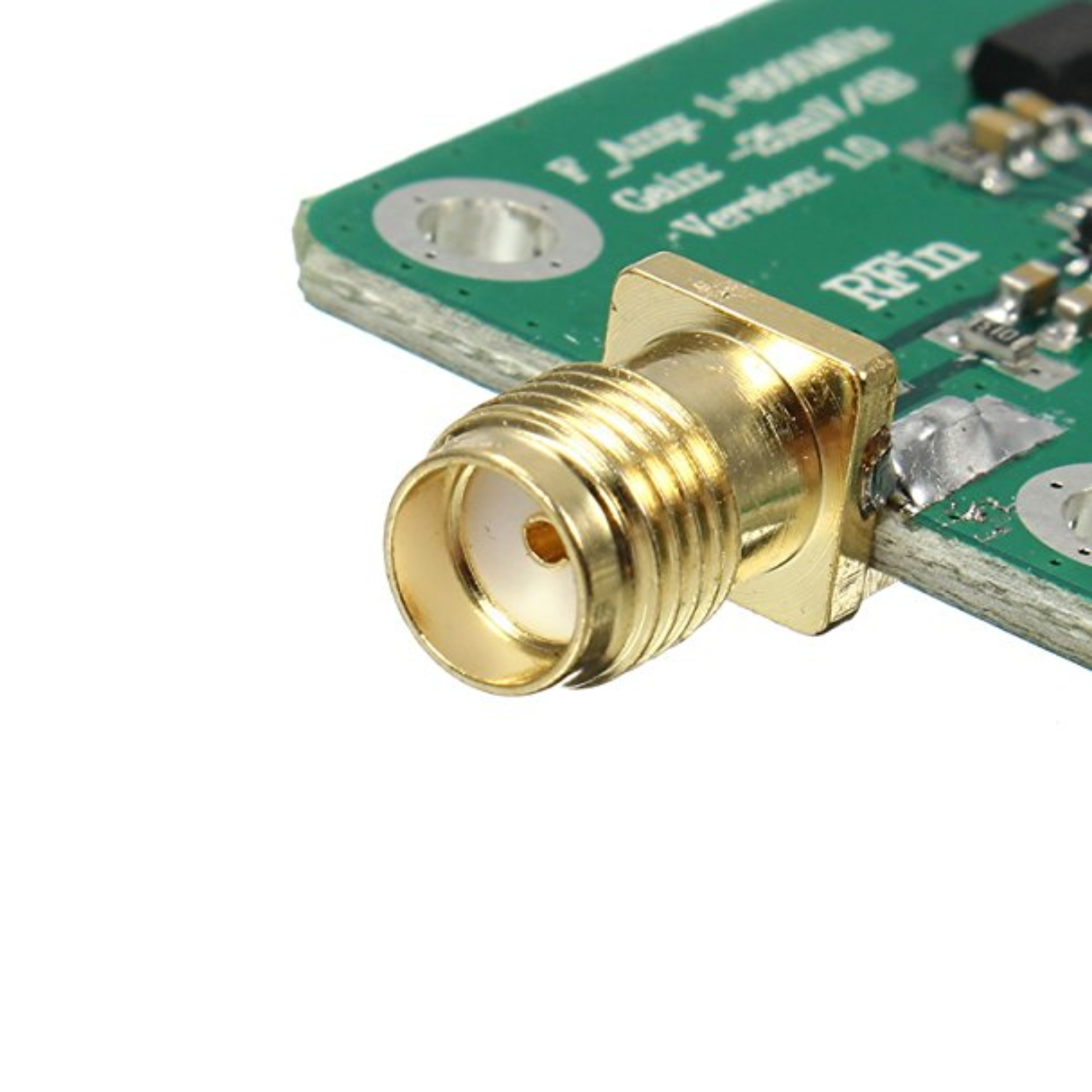

- RF Interface: Standard SMA Female
Package Included:
1 x AD8318 RF Logarithmic Detector
