Description:
The AD8310 RSSI Power Meter is a high-speed voltage-output logarithmic amplifier with a detection frequency range of DC to 440MHz. Has a very fast response time (typically 15 ns) and can be used as an ASK
demodulator for more than 10 MHz. 0.1-440 MHz Log Detector is also the best choice for higher precision IF signal measurement chips.
The detector output voltage is equivalent to the input signal dB output, and its applications include RSSI, transmit power control, and pulse detection
Specifications:
- Operating frequency: 0.1--440 MHz
- Detection slope: +24 mV / dB
- Detection intercept: -108 DBV
- Dynamic range: -77dBm to +18 dBm (95 dB)
- Linearity error: ± 0.4 dB
- Response time: 15nS
- Output voltage: 0.35 --- 2.5V
- Working current: 12mA
- Operating voltage: 7-15V (with LM78L05 regulator chip)
Features:
- The DC power supply is small and portable
- The product is easy to install and operate
-
This frequency detector is an ideal choice for equipment signal processing
- The product has been tested to the highest quality and the products are well tested.
Package Included:

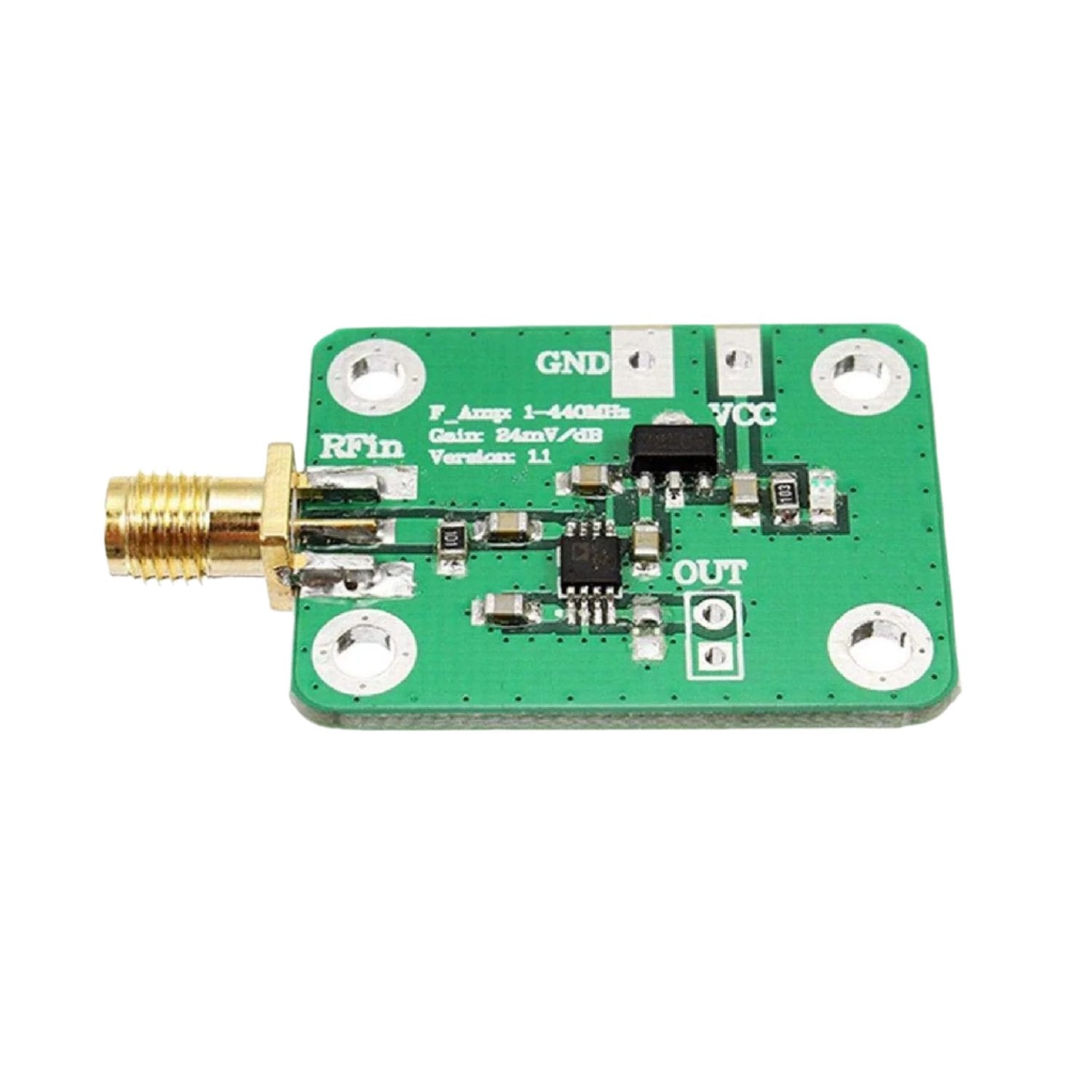

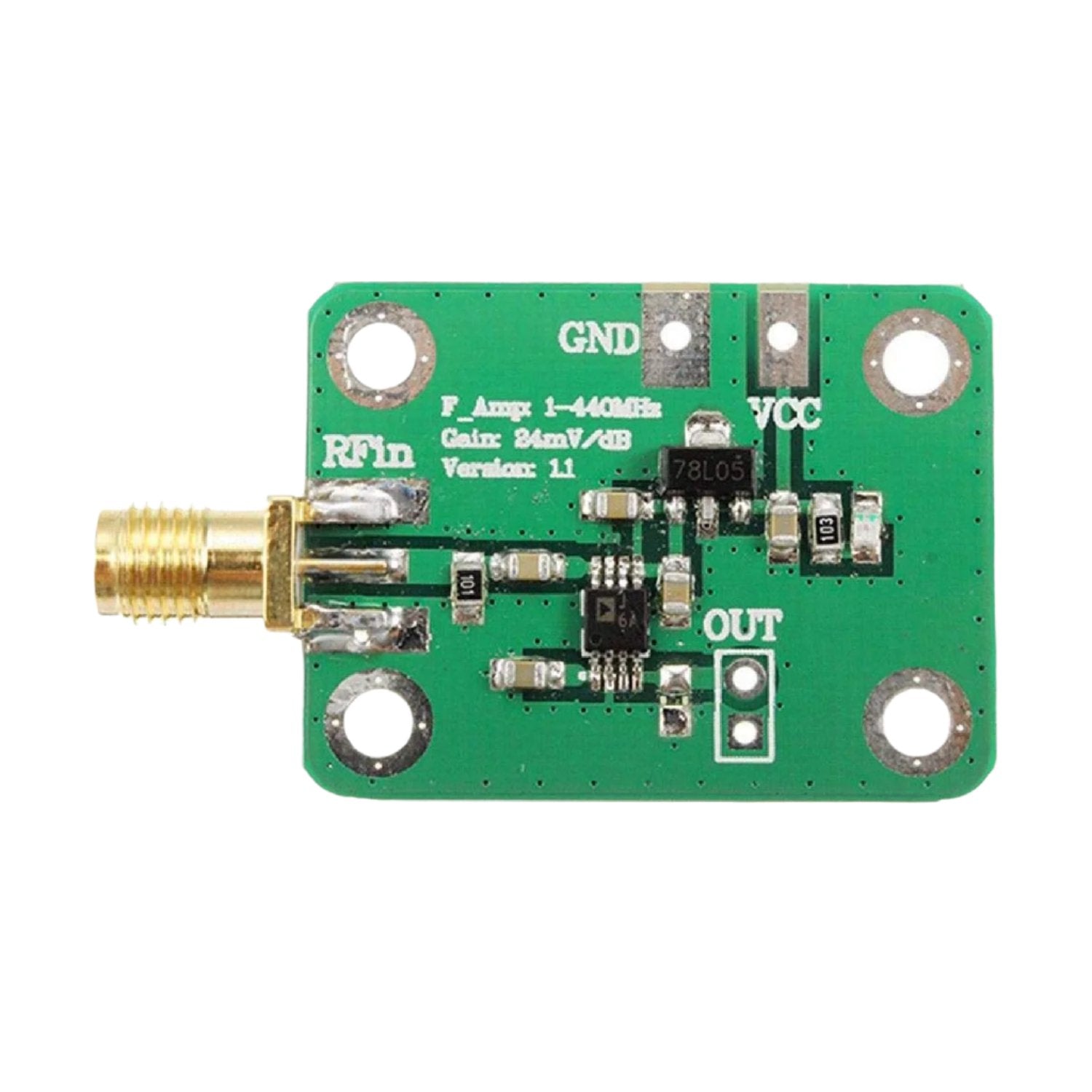

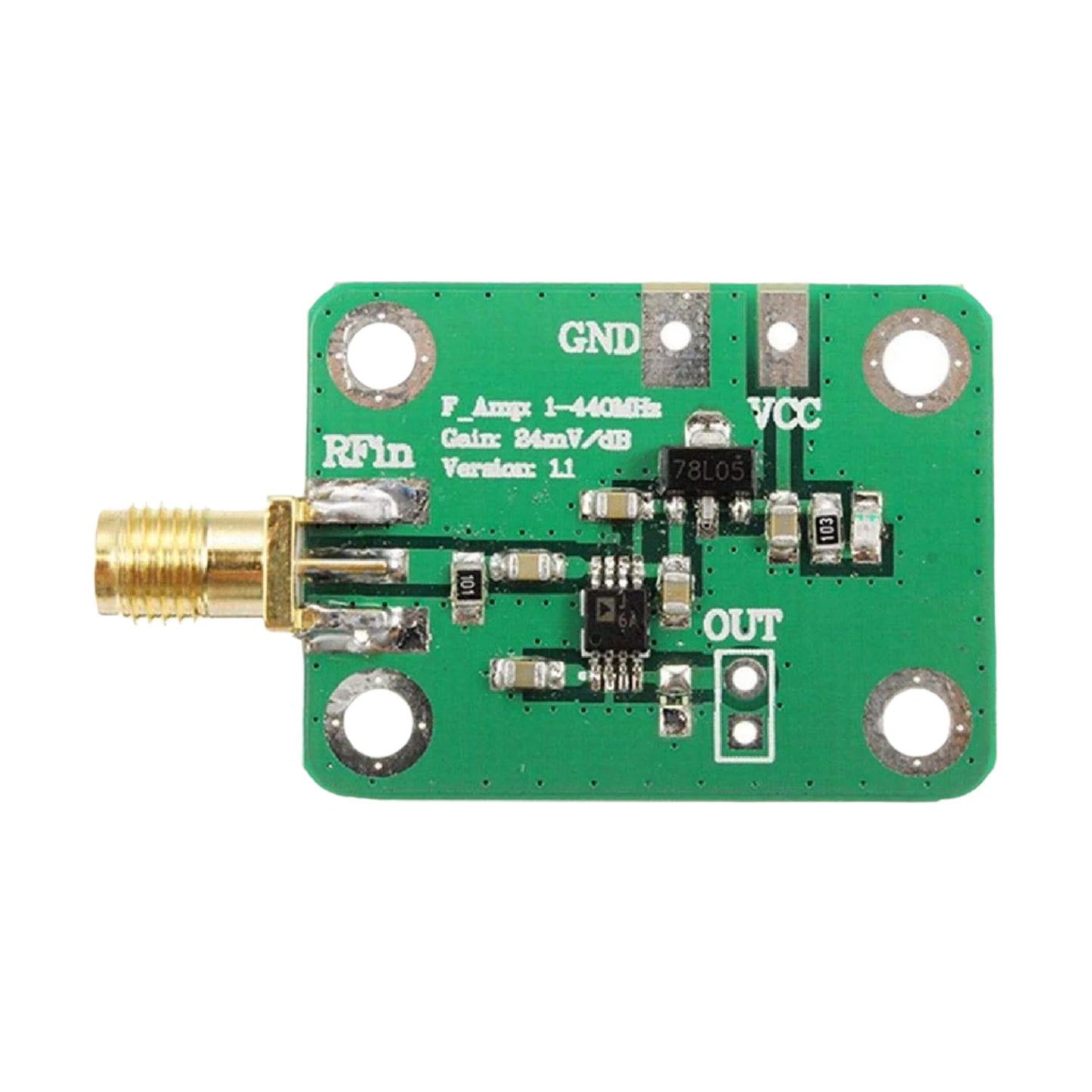

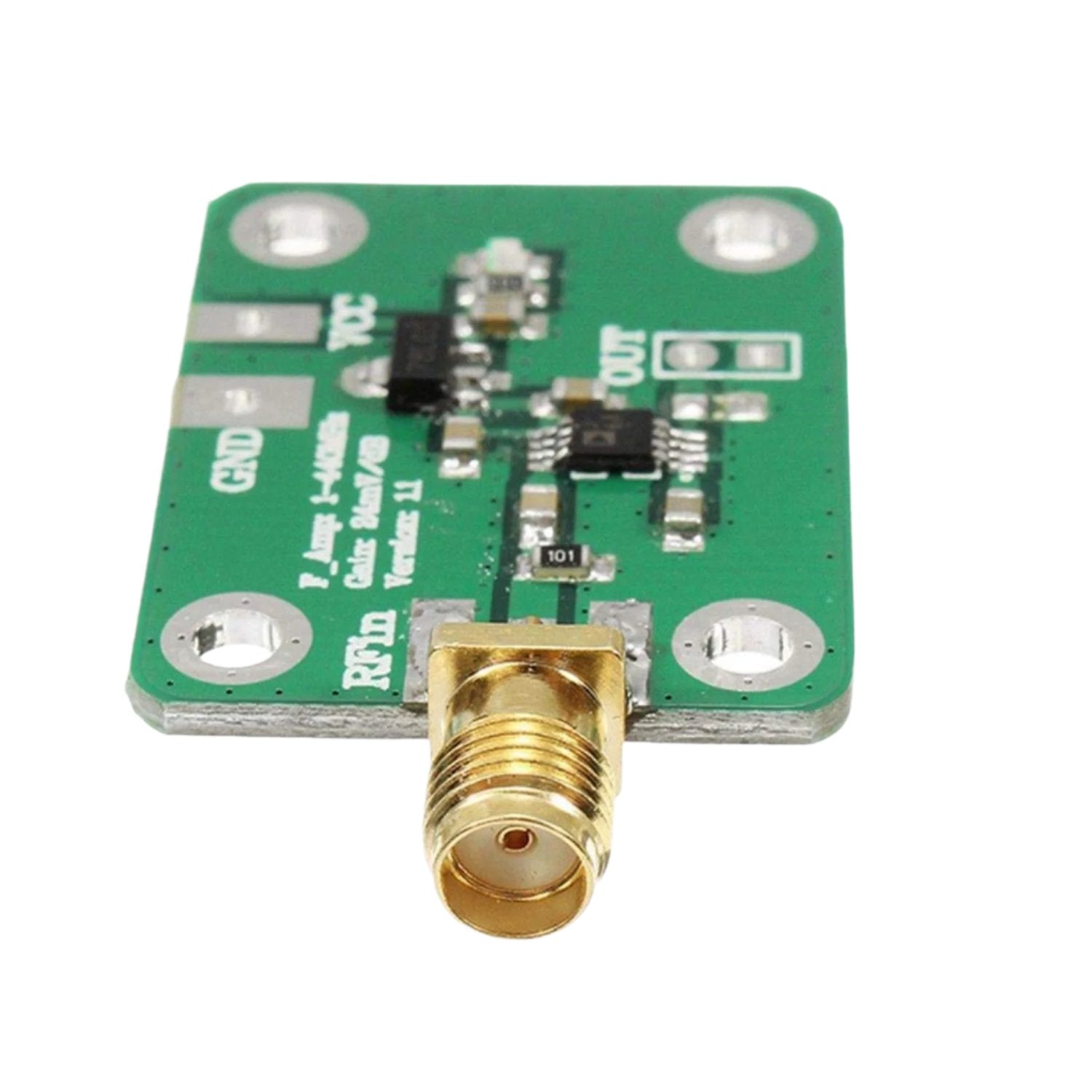

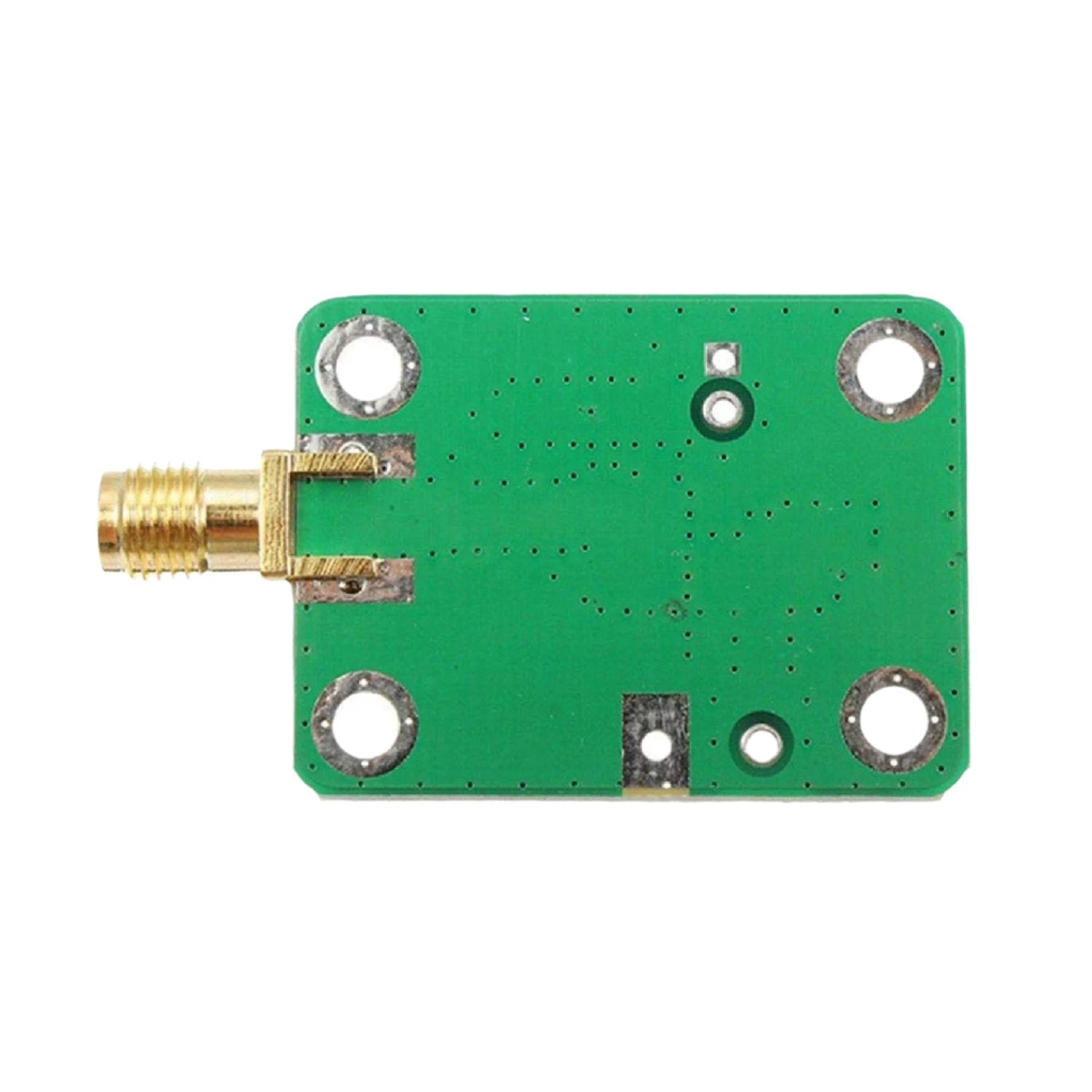

1 x AD8310 RSSI Module 0.1-440 MHz RF Log Detector/Power Meter Module
