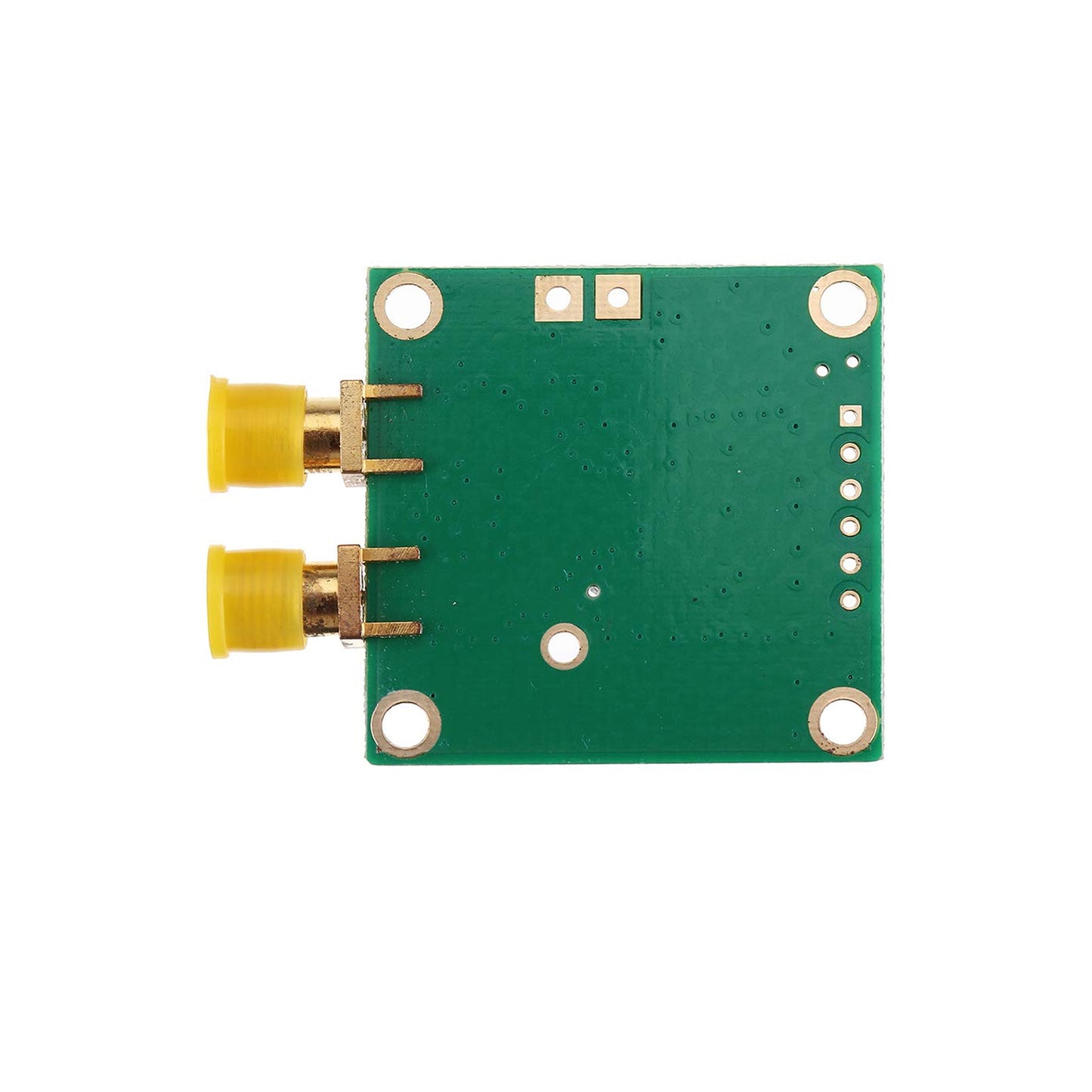

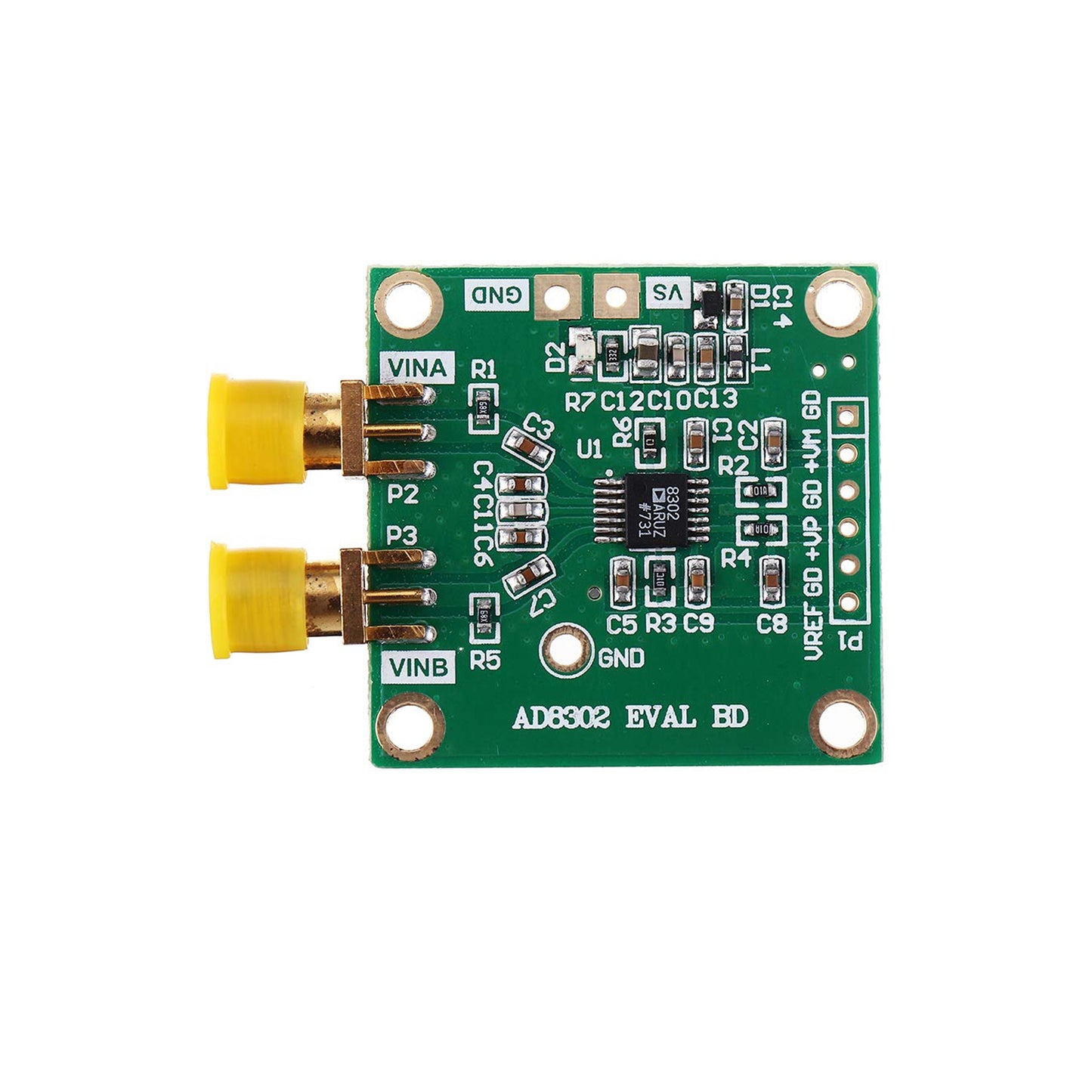

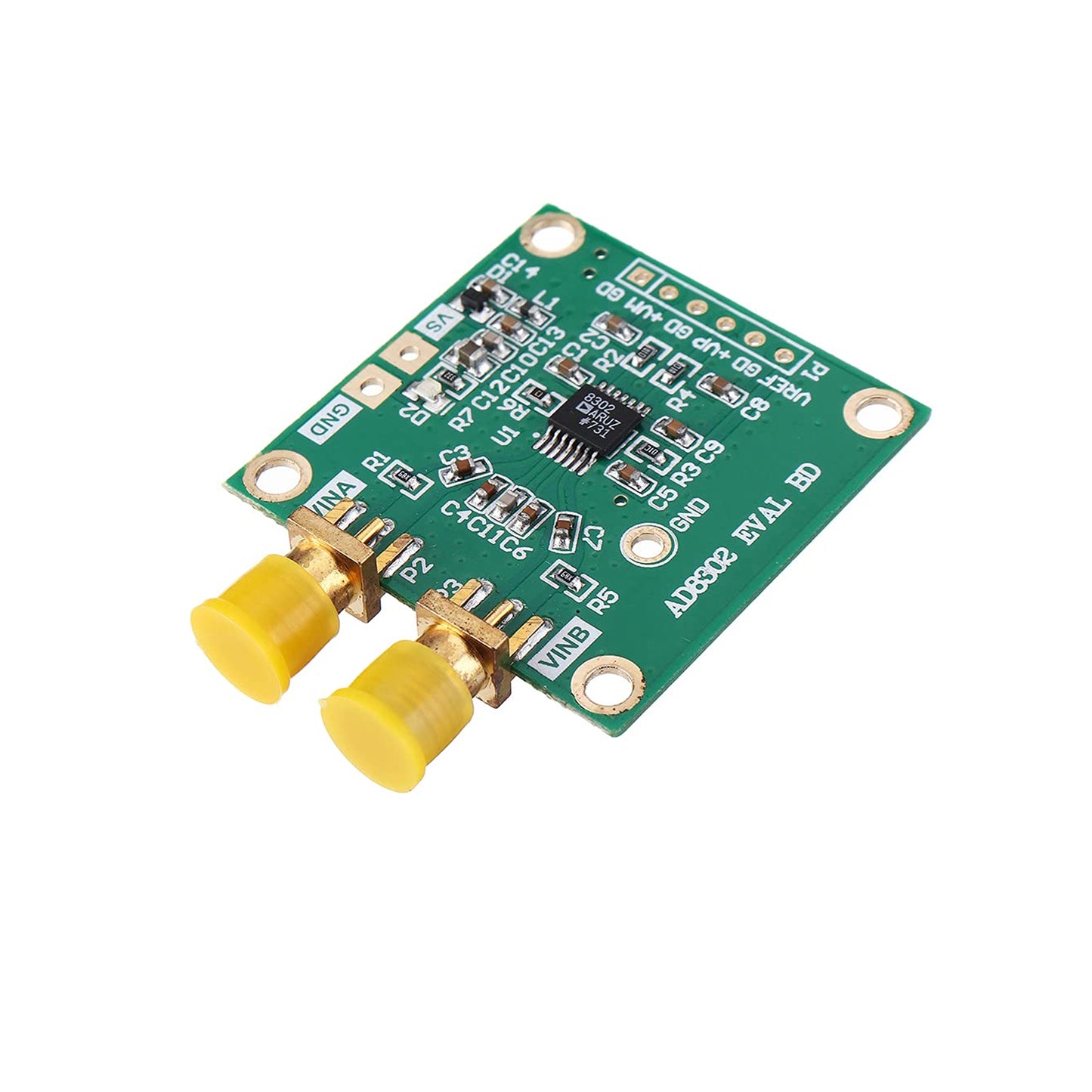

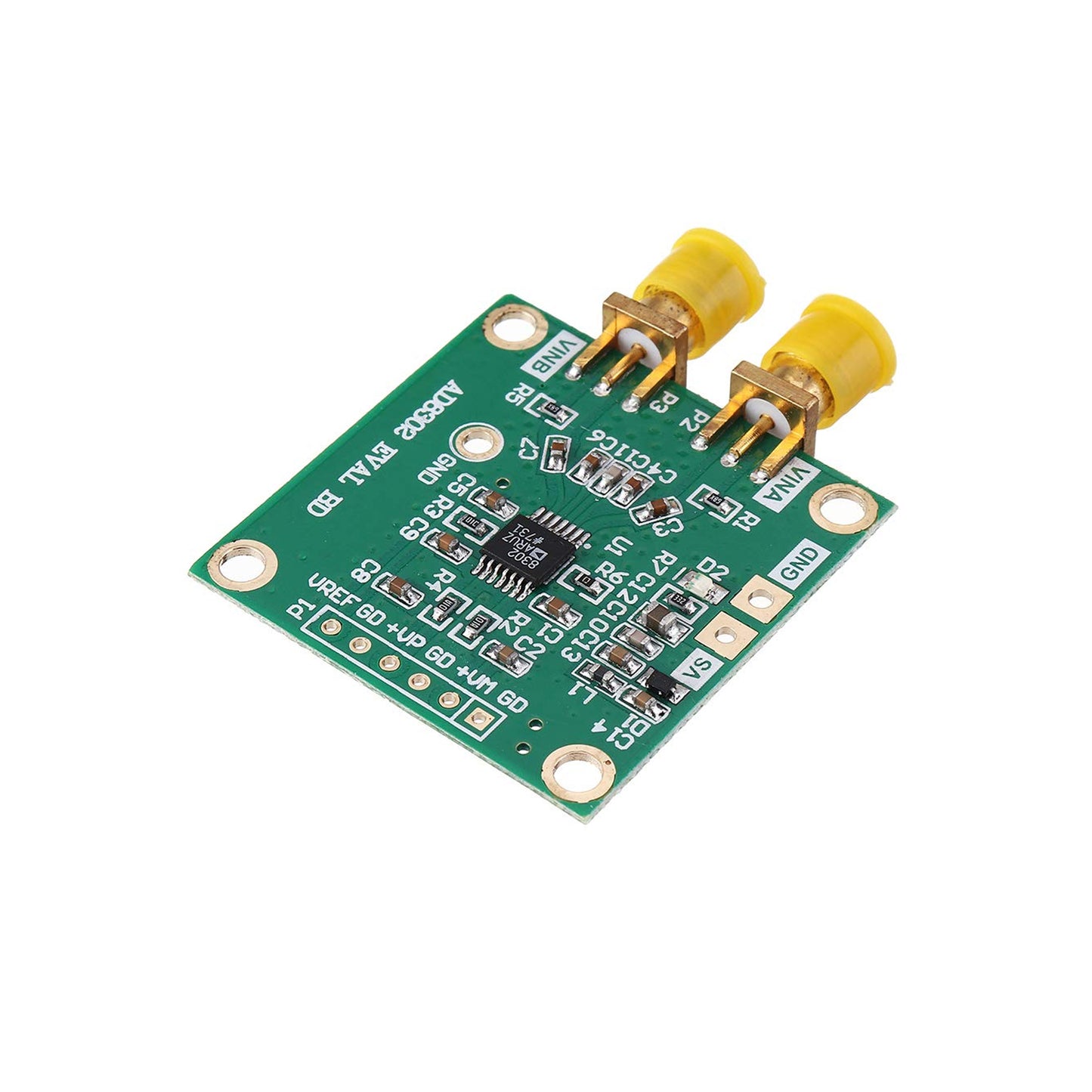

AD8302 Wideband Amplitude Phase Detection Impedance Analysis Module Amplifier Filter Mixer Loss And Phase Measurement - RS2738

AD8302 Wideband Amplitude Phase Detection Impedance Analysis Module Amplifier Filter Mixer Loss And Phase Measurement - RS2738

RS2738

Low stock: 8 left

Rs. 1,049.00
Rs. 1,049.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The AD8302 is a fully integrated RF IC that measures the amplitude and phase between two independent input signals. The device operates from low frequencies to 2.7 GHz. The AD8302 contains two precision-matched wideband log amps, a wideband linear multiplier/phase detector, a 1.8v precision voltage reference, and an analogue output proportional operation circuit. The input signal range is -60 dBm to 0 dBm (reference impedance 50Ω) with a corresponding dynamic range of 60 dB. The AD8302 output provides accurate amplitude measurements in the +/-30dB range with a slope of 30mV/dB, and a phase measurement range of 0 to 180° with a slope of 10mV/degree.

Specifications:

Frequency Hz Signal source
RMS@50 ohm		 Source phase (degrees) Output voltage V
CH1 CH2 CH1 CH2 VM VP
500K 0.2V 0.2V 0 90 0.908V 0.907V
500K 0.1V 0.2V 0 90 0.724V 0.906V
500K 0.2V 0.1V 0 90 1.093V 0.908V
500K 0.2V 0.2V 0 180 0.908V 0.032V
500K 0.2V 0.1V 0 180 1.094V 0.023V
500K 0.1V 0.2V 0 180 0.725V 0.022V
500K 0.2V / 0.2V 0 -90 0.908V 0.915V
500K 0.1V 0.2V 0 -90 0.725V 0.914V
500K 0.2V / 0.1V 0 -90 1.093V 0.915V
500K 0.2V 0.2V 0 -180 0.909V 0.032V
500K 0.2V / 0.1V 0 -180 1.093V 0.022V
500K 0.1V 0.2V 0 -180 0.724V 0.021V

Applications:

  • Measurement of insertion loss and phase of an amplifier, filter or mixer
  • Measure the vector reflection coefficient of any load
  • Impedance analysis

Support Cable:

  • BNC male to SMA male
  • SMA male to SMA male

Package Included:

1 x AD8302 Wideband Amplitude Phase Detection
