Description:

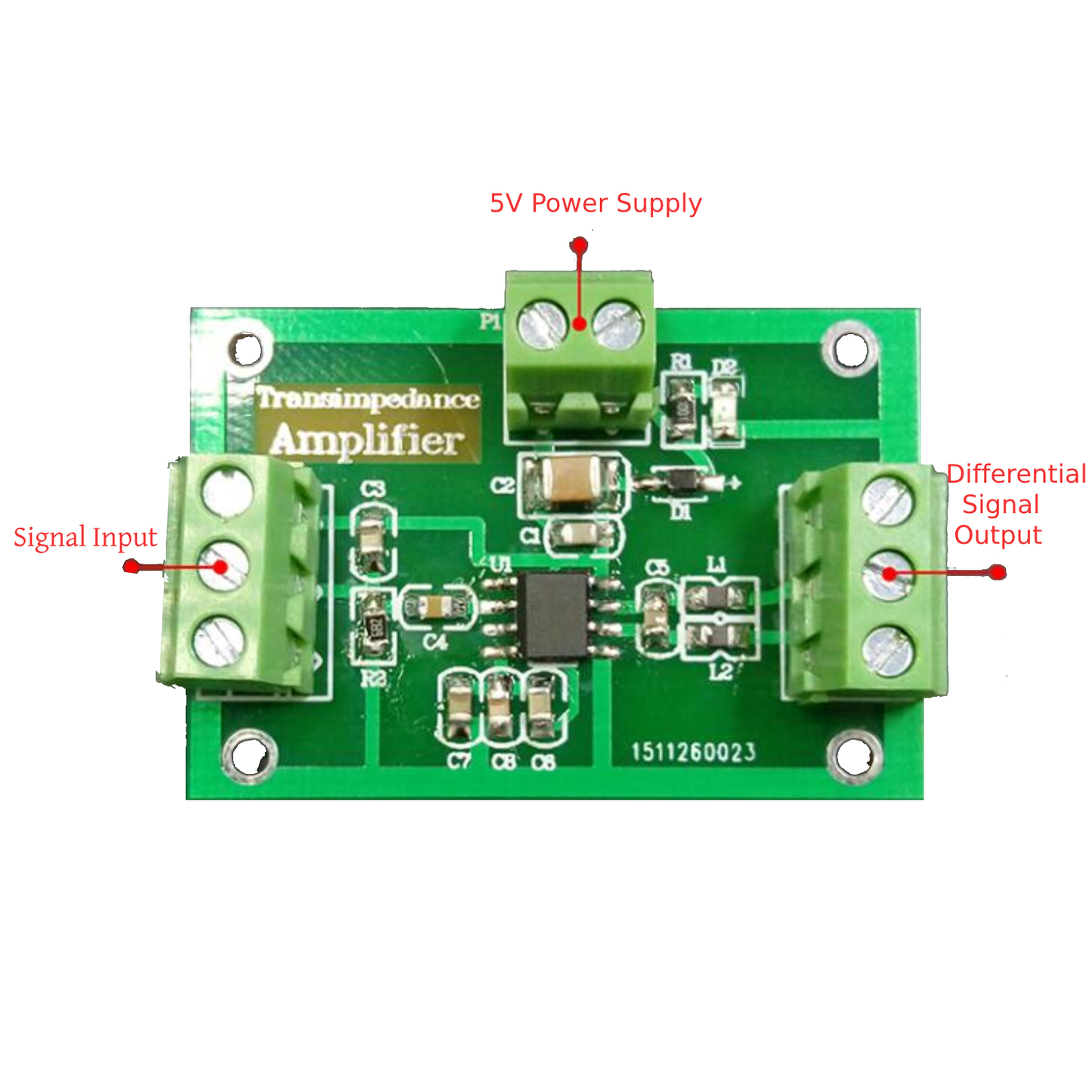

The AD8015 Transimpedance Amplifier Module is a wide bandwidth, single supply trans-impedance amplifier optimized for use in a fiber optic receiver circuit.
The 240 MHz bandwidth enables AD8015 application in FDDI receivers and SONET/SDH receivers with data rates up to 155 Mbps. This high bandwidth supports data rates beyond 300 Mbps. The differential outputs drive ECL directly or can drive a comparator/ fiber optic post amplifier.
In addition to fiber optic applications, this low-cost, silicon alternative to GaAs-based trans-impedance amplifiers is ideal for systems requiring a wide dynamic range preamplifier or single-ended to differential conversion.
Specifications:
- Power Supply: 5V
- Bandwidth: 240 MHz
- Pulse Width Modulation: 500 ps
- Rise/Fall Time: 1.5ns
- Input current Noise: 3.0 pA/VHz (100 MHz)
- Total Input Noise: 26.5 nA (100 MHz).
- Wide Dynamic Range
- Light Sensitivity: -36 dBm (155.52 Mbps)
- Peak Input Current: ±350 HA
- Low Power Consumption: 25 mA (5 V)
- Wide Operating Temperature Range: -40" C to +85C
Features:
- Stable running high capacitance detector
- Low noise preamplifier
- Single-ended to differential conversion
- 1-V voltage converter
Package Included:
1 x AD8015 Transimpedance Amplifier Module
