Description:
The AD623 is an integrated, single- or dual-supply instrumentation amplifier that delivers rail-to-rail output swing using supply voltages from 3 V to 12 V. The AD623 offers superior user flexibility by allowing single gain set resistor programming and by conforming to the 8-lead industry standard pinout configuration. With no external resistor, the AD623 is configured for unity gain (G = 1), and with an external resistor, the AD623 can be programmed for gains of up to 1000.
The superior accuracy of the AD623 is the result of increasing ac common-mode rejection ratio (CMRR) coincident with increasing gain; line noise harmonics are rejected due to constant CMRR up to 200 Hz. The AD623 has a wide input common-mode range and amplifies signals with common-mode voltages as low as 150 mV below ground. The AD623 maintains superior performance with dual and single-polarity power supplies.
Specifications:
- Gain Range: 1 to 1000
- Gain Accuracy(G > 1): 0.35%
- Noise: 35 nV/√Hz RTI noise at 1 kHz
- Bandwidth (G = 1): 800 kHz
Features:
- Easy to use
- Rail-to-rail output swing
- Input voltage range extends 150 mV below ground
- Low power, 550 A maximum supply current
- Gain set with one external resistor
- Excellent dynamic specification
- High-accuracy DC performance
Package Included:

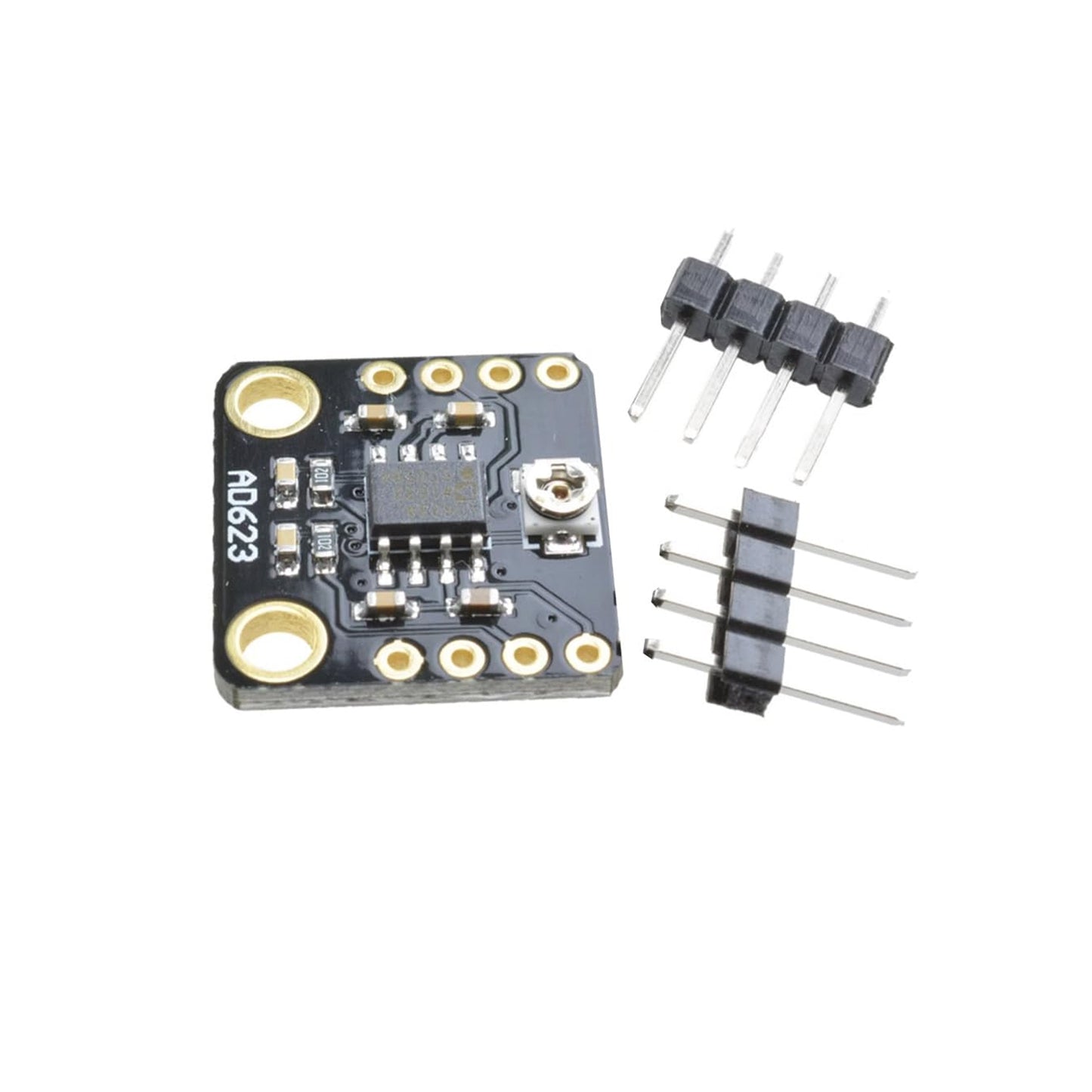

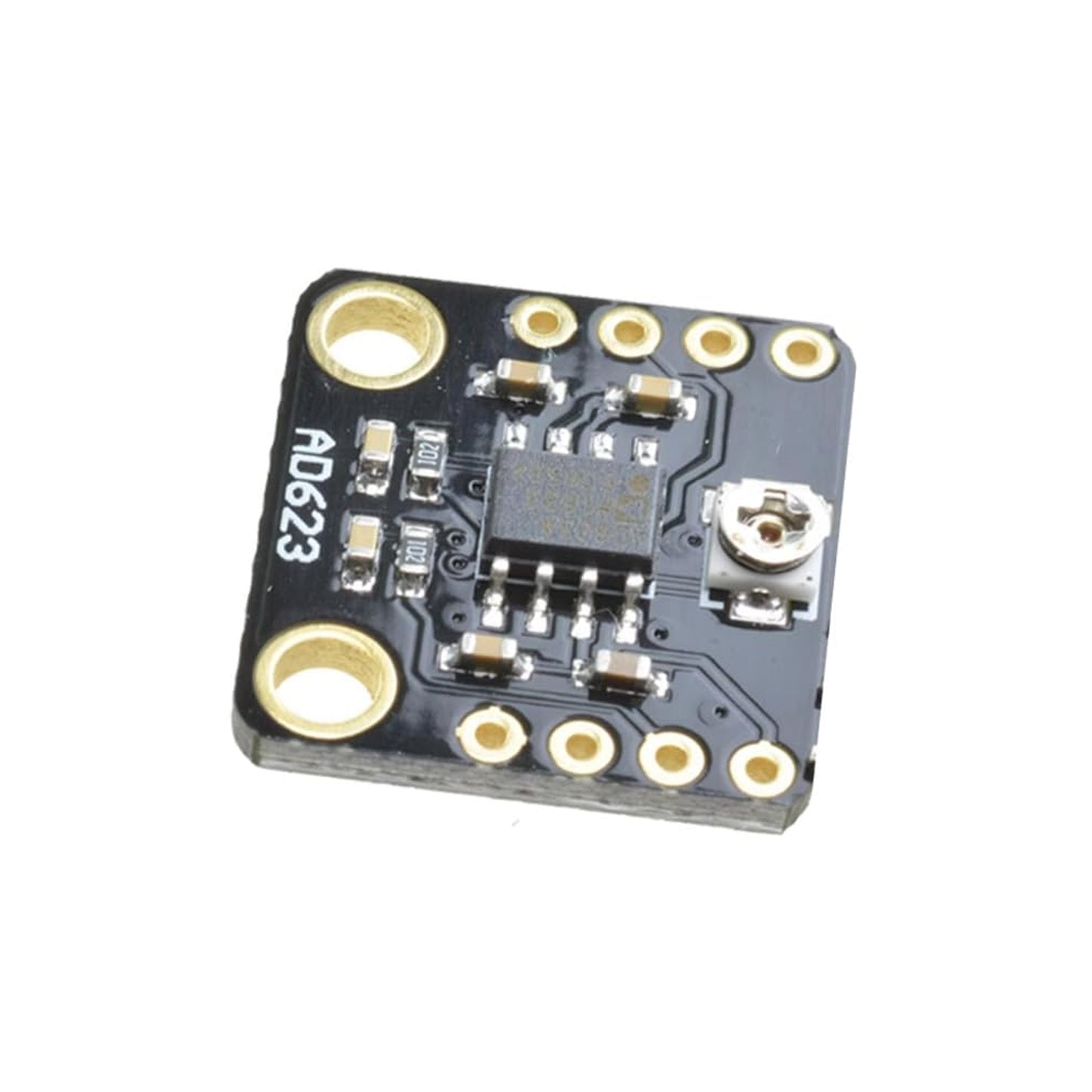

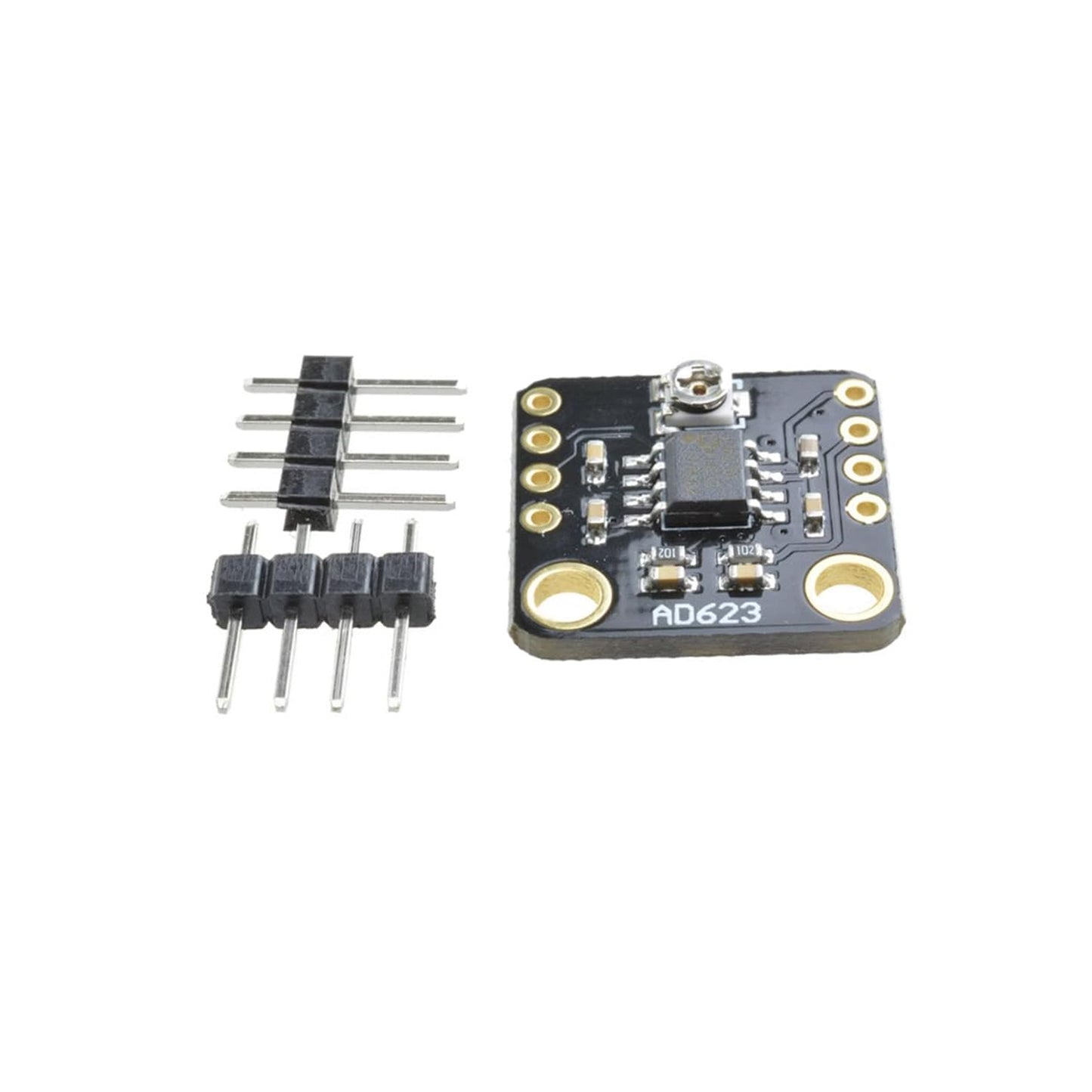

1 x AD623 Amplifier Board Module AD623 High Accuracy Programmable Gain Digital DC Instrument Amplifier Board Module
