ACS712ELCTR-20A-T High-Accuracy Linear Hall Effect 20A Current Sensor IC For Precise Measurement

Description:

The heart of the ACS712 lies in a precise, low-offset, linear Hall-effect sensor circuit. This sophisticated circuit is designed to accurately measure magnetic fields and convert them into proportional voltage outputs.  A critical component of the IC is its integrated copper conduction path. This carefully designed path is situated very close to the surface of the die, optimizing the interaction between the current being measured and the Hall-effect sensor.

Specifications:

• Item Type: Current Sensor
• Model Type: Current Sensor IC
• Input Voltage: 5V
• Reverse voltage: -0.1V
• Supply Current: 10mA
• Frequency Bandwidth: 80 KHz
• Rise Time: 5μs
• Output Capacitance Load: 10nF
• Sensitivity: 100mV/A
• Operating Temperature: –40 ~ +85°C

Features:

• The low-noise analog signal path.
• Device bandwidth is set via the new FILTER pin.
• 5 μs output rise time in response to step input current.
• 80 kHz bandwidth.
• Total output error 1.5% at TA = 25°C.
• Small footprint, low-profile SOIC8 package.
• 1.2 mΩ internal conductor resistance.
• 2.1 kV RMS minimum isolation voltage from pins 1-4 to pins 5-8.
• 5.0 V, single-supply operation.
• 66 to 185 mV/A output sensitivity.
• Output voltage proportional to AC or DC currents.
• Factory-trimmed for accuracy.
• Extremely stable output offset voltage.
• Nearly zero magnetic hysteresis.
• Ratiometric output from a supply voltage.

Package Included:

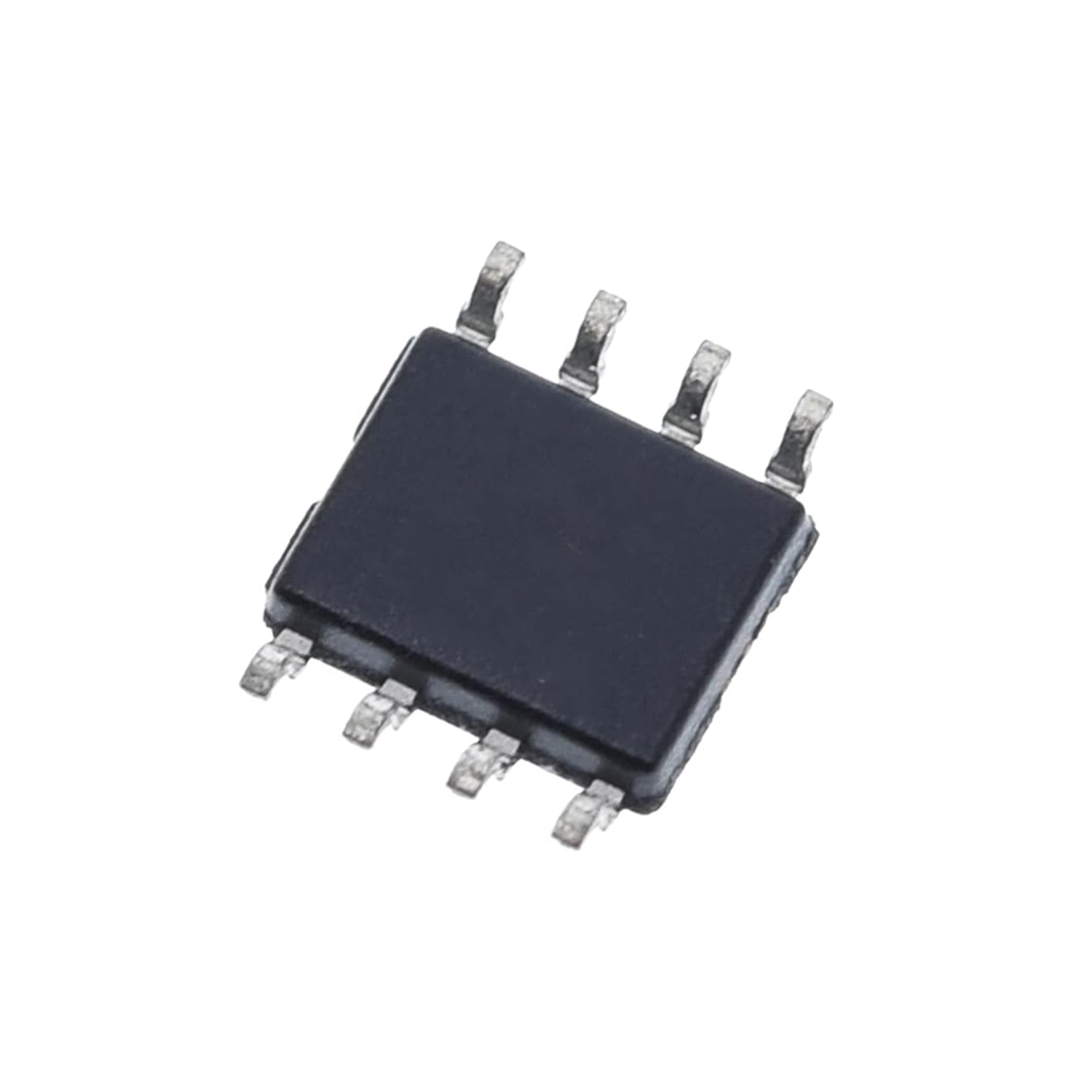

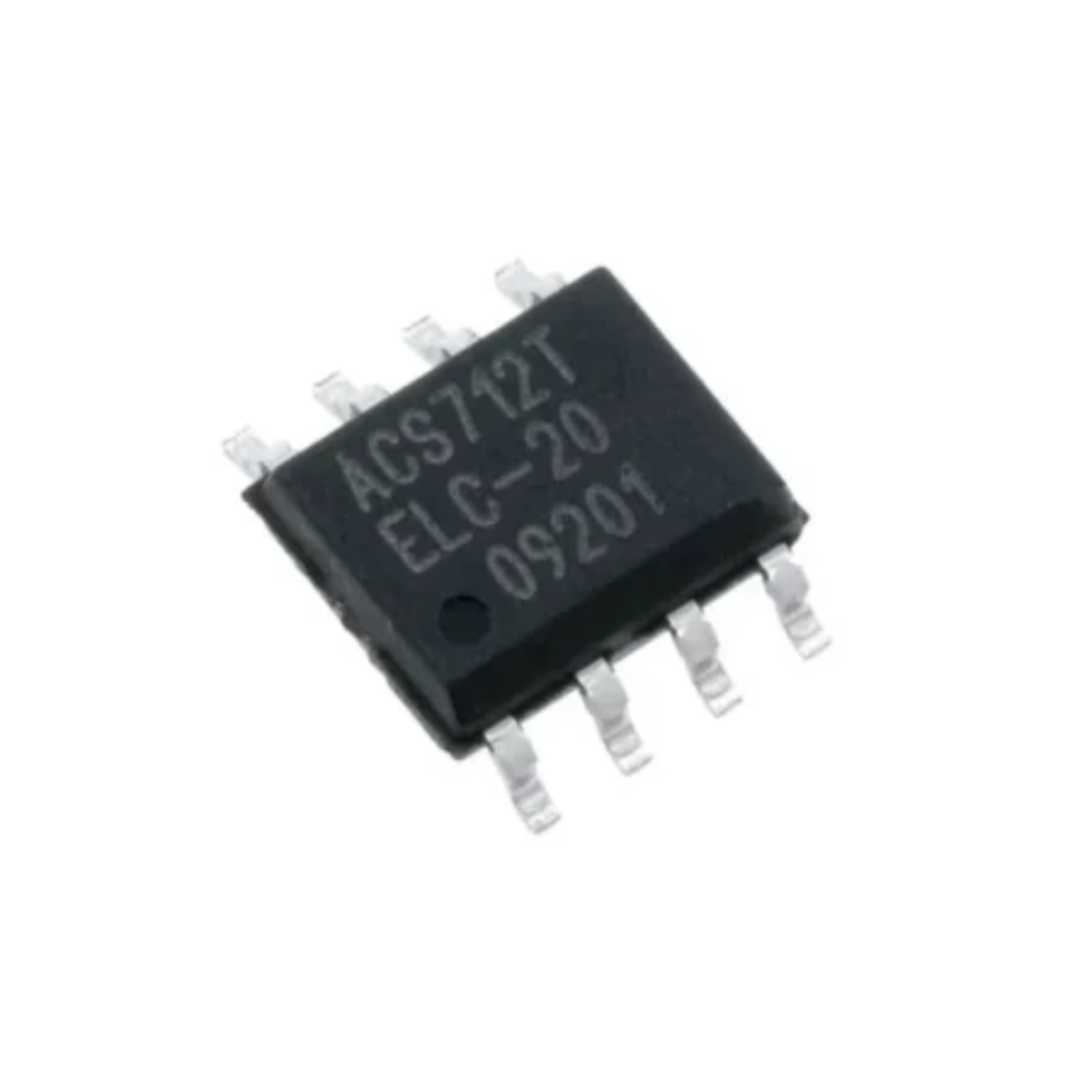

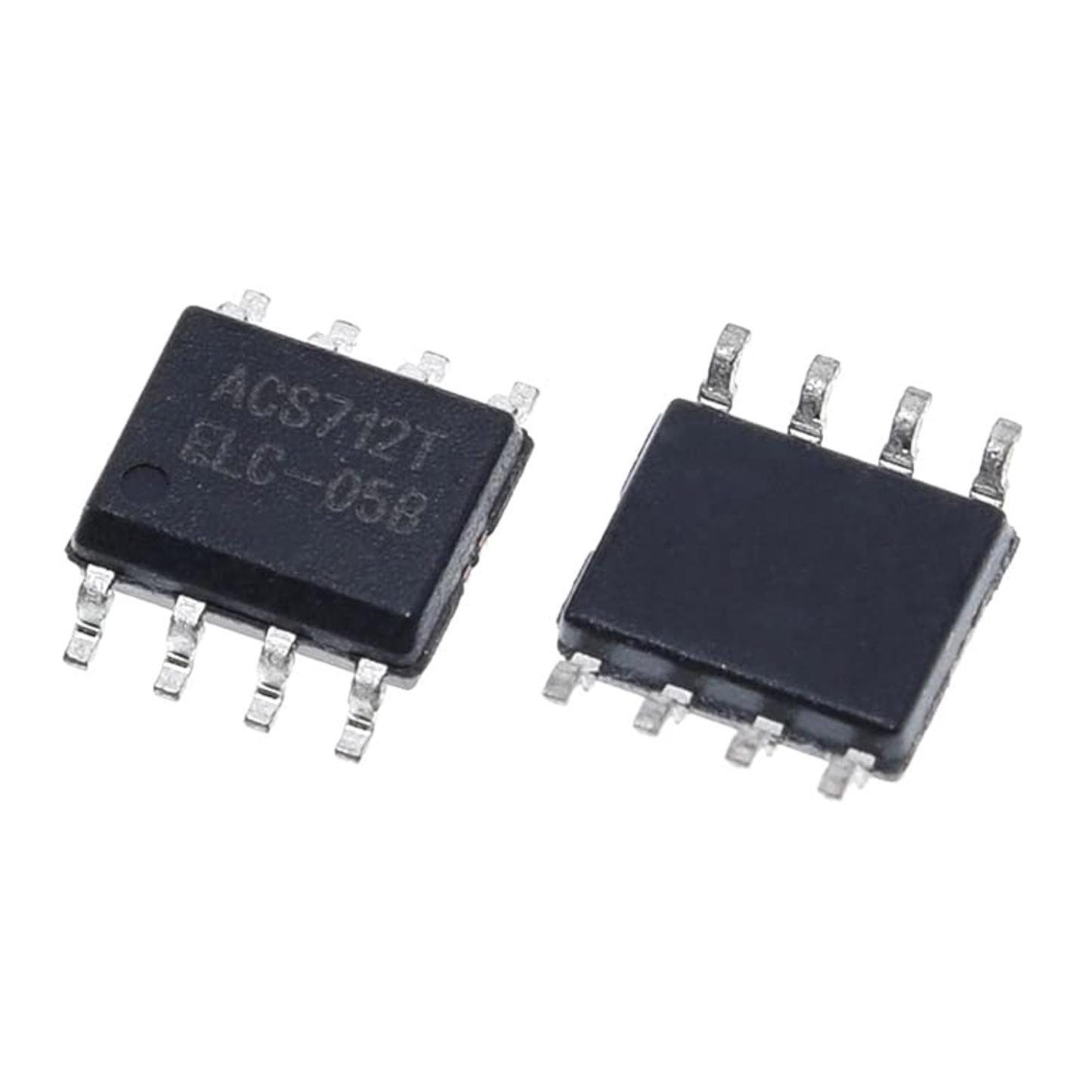

1 x ACS712 20A Current Sensor IC (ACS712ELCTR-20A-T)
