- Input Supply Voltage: 110V ~ 220V AC
- Output Voltage: 50V-220V(Output voltage < = Input supply voltage)
- Maximum Output Power: 2000W
- Maximum Output Current: 25A
Description:
This controller uses novel bi-directional high-power SCR. It can be very convenient adjust the current up to 25A, and solve the over current problem of the heating wire resistance is too small in the case of cooling causing good. The output voltage is adjusted anywhere between 50V-220V for use with electrical appliances. It can use to such as electric stove, water heater tune thermal, lighting dimmer, small motor speed, electric iron thermostat, and achieve dimming, thermostats, pressure regulator effect.
Specifications:
- Input Supply Voltage: 110V ~ 220V AC
- Output Voltage: 50V-220V(Output voltage < = Input supply voltage)
- Maximum Output Power: 2000W
- Maximum Output Current: 25A
- Operation Temperature:-20℃~40℃
Features:
- This controller uses high-quality SCR. And the max current is up to 25A
- For the safety, we suggest the continuous load current is within 5A
- This AC voltage regulator can be used to control AC motor speed, AC light and heating wire temperature
- Inductive or Capacitive Load power should be reduced
- For example, recommended for motors within 1000W
Operating Instruction:
- Before you attempting to wire the controller, make sure all power is disconnected.
- Cut any one of the battle line or zero line of the lamp or electrical appliances, and connect wires refer to the “wiring diagram” (NO.6 picture)
- Turn on the power, and adjust the potentiometer.
- If the adjustment range is found to be small, please adjust the blue potentiometer on the product counterclockwise to set the maximum adjustment range to 50V to input voltage.
Package Included:

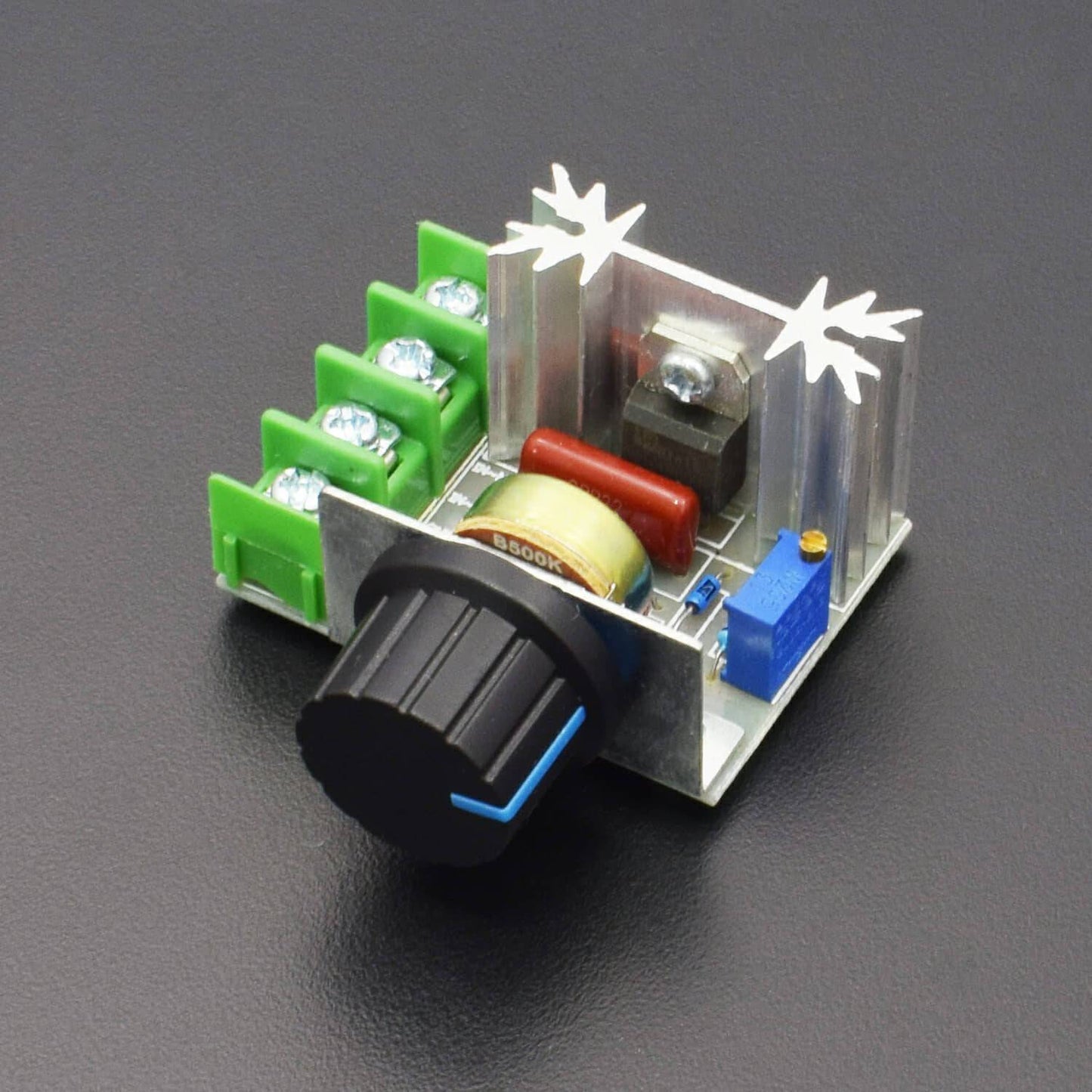

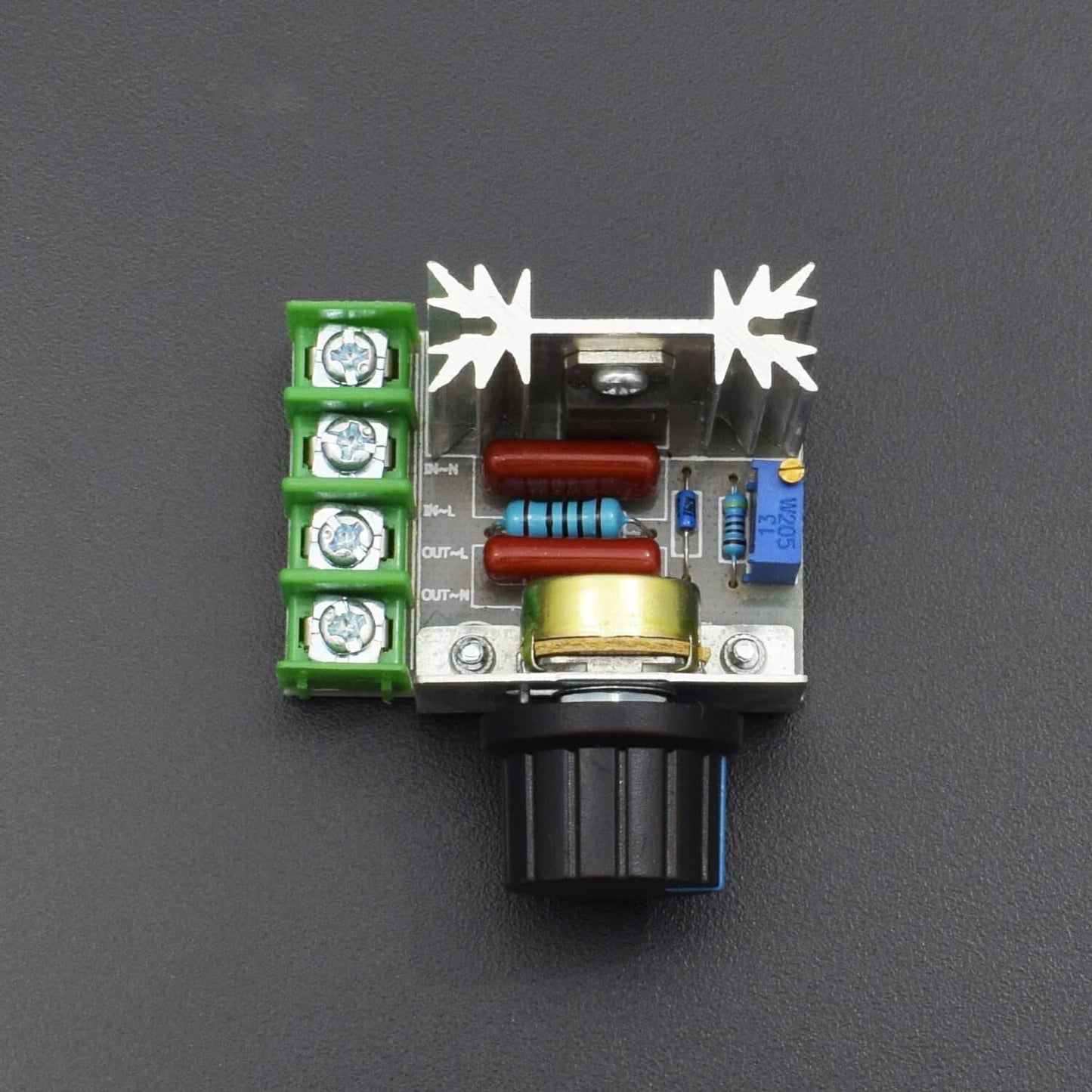

1 x AC 50-220V 2000W(max) 25A SCR Constant Voltage AC Motor Speed Controller LED Dimmers
