- Pole and throw: Spst
- Terminal quantity : 3
- Position:On-off
- rated voltage:Ac 20a/125v 22a/250v(for resistive load only)
Description:
It has (Spst) contact type, 3 terminals. The precise design guarantees that the rocker switch can be safely and easily installed. Marked on the rocker: I/o (on/off) for precise indications. Built in red light (light lits when the switch is in the on position). The rocker boat switches mainly used for many cars, motorcycle, boat, some machine, water dispenser, etc.
Specification:
- pole and throw: SPST
- terminal quantity:3position:On-off
- rated voltage:Ac 20a/125v 22a/250v(for resistive load only)
- lamp color: Red
- color: Black, red
- material: Plastic, metal
- inductive load: 7.7a
- lamp load: 3.96a
- motor load: 4.4a
- capacitive load: 3.96a
ac125v current rerating for different loads
- inductive load: 7a
- lamp load: 3.6a
- motor load: 4a
- capacitive load: 3.6a
Package Included:

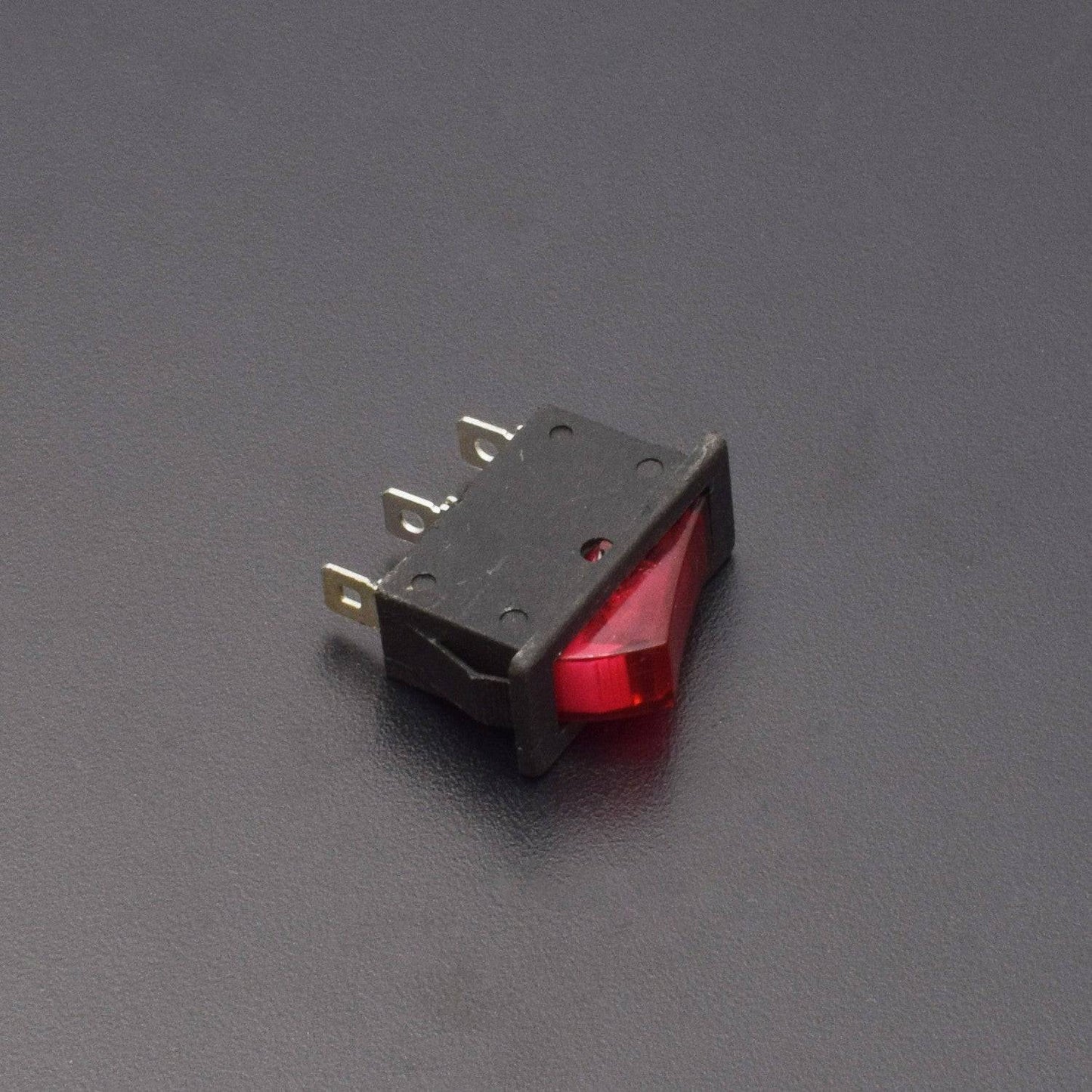

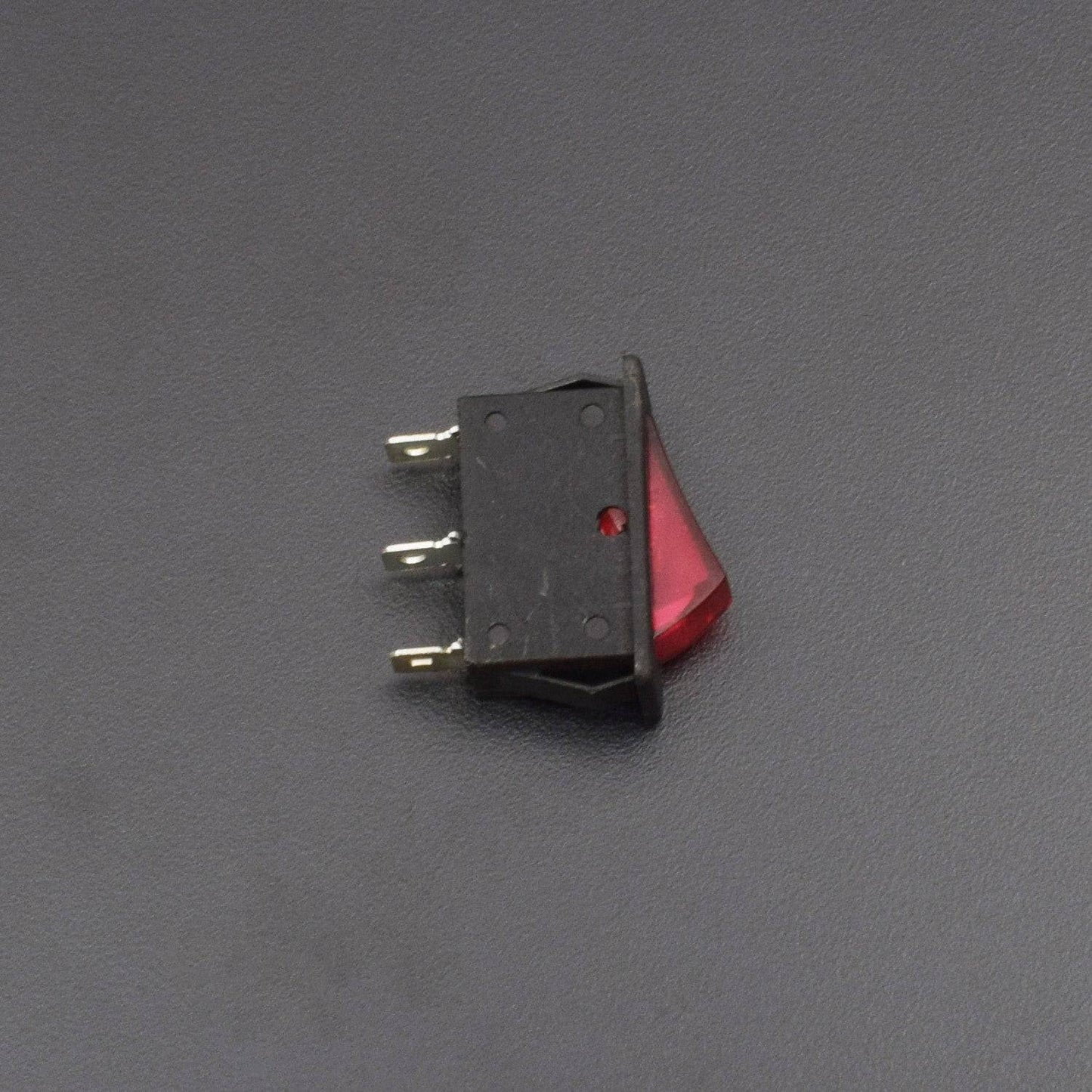

1 x AC 20A/125V 22A/250V SPST 3 Pin 2 Position Boat Rocker Switch On Off with Red Backlit LED Light
