- Dimension: 27.8x27mm
- Shaft diameter: 3.17mm
- Max Efficiency: 80%
- Max Efficiency Current: 4-10A (>75%)
Description

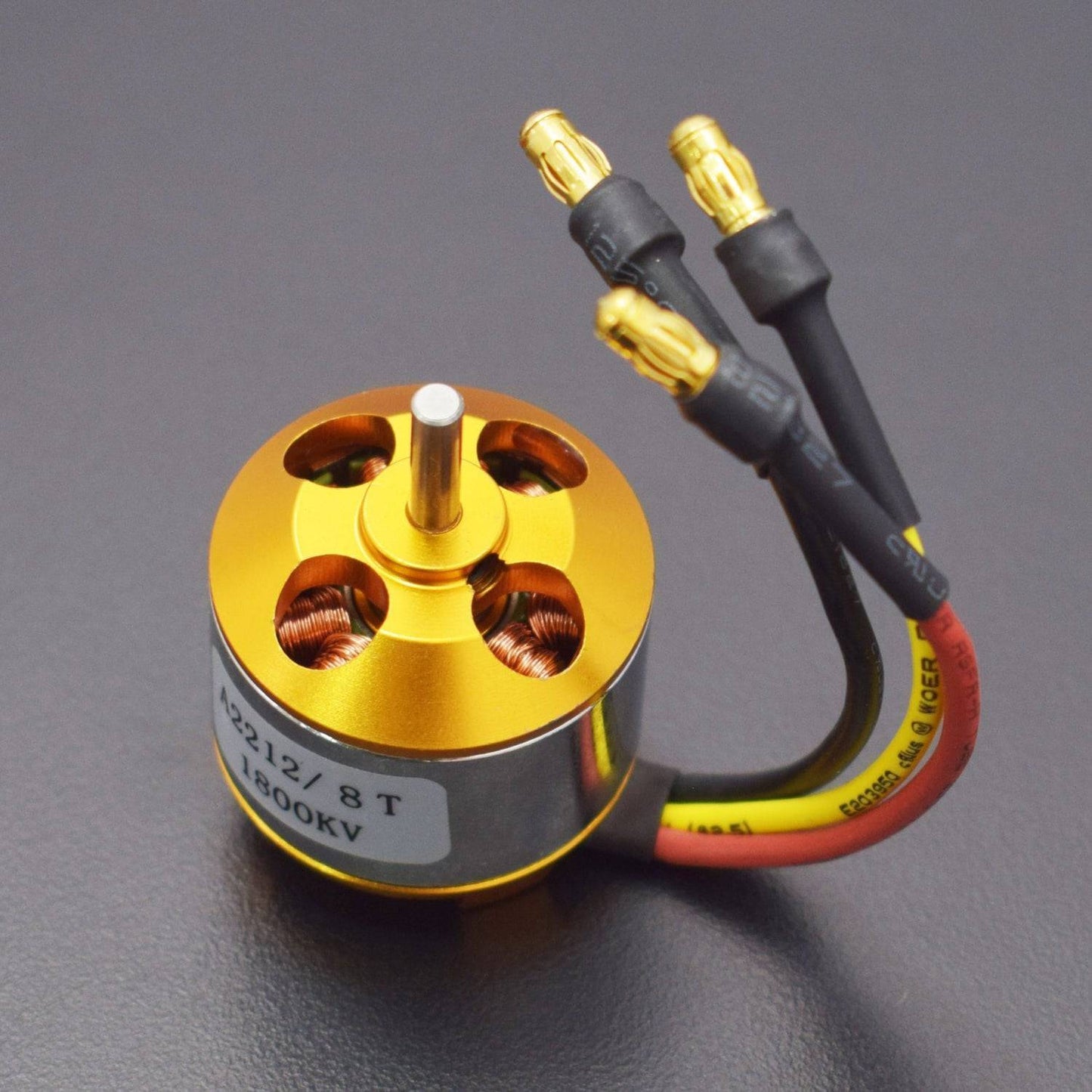

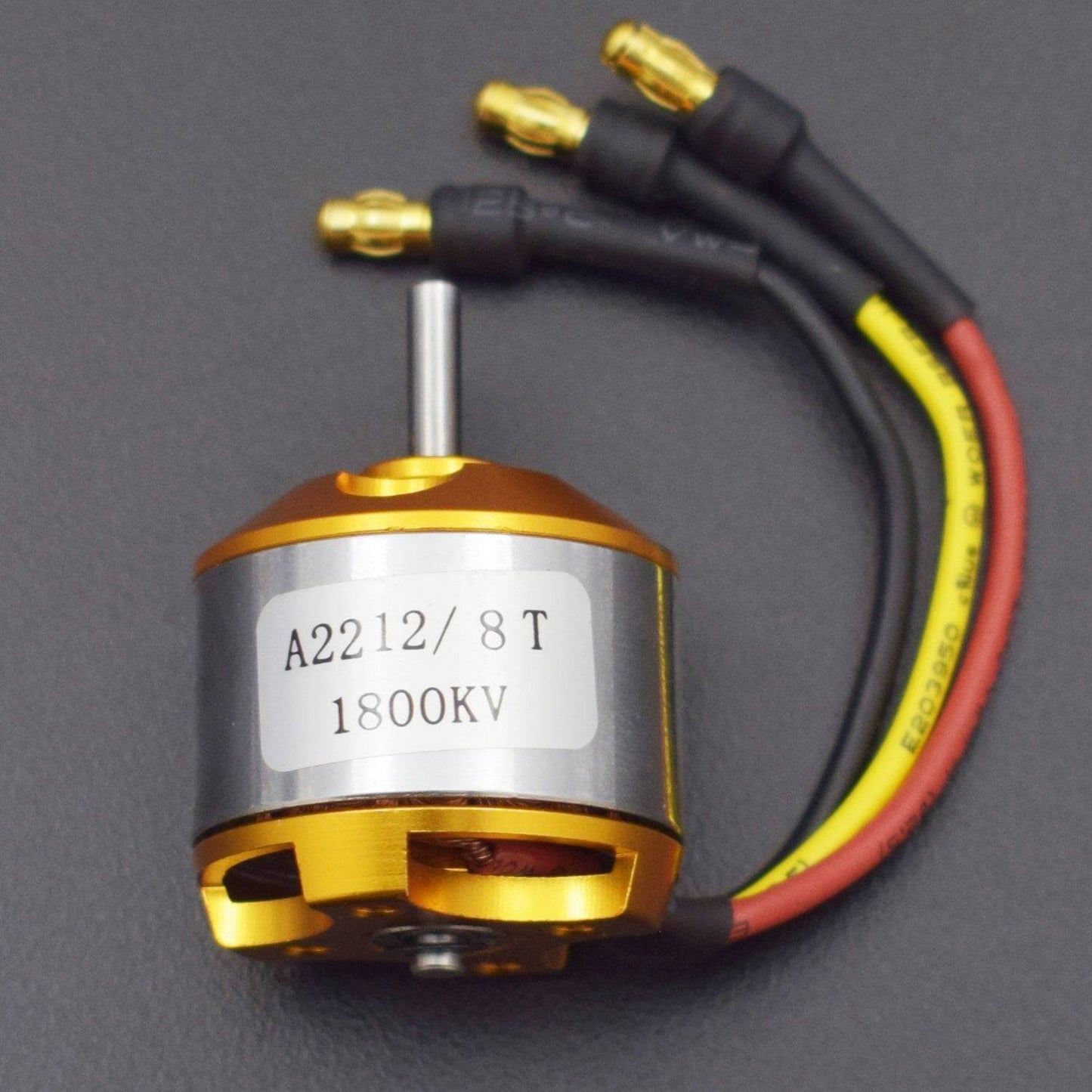

If you're looking about your quadcopter's performance, look no further than the A2212. Built with high-end magnets, a high pole count and custom motor mount, this motor is designed purely for multi-rotor applications. The A2212 includes an integrated prop adaptor for use with many different style props featuring a 4mm shaft and adaptor sleeves for 5mm/6mm props. It also has an in-built aluminum mount for quick and easy installation on your quadcopter frame. This is not a modified airplane out a runner. It was designed from the ground up specifically for multi-rotor applications.
Specifications
- Dimension: 27.8*27mm
- Shaft diameter: 3.17mm
- Max Efficiency: 80%
- Max Efficiency Current: 4-10A (>75%)
- Current Capacity: 12A/60s
- No Load Current @ 10V: 0.5A
- No. Of Cells: 2-3 Li-Poly
- KV: 1800
- Suitable for the propeller size: 1047,1060,9050
Dimension :

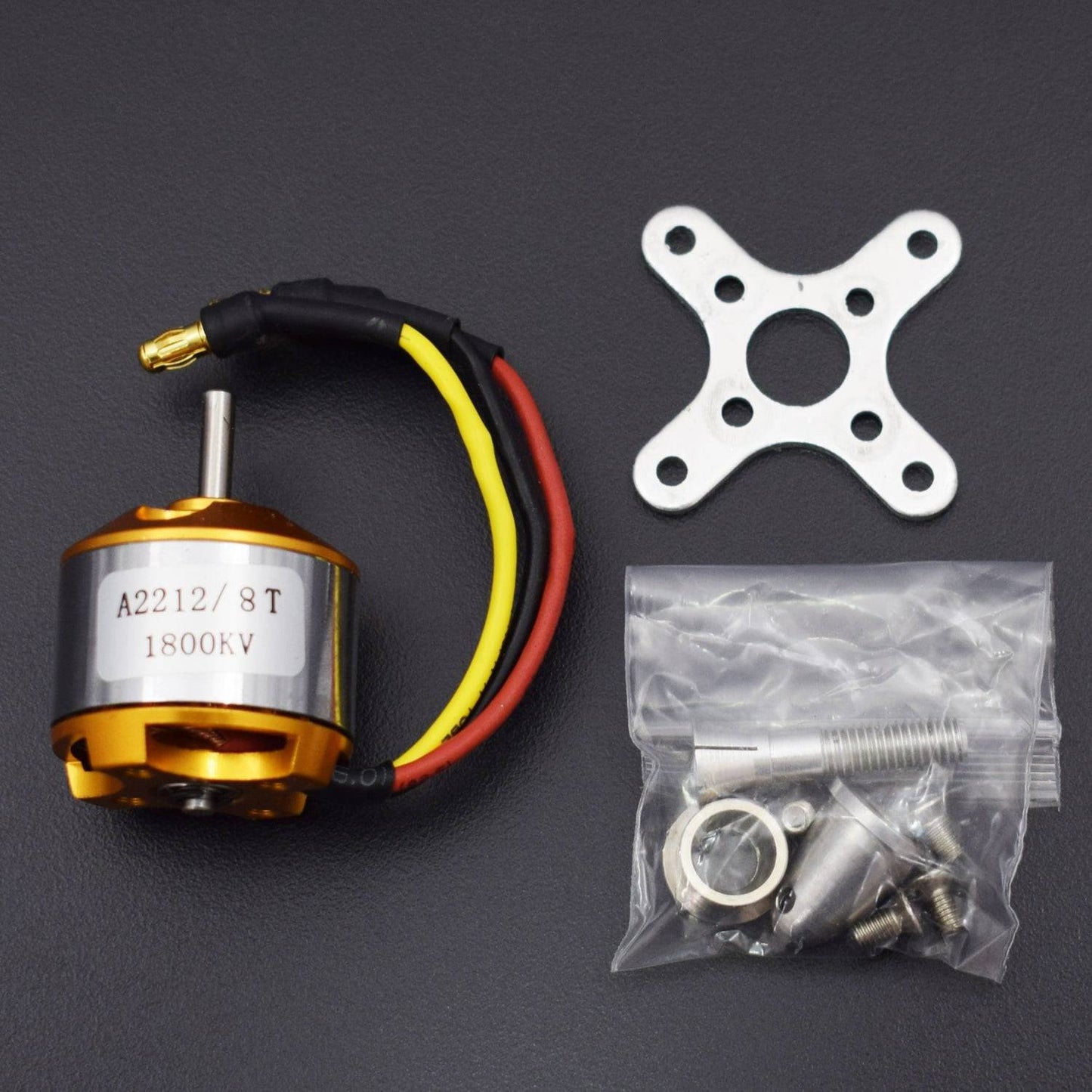

Package Included:
1 x A2212/13T 1800KV BLDC Airplane Out runner Brush less Motor
