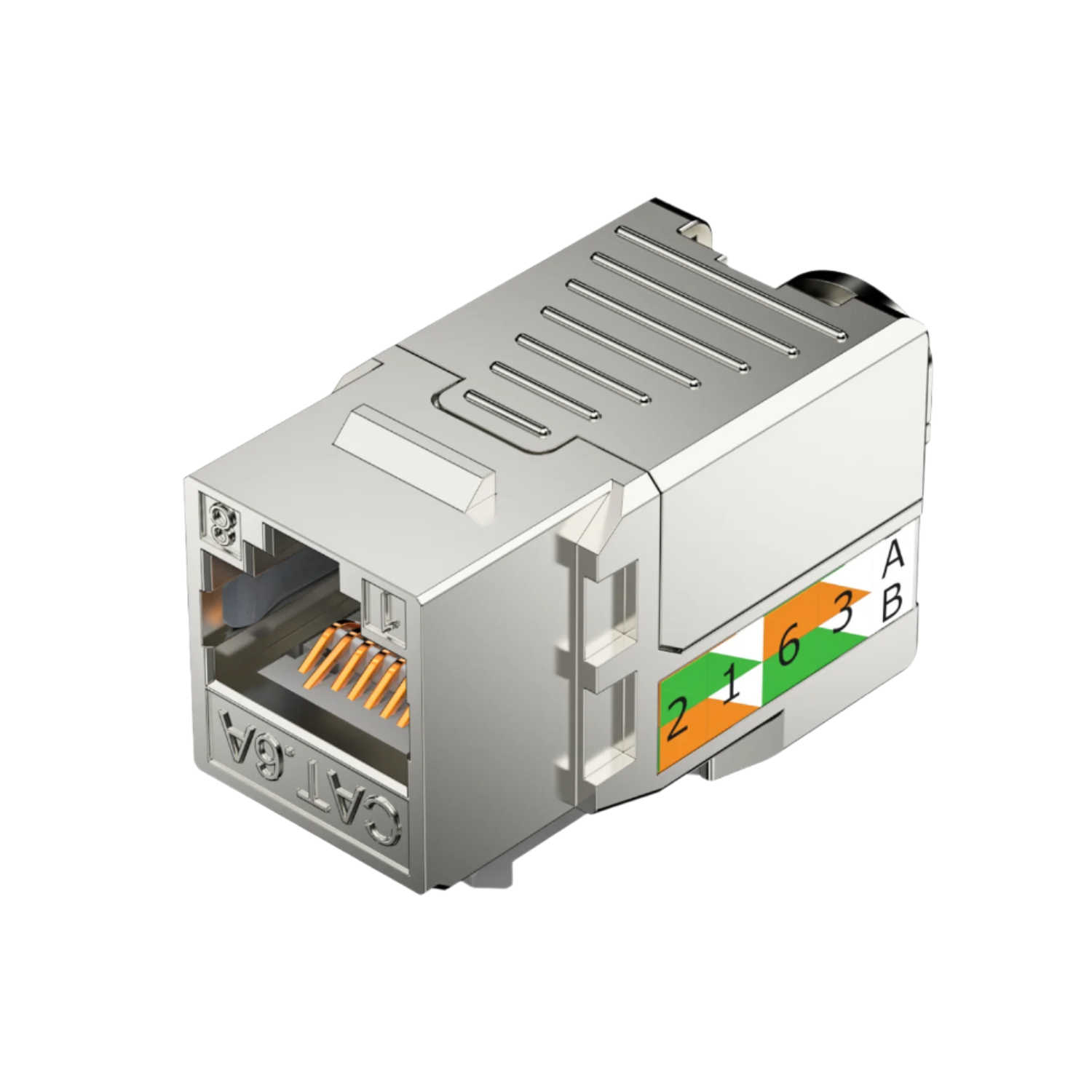

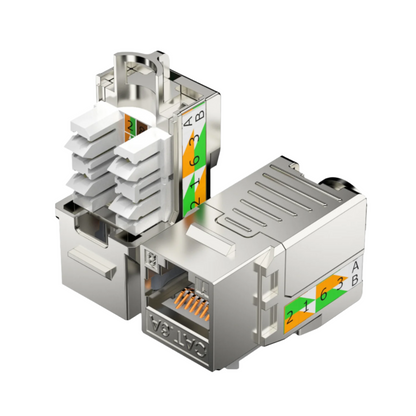

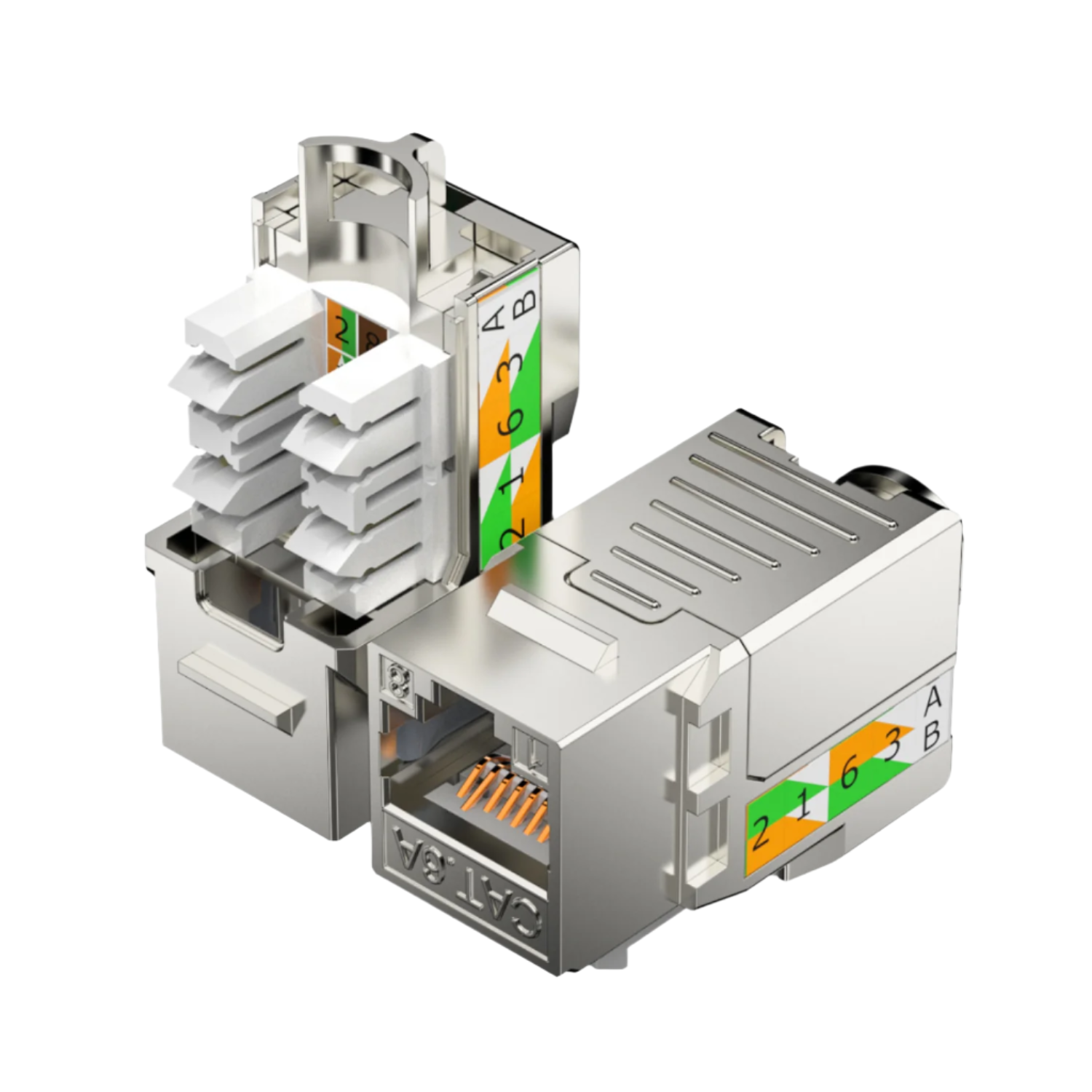

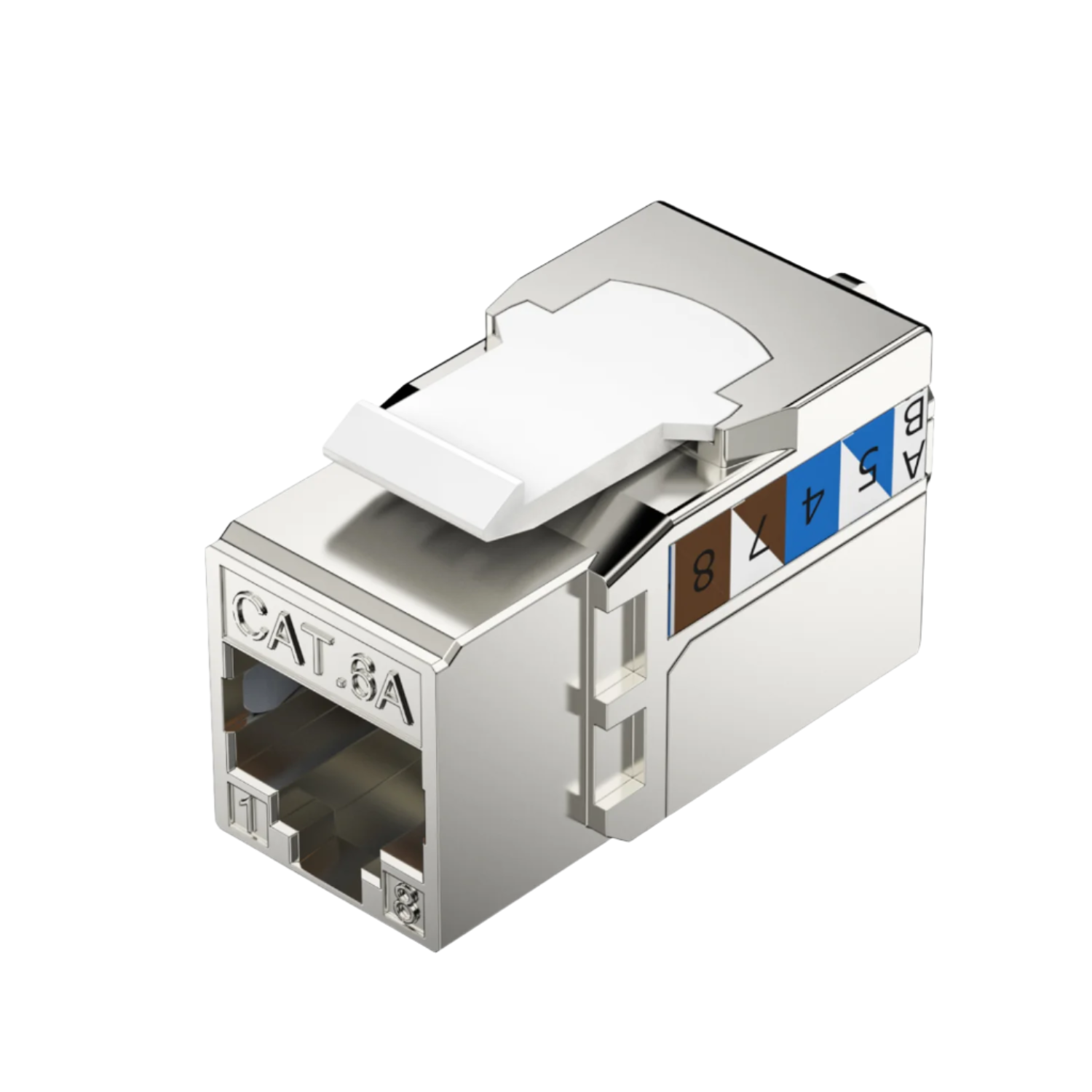

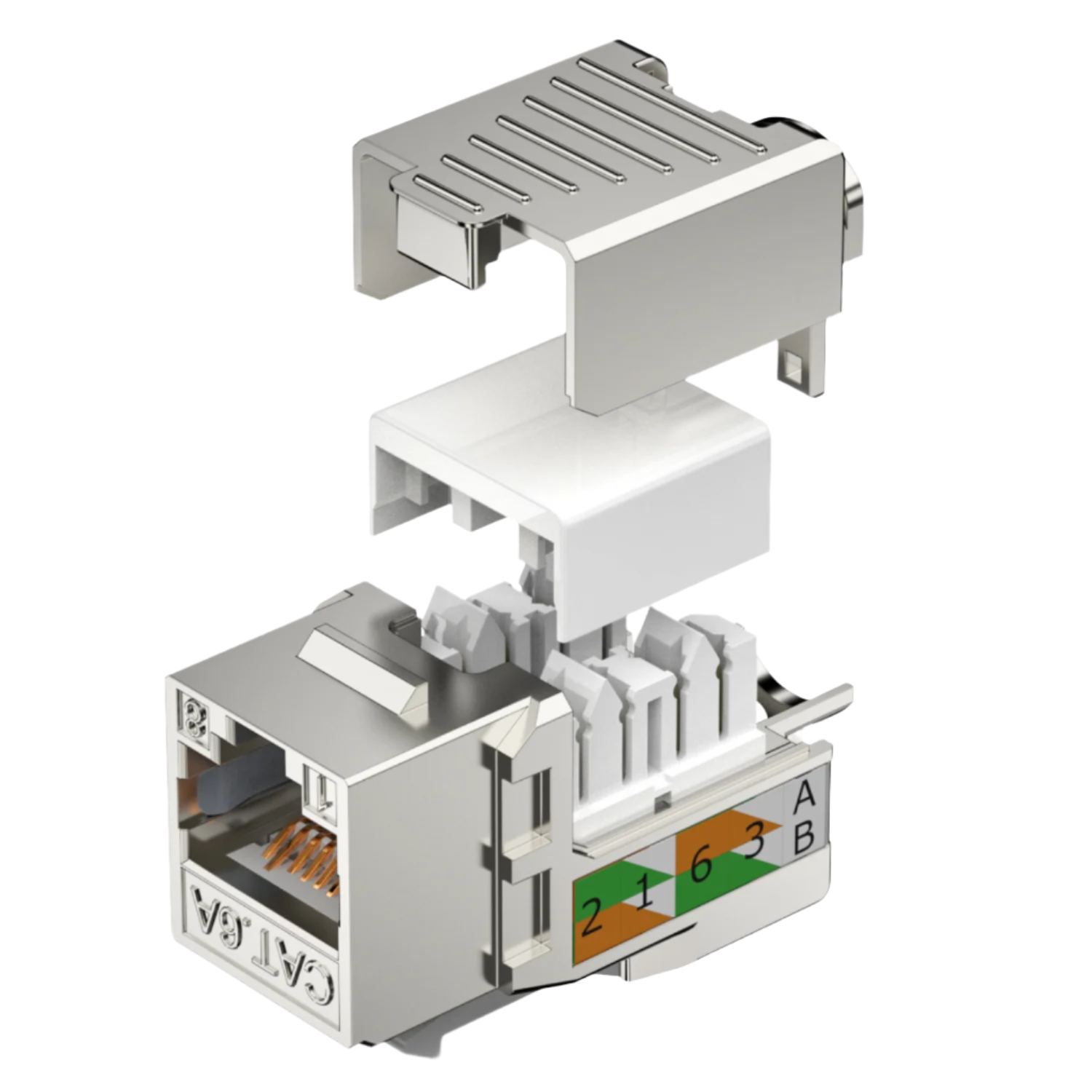

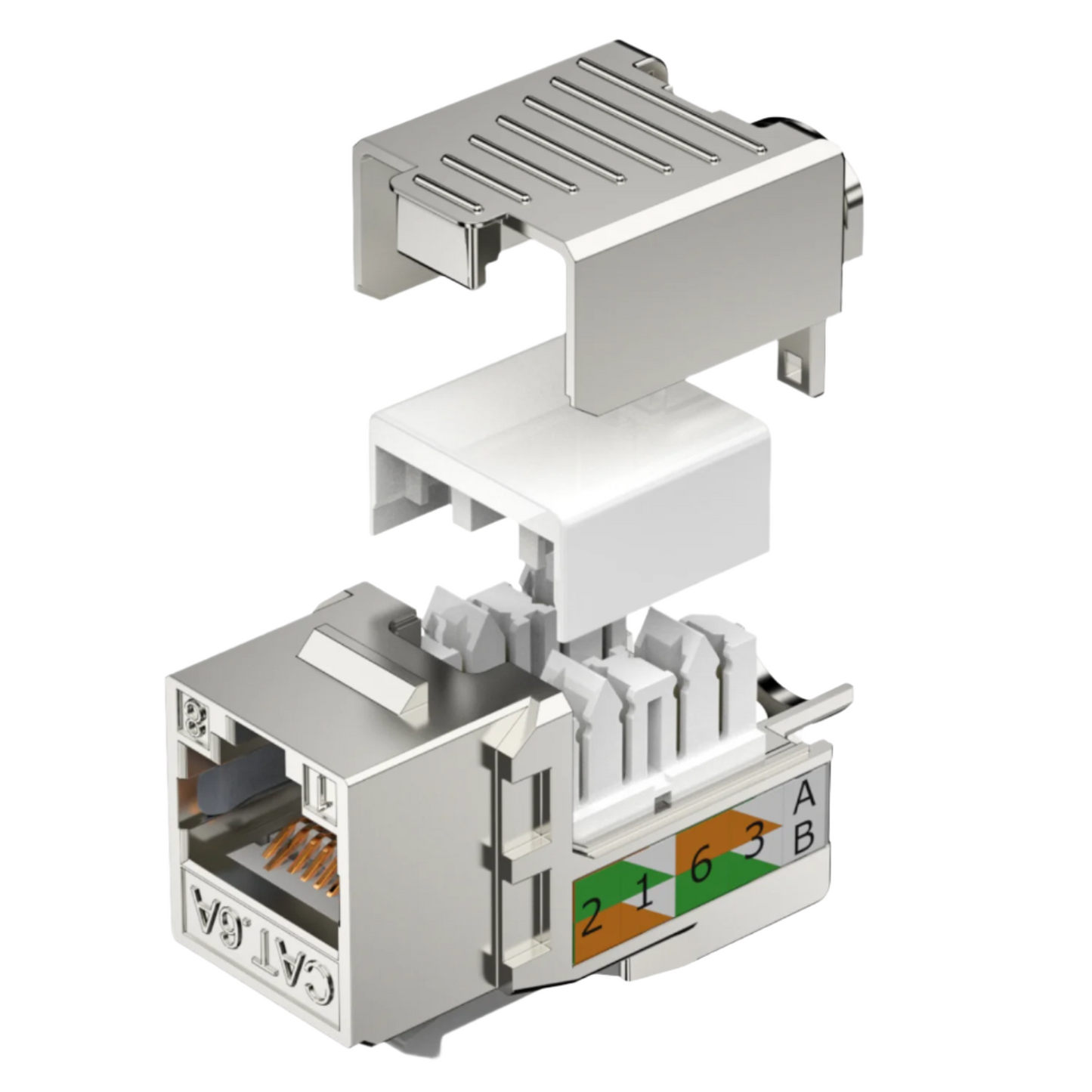

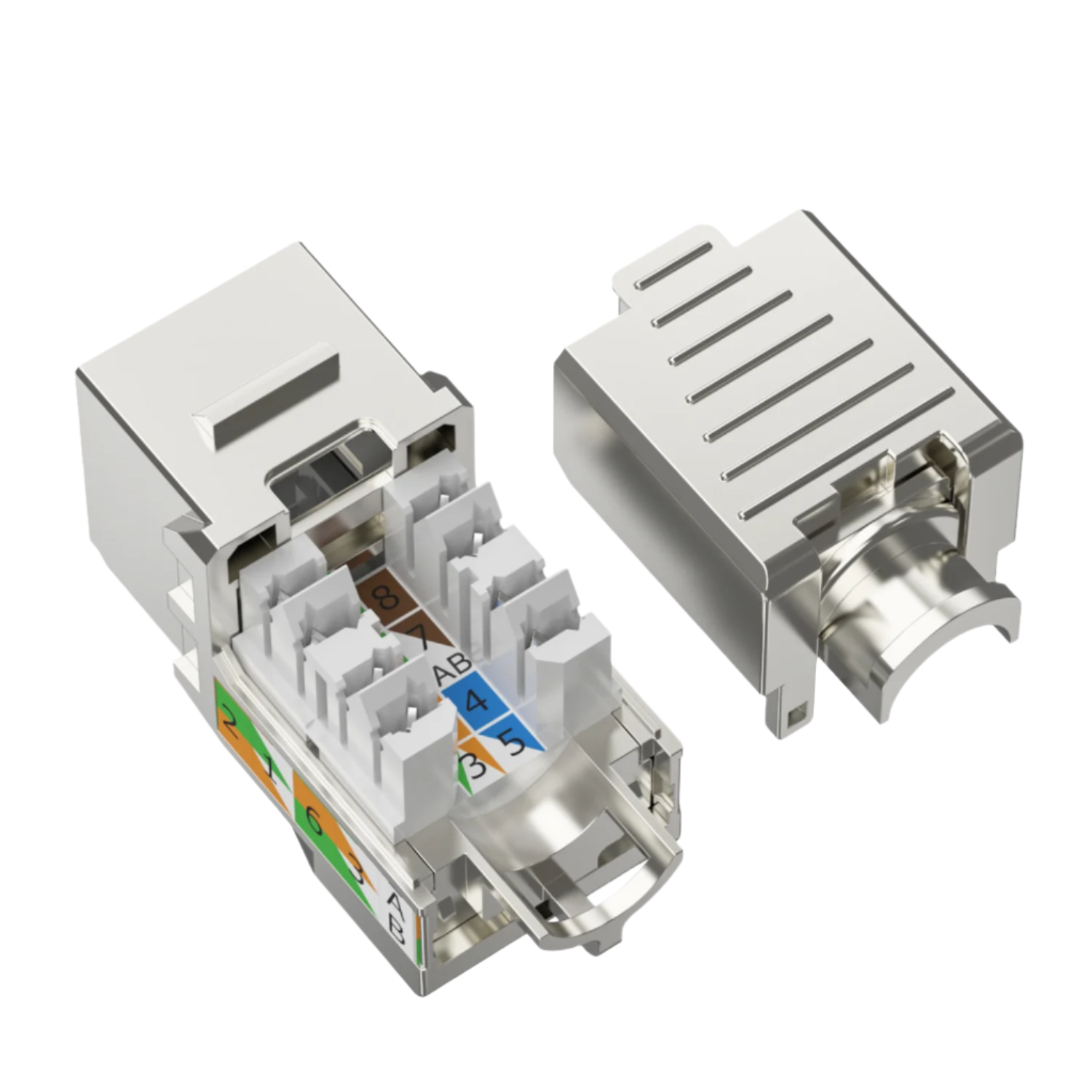

90-Degree FTP Punch-Down Keystone Jack For Simplified Wiring And Enhanced Network Reliability

Description:

Crafted with a durable zinc alloy for plastic components, this tool features a standard 110 and LSA dual-use punching mechanism for effortless operation. Its 180-degree angled IDC clips guarantee a secure and reliable cable connection, meeting the stringent standards of ISO/IEC 11801 & TIA/EIA 568-B.2 Cat6. Experience superior performance thanks to gold-plated pins, IDC clips, and a meticulously matched internal PCB board.

The entire pin is nickel-plated, with 6μ gold-plated connect pins that resist oxidation, ensuring an extended service life. The tinned phosphor bronze nickel-plated IDC clips offer exceptional durability, reliable for over 250 connections.

Specifications:

• Model Number: HKJ-911F

• Material: zinc alloy

• Gold Plated: 3u"-50u"

Electrical Characteristics

• DC Resistance: ≤300mΩ

• Contact Resistance: ≤20mΩ

• Dielectric strength: 1000V(AC750V)1min

• Insulation Resistance: ≥1000MΩ

Physical Characteristics

• Phosphor bronze with nickel-plated, connector pins with golden plated 6μ

• IDC clip: Tinned phosphor bronze pins with nickel plated, fitting for 22-26 AWG cables

• Inserting Duration: ≥750 times

• Punching Duration: ≥250 times

• Jack housing plastic part: UL 94V-0, RED, YELLOW, BLUE, GREEN, BLACK, and other colors are available

• Termination caps material UL94V-0

• Working temperature: -25ºC~60ºC

Features:

• Features a robust zinc alloy for plastic parts, ensuring longevity.
• Dual-use 110/LSA punching tool for streamlined operation.
• 180-degree angled IDC clips secure cable connections.
• Meets ISO/IEC 11801 & TIA/EIA 568-B.2 Cat.6 standards for superior performance.
• Gold-plated pins, IDC clips, and PCB work in harmony for peak connectivity.
• Nickel-plated pins with 6μ gold-plated contact points resist oxidation, extending product life.
• Tinned phosphor bronze IDC clips are nickel-plated for 250 reliable connections.

Schematic:

Applications:

• Network
• Structured cabling transmits data, voice, and video.

• Applied for Cat.6 and E Classes.

• Suitable for working area, central room, managing room, equipment room, and subsystem applications.

Standards:

• ISO/IEC11801

• TIA/EIA-568B.2-1

• EN50173

• UL 94V-0

Package Included:

1 x 90-Degree FTP Punch-Down Keystone Jack
