Description:

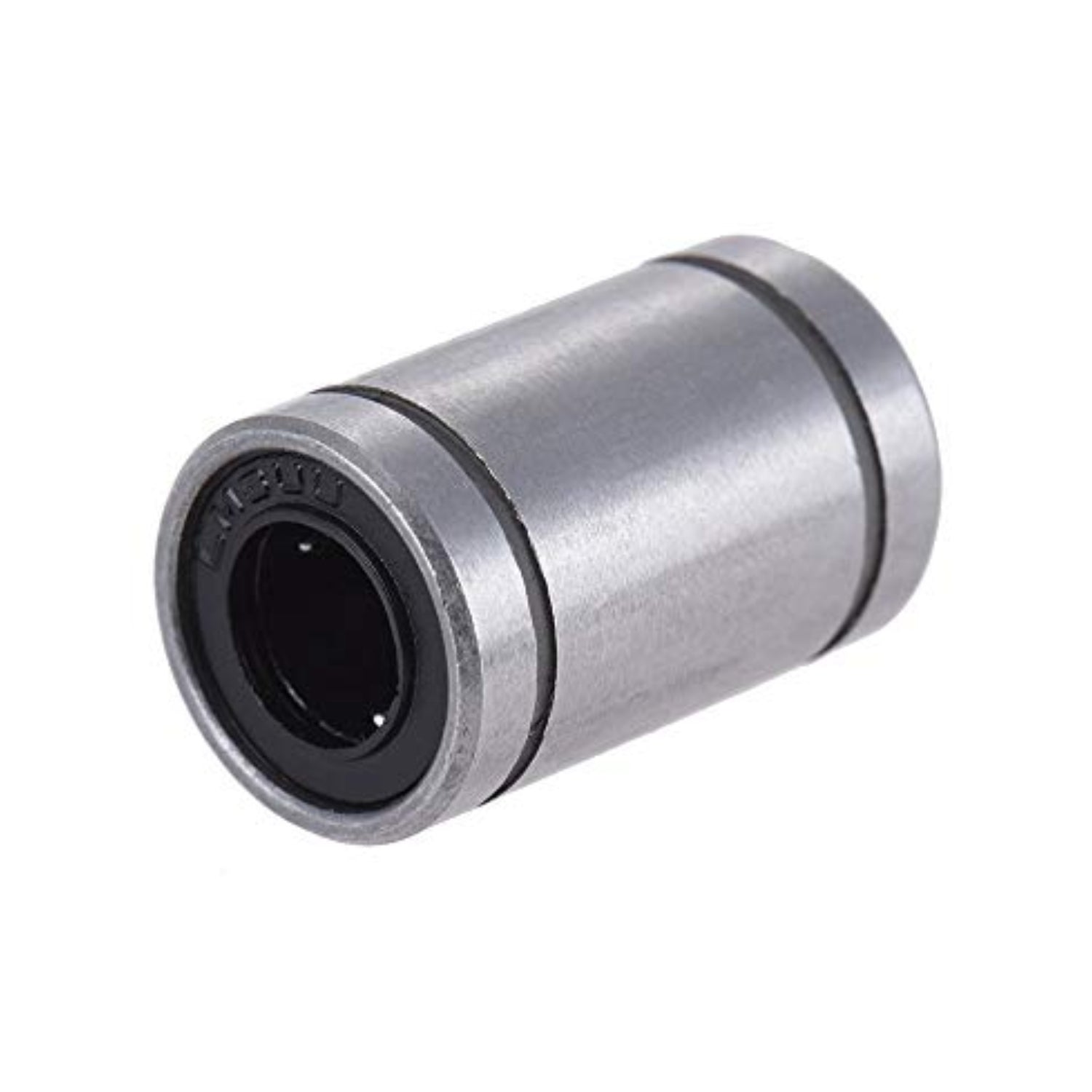

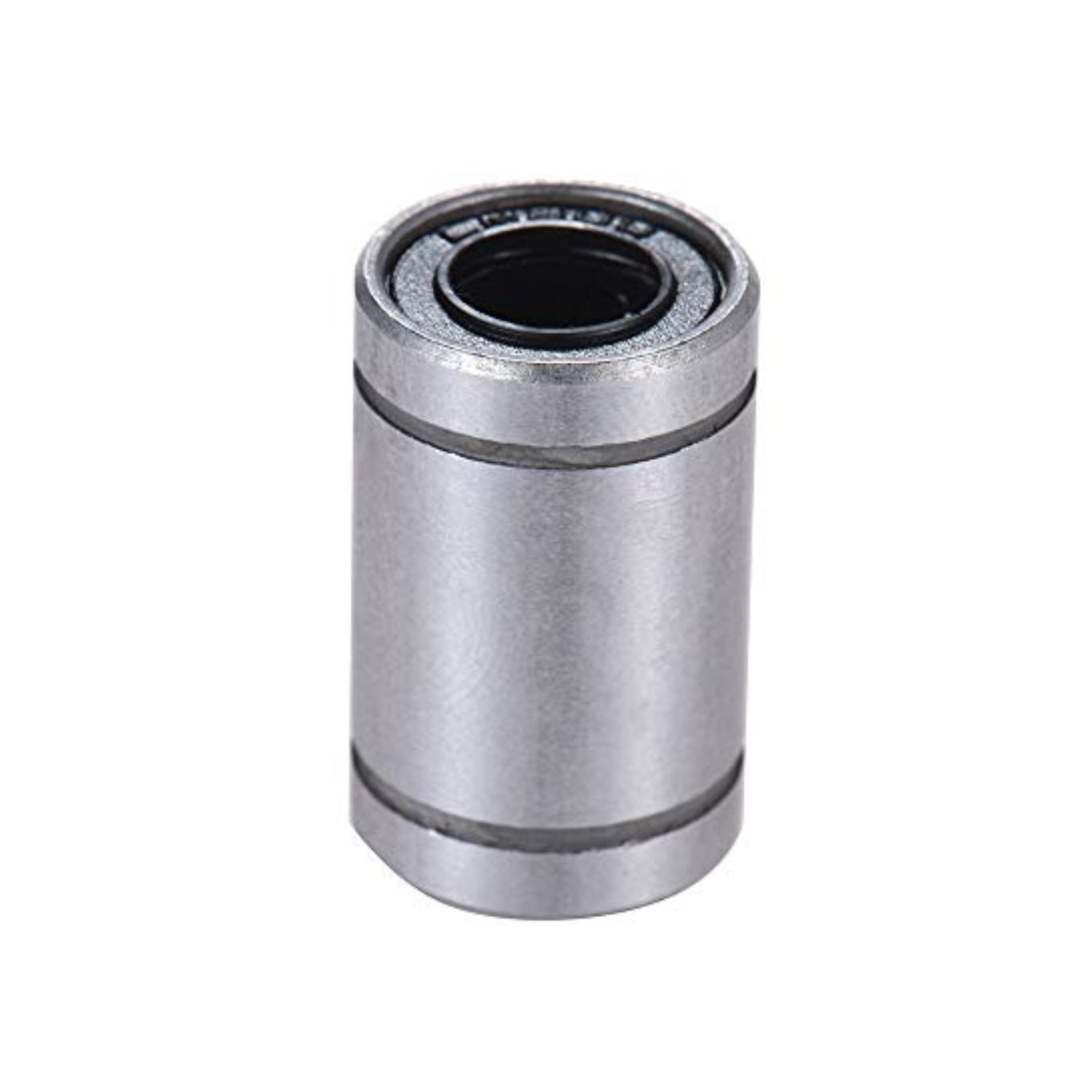

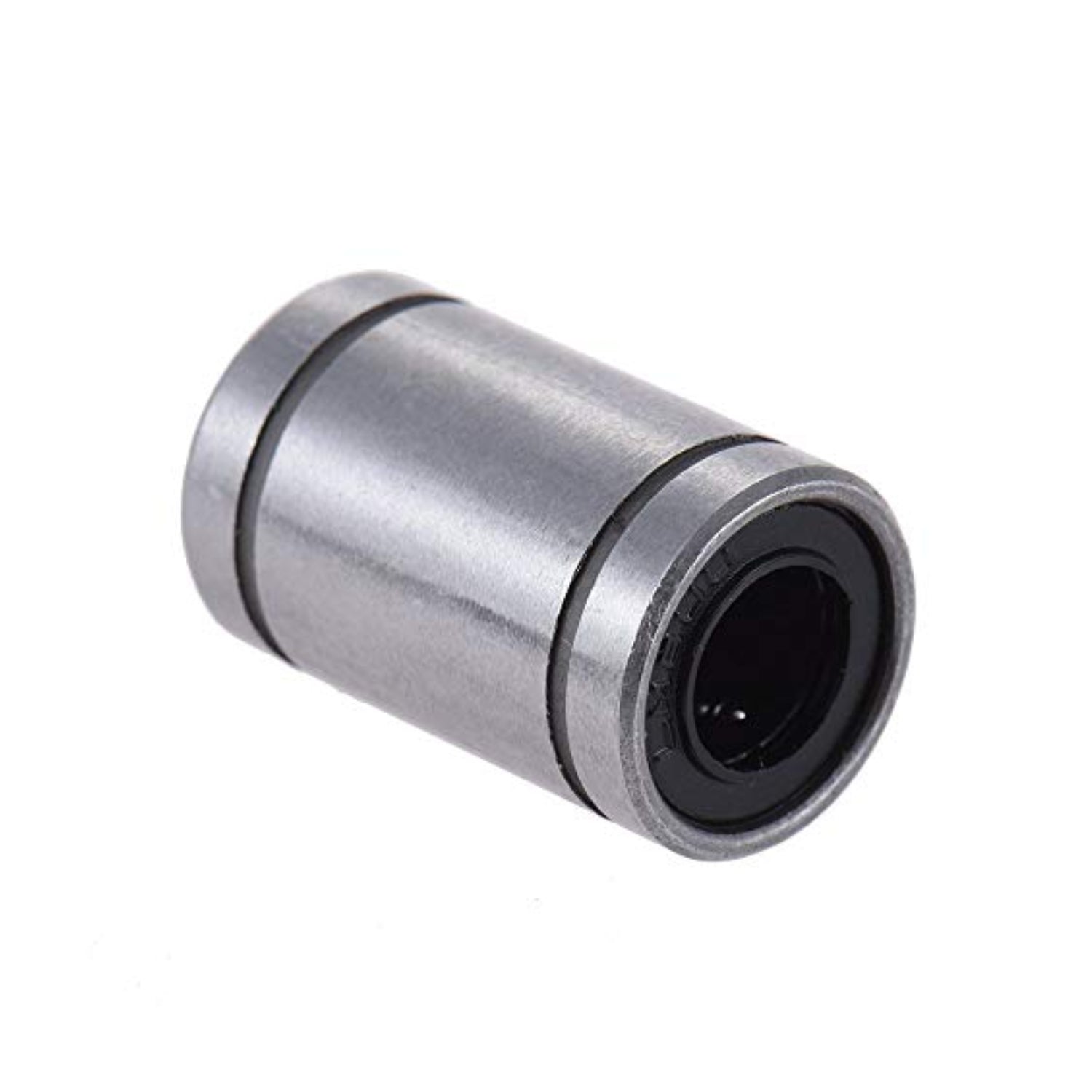

The 8mm Linear Motion Bearing gives you a precise, safe, reliable linear motion system. Such 8mm Linear Motion Bearing is mostly used in 3D printers and CNC (Computer Numerical Control) machines. An 8mm Linear Motion Bearing can provide low friction motion along a single axis, hence finding a wide range of applications in DIY and robotics prototyping.

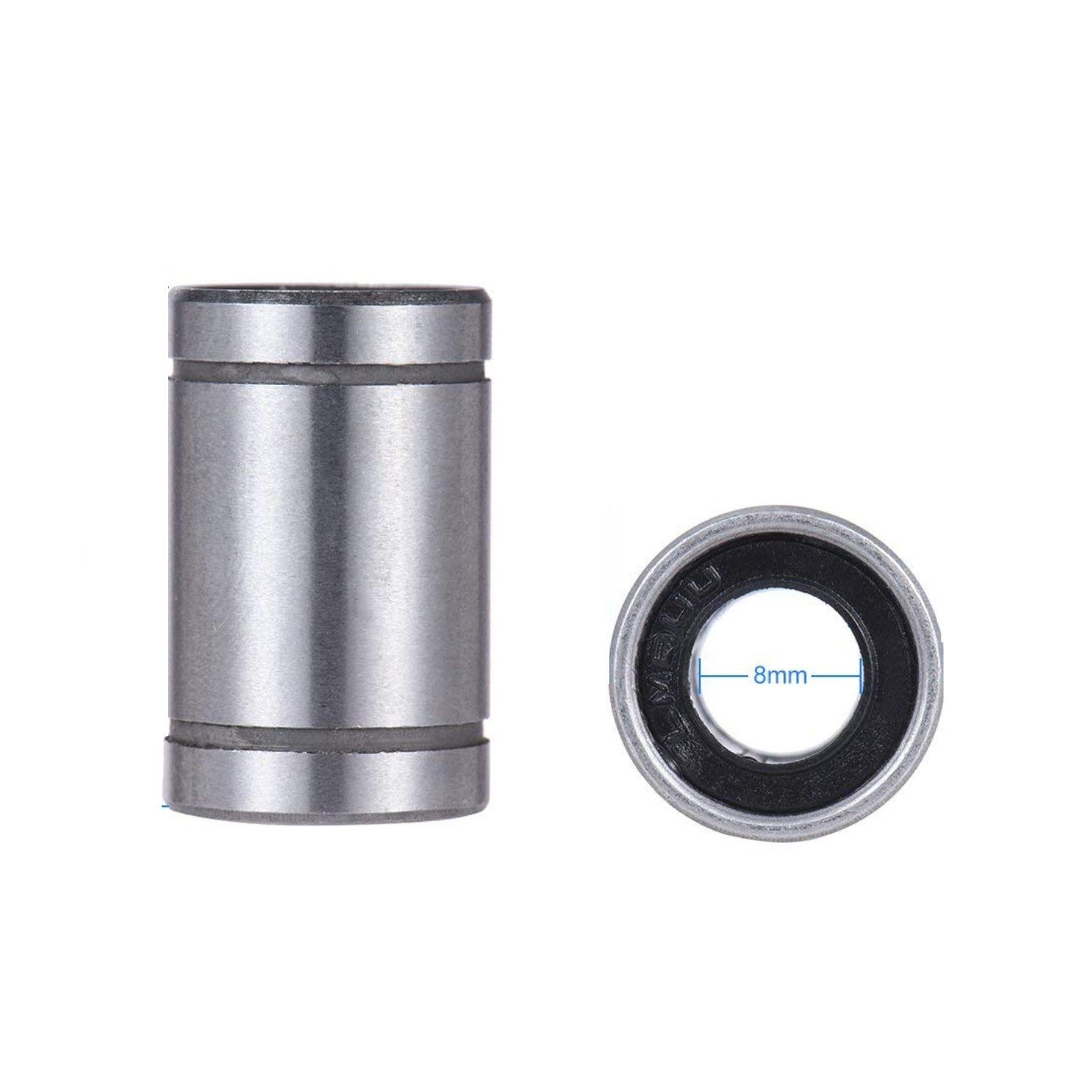

This 8mm Linear Motion Bearing closed type ball bushing has an 8mm bore and 15mm outer diameter and is suitable for use in a mounted slide unit to carry components. These Bearings have various standardized parts that are interchangeable, so need no worry about the replacement of any worn parts.
The linear motion ball bushing employs a high-carbon chromium steel case for strength and rigidity and a synthetic resin retainer plate for accurate ball guidance and low noise. The universal Ball Bearings are great for you to replace the damaged Ball Bearings in your devices to improve the efficiency and saving the energy. Balls in the cage loop run along a smooth ball guide surface to ensure low noise even in high-speed operation.
Since Linear Motion bearings slide along the round shaft, for reliable and smooth motion the shaft must be lubricated. The quality of the shaft directly influences the quality of linear motion we get. So, using a chrome-plated and hardened shaft may be beneficial.
Specifications:
- Colour: Silver
- Model: LM8UU
- Shaft ID: 8mm
- Outer Diameter: 15mm
- Outer Casing: Chromium Steel
- Ball Circuits: 3
Features:
- Outer Casing Chromium Steel
- No worry if replacement of any worn part.
- Low noise even in high-speed operation.
- Low friction, optimum loading capacity, long life.
- It has a linear bearing ball cage, a hardened coat at both end rings.
Package Included:
1 x 8mm Linear Motion Bearing LM8UU 8mm Linear Ball Bearing Bush Steel For CNC Router Mill Machine 3D Printer
