Description:

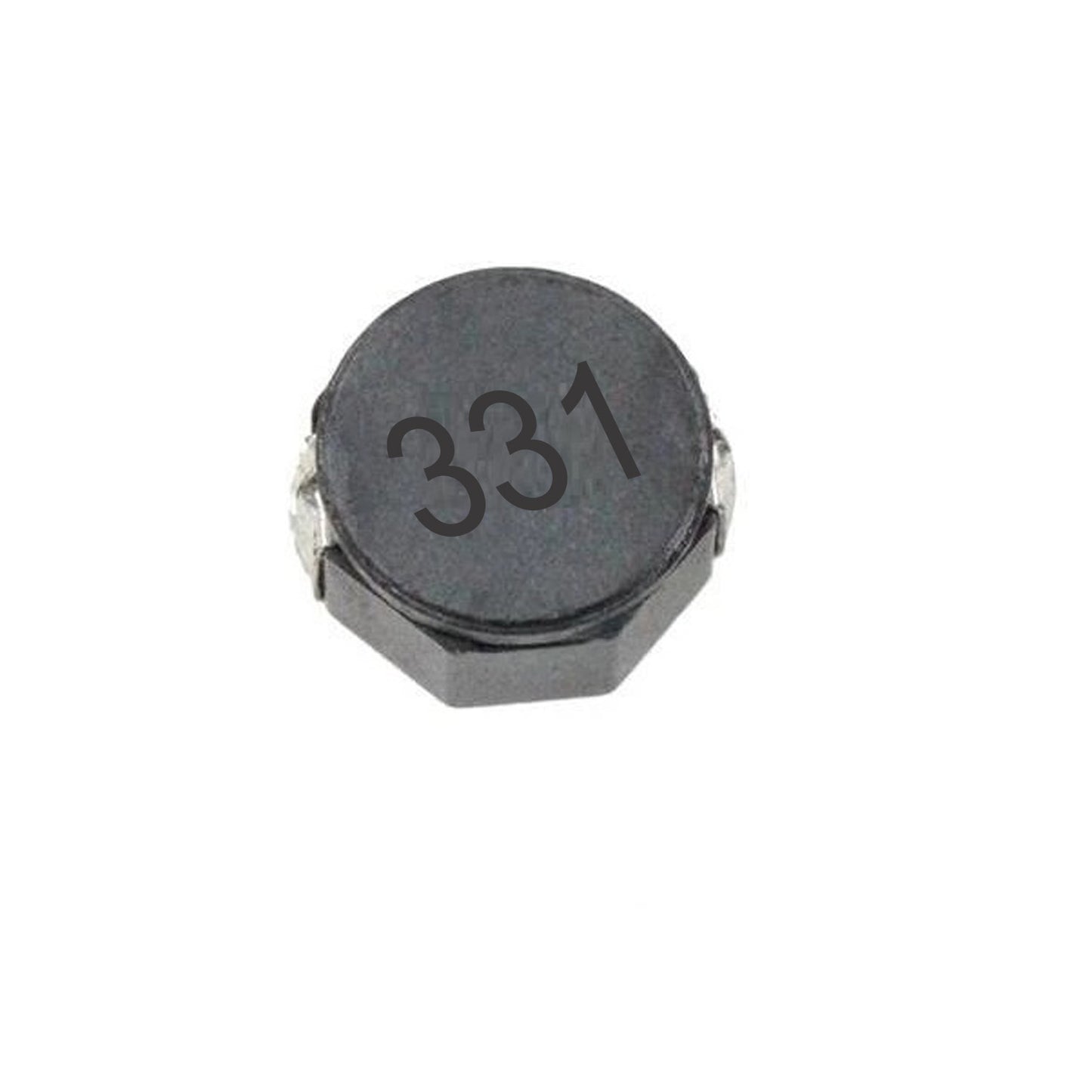

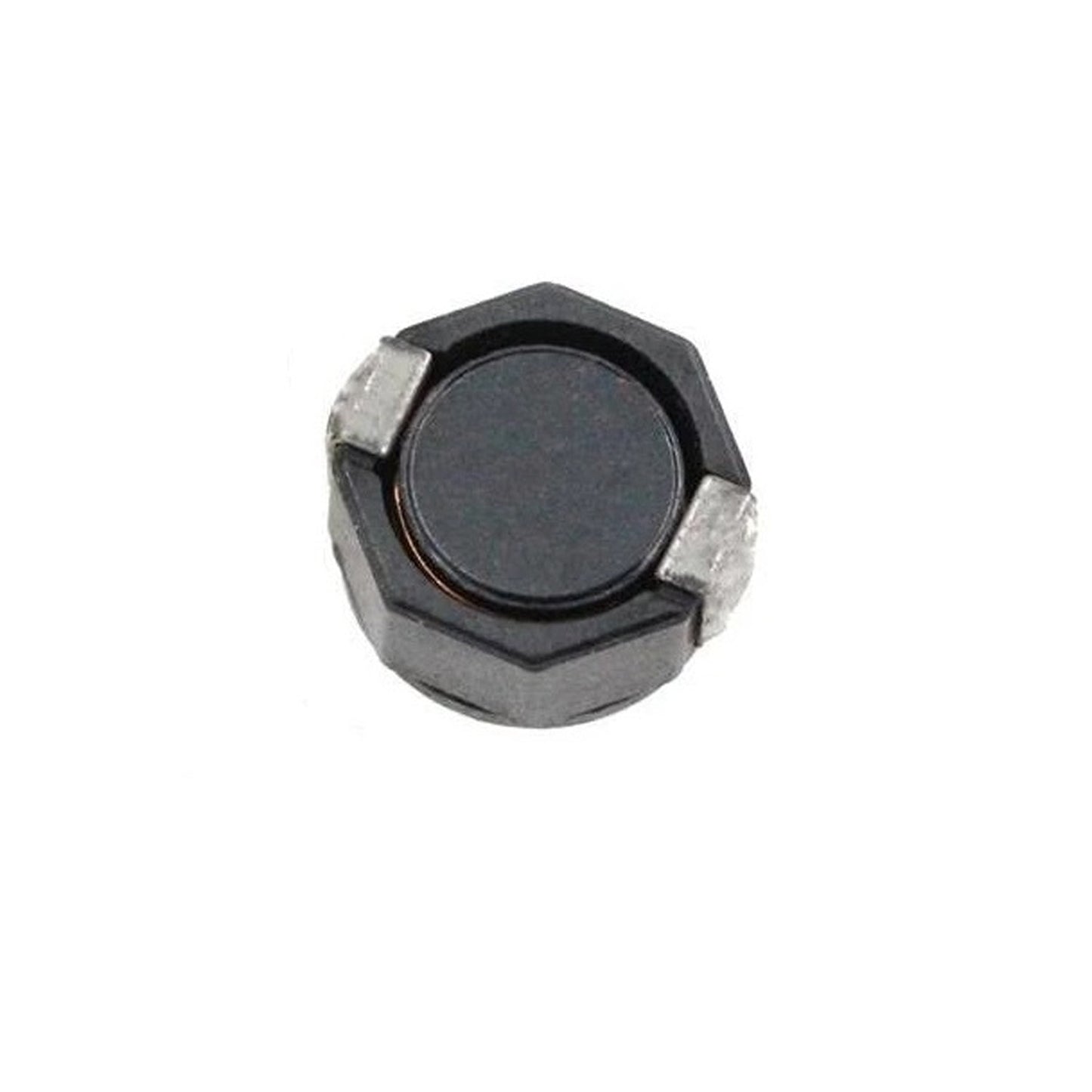

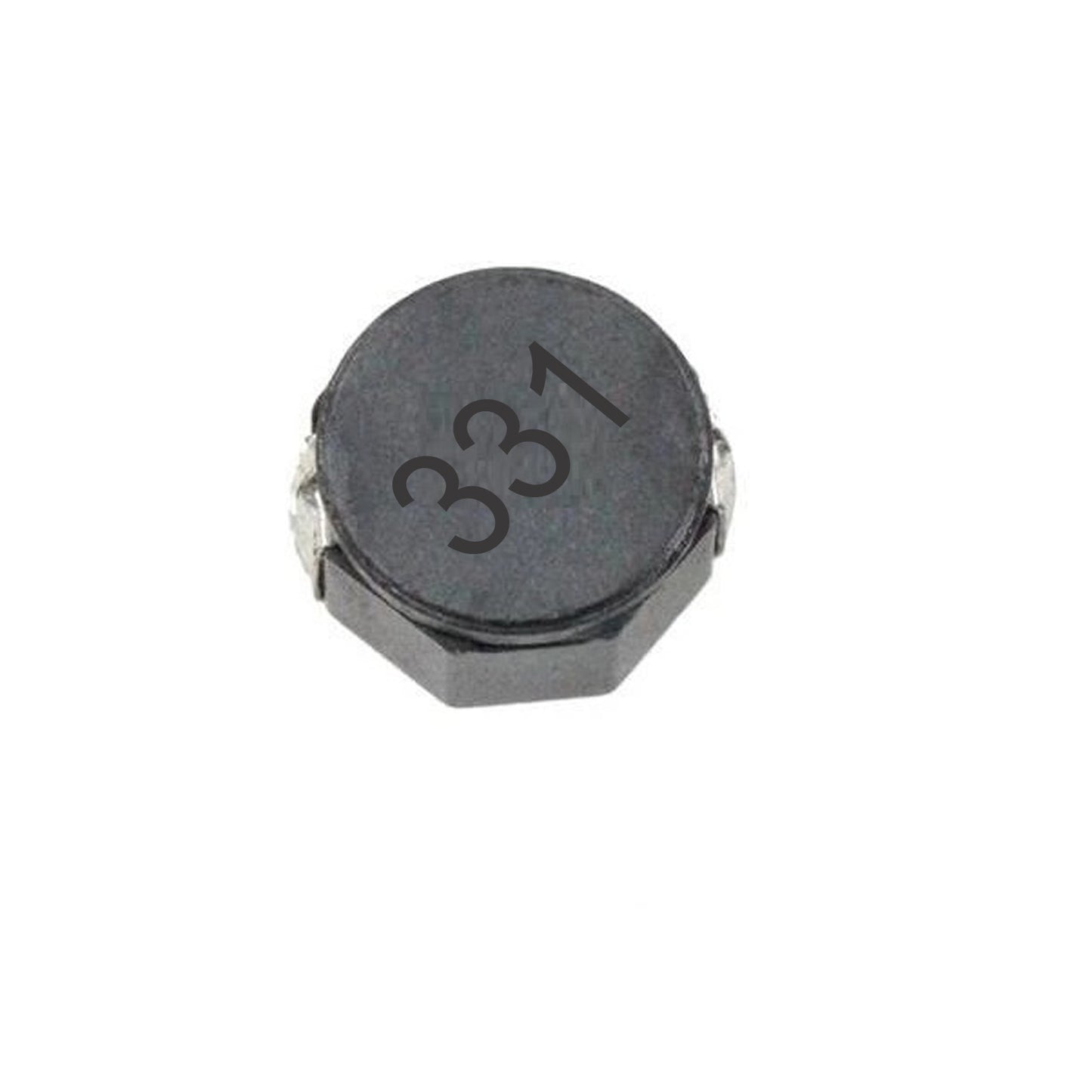

This surface mount device is an 8D43 330uH Power Inductor. The core of it is a ferrite drum around which a wire is coiled. This 8D43 331 power inductor complies with RoHS regulations and contains a magnetic shield. This type of inductor has pads for surface mounting. 8D43 Power Inductor is a passive electronic device. Terminals of this inductor, also called pads are designed for surface mounting. Also, the inductor has magnetic shielding.
Specifications:
- Inductance: 330uH
- Mounting Type: SMD/SMT
- Material Core: Ferrite
- Tolerance: 30%
- DC Resistance: 360mΩ
- Current Rating: 1.3A
- Frequency: 100kHz
- Operating Temperature: -40 to 100°C
Features:
- Moisture resistant.
- Surface mount.
- RoHS compliant.
- Ferrite drum core construction.
- Compact in size.
- Magnetic shield.
Applications:
- Ideally used in Mobile phones, MP3, PDA, HDD, DSC/DVC, etc as DC-DC converter inductors. This type of inductor has pads for surface mounting.
Package Included:
1 x 8D43 330uH Power Inductor 8D43 331 Power Inductor 2A SMD Power Inductor For Buck Converter High-Current SMD Power Inductor 8D43 Surface Mount Power Inductor With Low DC Resistance
