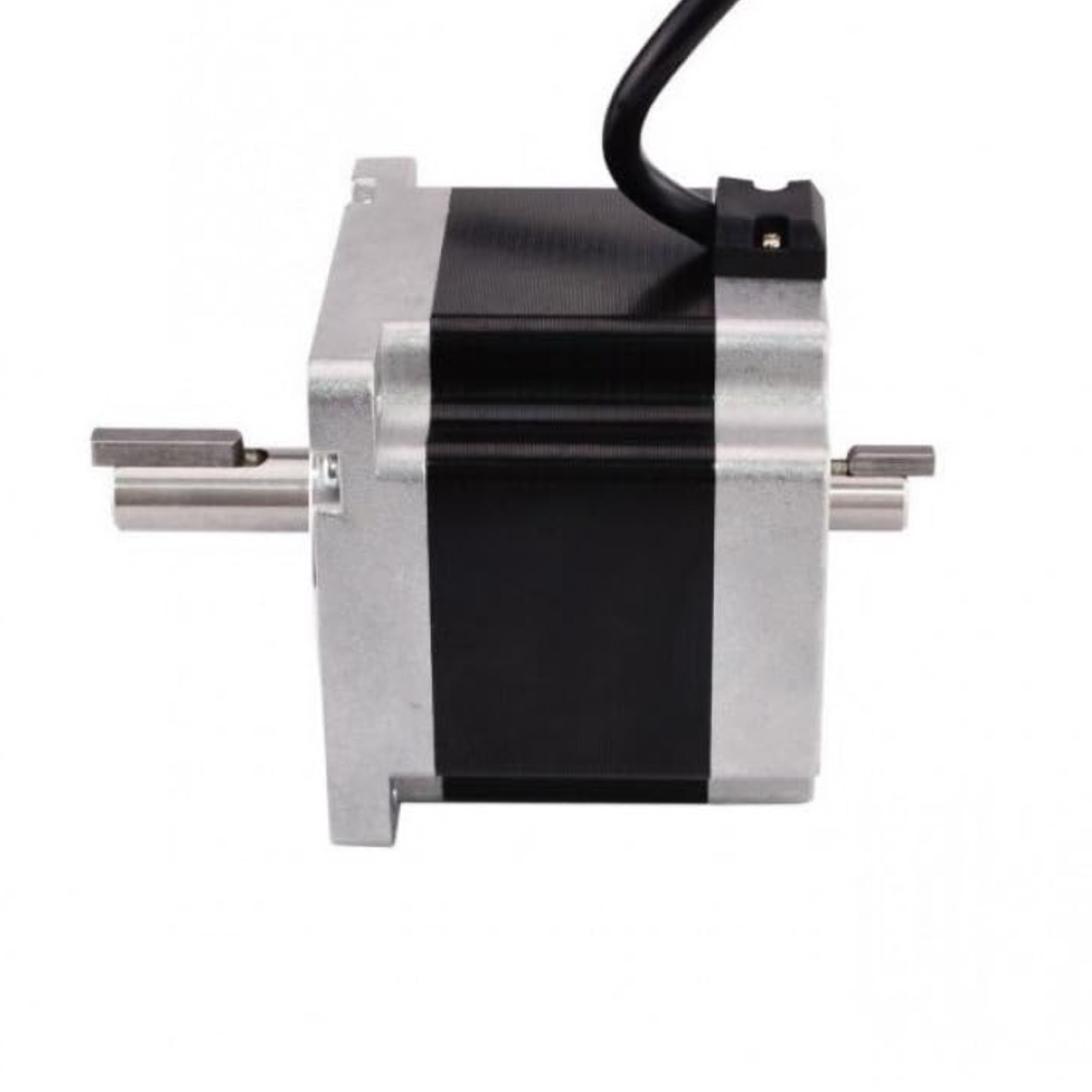

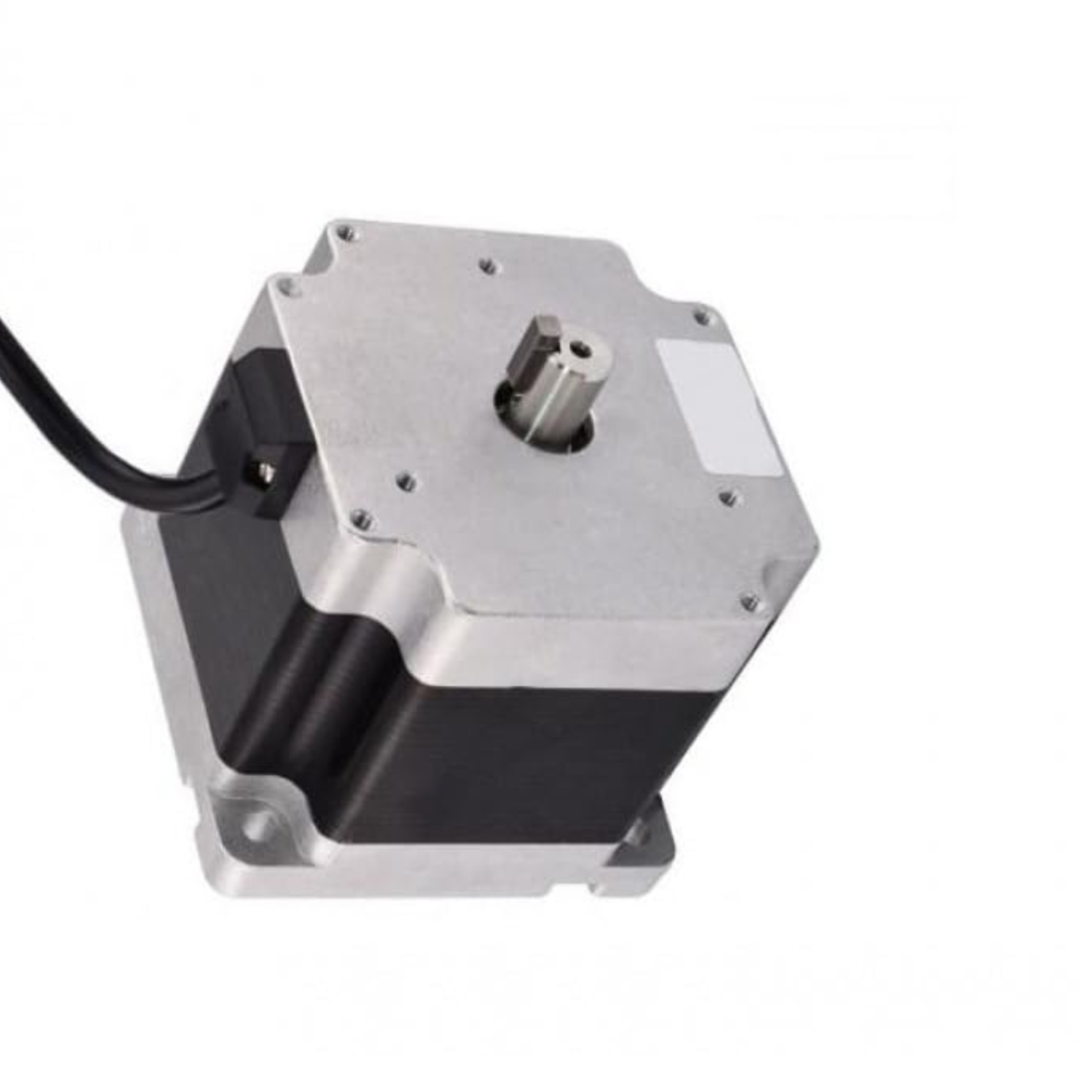

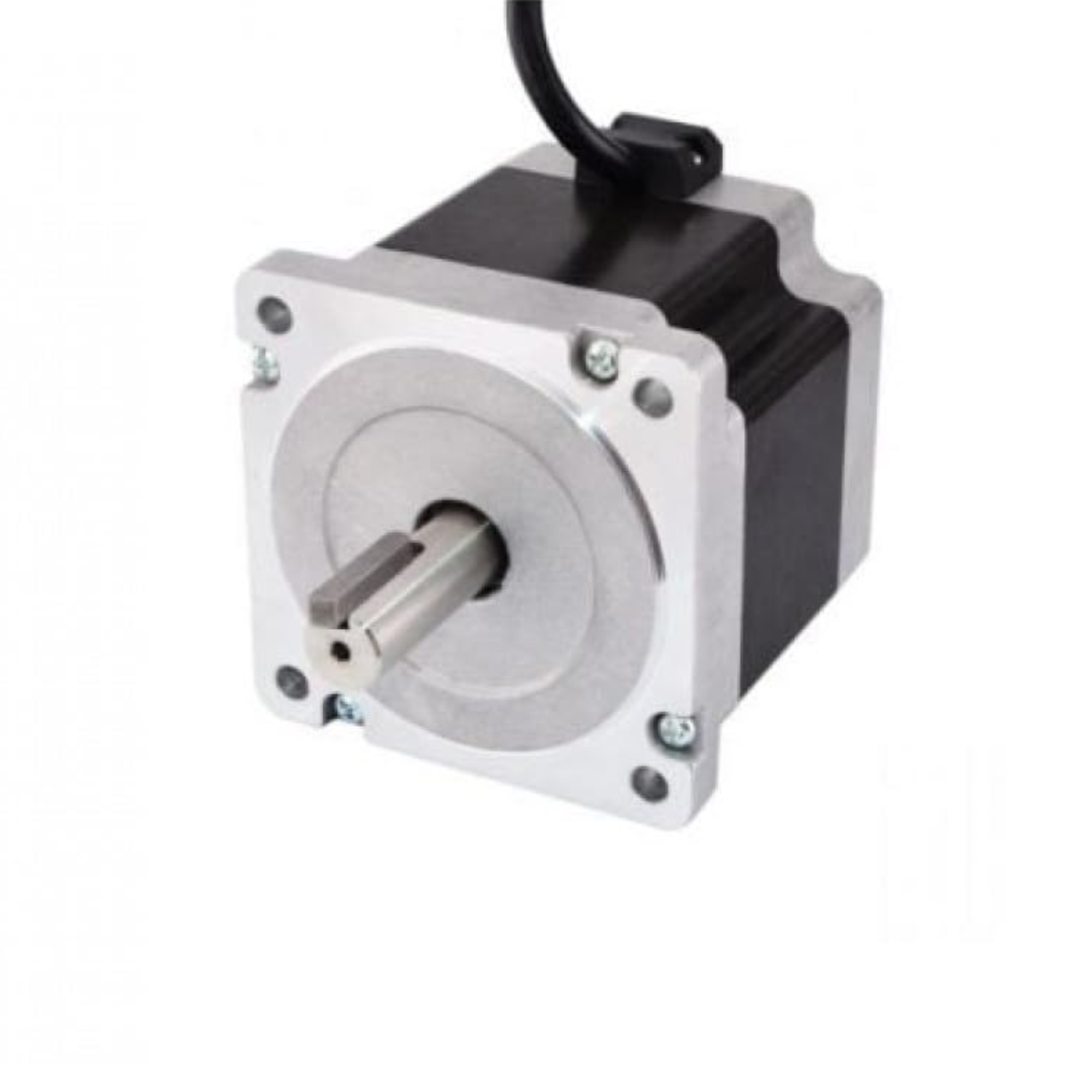

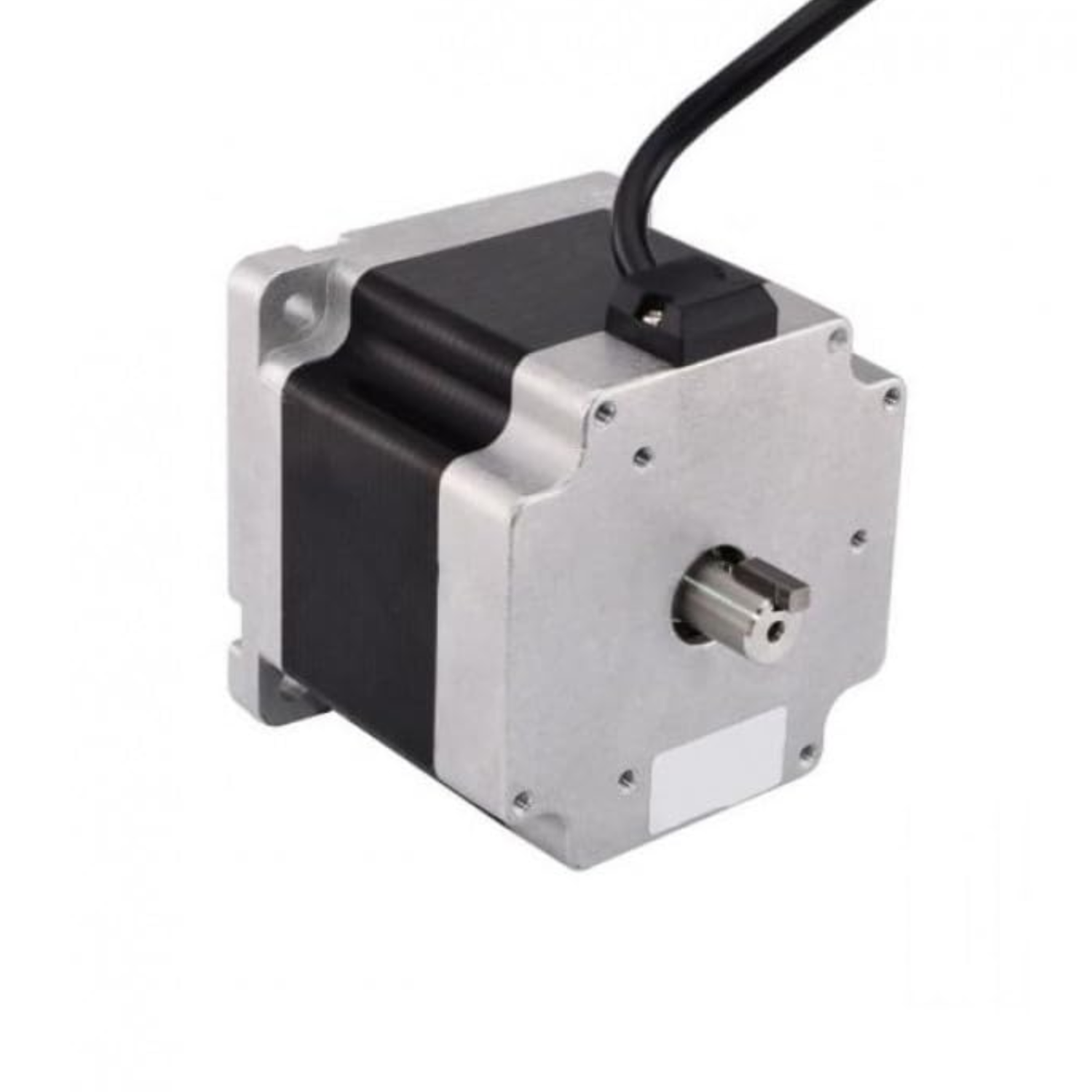

86HS68-5904-08J NEMA34 Stepper Motor 34 kgcm Holding Torque Keyway Shaft - RS6894

Description:

This robust NEMA34 stepper motor features a keyway-type shaft for secure mechanical coupling. With an impressive torque rating of 34 kgcm, this motor delivers reliable performance for demanding automation applications. The model 86HS68-5904-08J is engineered for smooth operation and accurate positioning, making it ideal for CNC machines, 3D printers, and industrial equipment.

Its sturdy construction ensures consistent performance under continuous operation, whilst the standard NEMA34 mounting pattern allows for straightforward installation. The keyway shaft design provides enhanced torque transmission and prevents slippage during high-load operations. This stepper motor offers excellent holding torque and step accuracy, perfect for applications requiring precise movement control. Suitable for both industrial and professional applications where dependable performance and precise positioning are essential.

Specifications:

• Holding Torque: 46 (kg-cm)
• Step Angle: 1.8
• Model No.: 86HS78-5504-01
• Supply Current: 5.5A
• No. of Phase: 2
• Inductance: 4 mH±20%
• Resistance: 0.46 Ω±0.1(Ohm)

Features:

• The input pulse decides the rotation angle of the motor.
• High accuracy of around 3% to 5% a step.
• It provides good starting, stopping, and reversing.
• Control of this motor is less costly because of the exclusion of complex control circuitry.
• The speed is proportional to the frequency of the input pulses.

Package Included:

1 x 86HS68-5904-08J NEMA 34 34 Kgcm Stepper Motor
