Description:

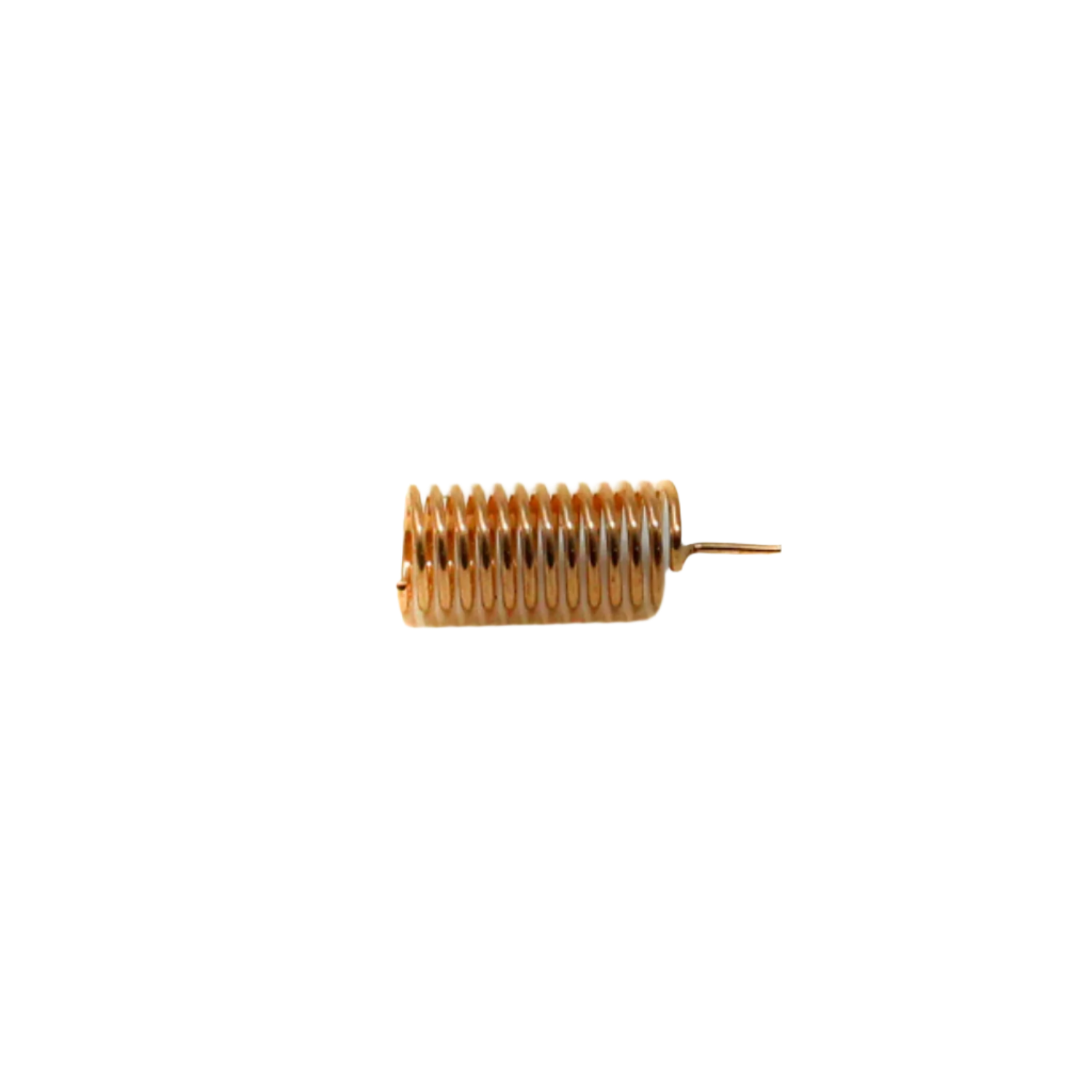

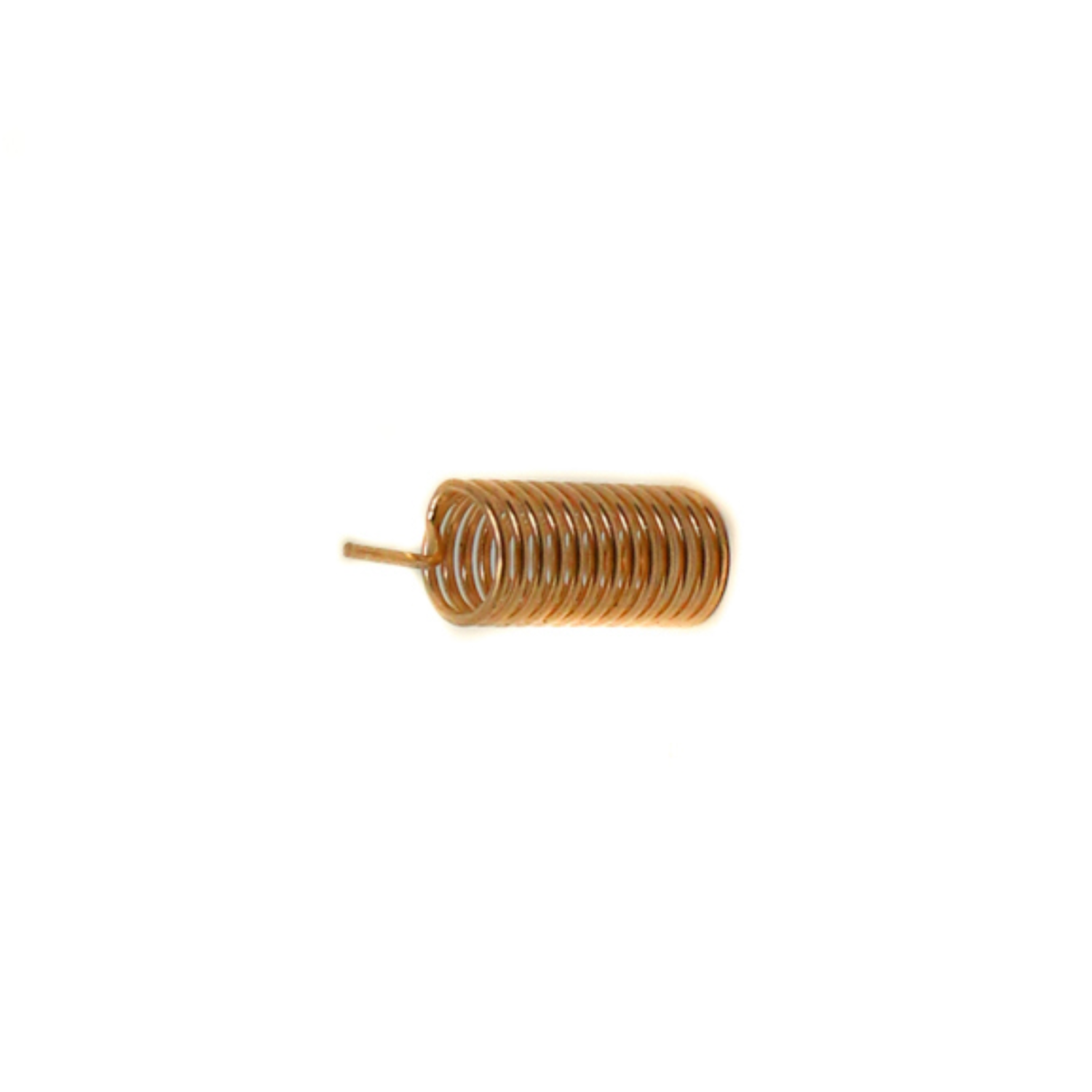

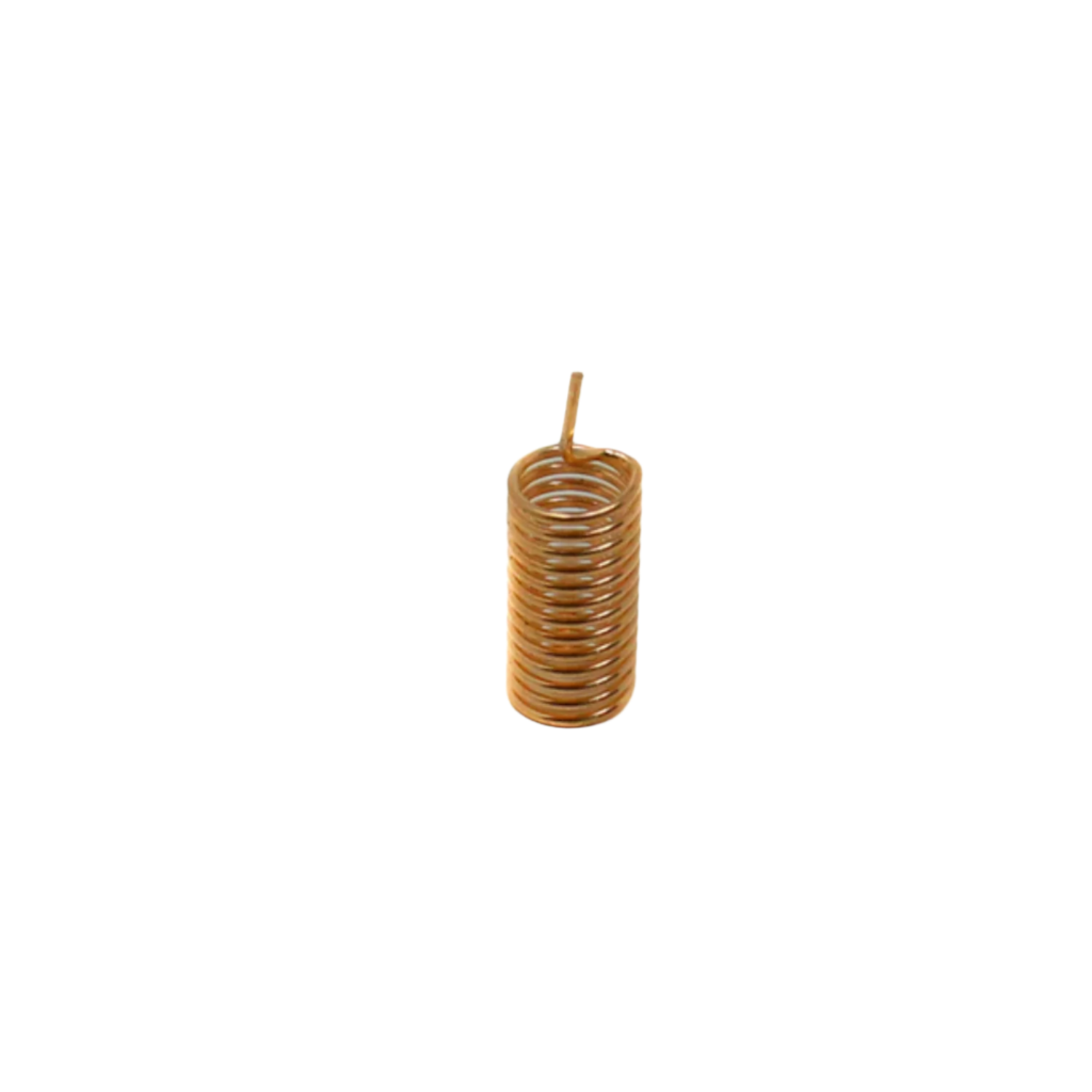

The 865-868MHz Helical Antenna: A cost-effective and compact solution for telecommunications. Constructed from one or more conducting wires wound into a helix, this antenna offers a typical gain of 1.5dBi, influenced by the PCB ground plane. Its small footprint and affordability make it a widely adopted choice for various communication applications.
Specifications:
- Item Type: Helix Antenna
- Model Type: Helix
- Frequency: 868MHz
- Gain: 1.5 dBi
- VSWR: ≤1.5
- Antenna Gain: ~ 1.5 dBi (depends on PCB ground plane)
- Model No.: LWC-868-HELIX-03
- Polarization: Vertical
- Power Handling: 10W
- HPBWH: 3600; V: 300
- Connector: Direct Solder
- Operating Temperature: -30 to 60°C
- Humidity Range: 5 – 95%
Features:
- Compact Size
- Low Cost
- Right Angle Option
- Corrosion-Free
- Spark Protection
Package Included:
1 x 868MHz Helix Antenna
