801S Vibration Detector Shock Sensor Module Impact Sensor High-Sensitivity Vibration & Shock Sensor Module Accelerometer For Vibration And Shock Detection Programmable Vibration/Shock Detection Module - RS3926

801S Vibration Detector Shock Sensor Module Impact Sensor High-Sensitivity Vibration & Shock Sensor Module Accelerometer For Vibration And Shock Detection Programmable Vibration/Shock Detection Module - RS3926

RS3926

In stock

Rs. 157.00
Rs. 157.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

View full details

Descriptions:

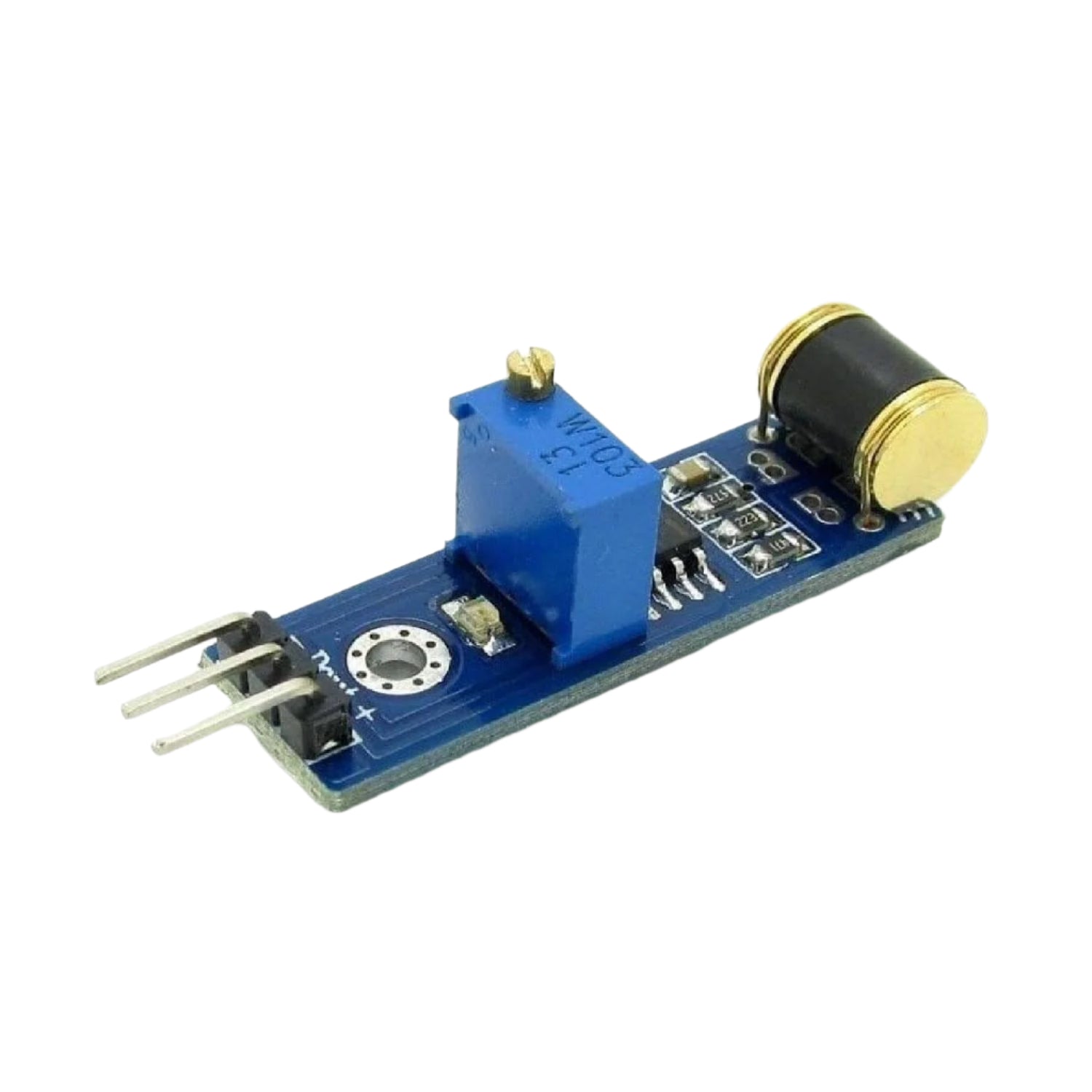

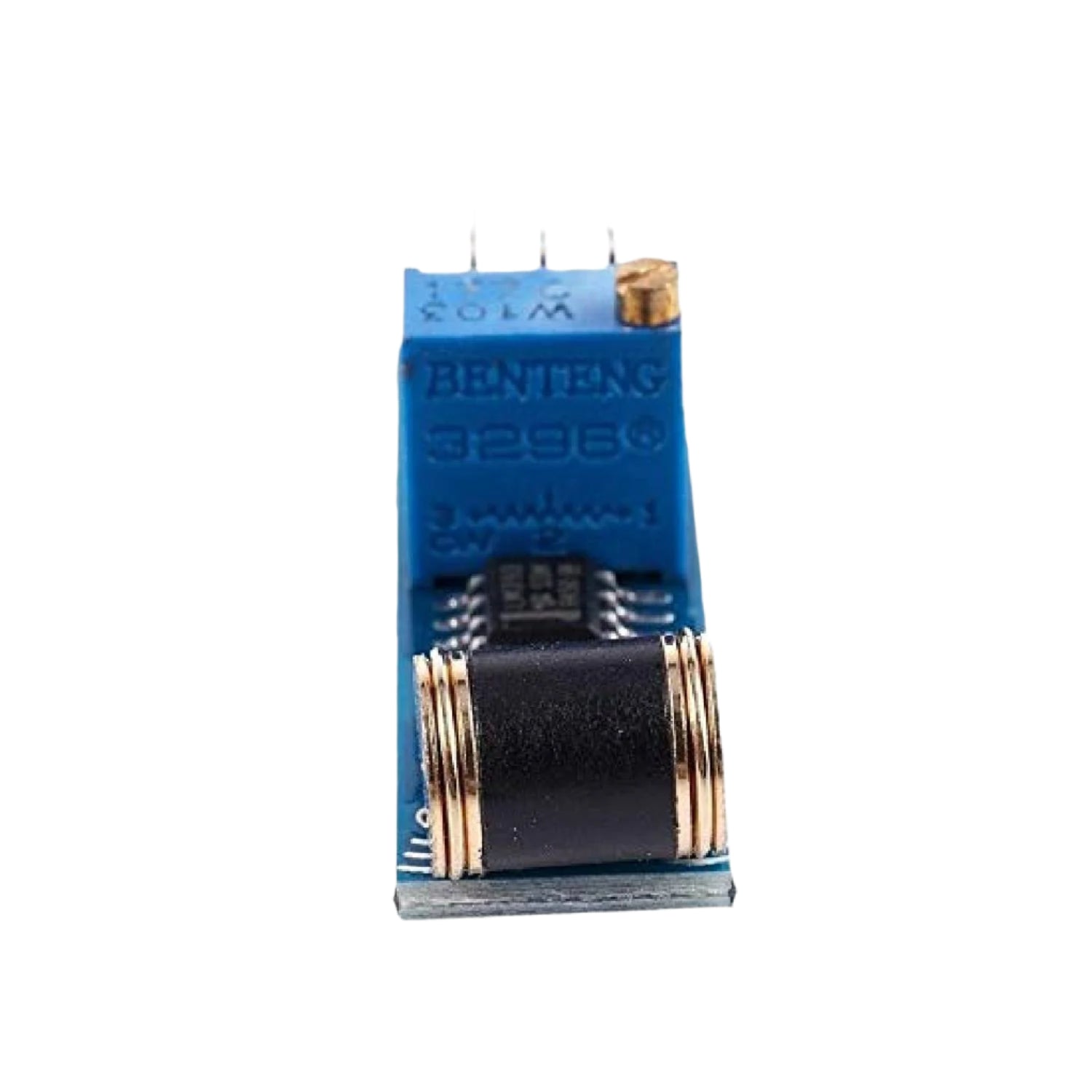

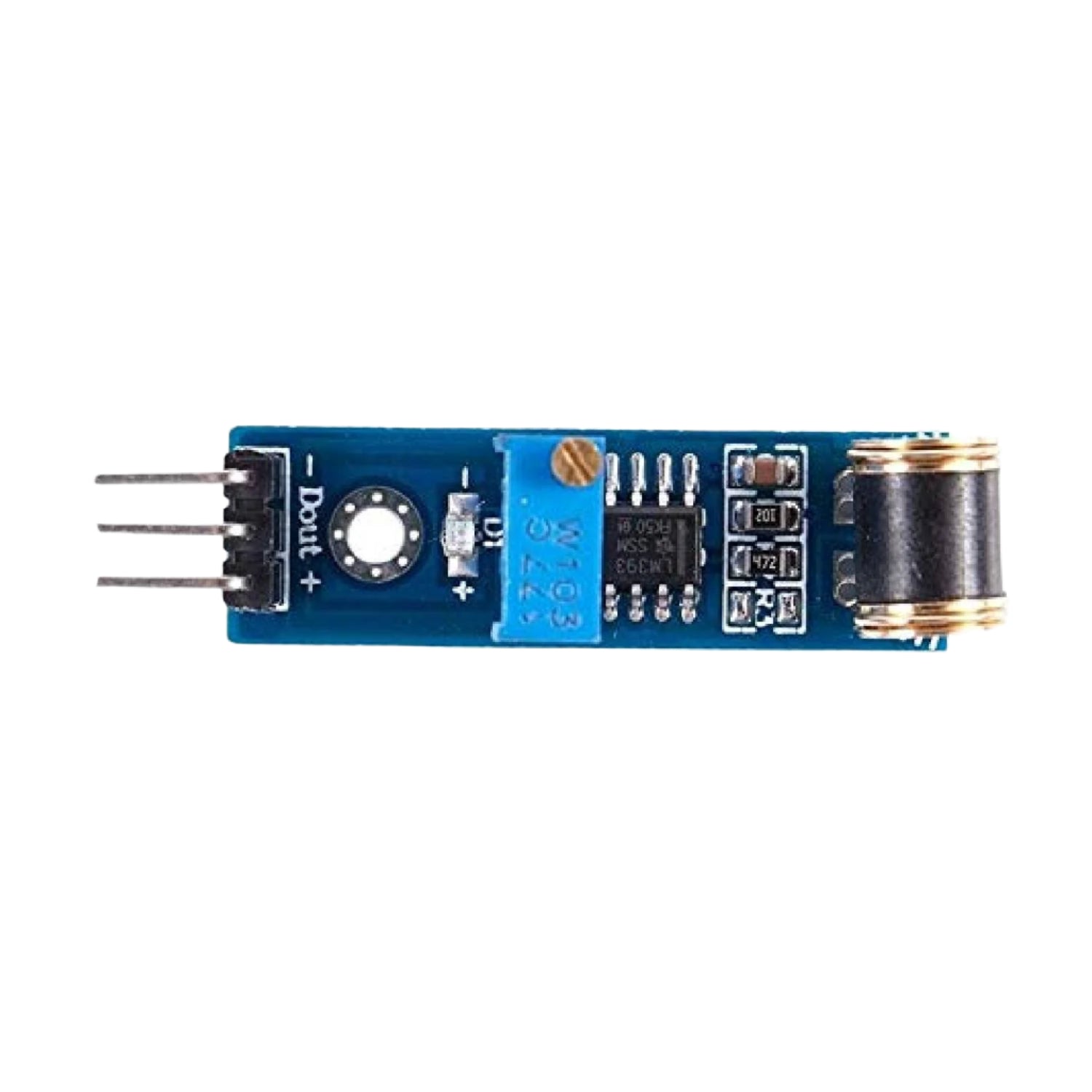

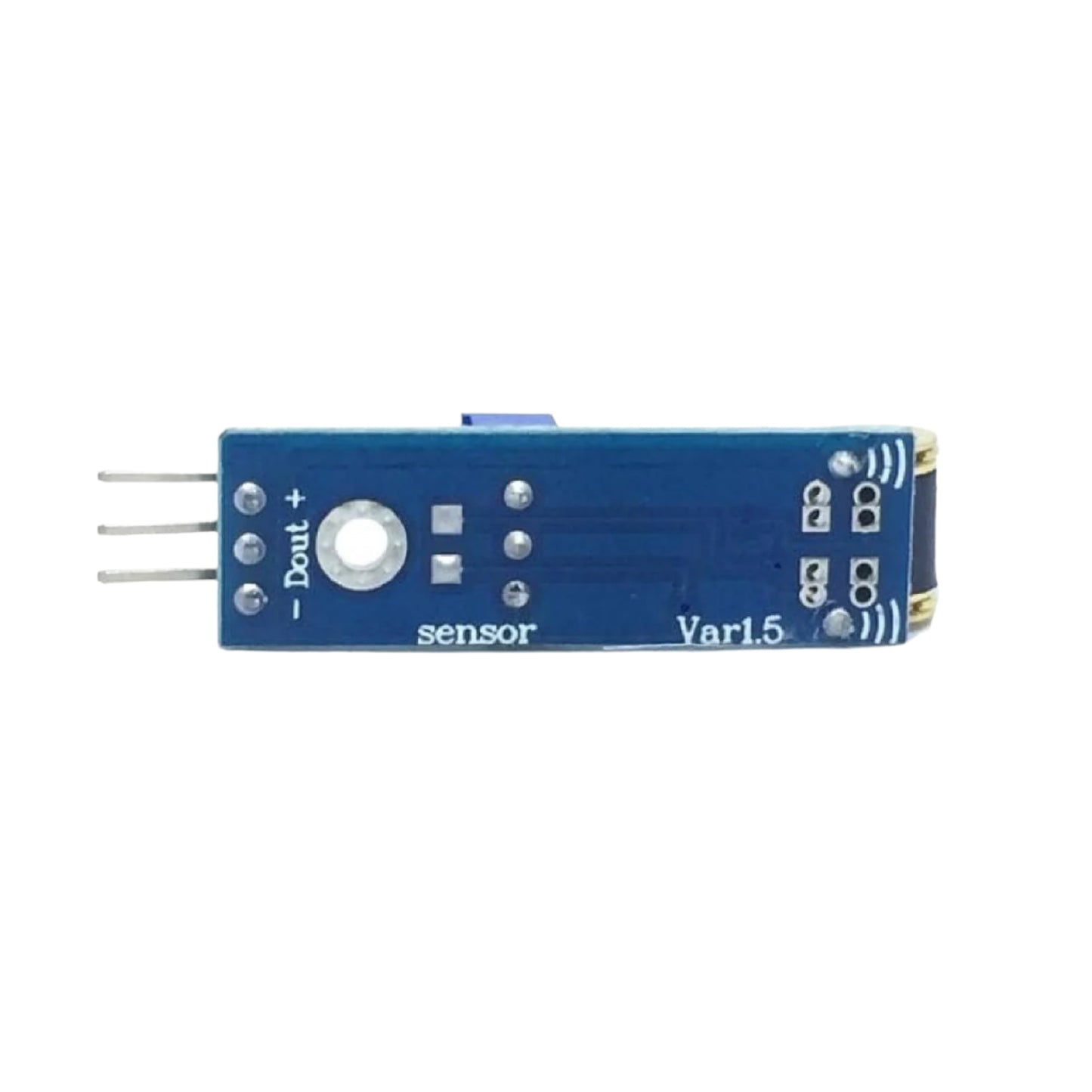

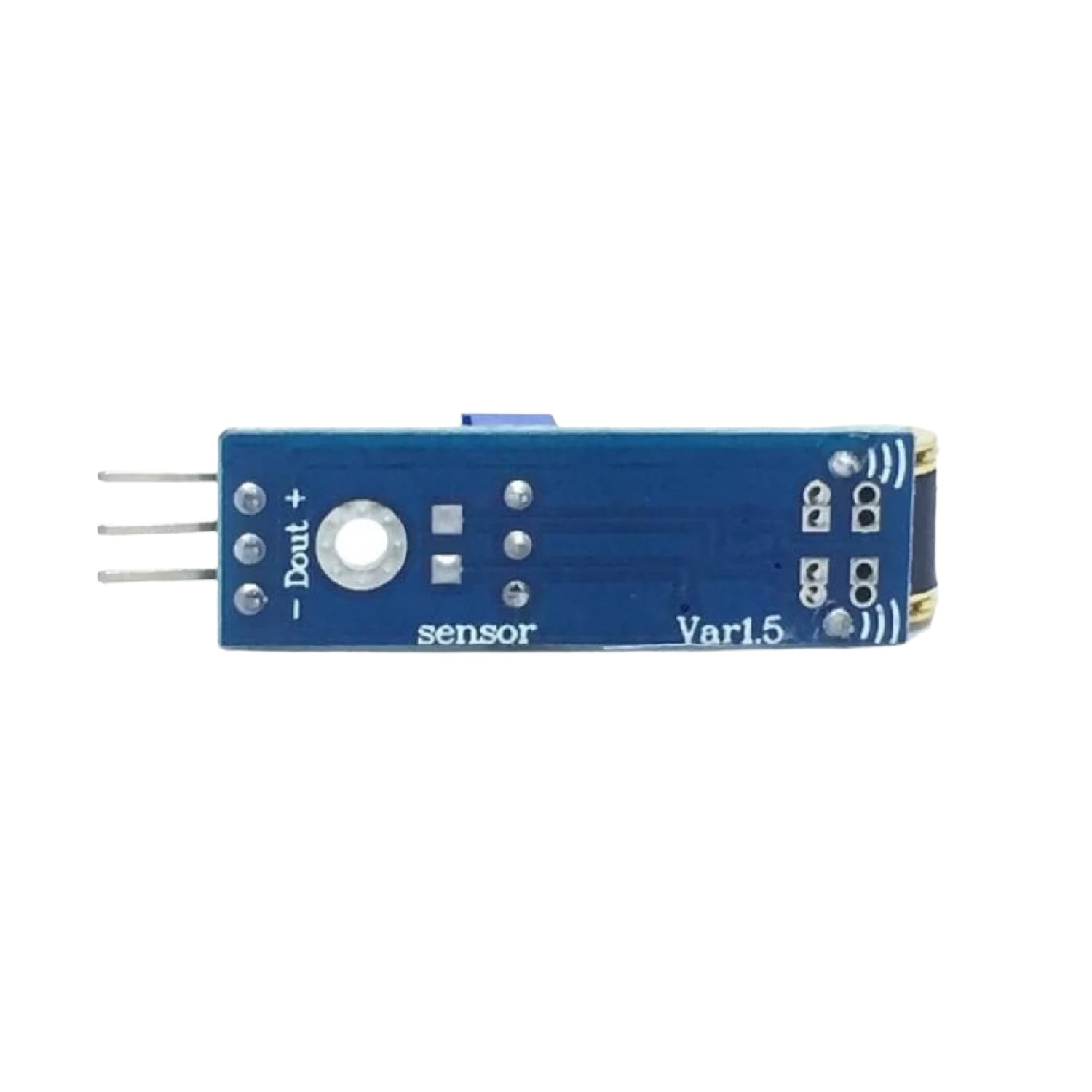

This 801S Vibration Shock Sensor Module changes its resistance level once vibration is detected. It can turn into a switch if the vibration is high. According to the datasheet, it is gold-plated and can withstand 60 million shocks.

This module is connected in a voltage divider which can be measured through its digital pinout. It’s a high sensitivity 801S Vibration Sensor module, which has one digital output pin(D0), When it detects some vibration up to a certain threshold, it can output High or Low level.

Specifications:

  • Model Type: Vibration Sensor Module
  • IC Chip: LM393
  • Operating Voltage (VDC): 3 to 5

Features:

  • The output valid signal is high, the light goes out
  • The sensitivity is adjustable (fine-tuning)
  • The wide detection range of vibration, no direction
  • With mounting holes, firmware installation is flexible and convenient.
  • Micro-Shock detecting
  • 60,000,000 times shock guarantee (special gold alloy plated)
  • Has a signal output instruction
  • Digital output signal

Package Included:

1 x  801S Vibration Detector Shock Sensor Module
