800-Piece Ferrule Wire Copper Crimp Connector Kit (AWG 22–10) — Insulated End Terminals - RS1846

Description:

This 800-piece Ferrule Wire Copper Crimp Connector Kit offers a comprehensive assortment of insulated cord pin end terminals (ferrules) suitable for wires of AWG 22 through AWG 10 (0.3 mm² to 6.0 mm²). Each ferrule ensures a secure connection, prevents wire fraying, and makes repeated insertions in terminal blocks more reliable.

Specification:

Features:

• Wire range: AWG 22 to 10 (0.3 mm² to 6.0 mm²)
• Material: Copper barrel with PVC (or nylon) insulated collar
• Length of copper barrel: typically 8–12 mm (varies by size)
• Comes in multiple colors / sizes to easily identify wire gauge groups

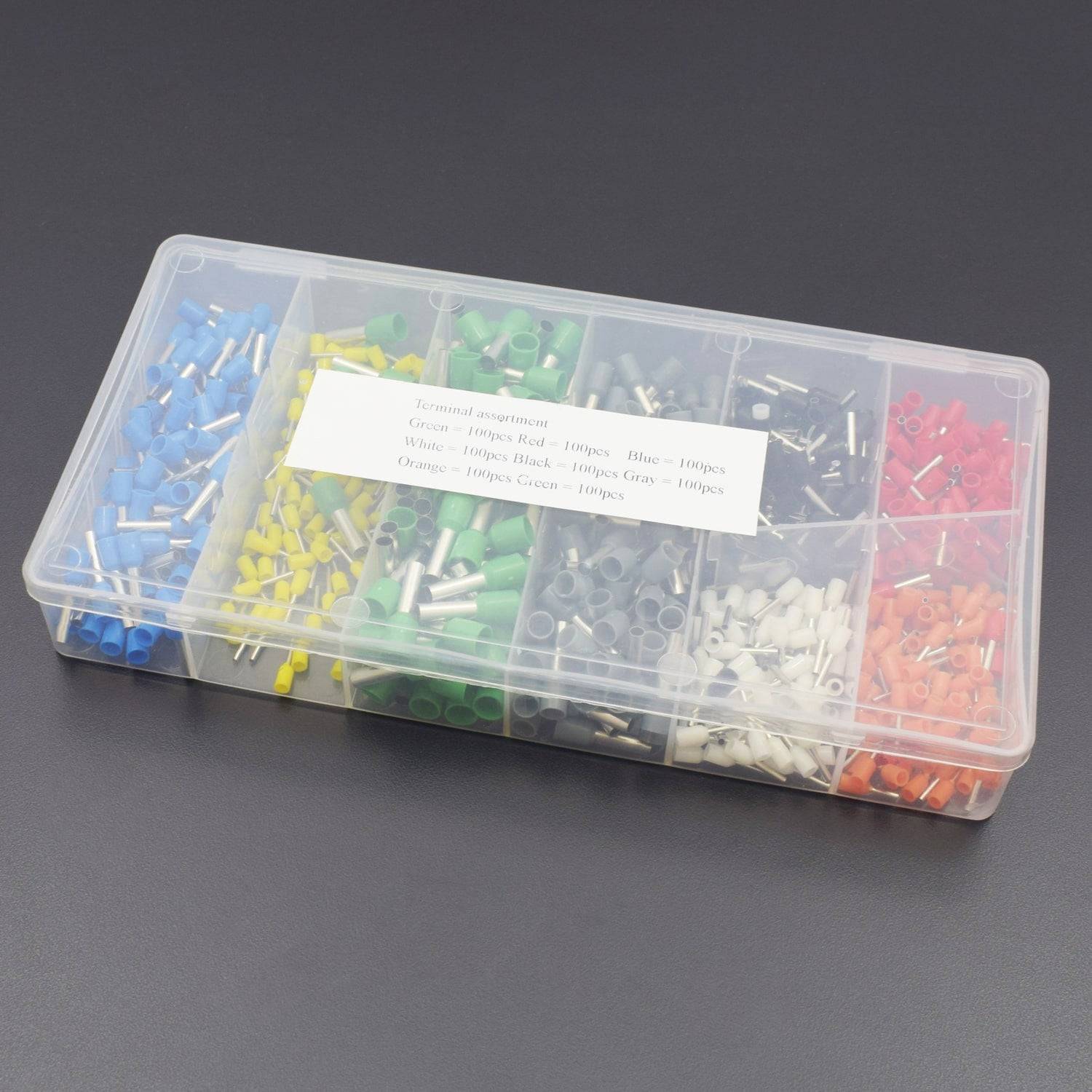

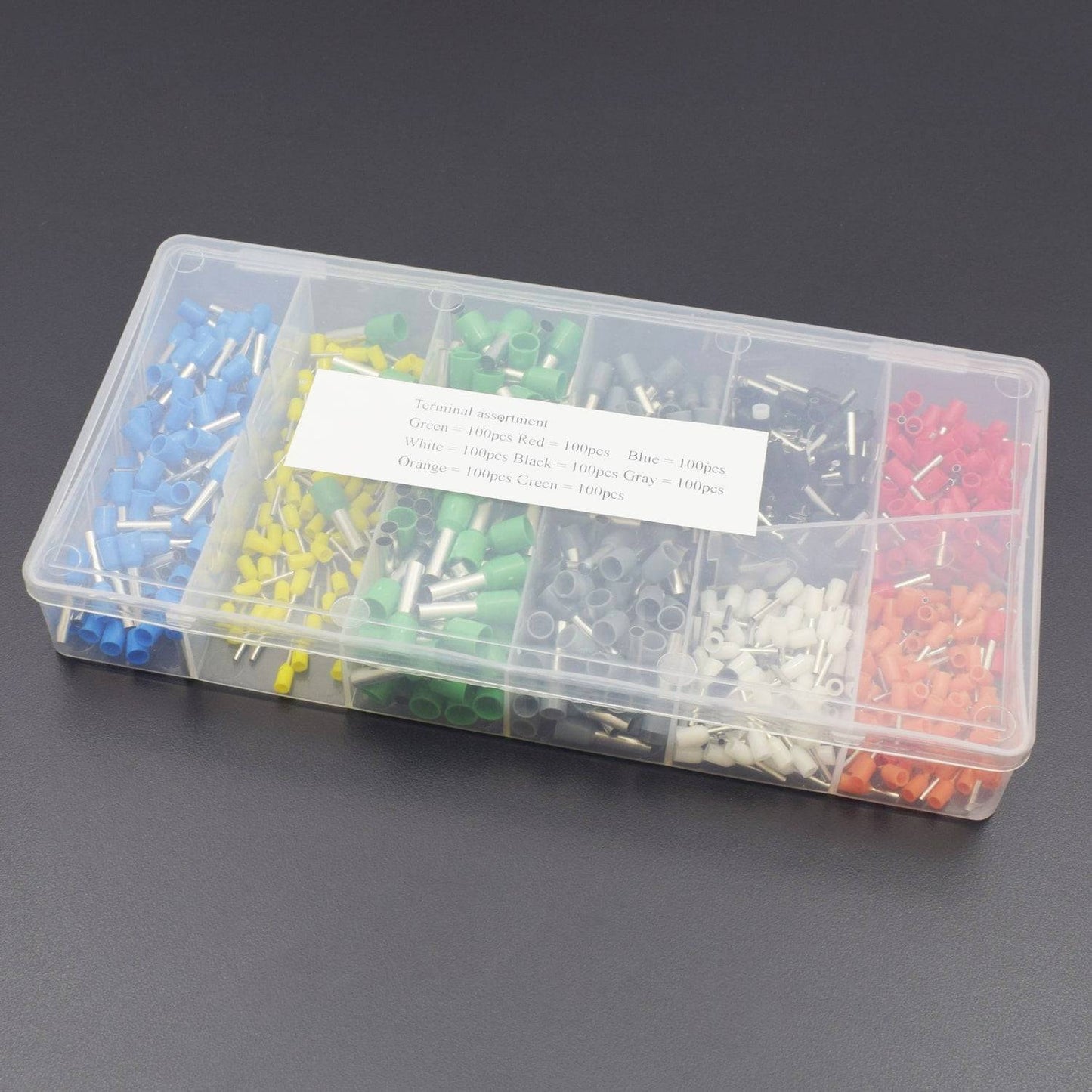

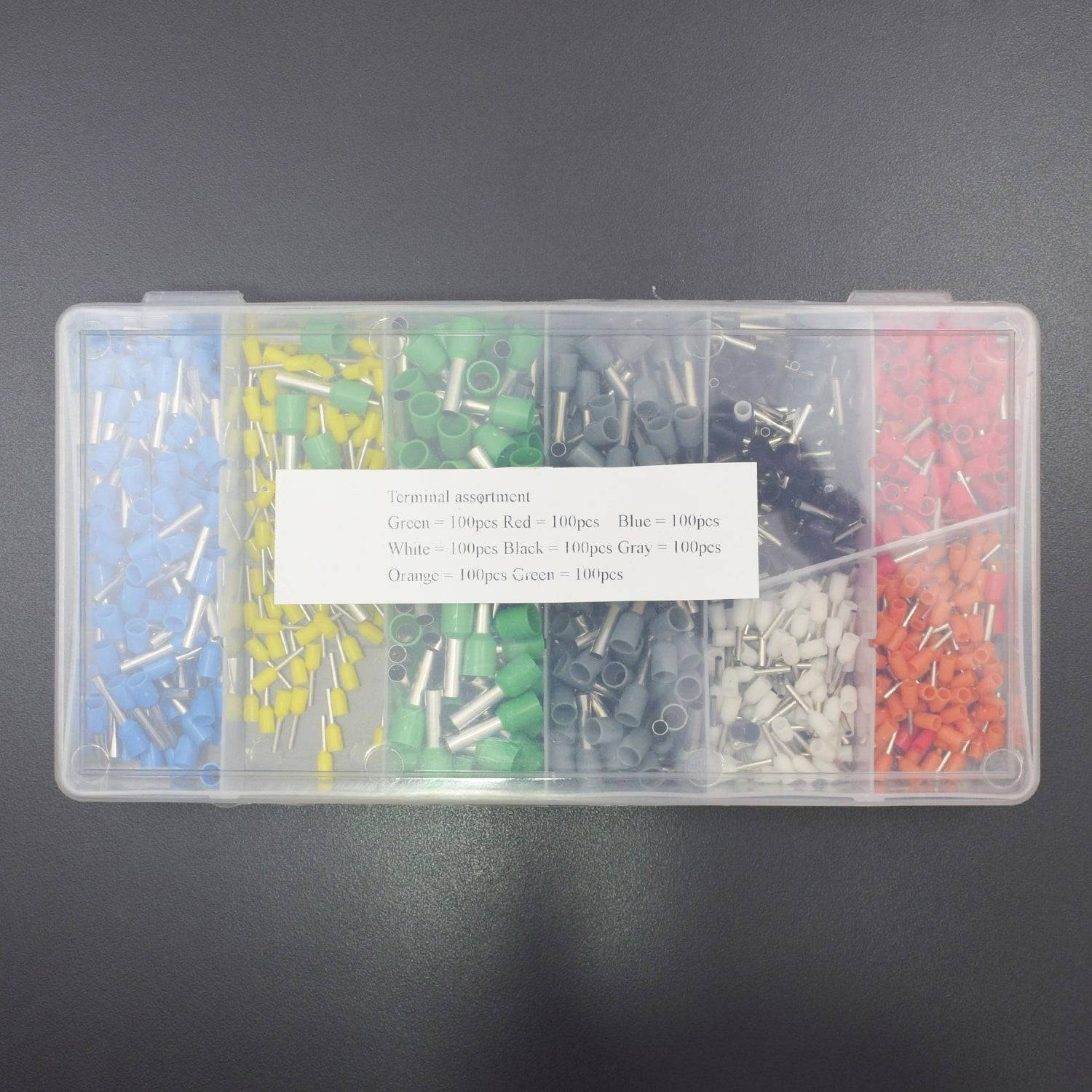

• Supplied in a plastic storage case / compartment box for neat organization
• Compatible with standard ferrule crimping tools for reliable connections

Applications / Benefits

• Improves wire termination reliability in terminal blocks and connectors
• Prevents stranded wire from fraying or loosening
• Color coding helps in wiring organization
• Useful in control panels, industrial automation, electrical cabinets, electronics projects
• Ideal kit for electricians, hobbyists, and maintenance work

How To Crimp:

• Step 1: Braid the Wire. Strip the insulation off the wires if you haven't already. Take the exposed end, and twist it between your fingers until the wires are all wound in a helix.
• Step 2: Insert into Crimp. Put the wire into the crimp until it gets to a metal tab.
• Step 3: Crimp! Grab the crimp in your crimping tool.

Package Included:

• 1 x 800 Pieces Assortment Ferrule Wire Copper Crimp Connector, Wire Terminals Kit, Wire Connector Kit
