- Supply voltage: DC5V / 12V / 24V
- Trigger mode: High / Low Level Trigger
- Load voltage: DC 30V / AC 250V
Description:

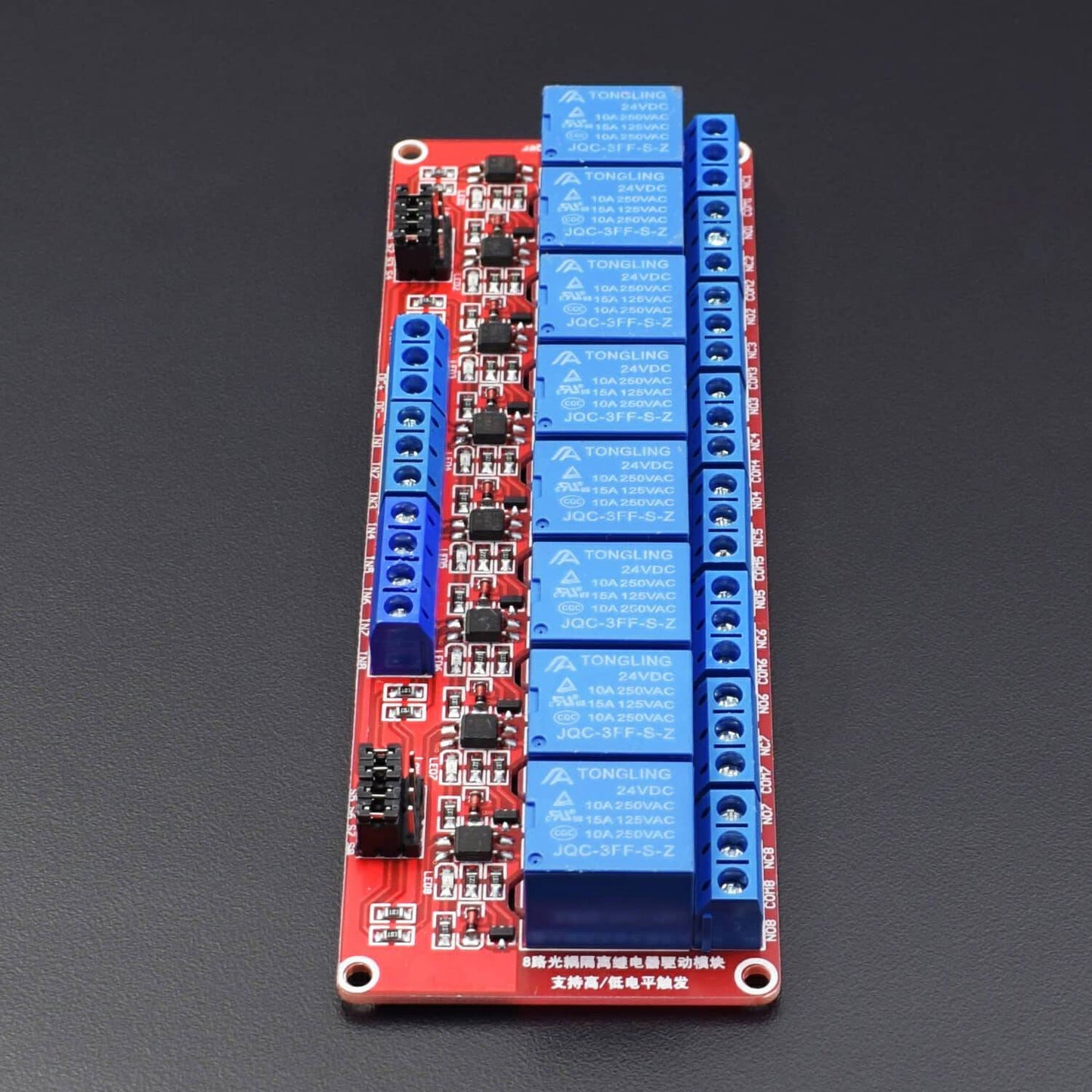

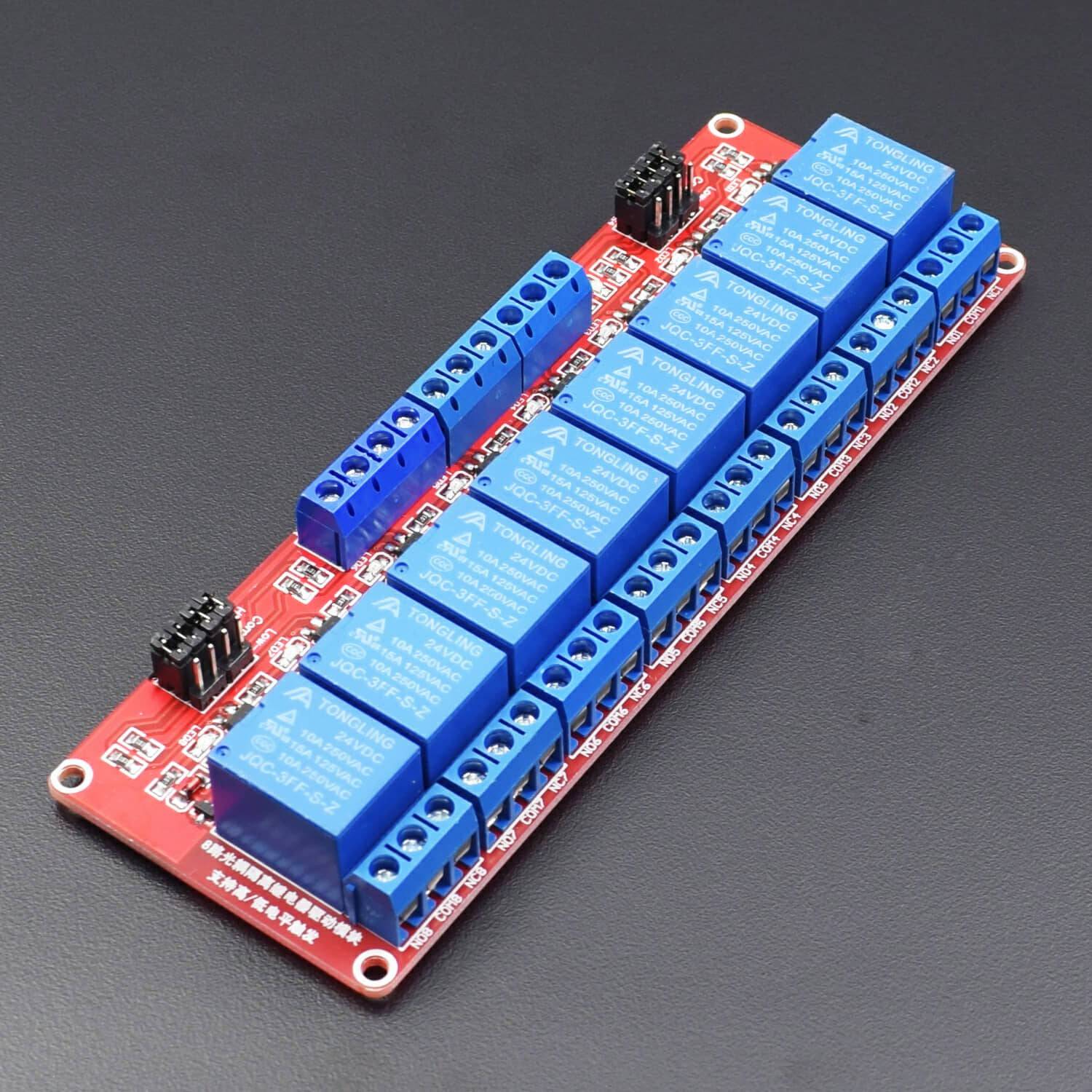

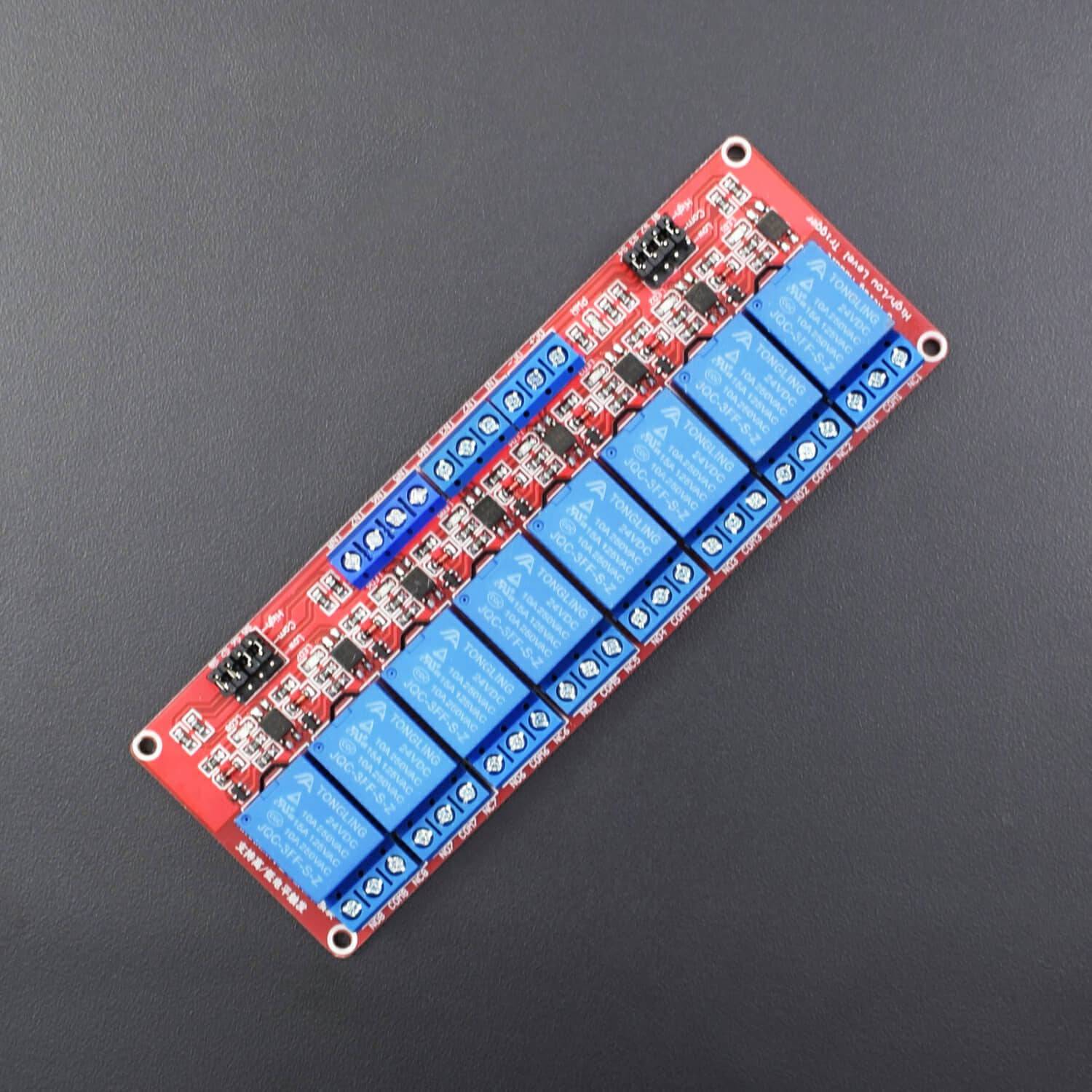

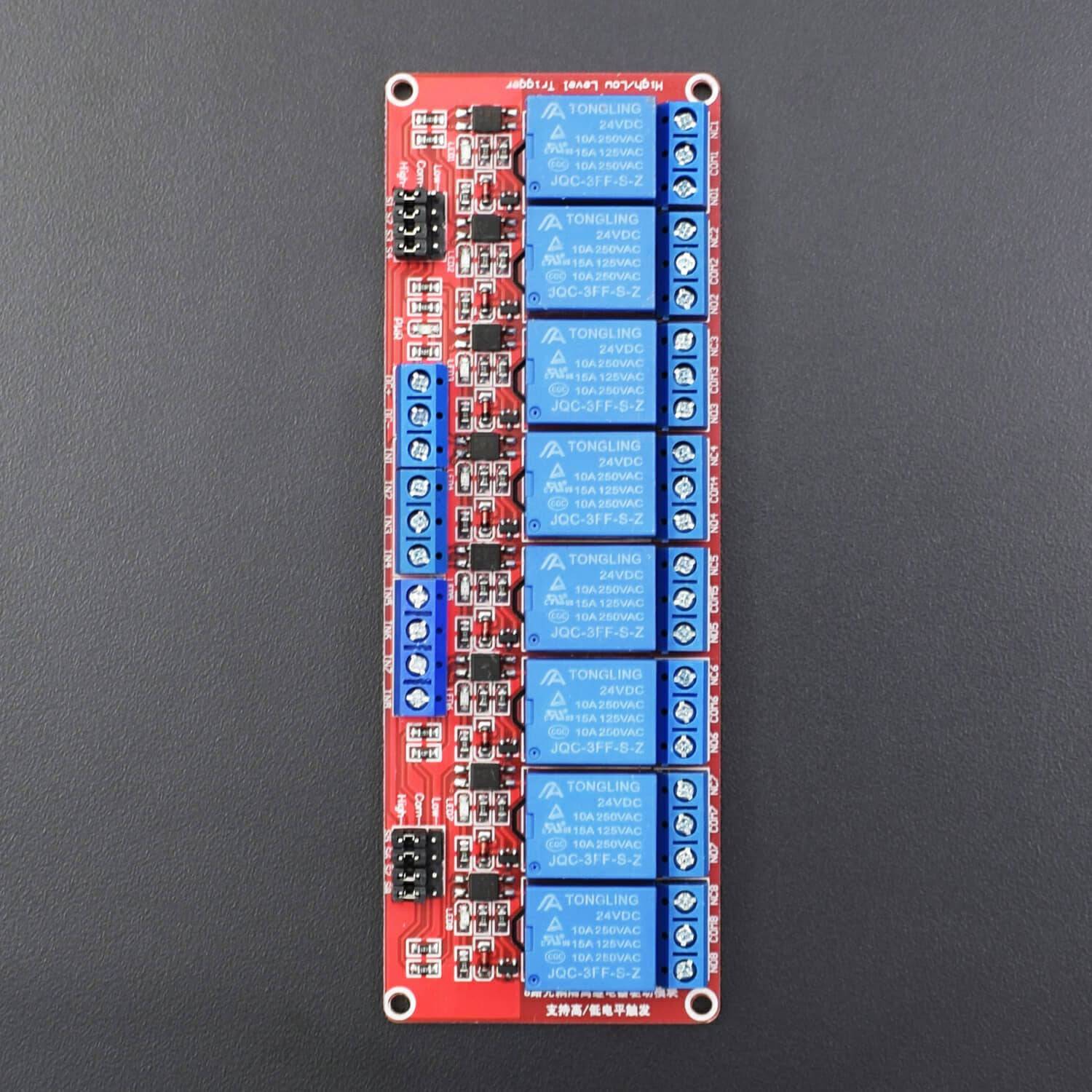

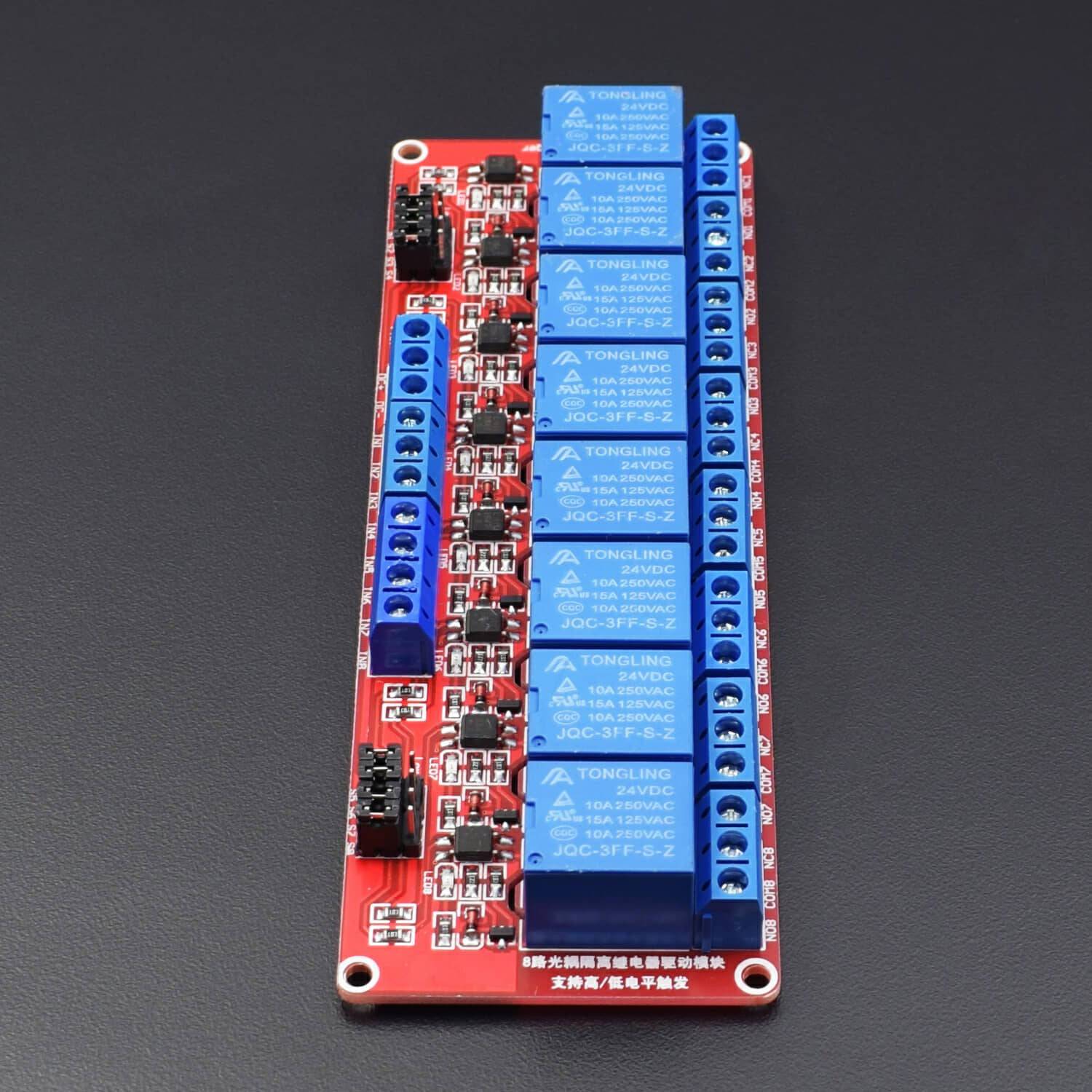

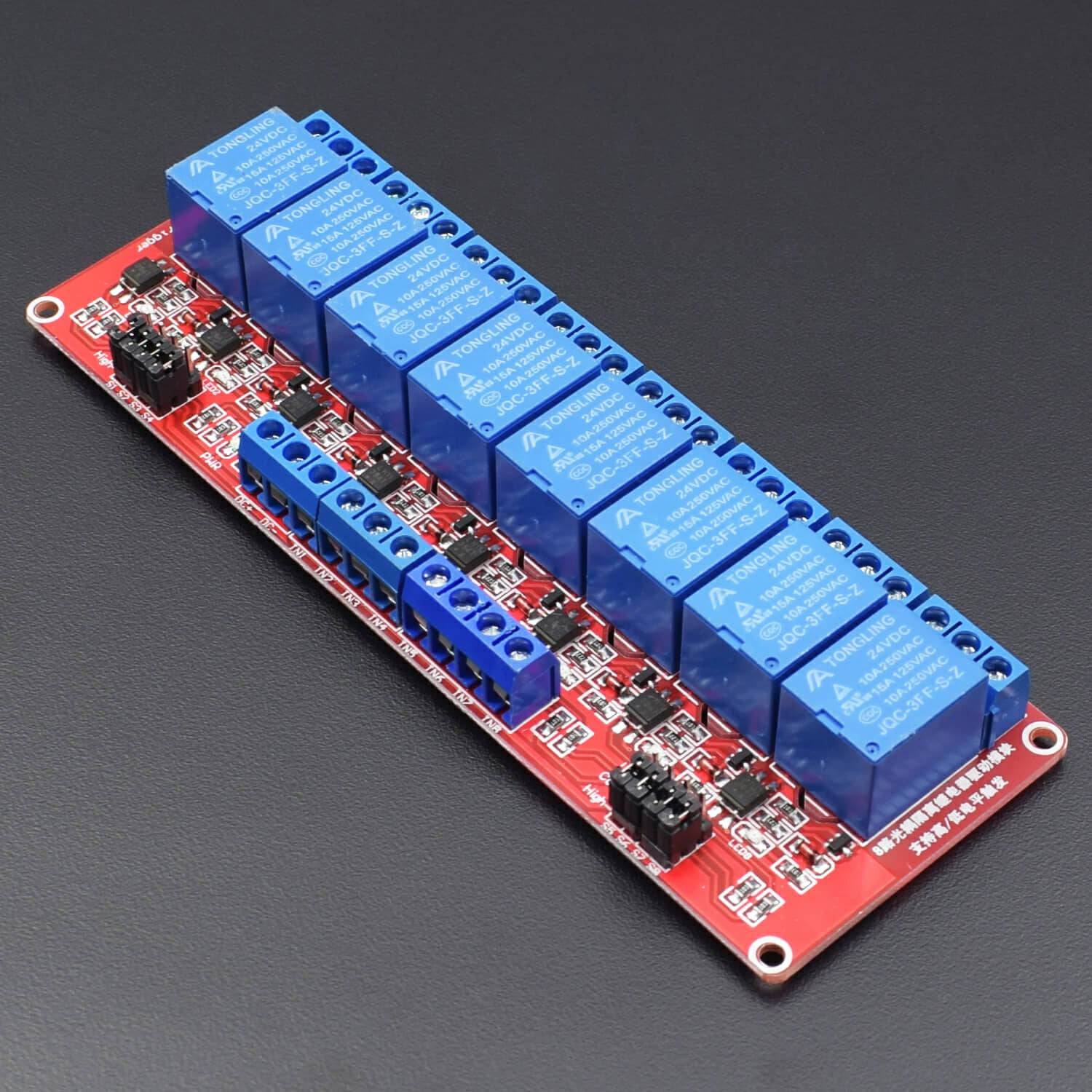

This is 8-Channel Relay Module High Low-Level Trigger with Optocoupler Isolation Load DC 24V / AC 250V 10A for PLC Automation. It has SMD optocoupler isolation, strong driving capability, stable performance; trigger current of 5mA. Each channel of the module can be set by a jumper cap high or low-level trigger.
Specification:
- Supply voltage: DC5V / 12V / 24V
- Trigger mode: High / Low Level Trigger
- Load voltage: DC 30V / AC 250V
- Load current: 10A
Features:
- Dual trigger design, use a dedicated two-way driver IC.
- Strong resist interference, use diode continued current to protect it.
- The relay contact part adopts a double cloth line for large current, safe and reliable.
- The input and output are 5.08mm wiring terminals, wiring is more convenient and suitable for PLC control.
- Input terminals can be arbitrarily set at high and low levels, the control mode is more flexible.
- Equipped with fixing screw holes, easy to install.
- Each way module can be set high or low and triggered by the jumper.
Interfaces:
- VCC: Power end
- GND: Ground strap
- CTR1-CTR8: Signal input trigger
Outputs:
- 24-line interface, the interface can be directly connected to all leads, user-friendly.
- NO1-NO8: normally open relay interfaces, relay before the vacant after the pull shorted with COM
- COM1-COM8: Relay Common Interface
- NC1-NC8: normally closed relay interface relay shorted with COM ago, after the pull- vacant
Package Included:
1 x 8-Channel Relay Module High Low-Level Trigger with Optocoupler Isolation Load DC 24V / AC 250V 10A for PLC Automation
