Description:
A solid state relay (SSR) is just what it sounds like; an IC that acts like a mechanical relay. They allow you to control high-voltage AC loads from lower voltage DC control circuitry. They accomplish this by using infrared light as the ‘contact,’ a solid-state relay is really just an IR LED and a phototriac sealed up into a little box.
Solid state relays, have several advantages over mechanical relays. One such advantage is that they can be switched by a much lower voltage and at a much lower current than most mechanical relays. Also, because there’s no moving contacts, solid state relays can be switched much faster and for much longer periods without wearing out.
Specifications:
- Model Type: Relay Module
- No. of Channels: 8
- Operating Voltage (VDC): 5
Features:
- 8 channel 2 AMP Solid State Relay board
- Control 8 loads of up to 2 amps each at 120V or 240V AC.
- Good for lighting, holiday displays etc.
- Has been assembled, and the electrical test passed.
- Led indicator for each relay.
- Use it to control various appliances and other equipment with a large current.
- It can be controlled directly by Microcontroller
Package Included:

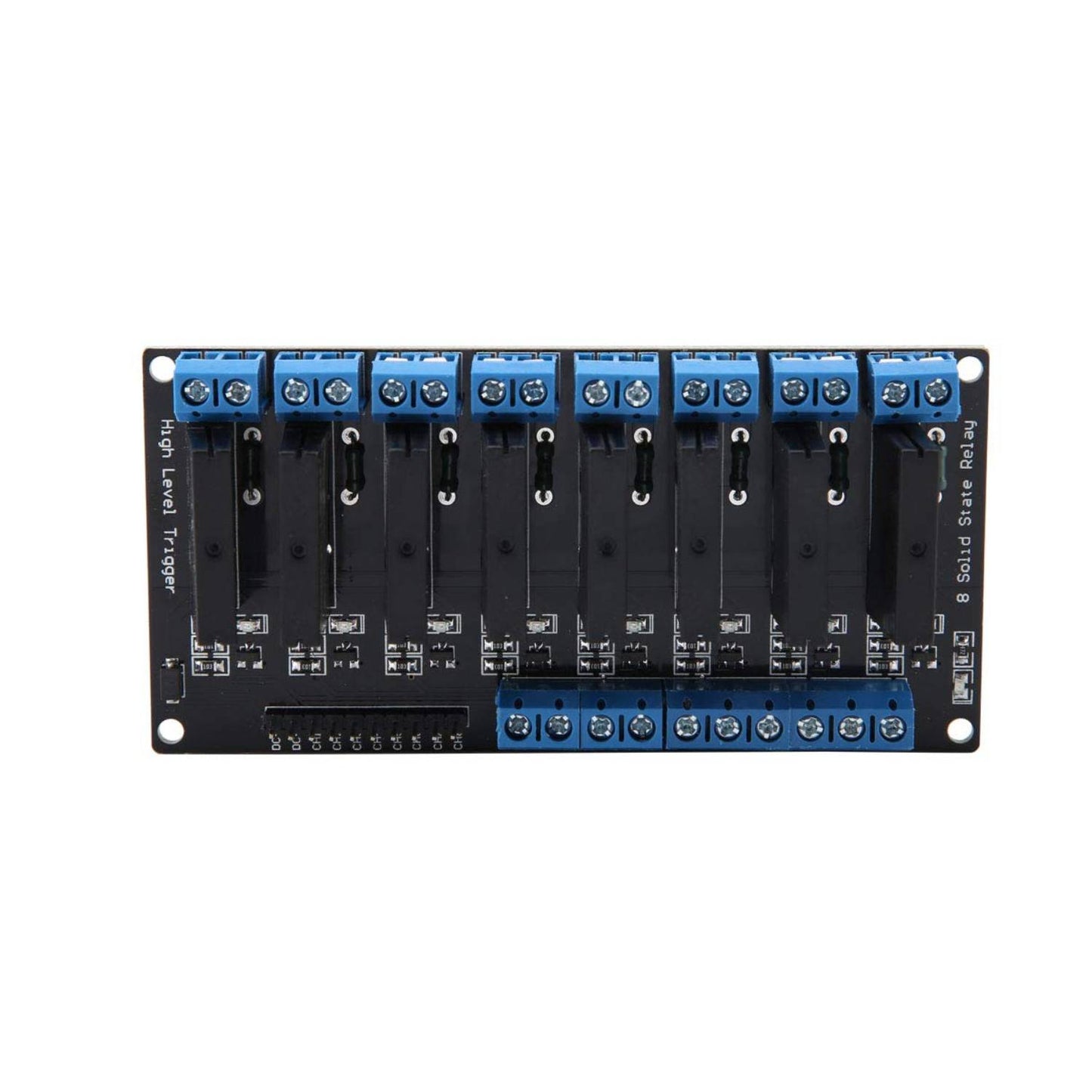

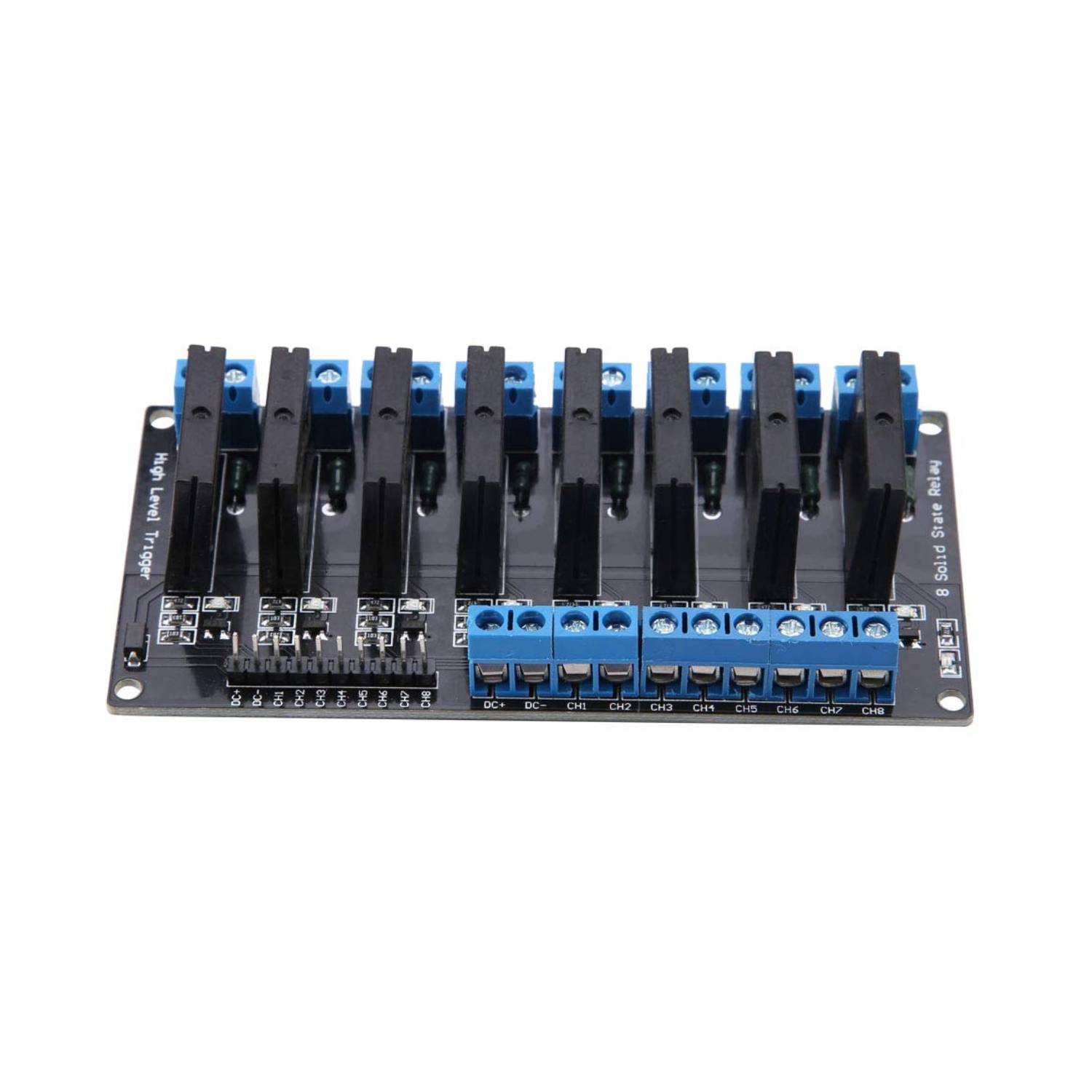

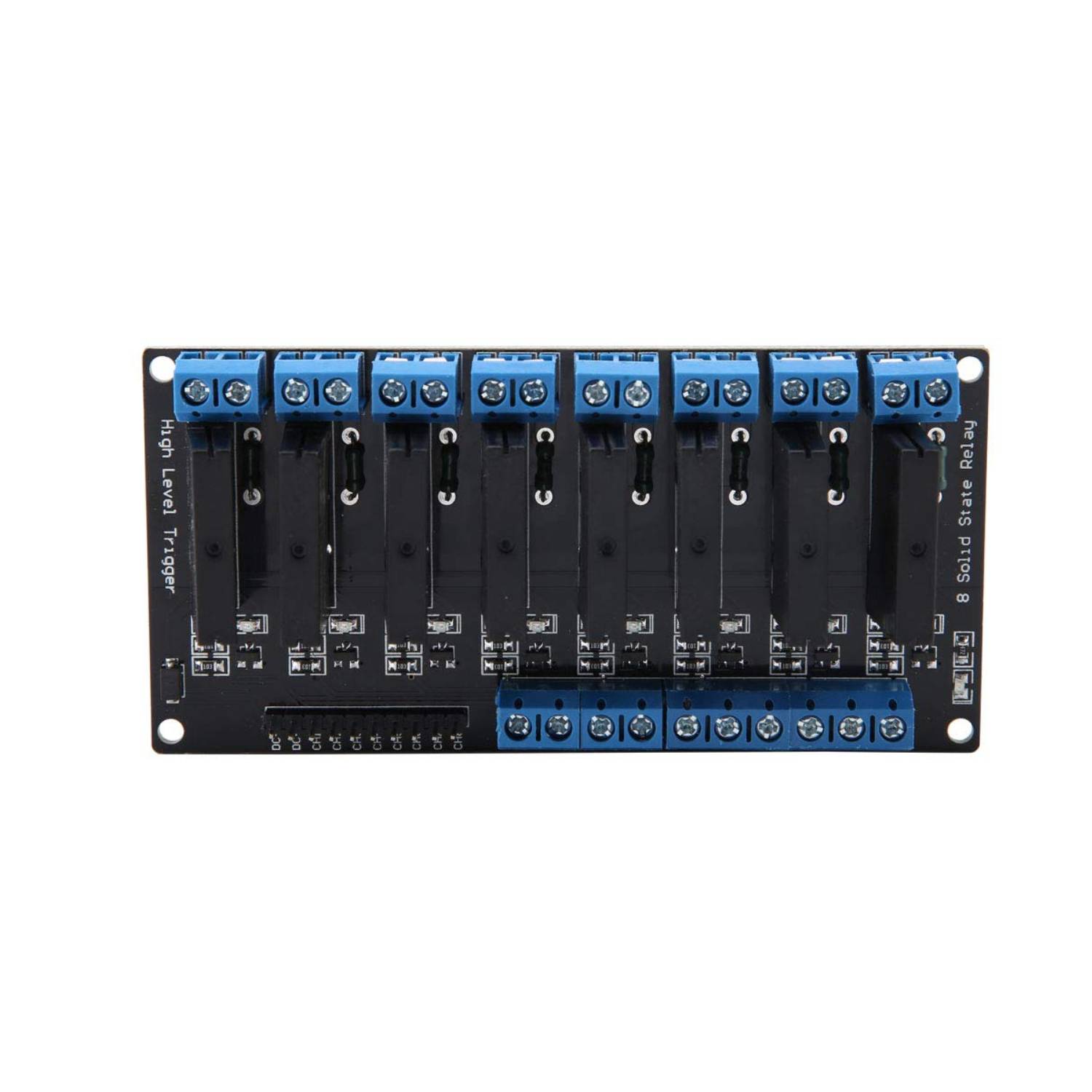

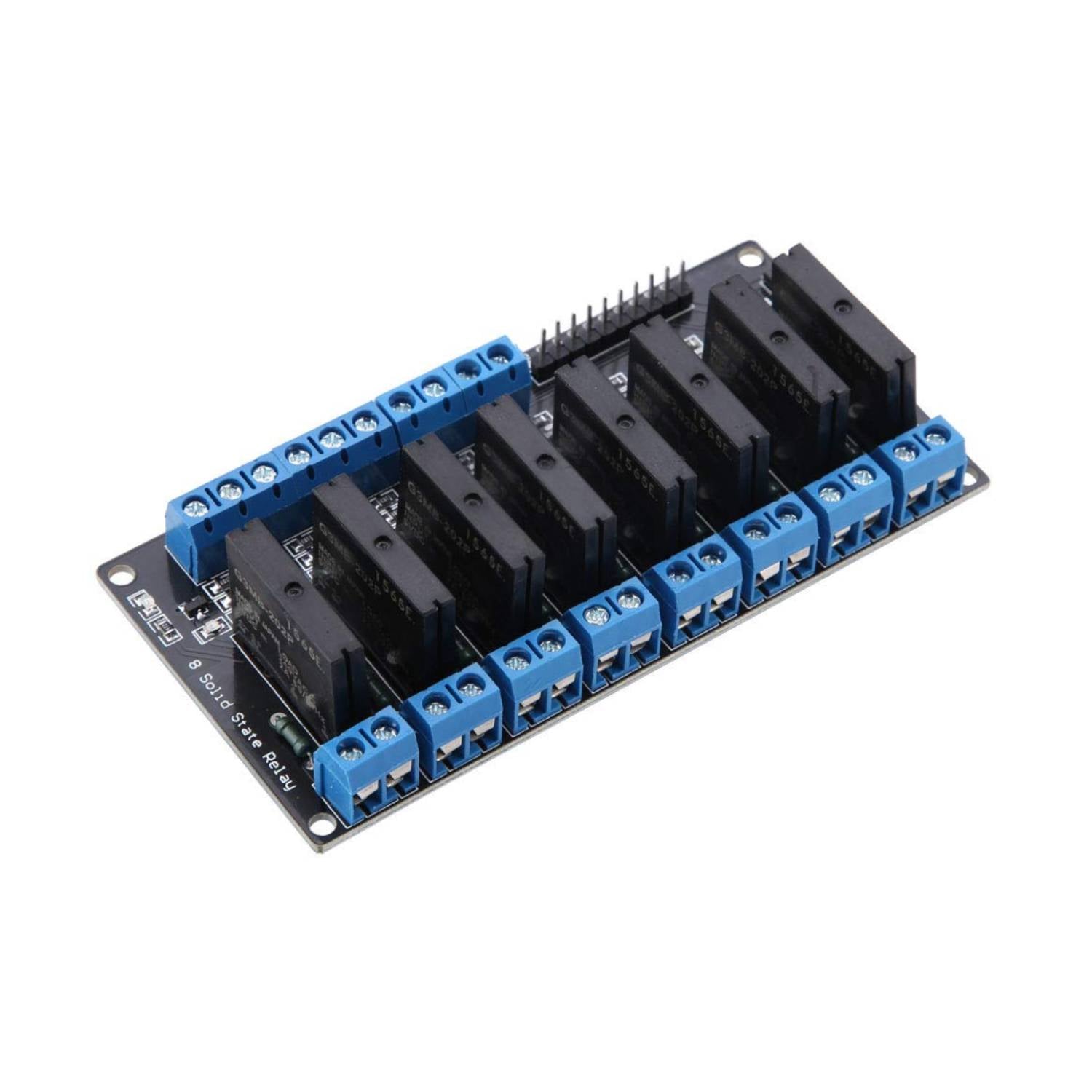

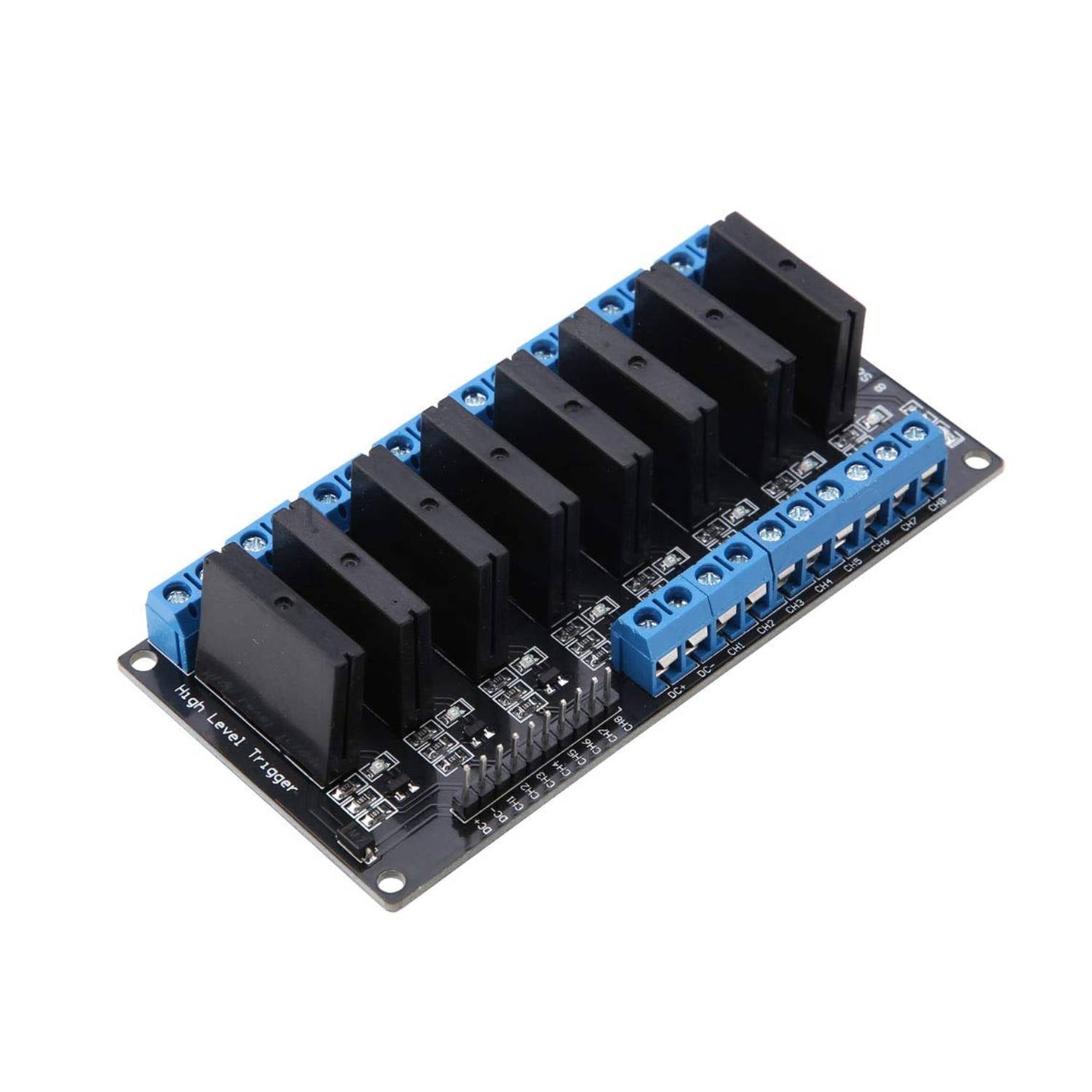

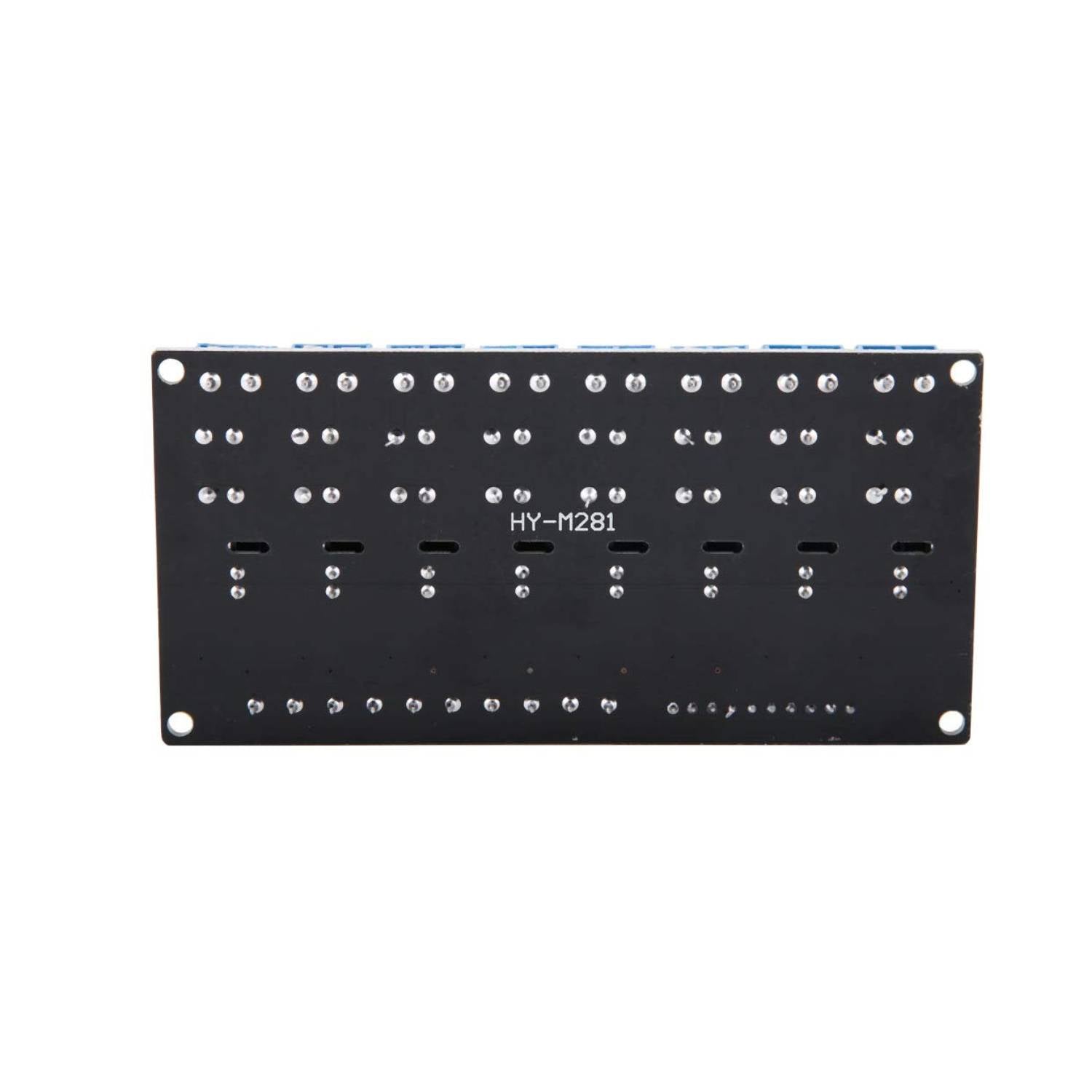

1 x 8-Channel 5V Solid State Relay Module Board for Arduino Uno Duemilanove MEGA2560 MEGA1280 ARM DSP PIC
