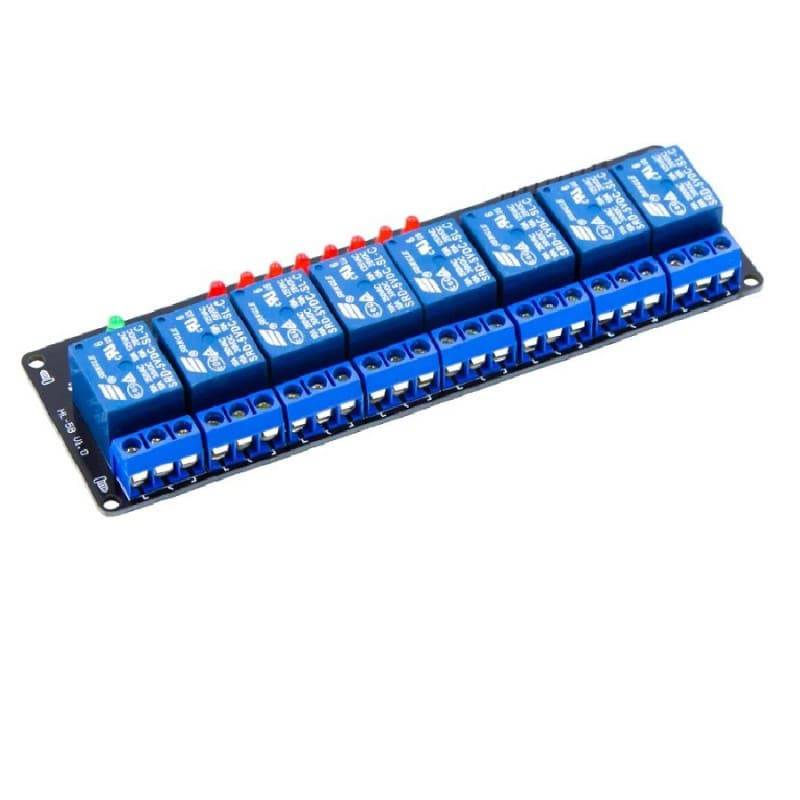

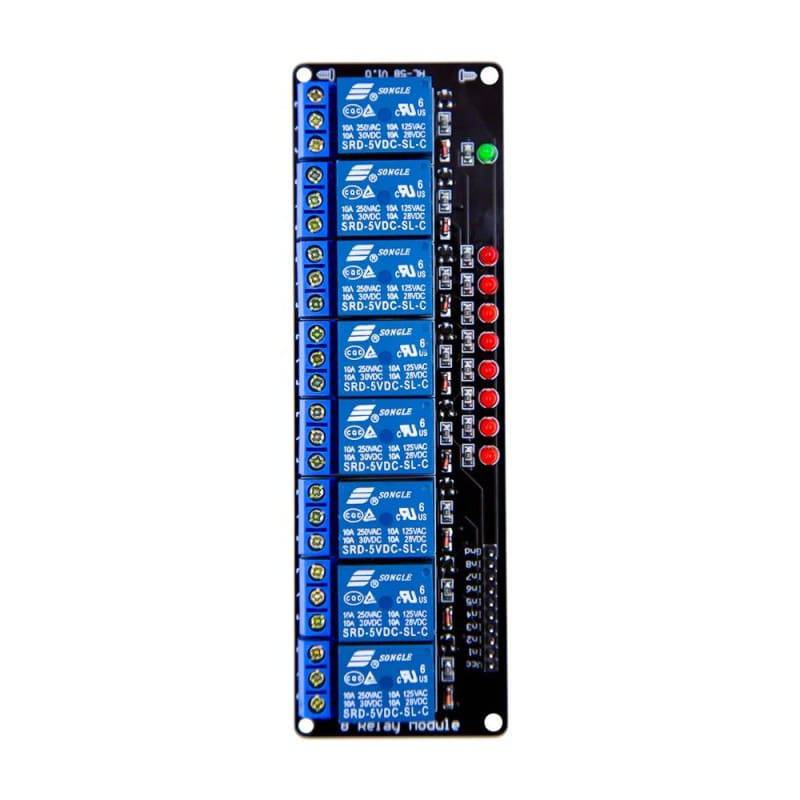

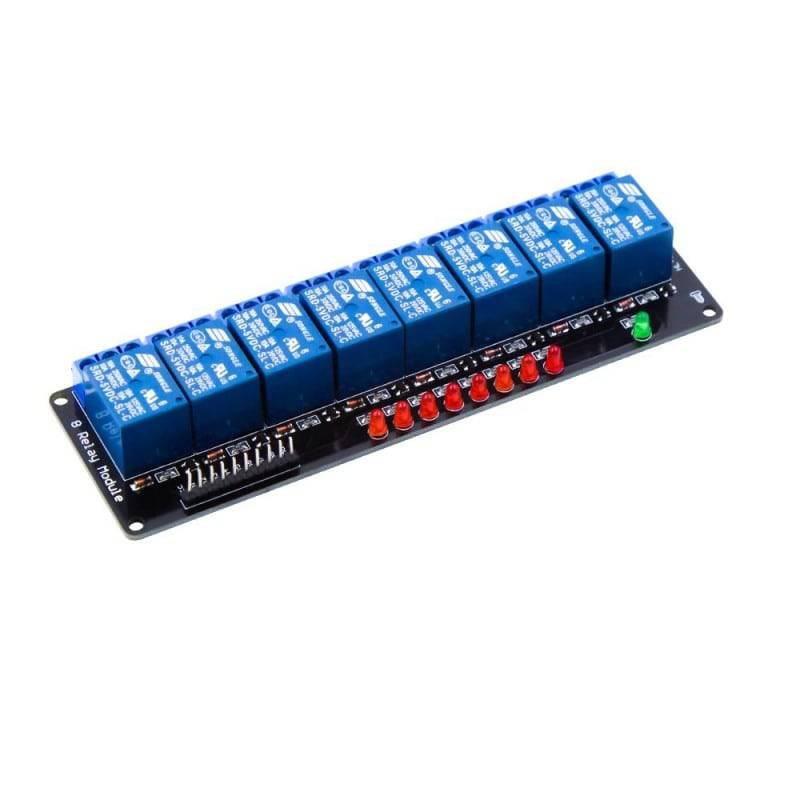

8 Channel 5V Relay Module - RS3676

8 Channel 5V Relay Module - RS3676

SKU:RS3676

12 in stock

Regular price Rs. 405.00
Regular price Sale price Rs. 405.00
Sale Sold out
Shipping calculated at checkout.

Pickup available at REES52 OFFICE

Usually ready in 24 hours

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.
  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details
  • Operating Voltage (VDC) : 3 ~ 5
  • Trigger Voltage (VDC) : 5
  • Switching Voltage (VAC) : 250@10A
  • Switching Voltage (VDC) : 30@10A
  • Storage condition () : 65 to 125
  • Operating Temperature (C) : -40 to 85

Description :

It is a 5V 8 Channel Relay Module. The relay normally open interface maximum load: AC 250V/10A, DC 30V/10A. It has a trigger current of 5mA, and module working voltage of DC 5V. Each channel of the module can be triggered by a jumper to set a high level or a low level. Fault-tolerant design, even if the control line is disconnected, the relay will not move. With status indicator: power (green), 6-channel relay status indicator (red).All module size interfaces can be directly connected through the terminal block, which is convenient and practical.

Features:

  • The 8550 transistor drive, drivability.
  • A fixed bolt holes for easy installation.
  • It has a relay status indicator led Power LED(Green), 8 relay status indicator LED(Red)
  • Relay control interface by single-chip IO.
  • Low-level suction close, high-level release.
  • Easy to use, simple 3 line structure.

Specification :

  • Operating Voltage (VDC) : 3 ~ 5
  • Trigger Voltage (VDC) : 5
  • Switching Voltage (VAC) : 250@10A
  • Switching Voltage (VDC) : 30@10A
  • Storage condition () : 65 to 125
  • Operating Temperature (C) : -40 to 85

Package Included:

1 x 5V 8 Channel Relay Module.
