Description:

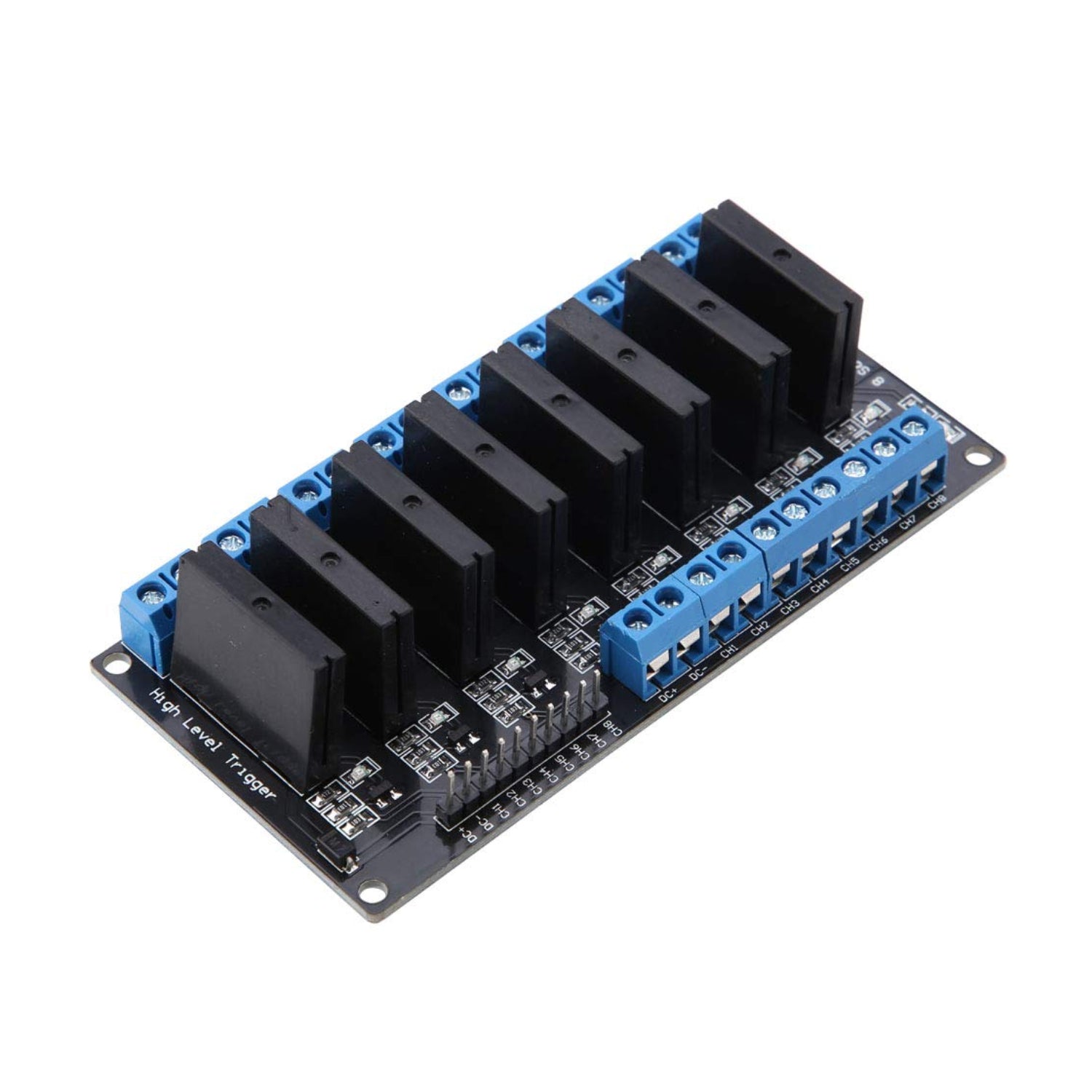

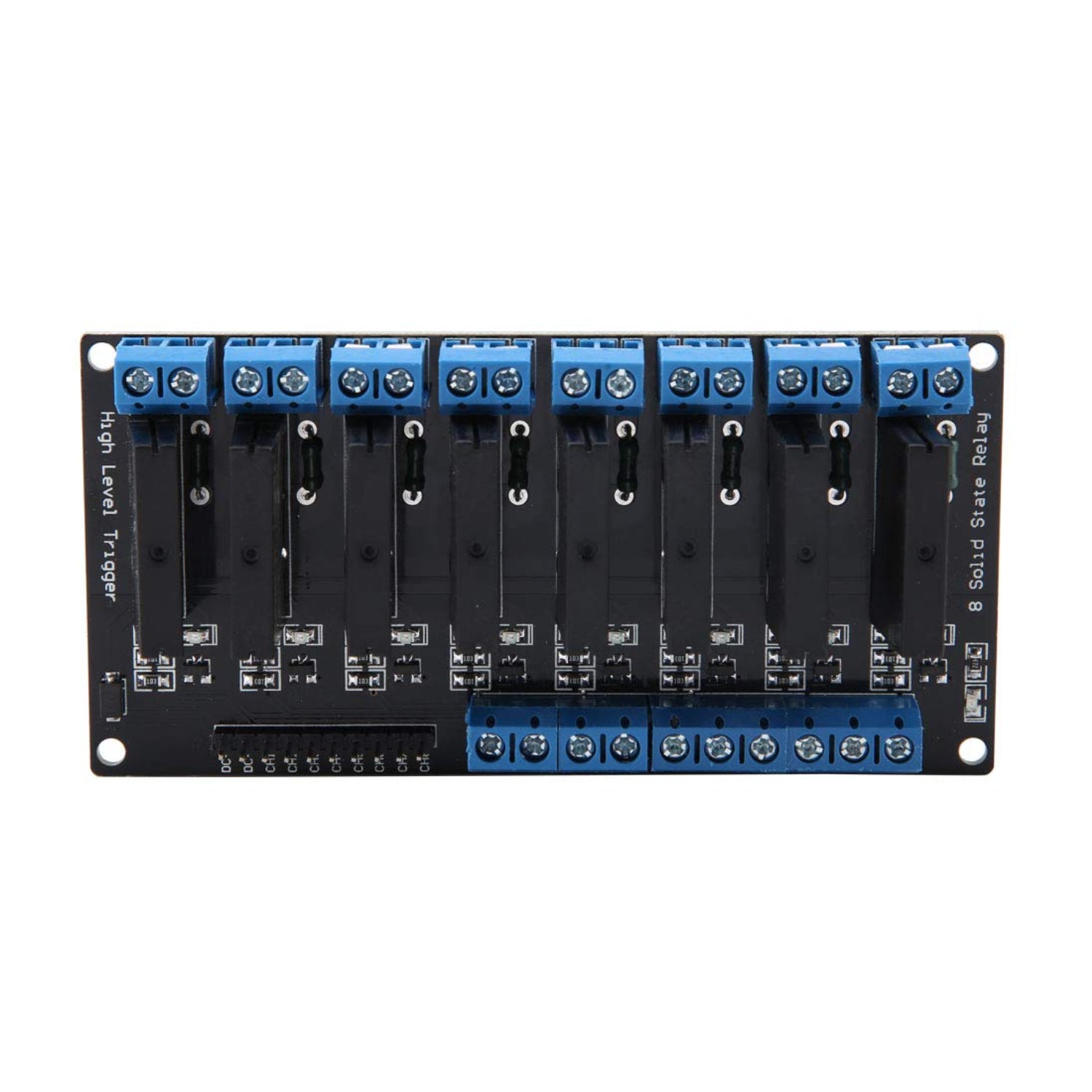

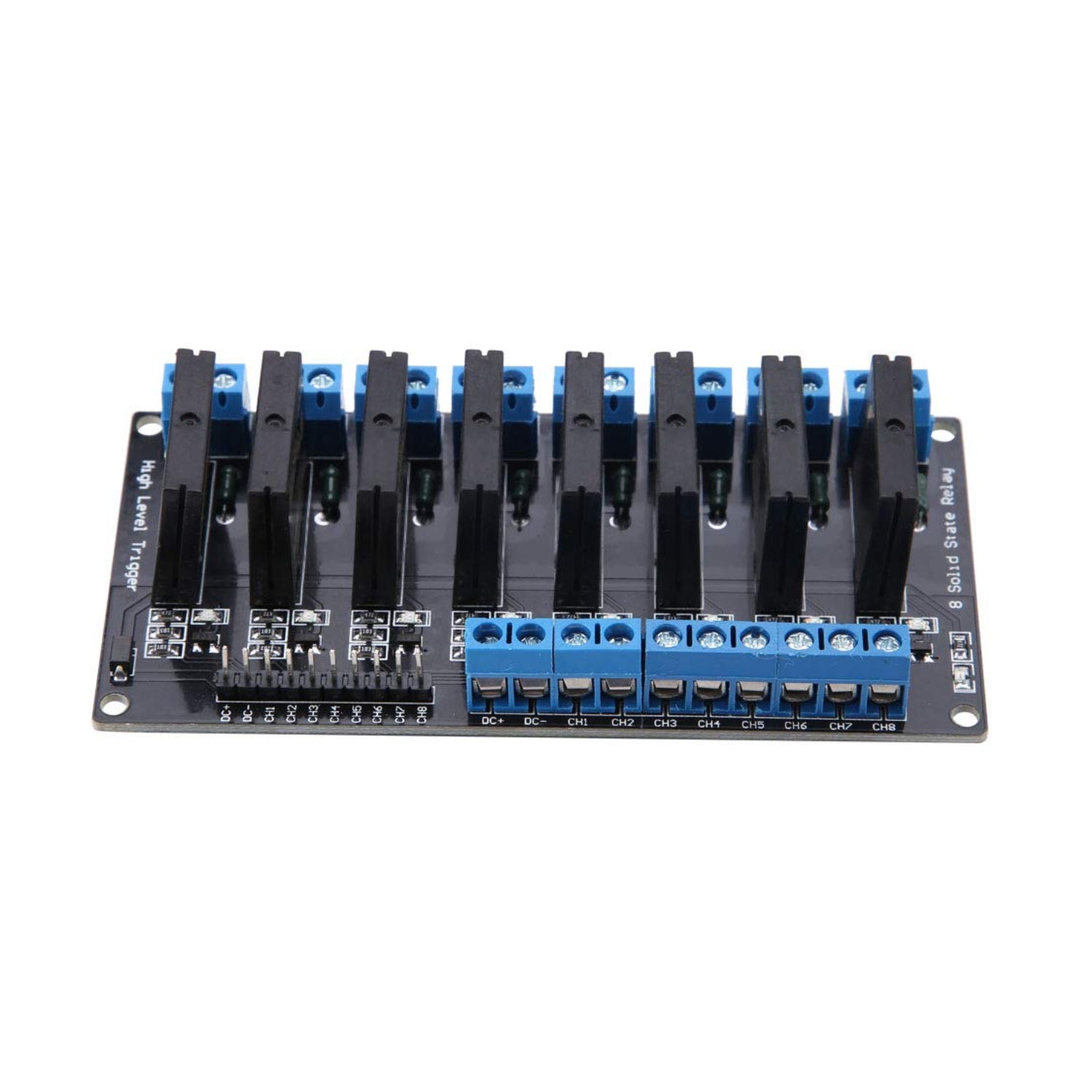

Introducing a high-performance 12V 8 Channel Solid State Relay Module designed for reliable and efficient control of various electrical loads. Powered by the renowned Omron G3MB-202P SSR, this module provides robust switching capabilities for up to 2A at 240VAC across each of its eight independent channels.
Each channel features three terminals: NO (Normally Open), NC (Normally Closed), and COM (Common), offering versatile switching configurations to suit your specific application needs. Unlike traditional mechanical relays, this solid-state solution eliminates the noise and wear-and-tear associated with moving parts, resulting in a significantly longer lifespan.
Control is achieved by applying a 12V input logic signal to the module. When activated, the NC contact disconnects from the COM, while the NO contact connects to the COM, enabling or disabling the flow of current to the connected load. This compact and efficient module is ideal for a wide range of applications, including industrial automation, home automation, and robotics.
Specifications:
| Model Type: |
Relay Module |
|---|---|
| No. of Channels: |
8 |
| Part No.: |
G3MB-202P |
| Working Current (mA): |
12.5 |
| Trigger Current (mA): |
2 |
| Trigger Voltage (VDC): |
12 |
| Switching Voltage (VAC): |
250@2A |
| Max Load: |
2A @250V AC |
Features:
- Has been assembled, and the electrical test passed.
- Led indicator for each relay.
- Use it to control various appliances and other equipment with a large current.
- It can be controlled directly by a Microcontroller
- Input control signal voltage:
- 0-2.5V status low level, relay OFF
- 3-5V status high level, relay ON
Package Included:
1 x 2 Channel 12V Relay Module Solid State Low Level SSR DC Control 250V 2A with Resistive Fuse
