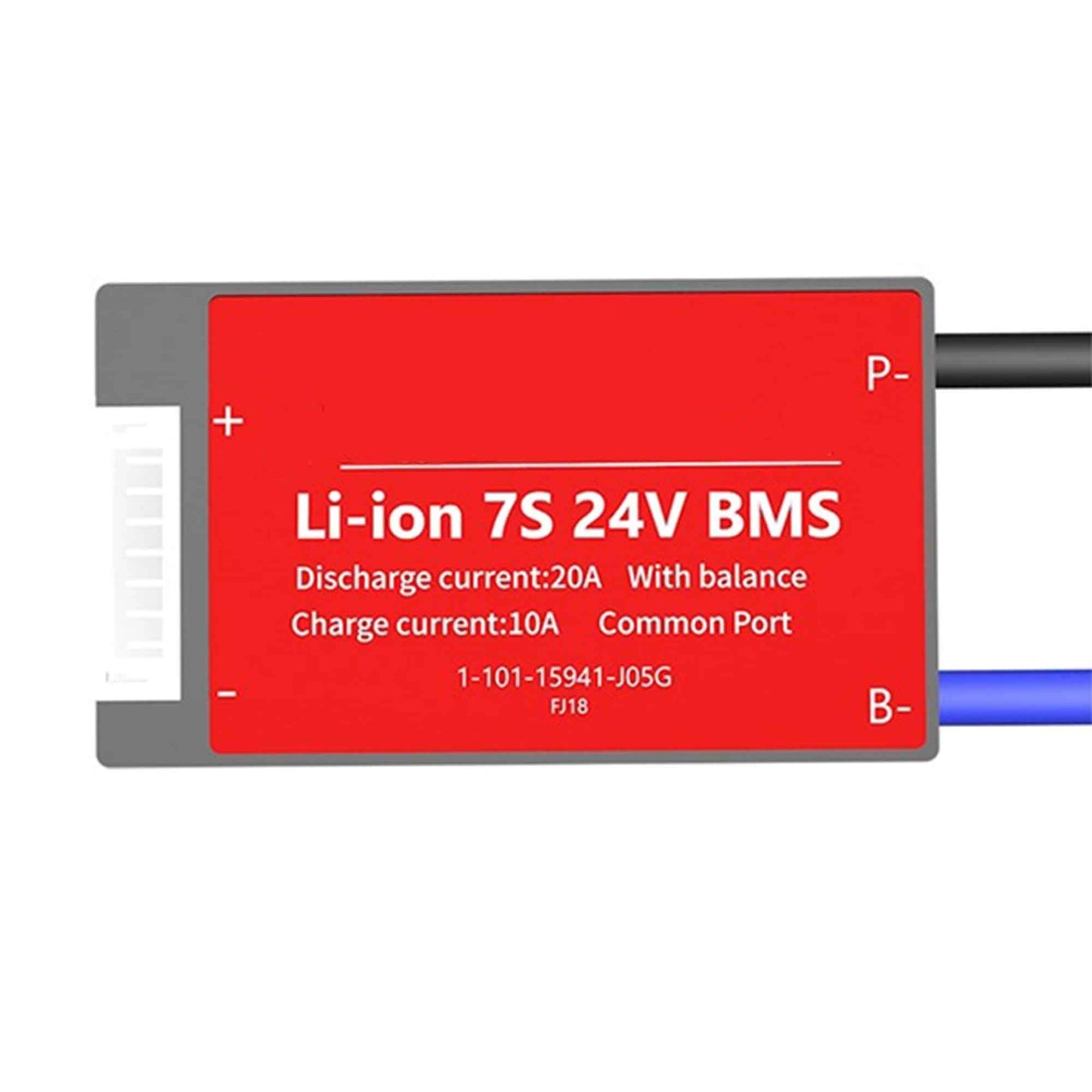

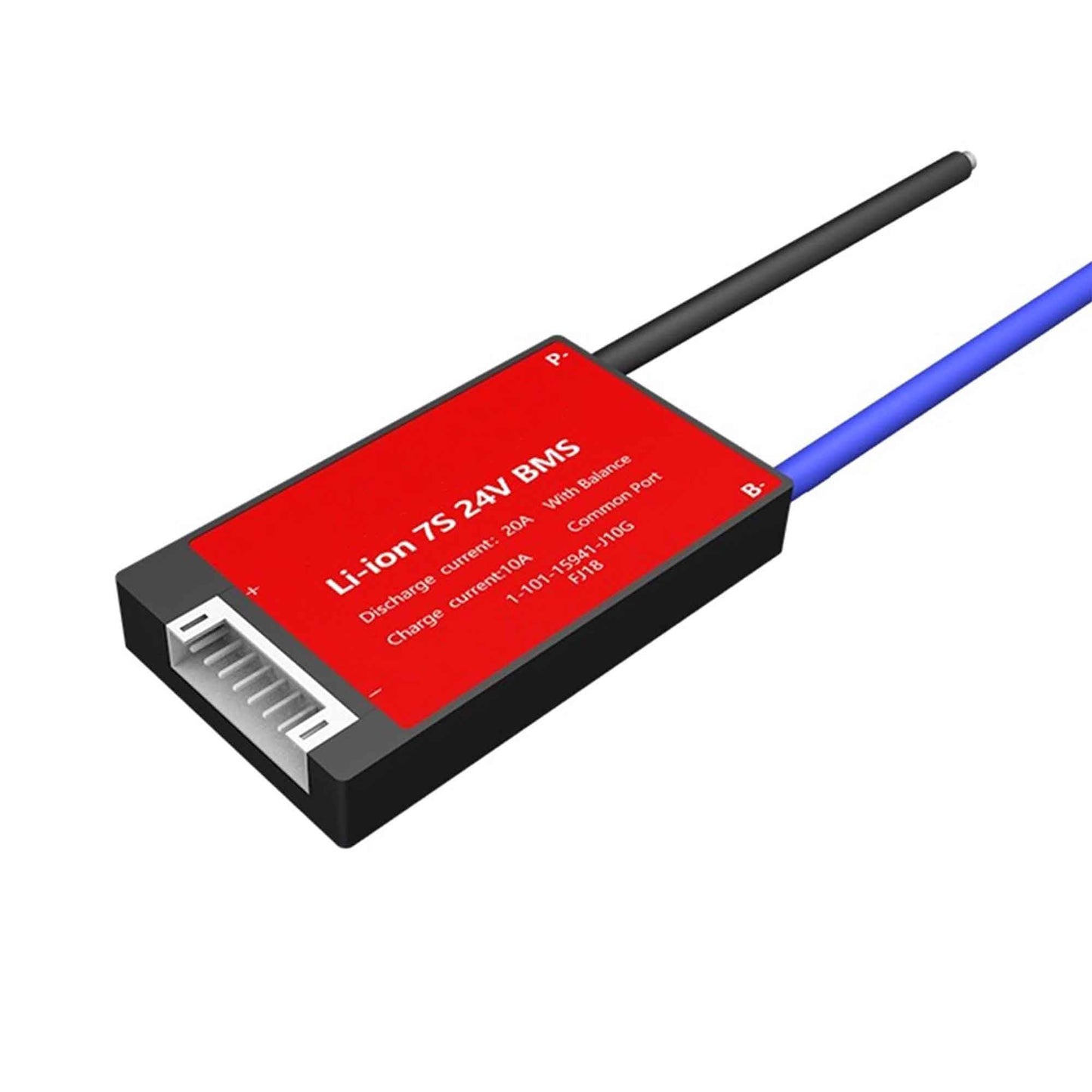

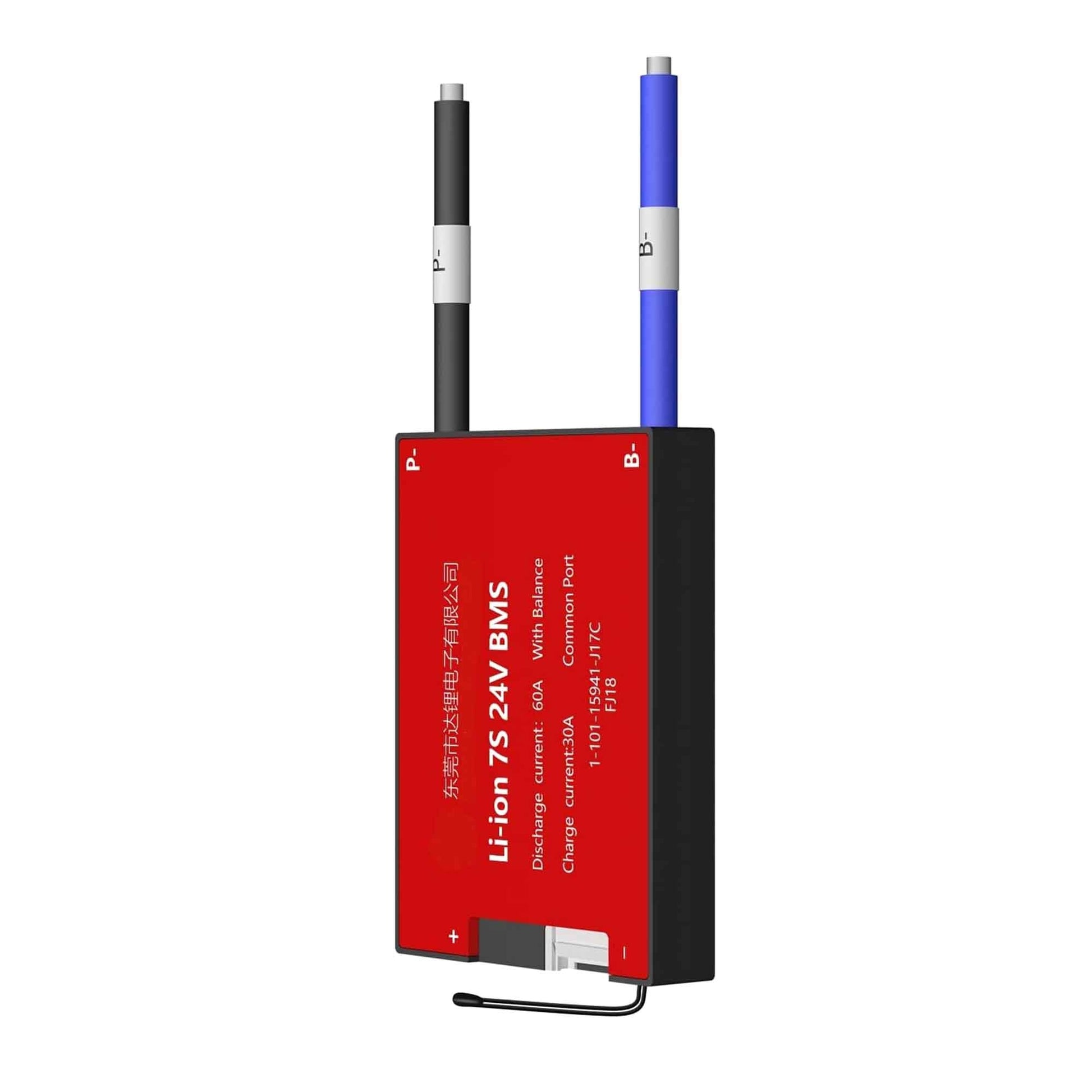

Description:
7S 24V BMS Board is an 8-cell in Series 24V circuit power tool mostly used for solar lighting. It is designed for lithium Batteries for charging and protection from overcharge, and Over-discharge. The 7S 24V BMS Board, as the name suggests battery protection board is mainly rechargeable and protects the integrated circuit board.
Lithium batteries (rechargeable type) need protection, which is determined by their characteristics. As the Orange lithium battery, its material determines itself can not be overcharged, over-discharge, overcurrent, short circuit, or ultra-high temperature charge and discharge, so lithium battery lithium components will always follow A protective plate with a sampling resistor, and a current fuse.
Specifications:
- Model; 7S 24V 20A
- Charge Current: 10A
- Charge Voltage: 24V
- Balance Current: 30±5mA
- Balance Detect Voltage: 4.18V
- Working Current: 100uA
- Overcharge Detect Voltage: 4.25±0.05V
- Overcharge Release Voltage: 4.15±0.05V
- Over Discharge Detect: 2.7±0.1V
- Over Discharge Release: 3.0±0.1V
- Working Temperature Range: -20 to 70°C
- Cable Size: 14AWG
Features:
- Cell over-voltage and under-voltage protection.
- 7S 24V BMS Board has intelligent battery balancing (passive).
- Fully sealed waterproof technology, with waterproof, dustproof, shockproof, anti-squeezing, and other protective functions.
- State of charge calculations.
Package Included:
1 x 7S 24V BMS Board Li-Ion 7S 24V 20A Battery Management System - BMS Protection Board
