Description:

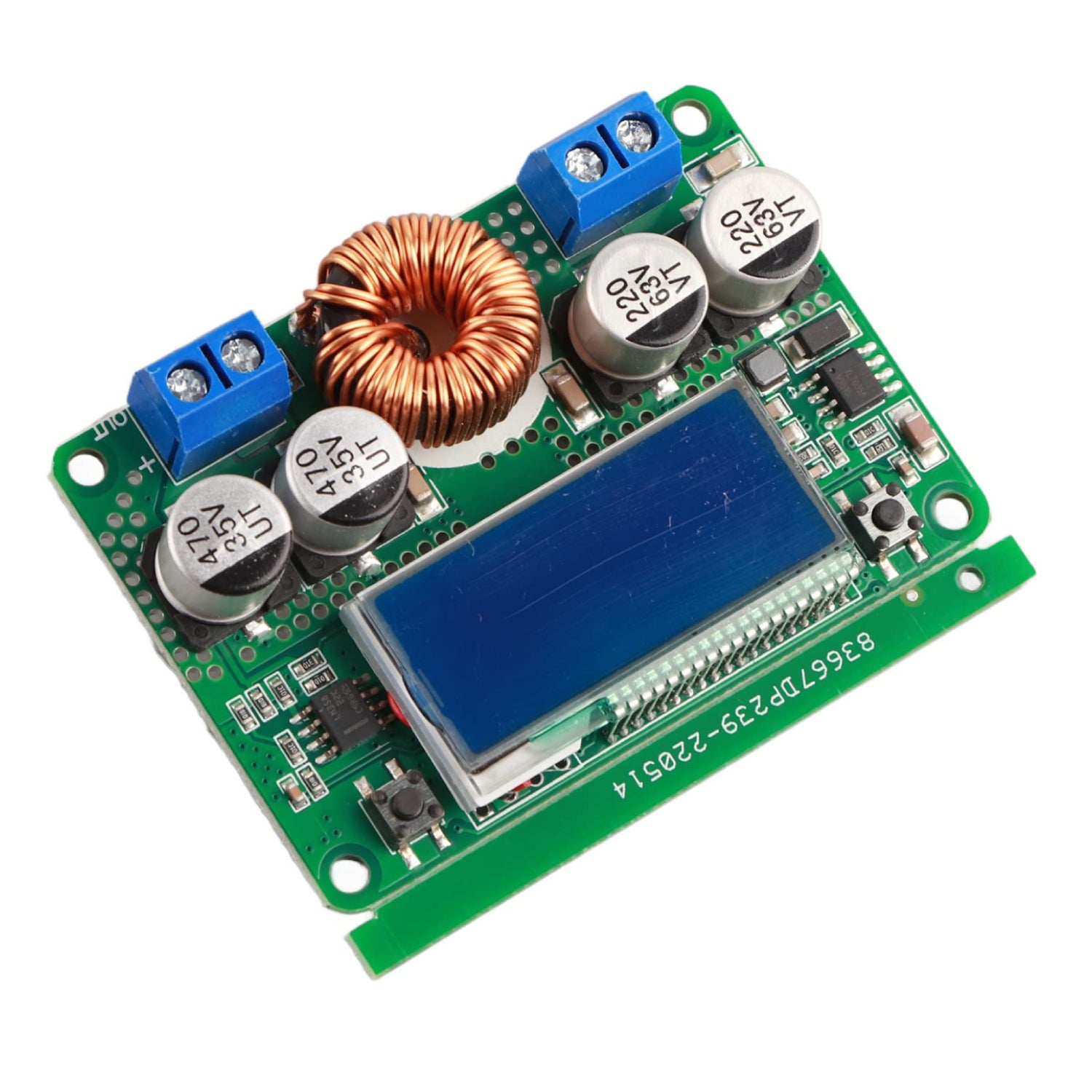

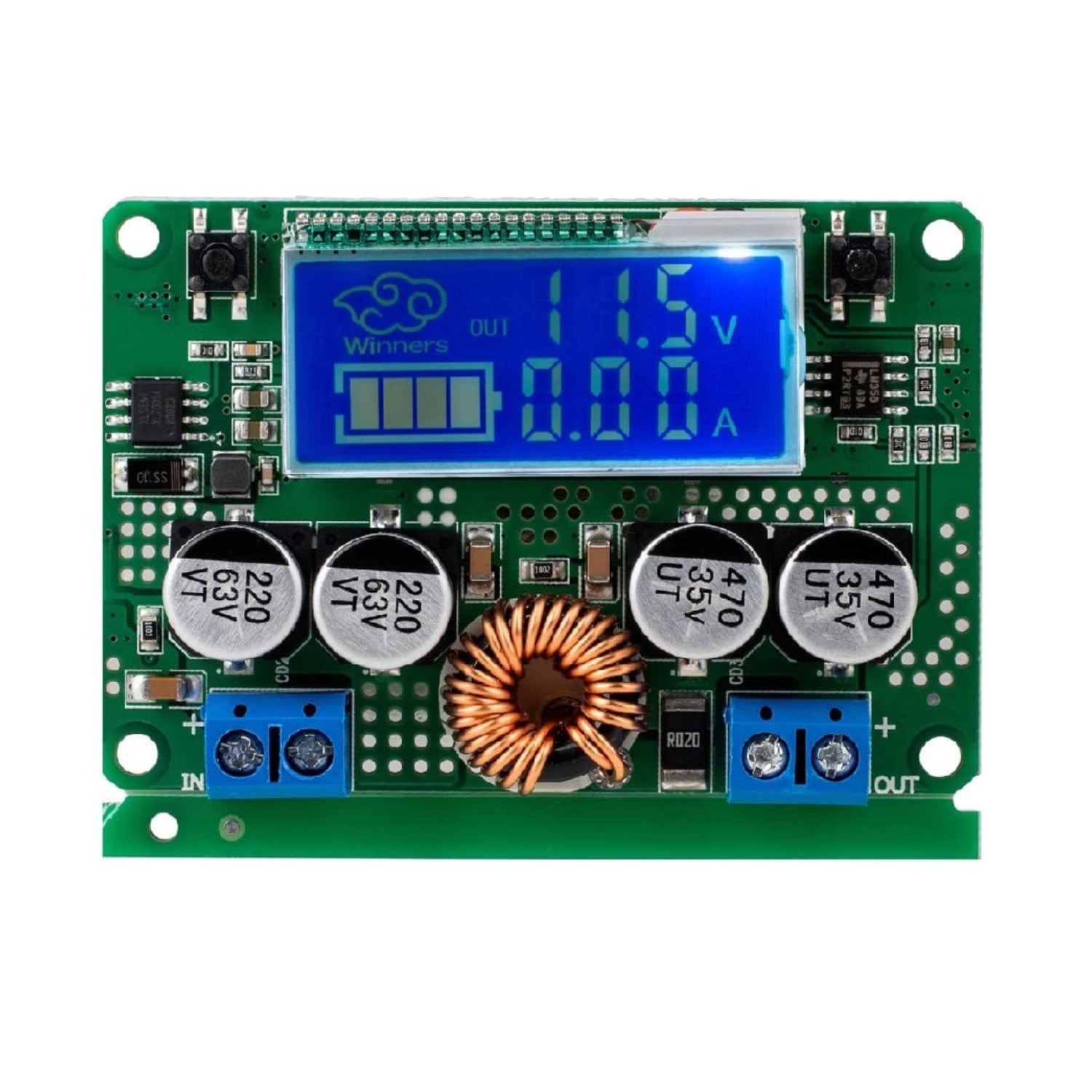

This 7A DC 60V Step-Down Regulator with LCD digitally displays output voltage and current draw. This enables you to monitor how much current your device is drawing while it's working with the correct voltage. This helps you determine what AC adapter will work with your project without overheating it.
The Precise Voltage Control with LCD Display and Case converter accepts a 60V AC/DC adapter, but we recommend a 36 VDC 5A adapter since the output is up to 32 VDC. Built-in short circuit protection for safe voltage down conversion.
Specifications:
- Output Voltage: 3~32V
- Input Voltage: 8-60V
- Anti-anti-input: YES
- Short circuit protection: YES
- Conversion Efficiency: 95%
- Load Regulation S(I): 0.8%
- Voltage Regulation S(U): 0.8%
Features:
- Anti-anti-input: YES
- Short circuit protection: YES
- Accuracy: 1%, three voltage display, two current display, the unit is A.
- Input Voltage: 8-60V, please keep the balance, it is recommended to use within 55V.
- Output voltage: 3V-32V continuously adjustable, automatically save the last set voltage (input voltage must be higher than the output voltage 1V above).
- Conversion efficiency: up to 95% (efficiency is related to input, output voltage, current, and pressure).
- Output current: maximum 7A, it is recommended to use within 5A, when the heat is big, please solve the heat dissipation problem by yourself. Note: The current size is adaptive to load, not adjustable.
Package Included:

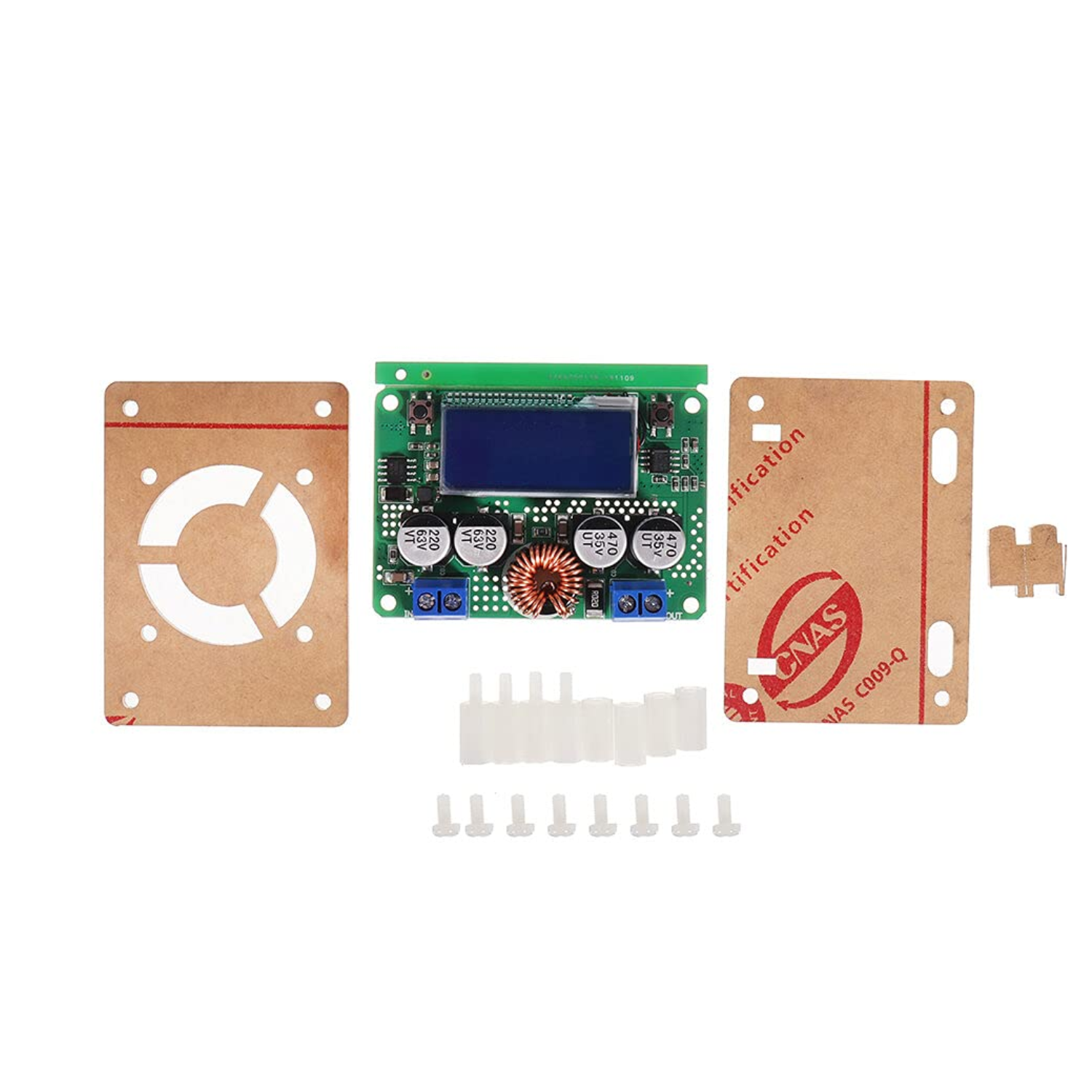

1 x 60V/7A Dc Step-Down Converter Module
