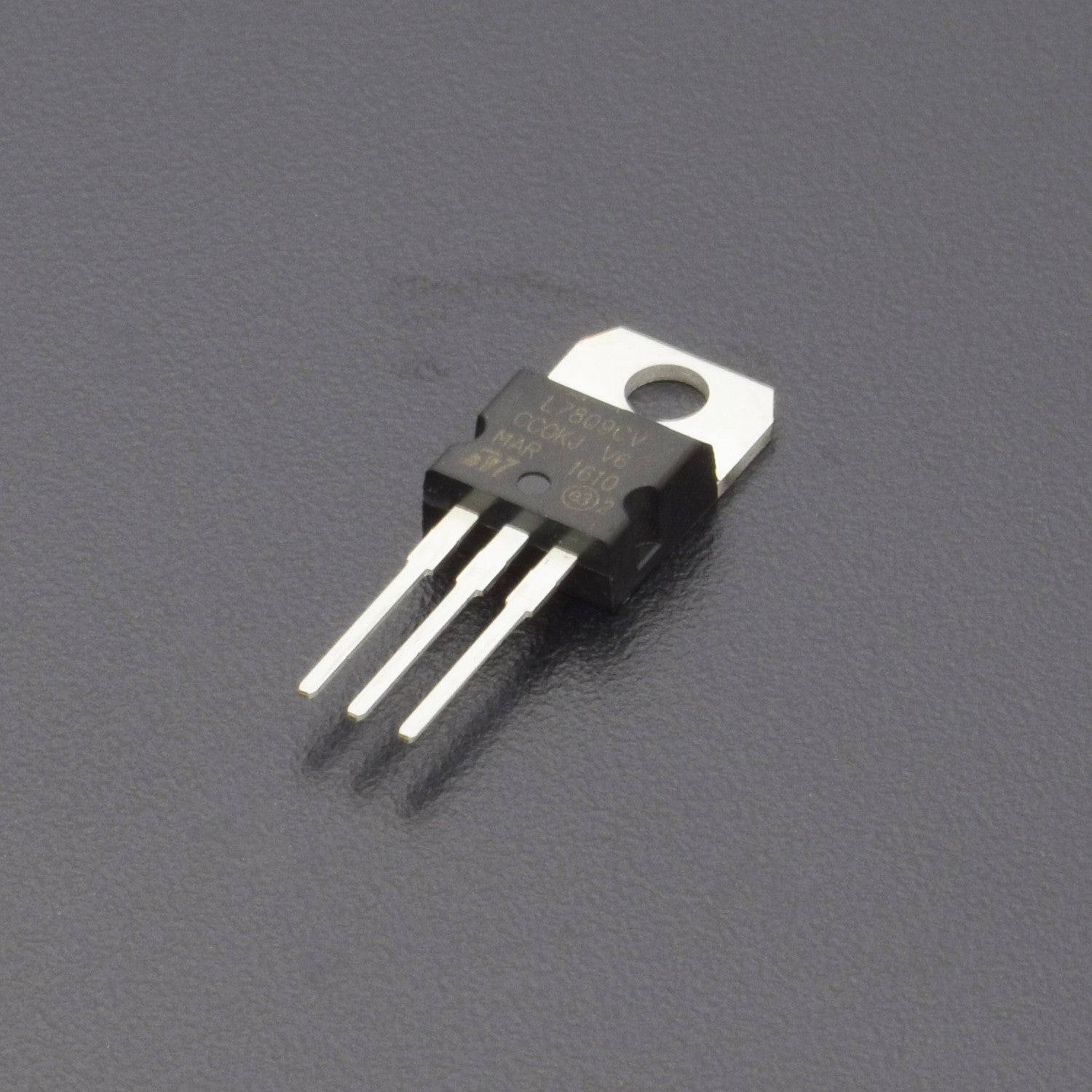

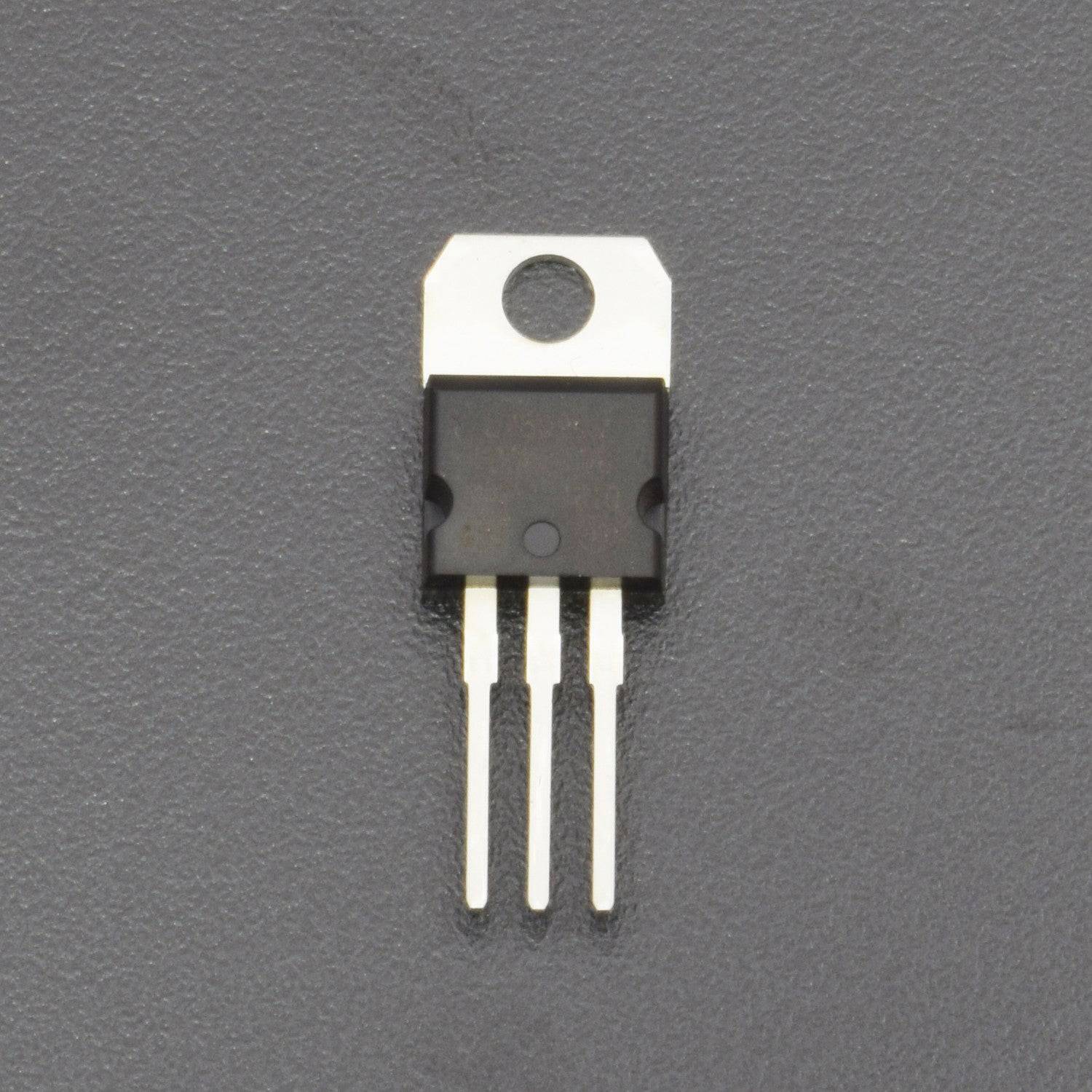

7809 9V Voltage regulator-RS769

7809 9V Voltage regulator-RS769

SKU:RS769

90 in stock

Regular price Rs. 13.00
Regular price Sale price Rs. 13.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • 9V Positive Voltage Regulator
  • Minimum Input Voltage is 11.5V
  • Maximum Input Voltage is 35V
  • Operating current(IQ) is 8mA
  • Internal Thermal Overload and Short circuit current limiting protections available.
  • Junction Temperature maximum 125 degree Celsius
  • Available in TO-220 and KTE package

Description :

Voltage regulators are very common in electronic circuits. They provide a constant output voltage for a varied input voltage. In our case, the 7809 IC is an iconic regulator IC that finds its application in most of the projects. The name 7809 signifies two meaning, “78” means that it is a positive voltage regulator and “09” means that it provides 9V as output. So our 7809 will provide a +9V output voltage.

The output current of this IC can go up to 1.5A. But, the IC suffers from heavy heat loss hence a Heatsink is recommended for projects that consume more current. For example, if the input voltage is 15V and you are consuming 1A, then (15-9) * 1 = 6W. This 6 Watts will be dissipated as heat.

Features:

  • 9V Positive Voltage Regulator
  • Minimum Input Voltage is 11.5V
  • Maximum Input Voltage is 35V
  • Operating current(IQ) is 8mA
  • Internal Thermal Overload and Short circuit current limiting protections available.
  • Junction Temperature maximum 125 degree Celsius
  • Available in TO-220 and KTE package

Pin Description :

Pin Number Pin Name Description
1 Input (V+) Unregulated Input Voltage
2 Ground (Gnd) Connected it to Ground
3 Output (Vo) Outputs Regulated +9V

Package Included:

1 x 7809 9V Voltage regulator
