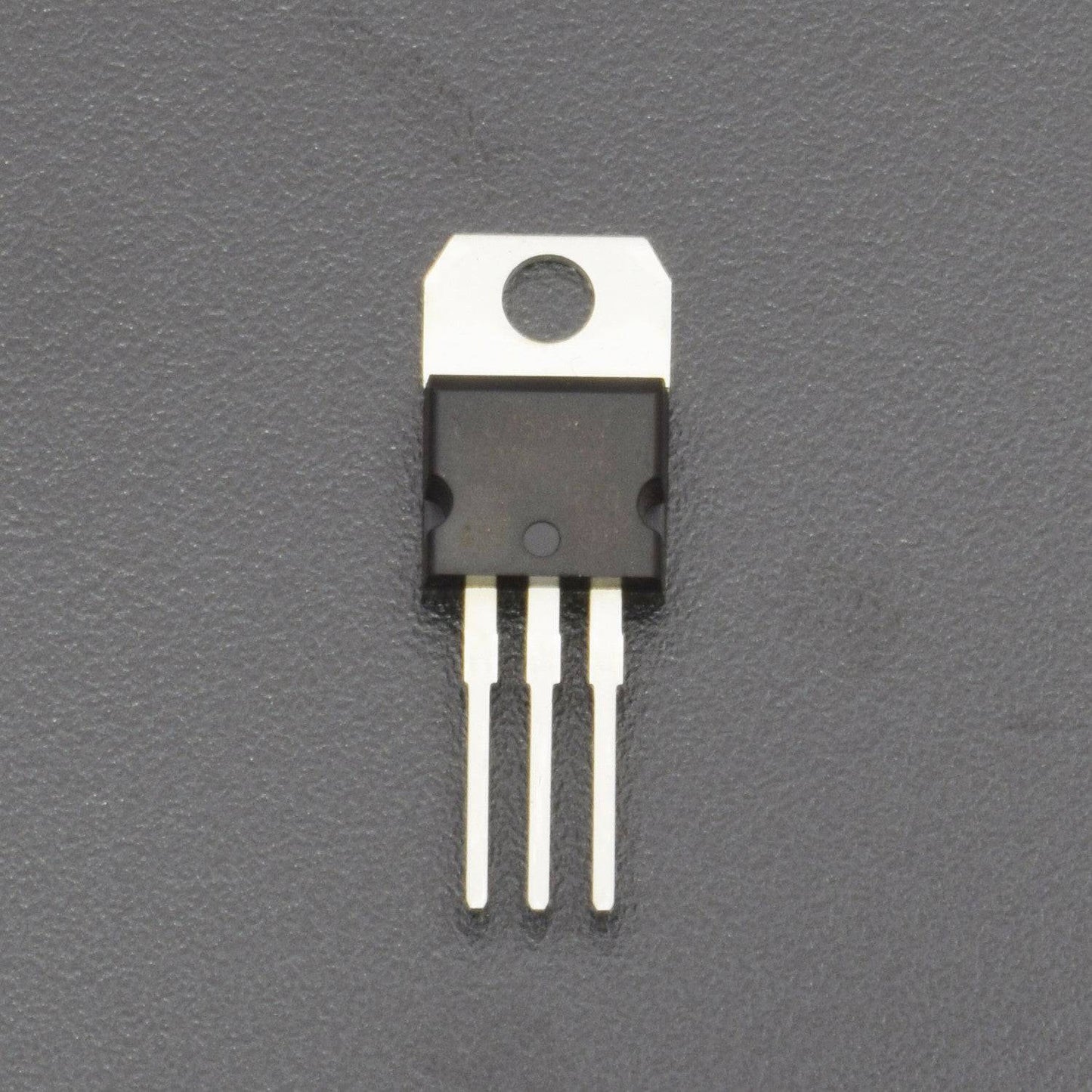

• 7809 9V Voltage regulator-RS769 - REES52
  • 7809 9V Voltage regulator-RS769 - REES52
1 3

Generic

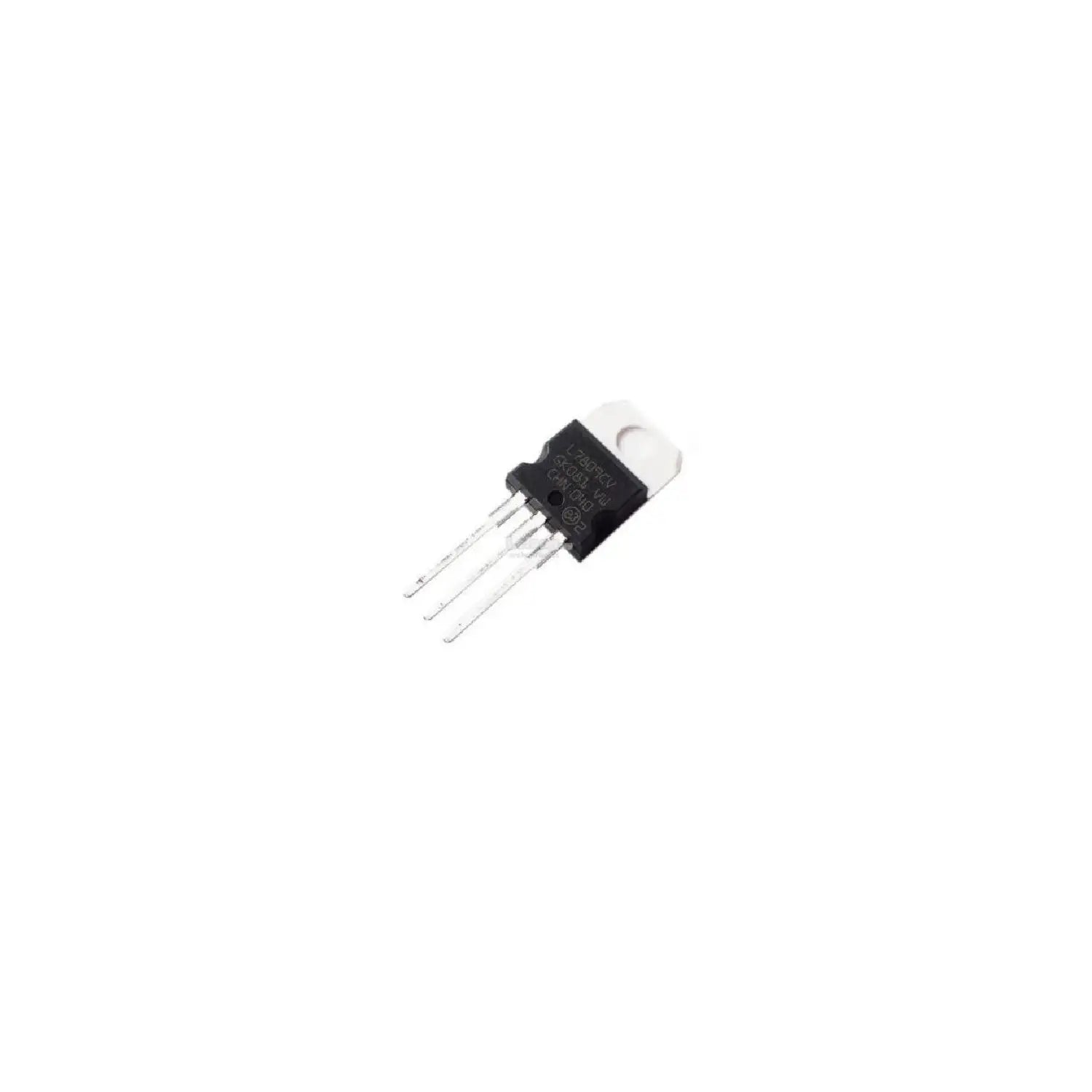

7809 9V 1A Voltage Regulator IC – Fixed 9V Linear Regulator | TO-220 Package | LM7809, KA7809, MC7809 Compatible | For Arduino, Audio Amplifiers, and DIY Electronics Projects India

7809 9V 1A Voltage Regulator IC – Fixed 9V Linear Regulator | TO-220 Package | LM7809, KA7809, MC7809 Compatible | For Arduino, Audio Amplifiers, and DIY Electronics Projects India

RS769

1581 in stock

Rs. 13.00
Rs. 13.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description :

The 7809 Voltage Regulator IC is a 3-terminal linear voltage regulator that provides a fixed 9V DC output from higher DC input voltages (typically 11V–35V). This IC can supply up to 1A of continuous current and is designed with built-in protection features for overload, short-circuit, and thermal shutdown — ensuring safe and reliable performance in a wide range of electronic, Arduino, and DIY applications.

🧠 Universal Compatibility:

This IC is pin-to-pin compatible with multiple manufacturer variants:

  • L7812CV (STMicroelectronics)
  • KA7812 (ON Semiconductor / Fairchild)
  • MC7812 (Motorola / ON Semiconductor)
  • LM7812 (Texas Instruments)

All share identical electrical specifications and pin configurations.

Specifications:

Parameter Specification Notes
Output Voltage +9V DC ±4% Fixed output
Output Current 1A max With adequate heatsinking
Input Voltage Range 11V to 35V DC For proper regulation
Dropout Voltage 2V typical Input must exceed output by ≥2V
Line Regulation 3mV typical Consistent output vs input
Load Regulation 12mV typical Consistent output vs load
Ripple Rejection 60–70dB Excellent noise filtering
Operating Temp 0°C to +125°C Junction temperature
Package TO-220 3-pin through-hole
Pins Input, Ground, Output Standard configuration

Features:

  • ✅ Fixed +9V DC Output (±4%)
  • ✅ Up to 1A Output Current
  • ✅ Wide Input Range: 11V–35V DC
  • ✅ TO-220 Package (easy to mount, heatsink compatible)
  • ✅ Short-Circuit & Thermal Protection Built-In
  • ✅ Low Ripple & Noise (perfect for analog & audio circuits)
  • ✅ Stable Performance Under Varying Load Conditions
  • ✅ 100% Compatible With: LM7809, KA7809, MC7809, UA7809

Pin Configuration:

Pin Number Name Function
1 Input (VIN) Unregulated DC input (11V–35V)
2 Ground (GND) Common ground
3 Output (VOUT) Regulated +9V DC output
TAB Ground Connected internally to GND

🧩 Recommended Circuit:

Basic Connections:

  • Input Capacitor: 0.33µF (Ceramic or Electrolytic) between Input & GND
  • Output Capacitor: 0.1µF–1µF (Ceramic or Electrolytic) between Output & GND
  • Heatsink required for loads >500mA

Protection Diodes (Optional):

  • Input-Output Protection: 1N4007 (prevents reverse current)
  • Output-Ground Protection: 1N4007 (protects from reverse discharge)

🔋 Typical Applications:

  • 🔹 Arduino & Microcontroller Boards:
    Provide a regulated 9V source from a 12V or 15V adapter for consistent logic operation.
  • 🔹 Audio Amplifiers:
    Stable and noise-free power for preamp and op-amp stages.
  • 🔹 Robotics & Automation Projects:
    Power small DC motors, servo drivers, and logic circuits.
  • 🔹 Sensor & Analog Modules:
    Ensures stable reference voltage for sensors and analog ICs.
  • 🔹 Battery Chargers:
    Used in 9V DC charging circuits and battery regulators.
  • 🔹 Educational & DIY Electronics Kits:
    Commonly used in engineering labs and Atal Tinkering Labs (ATL).

🧱 Build Quality & Protections:

Protection Description
Thermal Shutdown Shuts down IC at ~150°C to prevent damage
Short-Circuit Protection Limits current safely when output is shorted
Overload Protection Maintains safe current limits
Reverse Polarity Protection  (With external diode) prevents accidental reverse connection

Package Included:

  • 1 x 7809 9V Voltage regulator
