74HC595 Driven 4-Bit LED Digital Tube Module 0.4 Inch LED Digital Display Module DIY Digital Display Module High-Brightness Digital Display With 74HC595 Interface - RS6668

74HC595 Driven 4-Bit LED Digital Tube Module 0.4 Inch LED Digital Display Module DIY Digital Display Module High-Brightness Digital Display With 74HC595 Interface - RS6668

SKU:RS6668

Low stock: 10 left

Regular price Rs. 149.00
Regular price Sale price Rs. 149.00
Sale Sold out
Shipping calculated at checkout.

Pickup available at REES52 OFFICE

Usually ready in 24 hours

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.
  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

74HC595 Driven 4-Bit LED Display working voltage range is 3.3V‑5V, and the module current is 30‑80MA when the power supply is 5V, which is stable and reliable. 4-Bit LED Display are digital tube module that has M2 screw positioning holes with a diameter of 2.2mm, which is convenient for installation. Silicone Resin.

4-Bit LED Display 595 to drive the digital tube, needs an MCU 3-way IO port, and the display is based on the digital tube dynamic scanning principle. 4 digit LED digital display module, the LED brightness, which has a wide range of applications.

Specifications:

  • Working Voltage: 3.3V‑5V

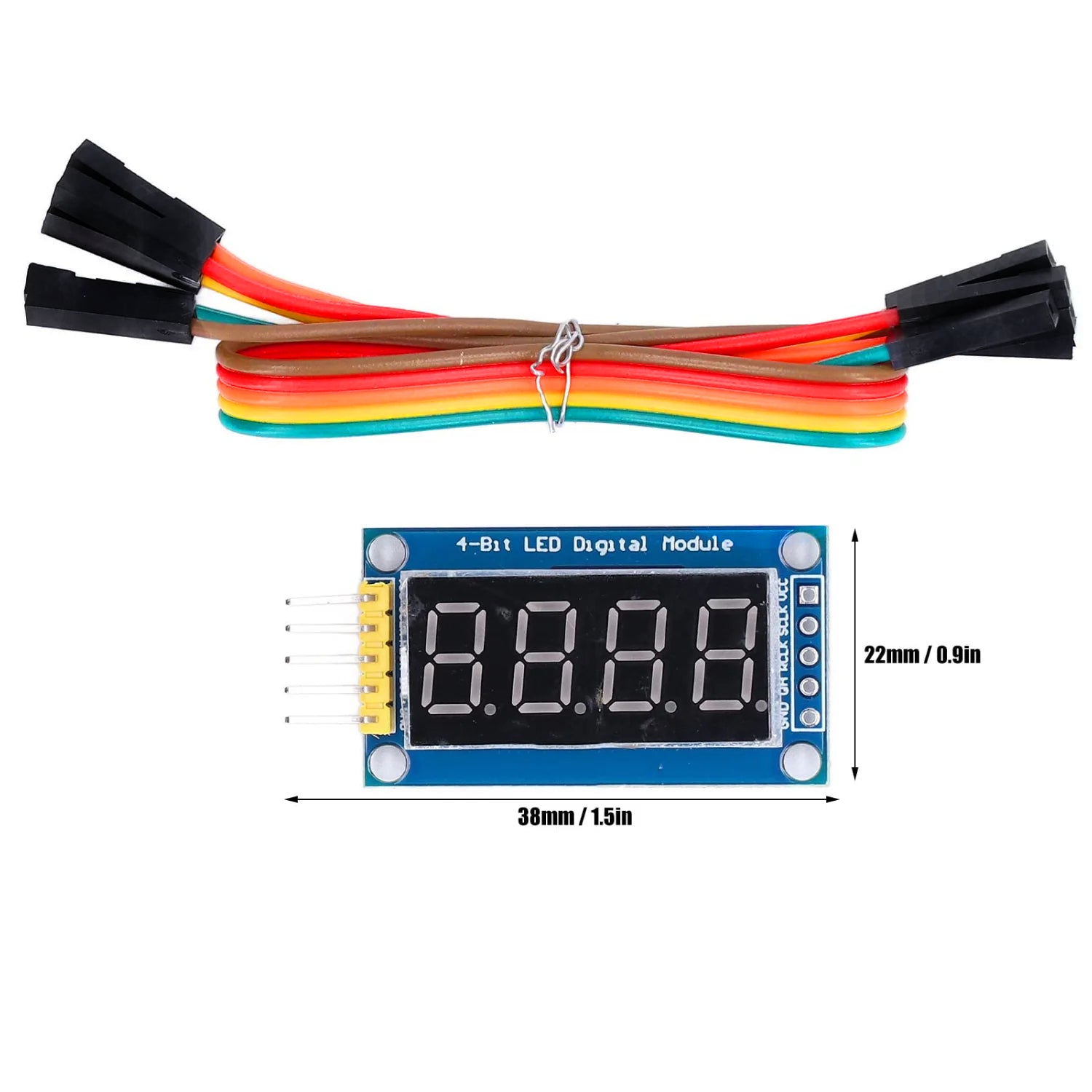

  • PCB Board Size: Approx. 38 x 22mm / 1.5 x 0.9inch
  • Module Current: 30-80MA (at 5V power supply)

Pinout:

The 74HC595 4-digit 7-segment display module includes 5 pins:

  • SCLK pin: is a clock input pin, Connected to any digital pin on Arduino
  • RCLK pin: is a clock input pin. Connect to any digital pin on the Arduino
  • DIO pin: is a Data I/O pin. Connect to any digital pin on the Arduino
  • VCC pin: supplies power to the module. Connect it to the 3.3V to 5V power supply.
  • GND pin: is a ground pin.

Package Included:

1 x 74HC595 Driven 4-Bit LED Digital Tube Module 0.4 Inch LED Digital Display Module DIY Digital Display Module High-Brightness Digital Display With 74HC595 Interface
