Description:
The 74HC Series 74HC08 is Quad 2-Input AND Gate 14 Pin IC. The 74HC08 provides 4 independent 2-input AND gates with standard push-pull outputs. 7408 IC is designed for operation with a power supply range of 4.75V to 5V. 7408 IC utilizes advanced silicon-gate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power consumption of standard CMOS integrated circuits. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and the ground.
Specifications:
- Operating Voltage Range: 4.75V to 5V
- Operating Temperature range: 0 DegreeC to +70 DegreeC
- VH (Output High): 2.7V to 3.4V
- VL (Output Low): 0.36V to 0.5V
- Power Consumption: 4.8mA to 8.8mA
- Operating Speed (Mhz): 125 - 250
Features:
- 7408 IC is very simple to operate
- 7408 IC is much cheaper
- The output of 7408 IC is TTL so that it can operate with microcontrollers & devices
- A single power supply can activate all logic gates within the IC
- An AND gate is used without affecting other gates
- The maximum current provided by this IC is 8mA
- The operating speed of IC 74LS08 is must fast
- This IC has less power consumption
- 7408 IC has Quadruple 2-input AND Gate features
Package Included:

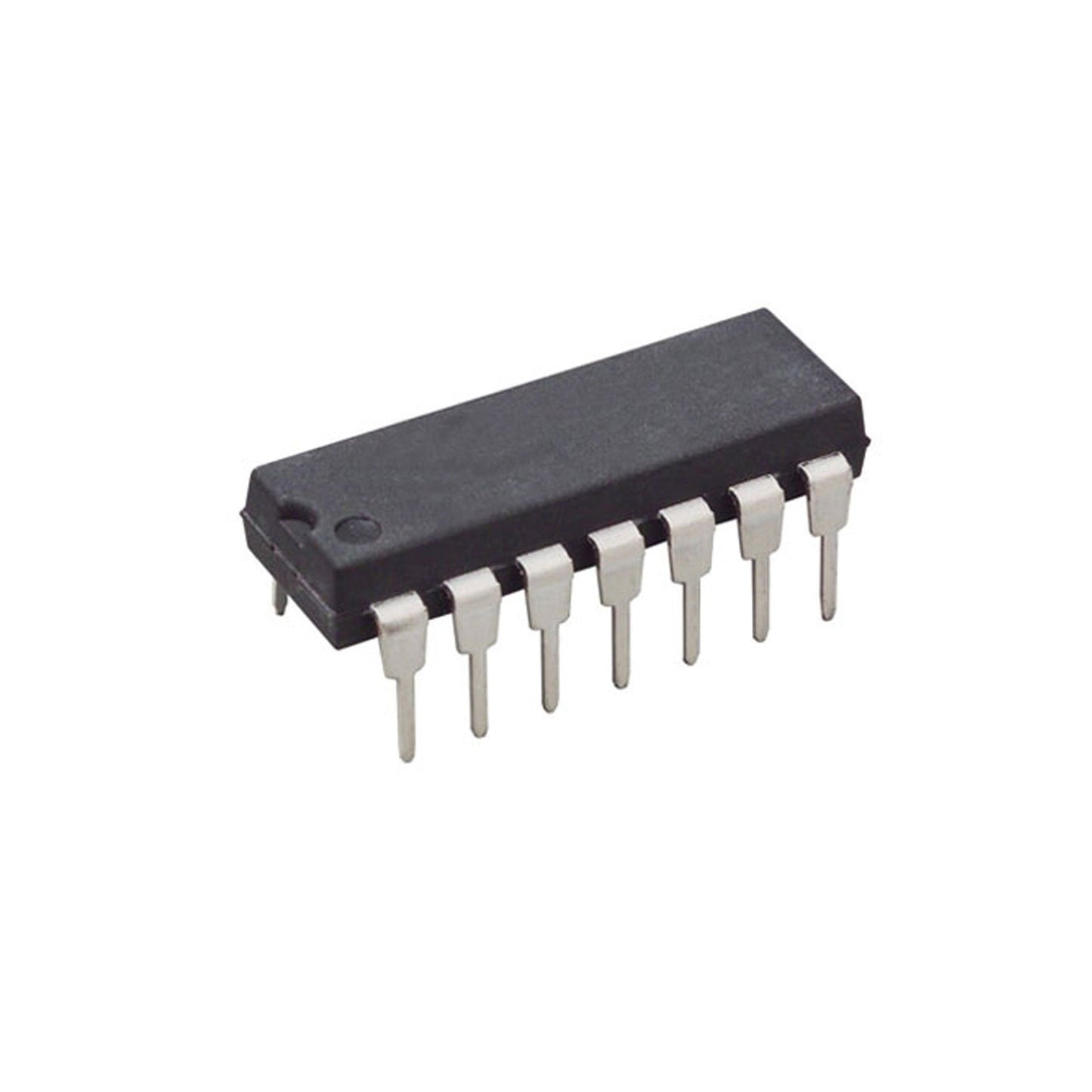

1 x 7408 IC 74LS08 Quadruple 2-Input Positive And Gate IC DIP-14
