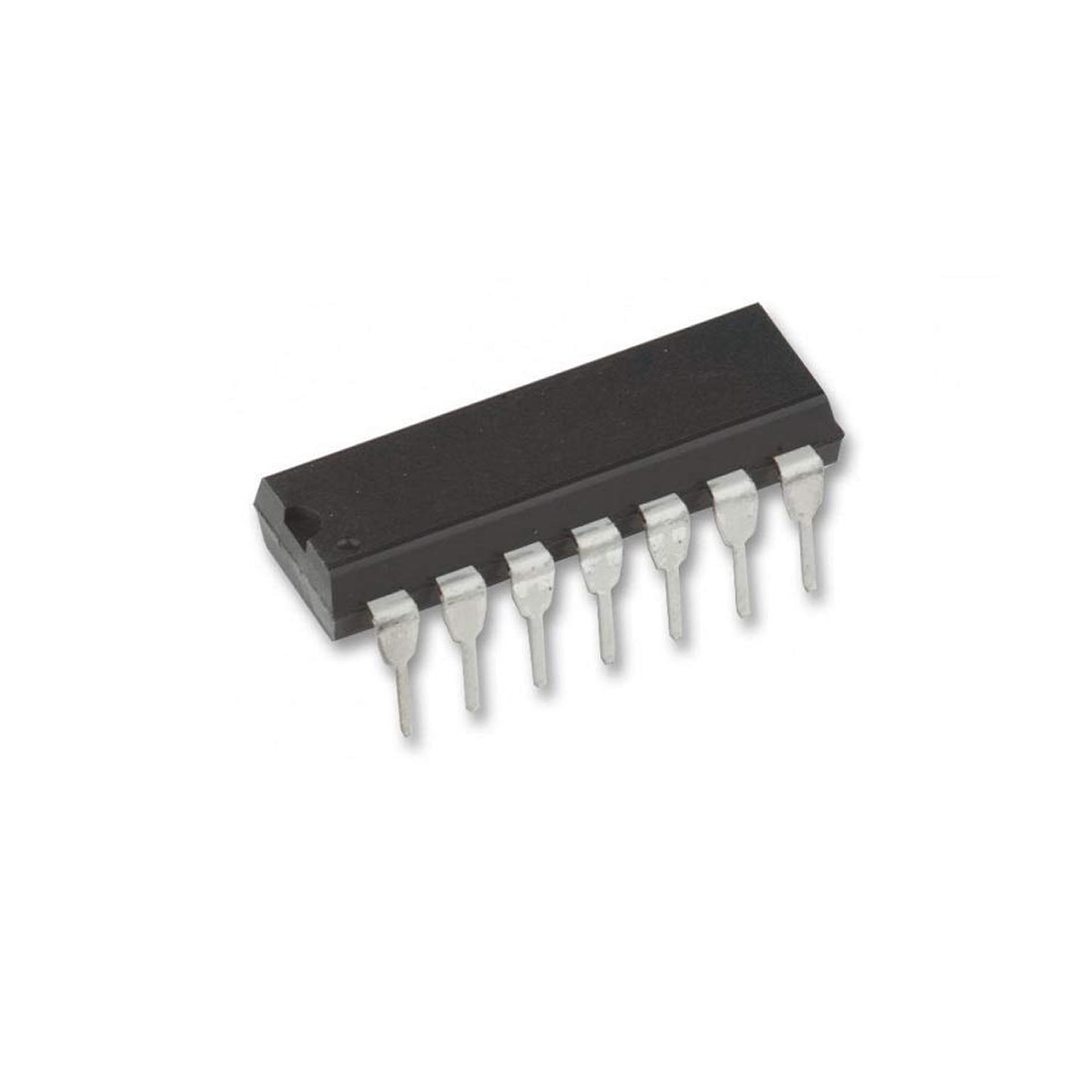

7400 IC 74LS00 Quad 2 Input NAND Gate IC DIP-14 - RS5565
7400 IC 74LS00 Quad 2 Input NAND Gate IC DIP-14 - RS5565
SKU:RS5565
69 in stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:
This 7400 IC contains four independent gates each of which performs the logic NAND function. The 74LS00 is a 14-pin Quad 2-Input NAND Gate IC. NAND gates utilize advanced silicon-gate CMOS technology to achieve operating speeds with the low power consumption of standard CMOS integrated circuits.7400 IC has high noise immunity and can drive 10 LS-TTL loads.
Specifications:
- Logic Function: NAND
- Product Type: Logic Gates
- Number of Gates: 4 Gate
- Number of Input Lines: 2 Input
- High-Level Output Current: – 16 mA
- Low-Level Output Current: 0.4 mA
- Supply Voltage – Max: 5.25 V
- Supply Voltage – Min: 4.75 V
- Minimum Operating Temperature: 0ºC
- Maximum Operating Temperature: +70ºC
- Propagation Delay Time: 22 ns
- Operating Supply Current: 22 uA
- Operating Supply Voltage: 5 V
- Output Type: TTL
Features:
- 7400 IC have four Independent NAND Gates
- 7400 IC is a 14 Pin IC
- High-Speed Low Power CMOS Type
Package Included:
1 x 7400 IC 74LS00 Quad 2 Input NAND Gate IC DIP-14
