- Display size: 7 inch
- Screen: Touch screen
- Dimensions: 165 (W) × 100 (H) × 5 (D) mm
- Viewing area: 154.08 (H) × 85.92 (V)
- Resolution: 1024 × 3 (RGB) × 600
- Point distance: 0.05 (W) × 0.15 (H) mm
- Viewing angle: L70 ° R70 ° U50 ° D60
Description:

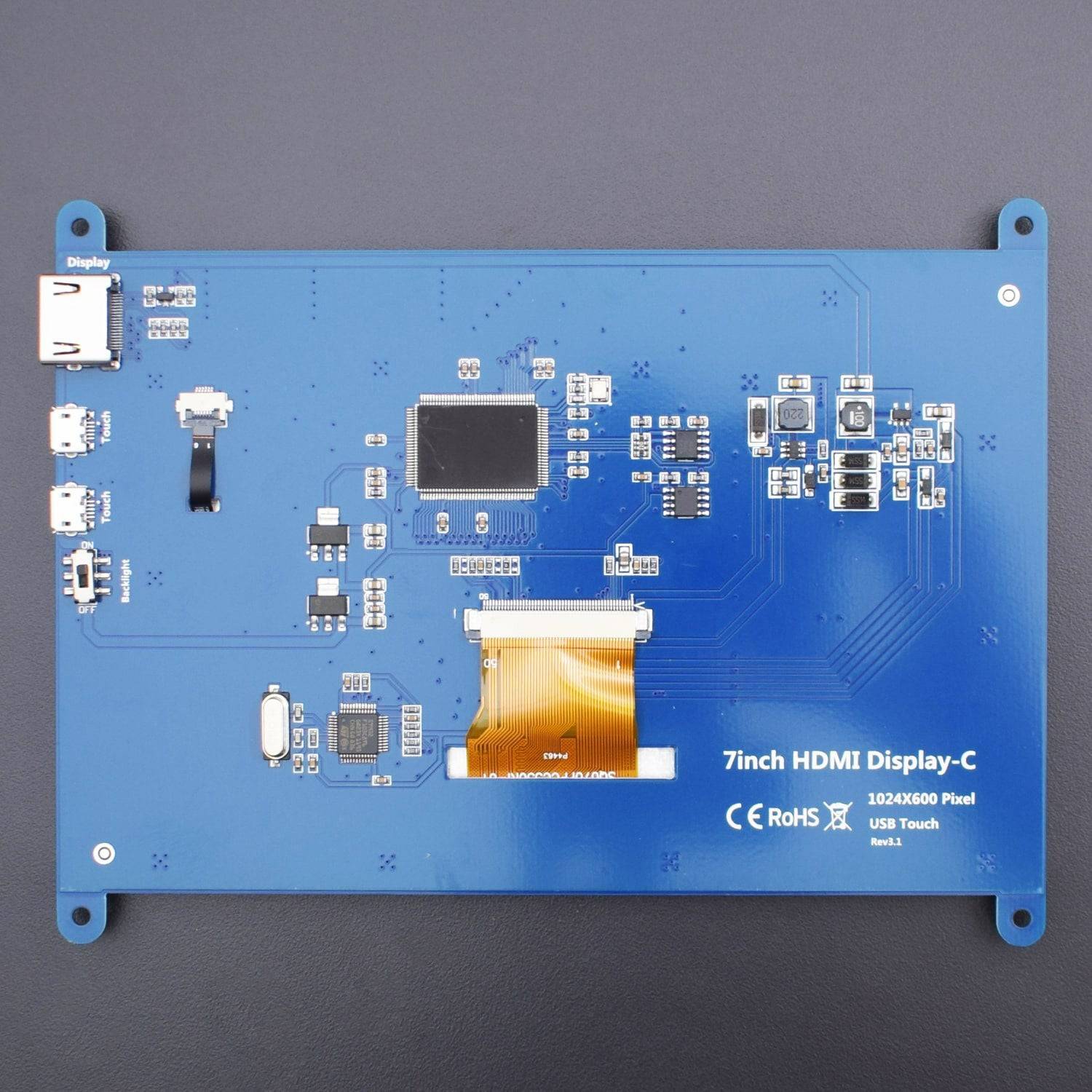

This is a 7 inch raspberry Pi 3B+ LCD display touch screen LCD 1024*600 HDMI TFT monitor. It has USB interface capacitive touch , more convenient. It supports the back light control, saves the electricity. And also it supports the Raspberry Pi, provide Raspbian , Ubuntu , Win 10 system image in the CD. It is a general HDMI display , can be used as a computer monitor ( touch function cannot be used ). HDMI interface is used to display and USB interface is used to touch. This 7 inch touch screen module is designed especially for Raspberry Pi 3/2 /B+, support the portable power, convenient for DIY.
Specification:
- Display size: 7 inch
- Screen: Touch screen
- Dimensions: 165 (W) × 100 (H) × 5 (D) mm
- Viewing area: 154.08 (H) × 85.92 (V)
- Resolution: 1024 × 3 (RGB) × 600
- Point distance: 0.05 (W) × 0.15 (H) mm
- Viewing angle: L70 ° R70 ° U50 ° D60
- Panel type: TFT
- Display color: 262K
- Contrast ratio: 500: 1
- Brightness: 220cd / m2
- Interface type: Digital
- The number of connection: 50 PIN Digital (TTL) TCON
- Back light: LED
- Operating voltage: 5V (current requirement 1A-2A)
- Rated power: 6-7W
- Signal input: 2 AV + VGA + HDMI (HDMI 1.2)
Features:
- 1024 x 600 (Pixel), IPS screen; Full view
- Compatible with Raspberry Pi 3 Model B/ 2B/ B+
- For Raspberry Pi, you can run Raspbian and Ubuntu
- Compatible with Beagle Bone Black and Banana Pi/Pro
- USB touch and HDMI display don't occupy any GPIO
- Support win7/win8/win10, No driver
Application:
- Mobile
- Digital photo frame
- Car systems
- Multimedia applications
- And other audiovisual systems

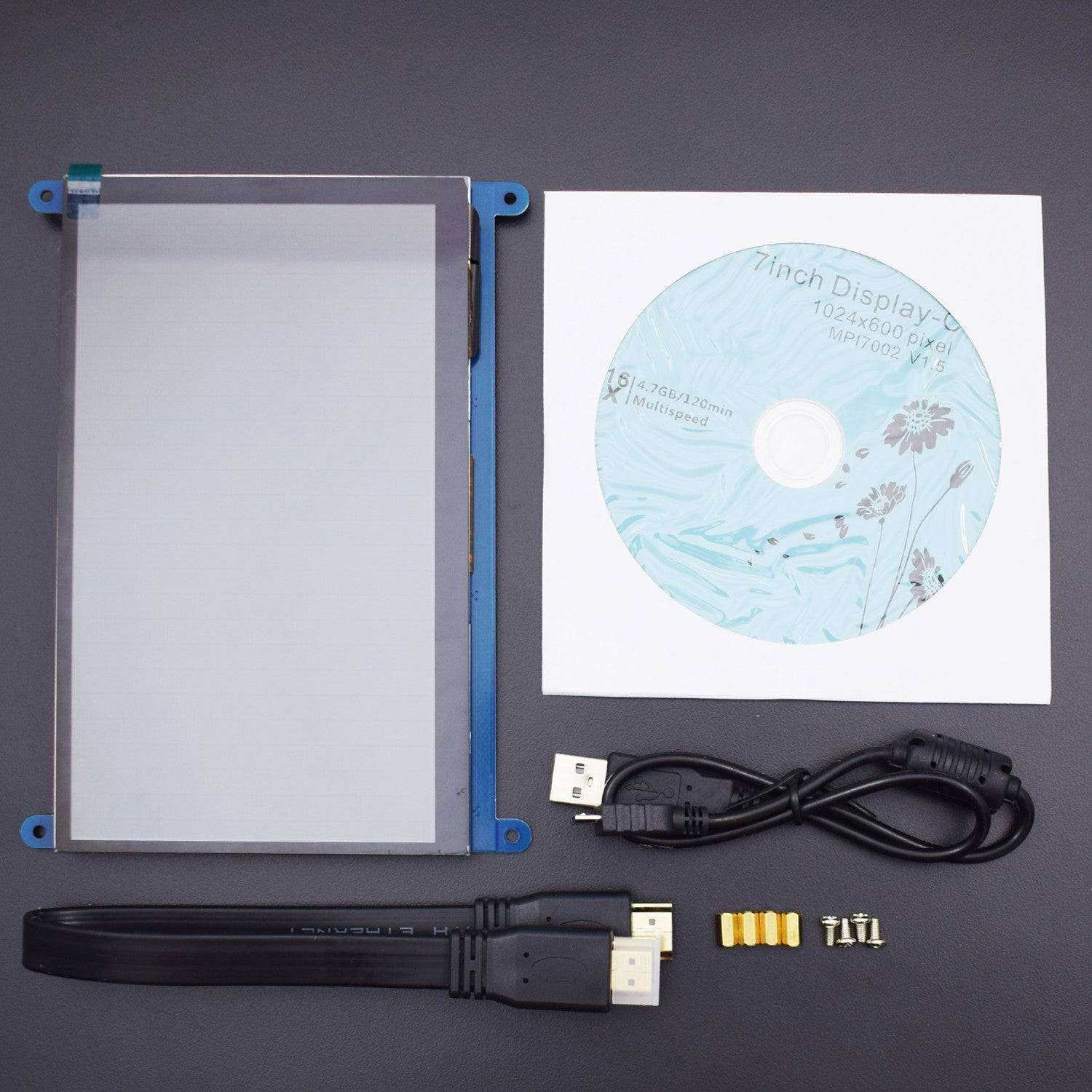

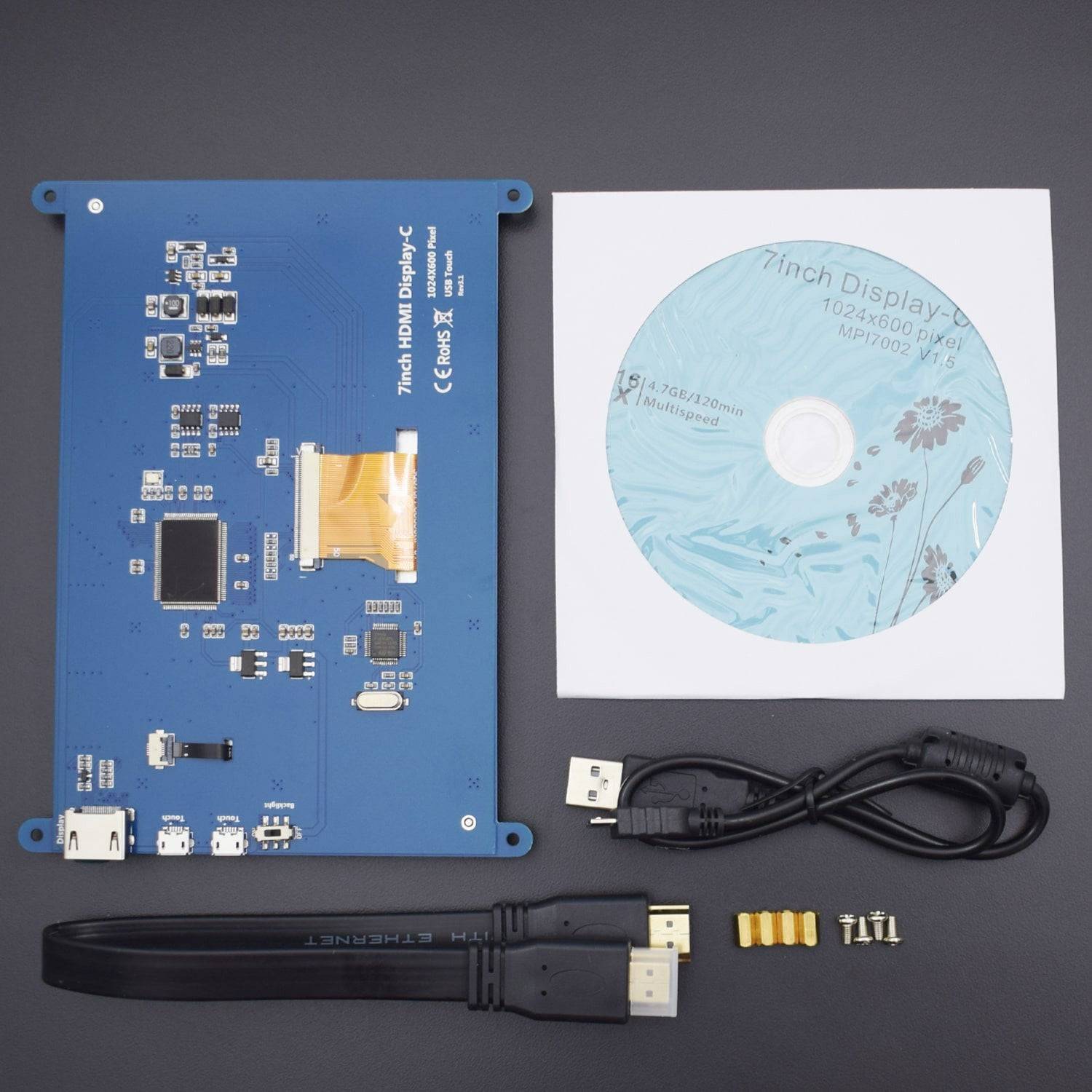

Package Included:
- 1 x 7 inch HDMI LCD Display

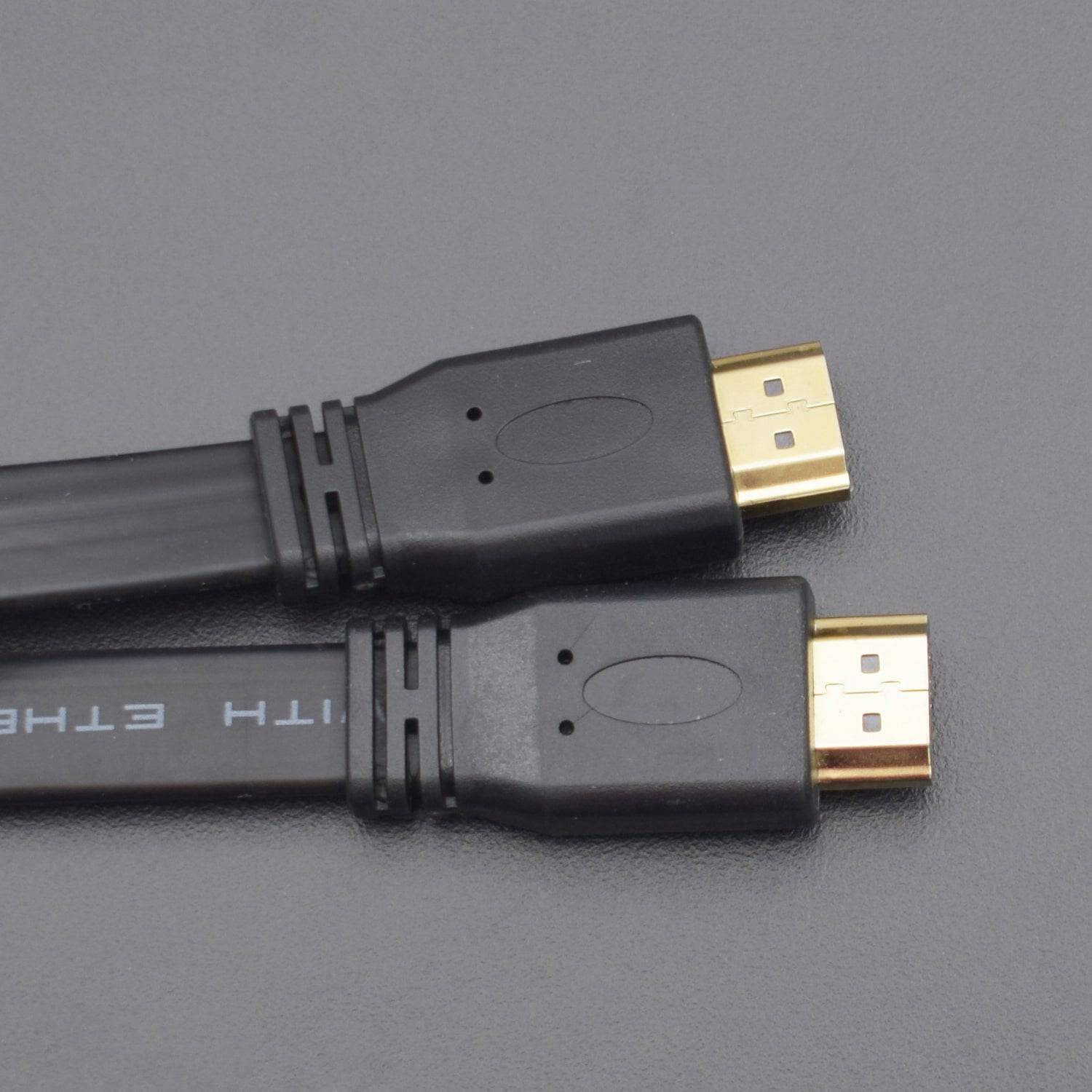

- 1 x HDMI Cable

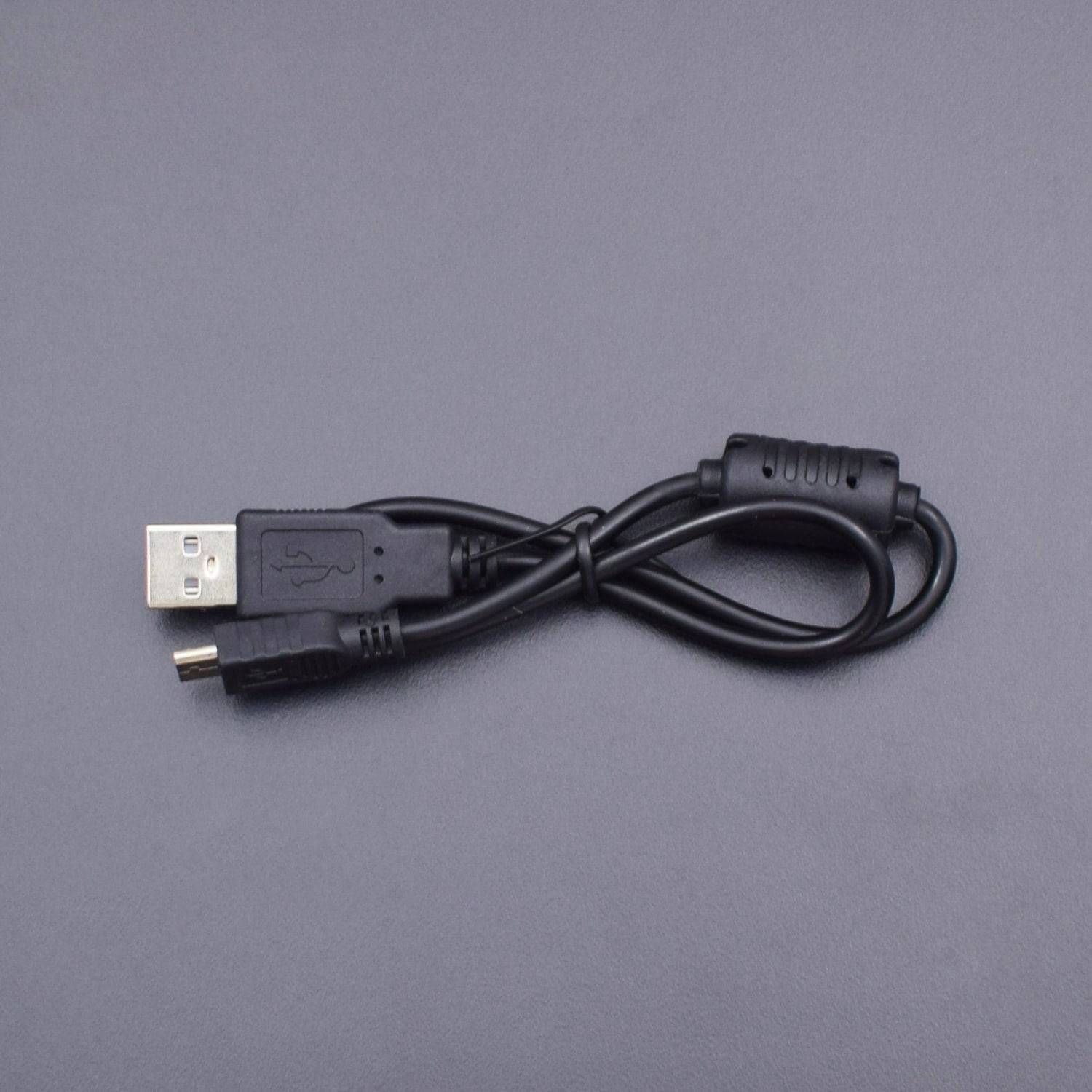

- 1 x USB Cable
- 1 x CD

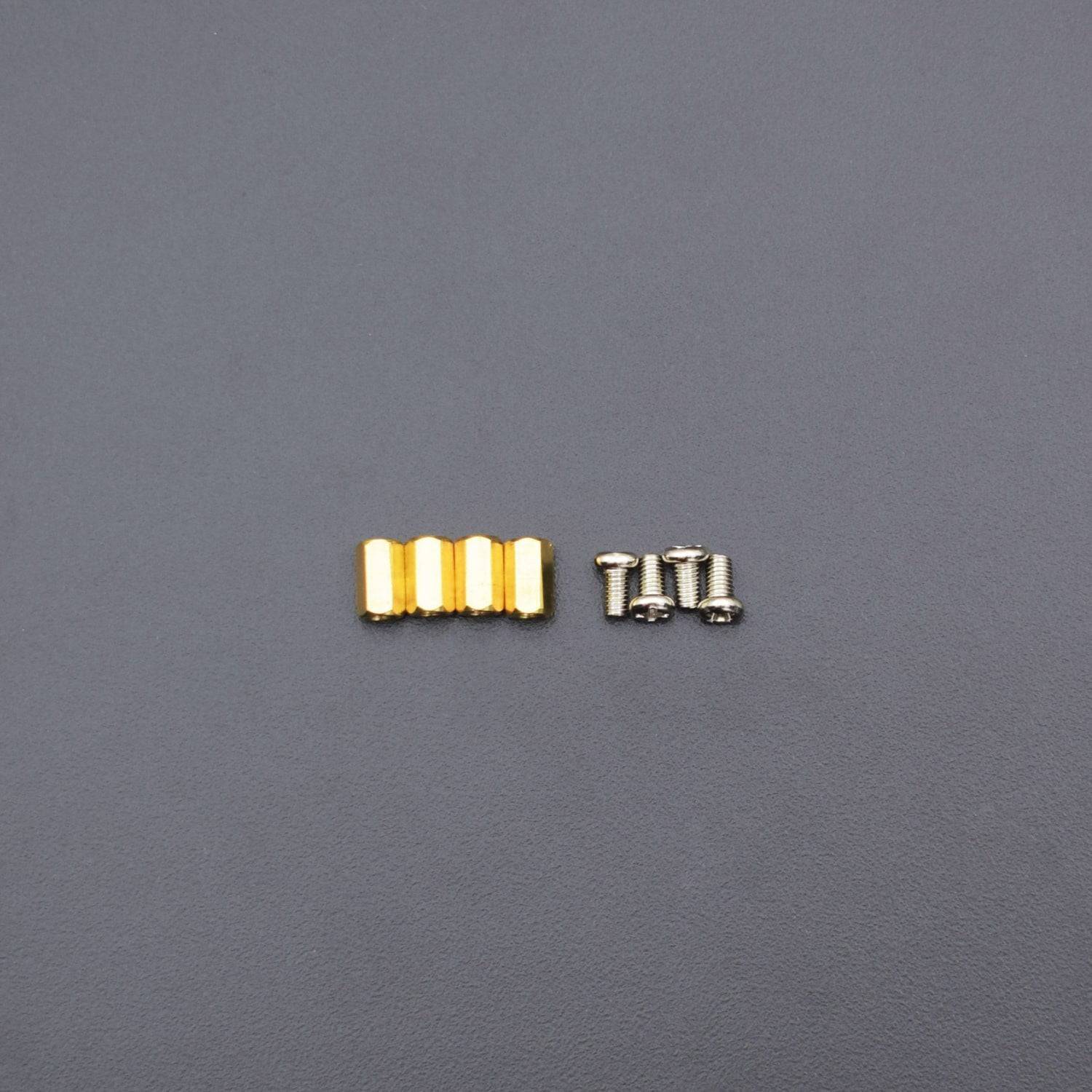

- Mounting Screws
