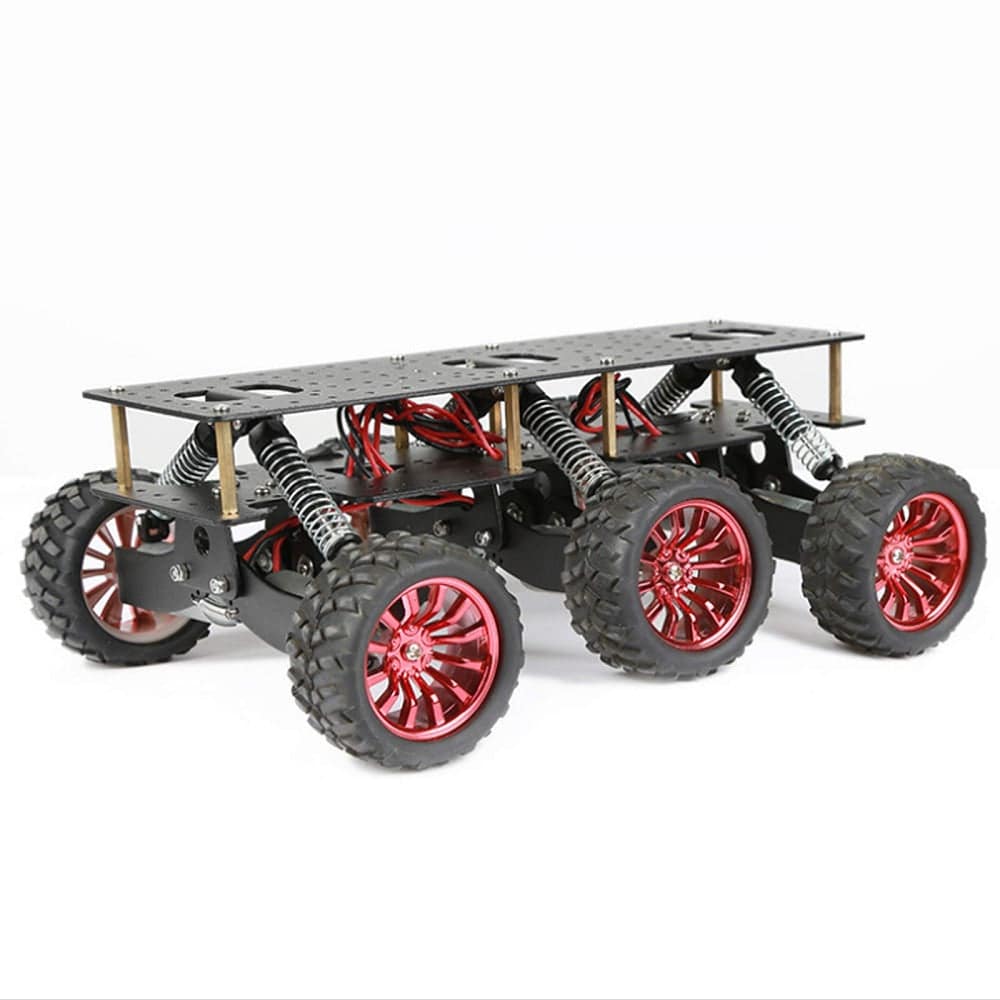

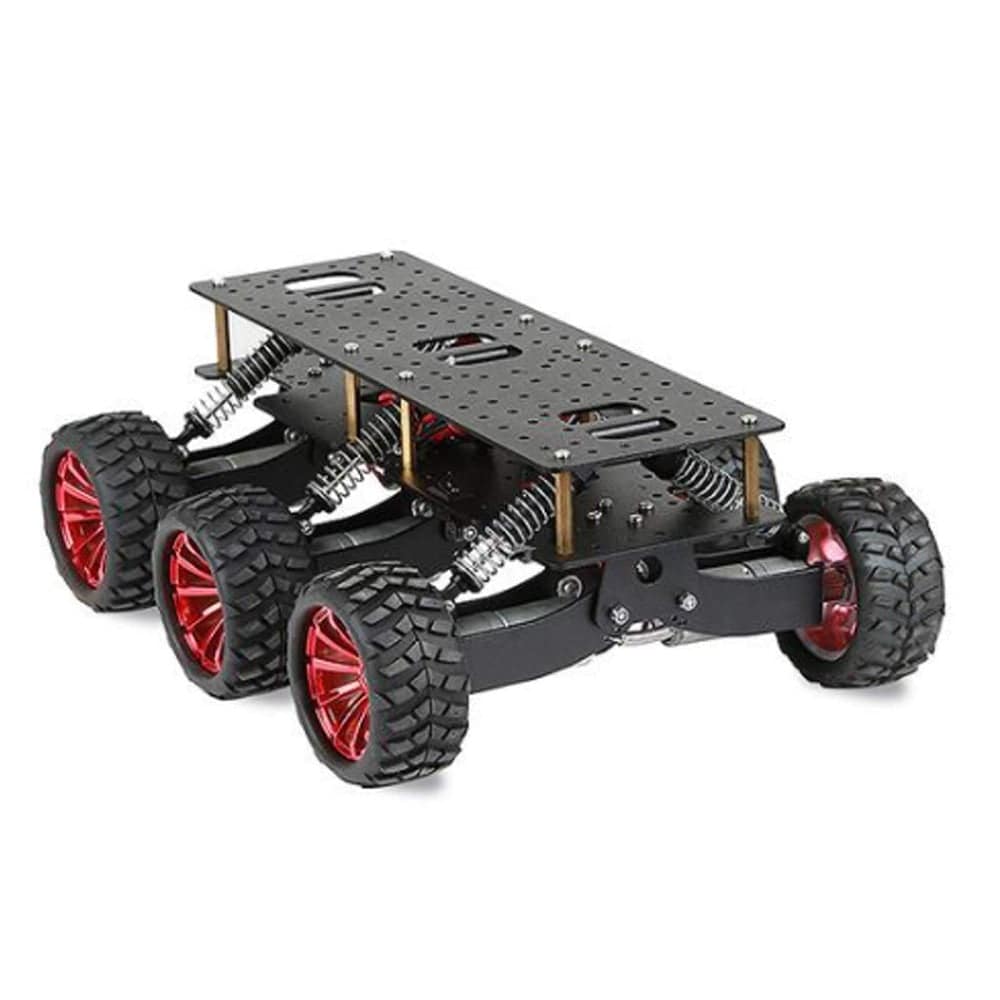

6WD Shock-Absorbing Chassis 6WD Search Rescue Platform Smart Car Chassis Damping Off-Road Climbing - RS5537

6WD Shock-Absorbing Chassis 6WD Search Rescue Platform Smart Car Chassis Damping Off-Road Climbing - RS5537

SKU:RS5537

Regular price Rs. 7,789.00
Regular price Sale price Rs. 7,789.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Operating Voltage: 12V
  • Maximum Load: 6KG
  • Rated Current: 350mA*6
  • Motor Original Speed: 17000RPM

Description:

This is a high-speed DC motor with a 1: 34 all-metal gearbox which makes the car have strong off-road performance. It has a seismic design with 6 hydraulic spring shock absorbers fixed to the upper body to give the platform better roadway capability, especially for some complex bumpy roads.

6WD Mobile platforms can be installed with different types of boards or controllers, such as Arduino or Raspberry Pi. The user can install any kind, or additional extension of other functions, such as the installation of a manipulator.

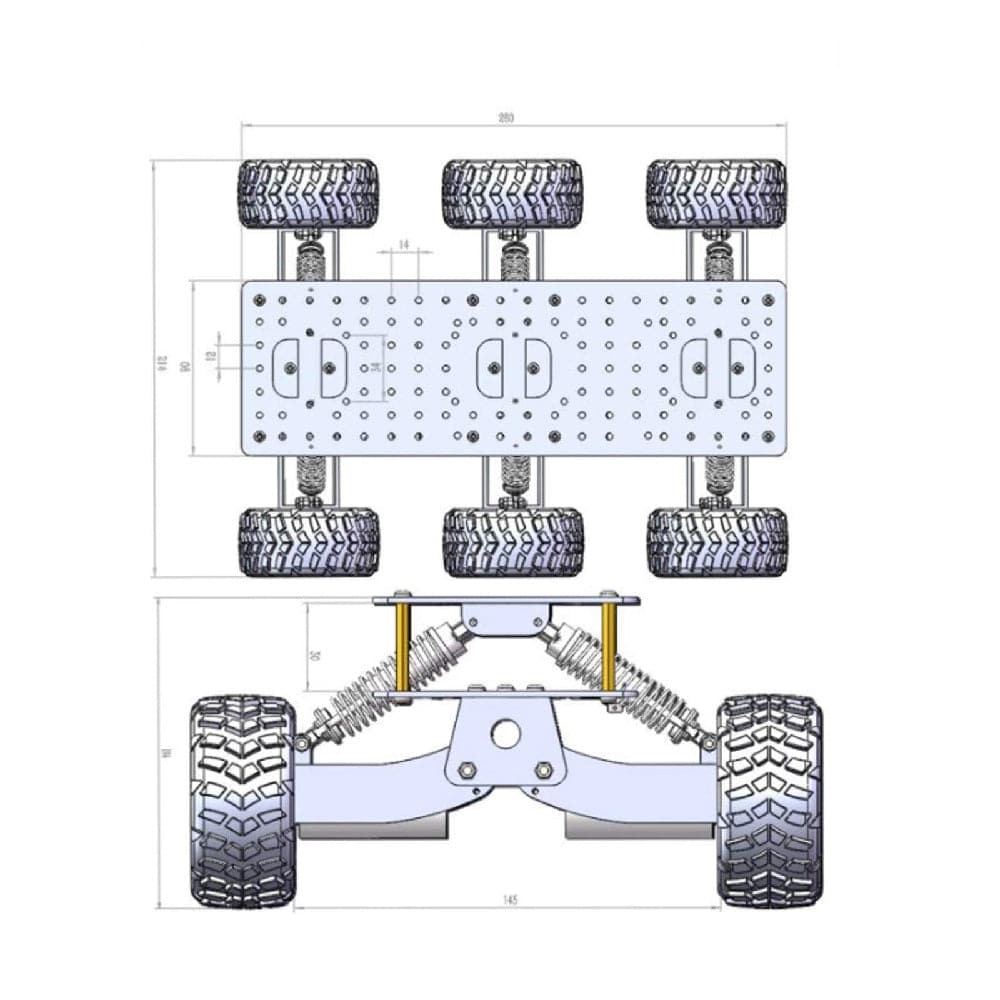

The six hydraulic spring dampers are used to fix the motor to the upper body, which gives the platform better road penetration capability, especially for some complex bumpy roads. Powerful expansion capabilities can arbitrarily be modified.12mm Vertical 14mm The sensor is the hole distance that can install every kind of such as the installation of a manipulator.

Specifications:

  • Operating Voltage: 12V
  • Maximum Load: 6KG
  • Rated Current: 350mA*6
  • Motor Original Speed: 17000RPM
  • Output Shaft Speed: 500RPM
  • Nominal Torque: 5KG/CM

Features:

  • 6 hydraulic spring shock absorbers
  • All metal gearbox
  • Shock soft and hard adjustable by the tension spring
  • Uneven road surface, damping access will be adaptive to the road
  • Powerful expansion capabilities
  • Reduced frictional heat drag

Package Included:

1 x 6WD Shock-Absorbing Chassis 6WD Search Rescue Platform Smart Car Chassis Damping Off-Road Climbing
