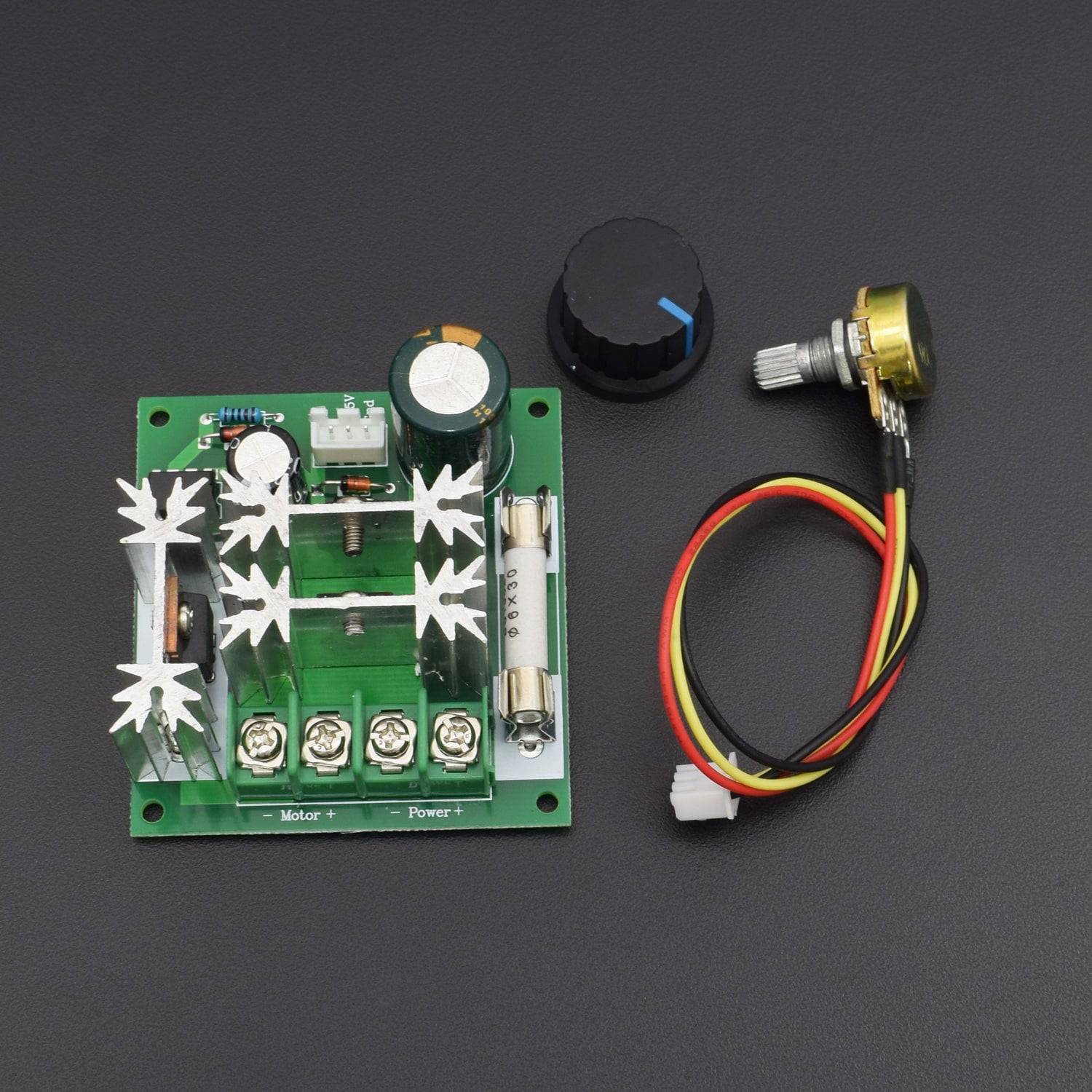

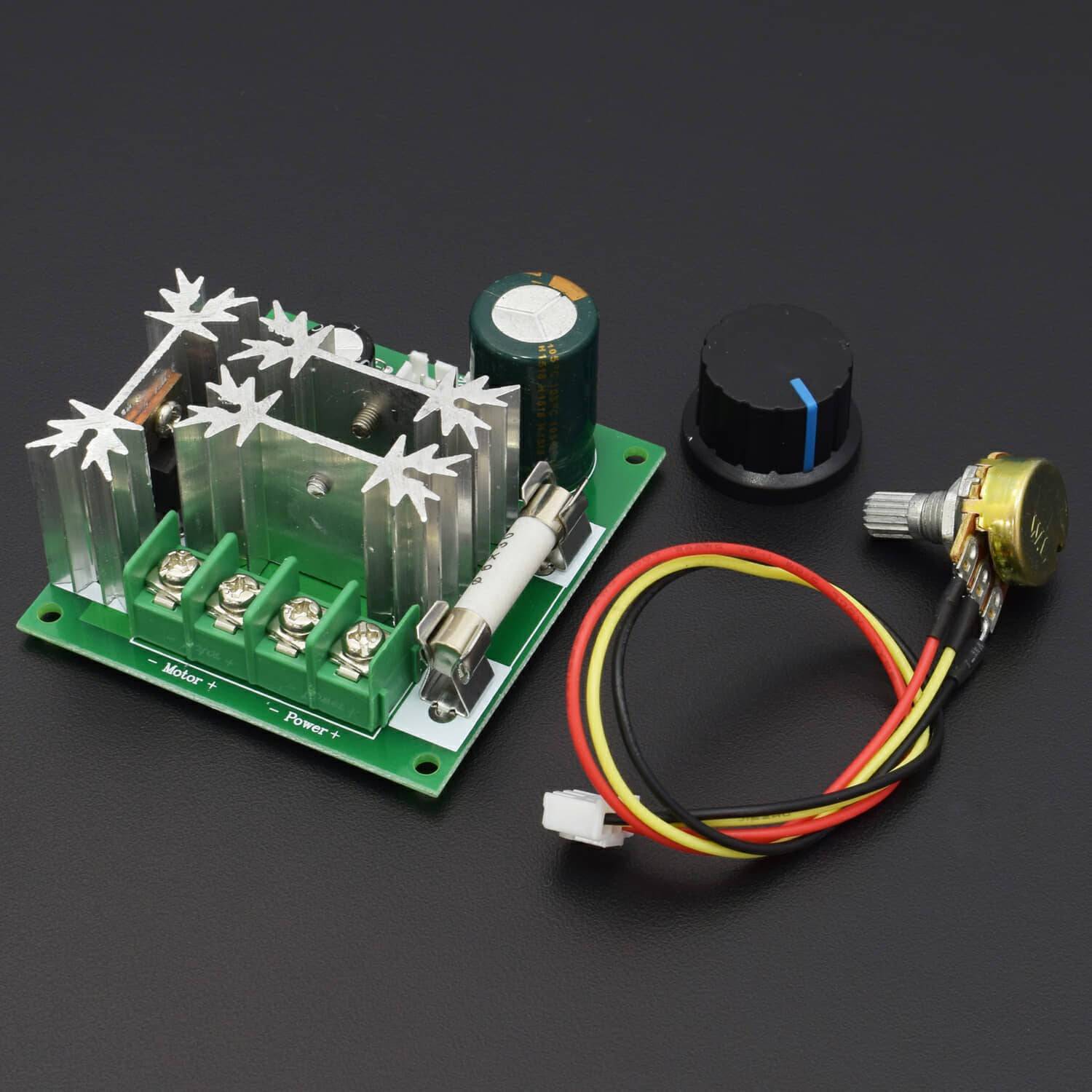

6V 90V 15A Pulse Width PWM DC Motor Speed Controller Switch - RS707

6V 90V 15A Pulse Width PWM DC Motor Speed Controller Switch - RS707

SKU:RS707

43 in stock

Regular price Rs. 280.00
Regular price Sale price Rs. 280.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Input Supply Voltage: 6V - 90V DC
  • Maximum Output Power: 1000W
  • Maximum Continuous Output Current: 15A
  • Overload and Short circuit Protection Current (fuse): 15A
  • Static Current: 0.005 A ( Standby )

Description:

This DC Motor Speed Controller controls the speed of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage from 6V to 90V with a duty cycle continuously adjustable from 0%-100%. A panel-mount potentiometer for the speed control is included with the module. The duty cycle can also be controlled by a 0-5V analogue control signal in place of the potentiometer. The motor speed controller can provide a continuous current of 15A to your DC motor or other DC load. The module includes a user-replaceable board-mounted 15A fuse to protect the motor and controller from overcurrent conditions.

Specification:

  • Input Supply Voltage: 6V - 90V DC
  • Maximum Output Power: 1000W
  • Maximum Continuous Output Current: 15A
  • Overload and Short circuit Protection Current (fuse): 15A
  • Static Current: 0.005 A ( Standby )
  • PWM Frequency: 15kHz
  • Duty Cycle: 0%-100% continuously adjustable via the potentiometer, or with a 0-5V analogue control signal
  • Operating Environment Temperature: -20°c to 40°c

Features:

  • Control the speed of a DC motor with this controller
  • High efficiency, high torque, low heat generating
  • With reverse polarity protection, high current protection

Note:

  • The power supply should be DC, can't be AC, or the DC motor speed controller will be burnt.
  • Please make sure the connection with the power supply is correct, or the speed controller will be broken.
  • The positive and negative of the motor can be ignored, when the running direction is inconsistent with the expectations, you can adjust the order of the cable to change the orientation.

Package Included:

1 x 6V 90V 15A Pulse Width PWM DC Motor Speed Controller Switch
