- Charging Electricity: 25.2V
- Max Working Current: 8A
- Instantaneous discharge current:25A
- Working Temperature: -40~+50℃
- Storage Temperature: -40~+80℃
Description:

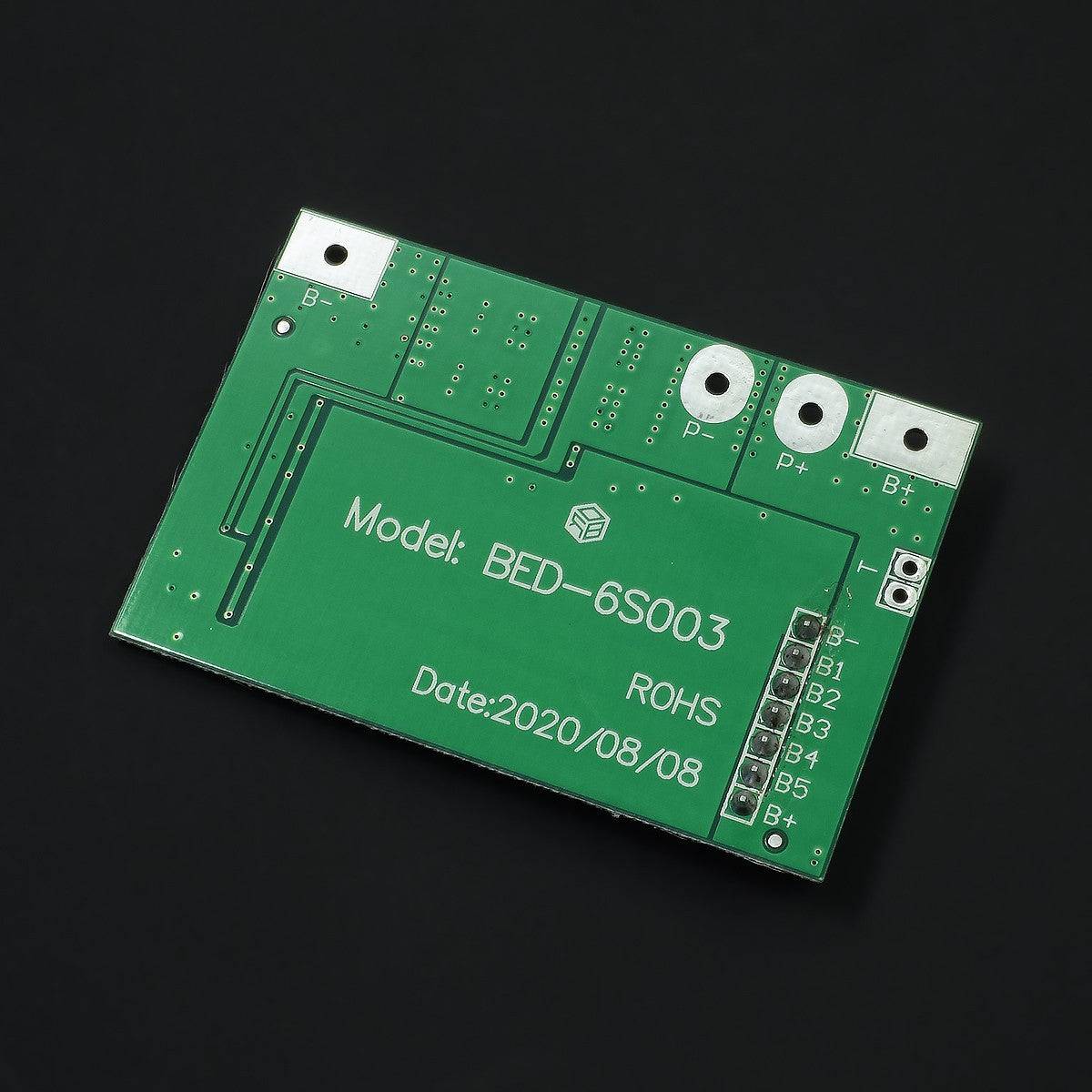

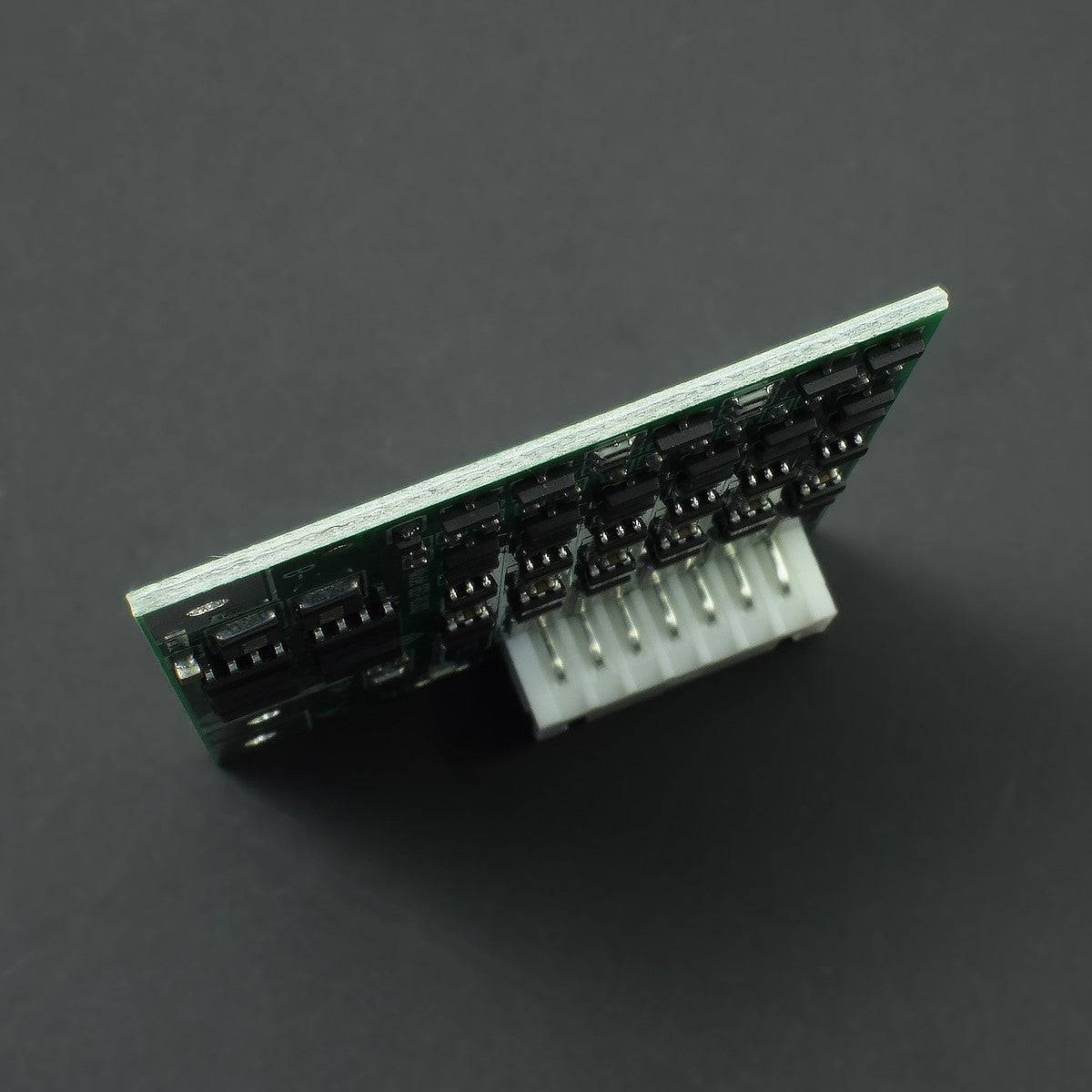

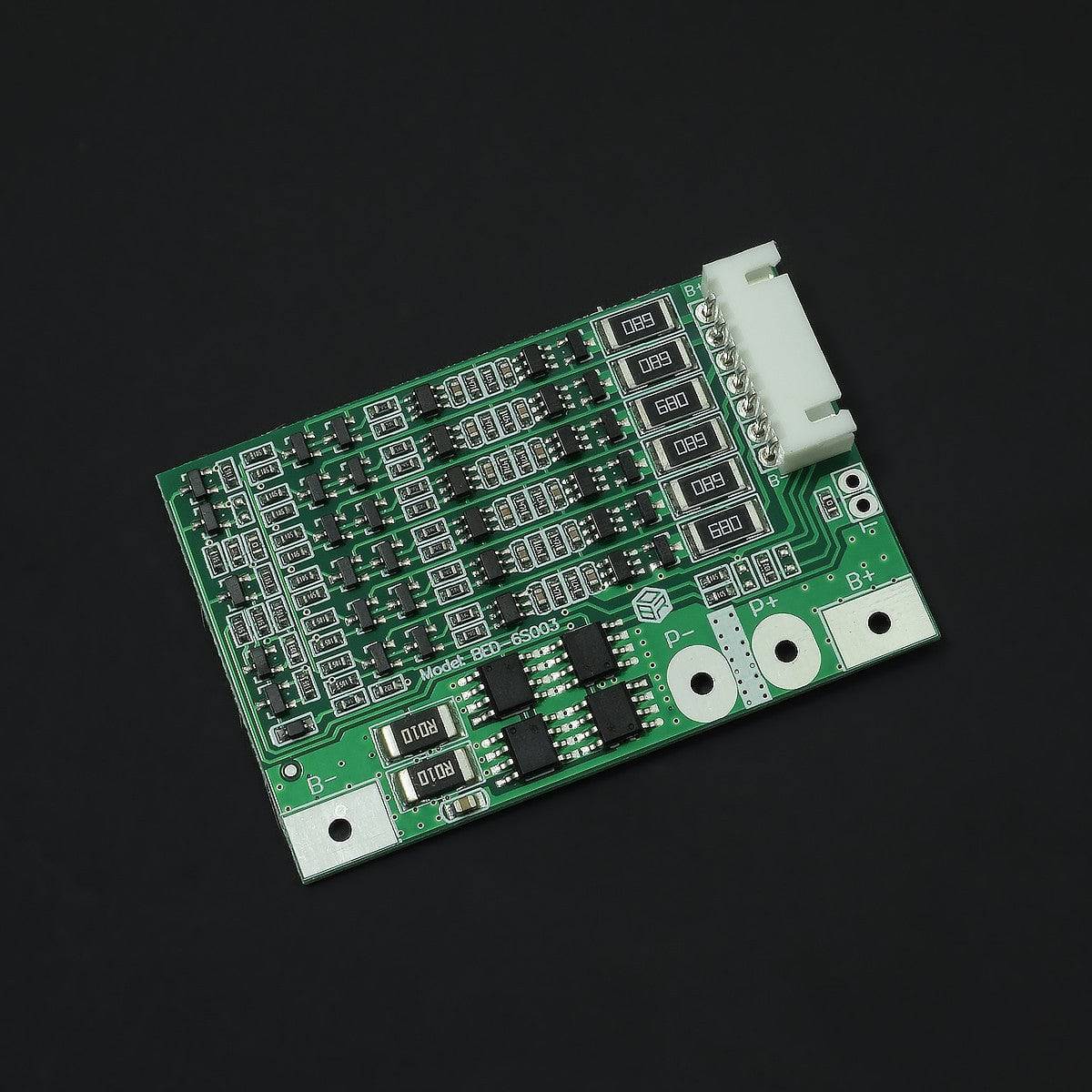

This is a 6S 22.2V Li-ion 18650 Lithium Battery BMS Charger Protection Board with Balance Integrated Circuits. It has overcharge protection and over-discharge protection.
Specification:
- Charging Electricity: 25.2V
- Max Working Current: 8A
- Instantaneous discharge current:25A
- Working Temperature: -40~+50℃
- Storage Temperature: -40~+80℃
- Life cycle: 50000hours
- Overcharge Detection Voltage:4.28±0.05v
- Overcharge Protection Delay:0.5s
- Overcharge Release Voltage:4.08±0.05v
- Power Balance Detection Voltage: 4.2±0.05v
- Power Balance Release Voltage: 4.2±0.05v
- Power Balance Current: 45mA
Features:
- With Balance
- Overcharge protection
- Over-discharge protection
Package Included:

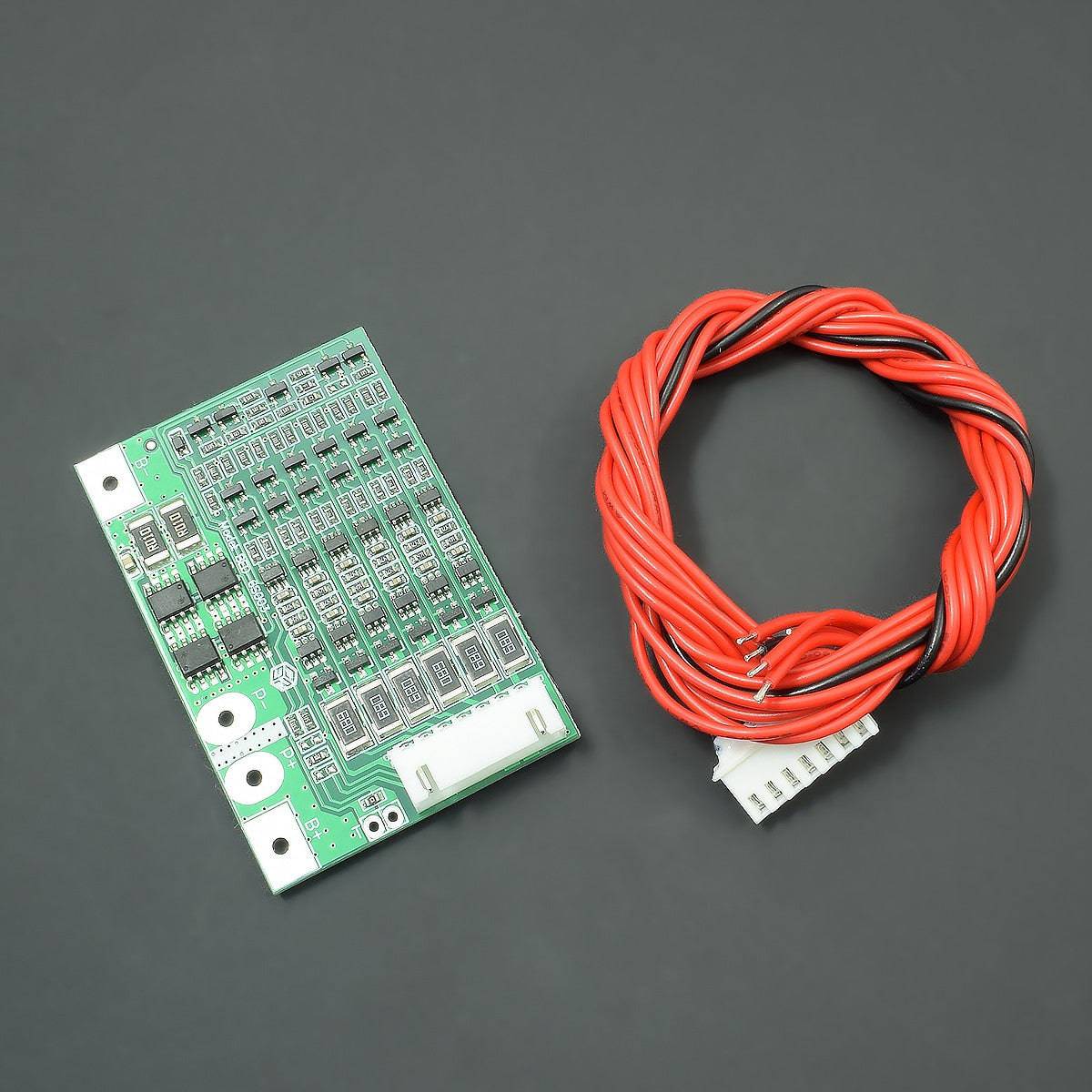

1 x 6S 22.2V Li-ion 18650 Lithium Battery BMS Charger Protection Board with Balance Integrated Circuits
