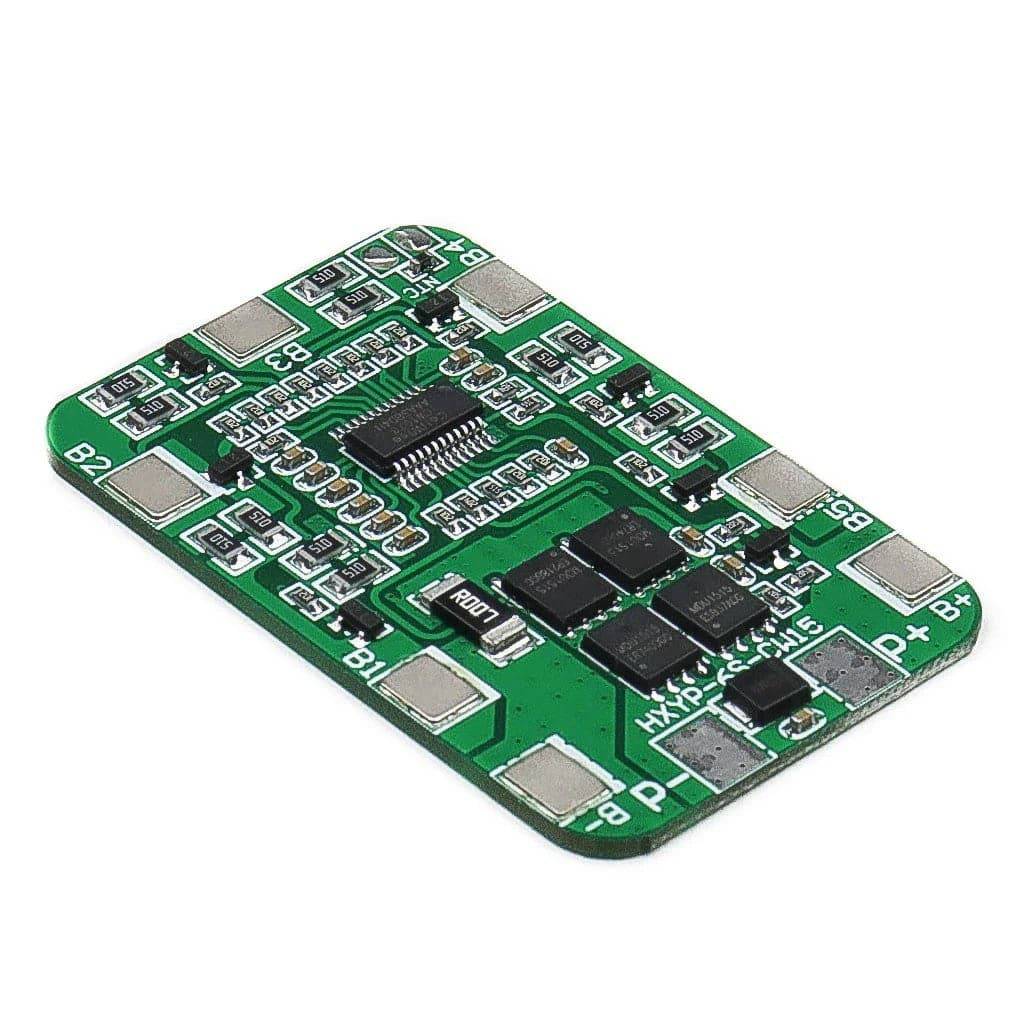

6S 20A Li-ion Lithium Battery 24V 18650 Charger Protection Board Module - RS3043

6S 20A Li-ion Lithium Battery 24V 18650 Charger Protection Board Module - RS3043

SKU:RS3043

Regular price Rs. 315.00
Regular price Sale price Rs. 315.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Instantaneous discharge current: 25A
  • Charging voltage: 25.5V
  • Charging current: 20 A (MAX)
  • Overcharge detection voltage: 4.28 ± 0.05V
  • Overcharge protection delay: 0.1S

Description:

6S 20 A Li-ion Lithium Battery 24V 18650 Charger Protection Board Module is a small PCB mount Li-ion Lithium Battery charger protection module. This small battery charger protection module comes with various features like Short circuit protection, Overcharge protection, Over-discharge protection, Overcurrent protection. It is very easy to install and convenient to use in all your DIY portable projects.

Specification:

Input Voltage

25.5 – 26 V

Operating Temperature

-30 to 80°C

Over-Current Protection (A)

Yes

Under-Voltage Protection (V)

Yes

Internal Resistance

<20mΩ

Maximum Operating Current

15A

Features:

  • The battery protection board is mainly for the rechargeable battery (generally refer to as lithium battery) to protect the role of the integrated circuit board.
  • Lithium battery (rechargeable) needs protection, which is determined by its own characteristics.
  • As the material of the lithium battery itself determines that it cannot overcharge, overflowing, short-circuiting, and super high temperature.
  • Charging and discharging of lithium battery will always follow a protective plate with a sampling resistance and a current safety device.
  • Instantaneous discharge current: 25A
  • Charging voltage: 25.5V
  • Charging current: 20 A (MAX)
  • Overcharge detection voltage: 4.28 ± 0.05V
  • Overcharge protection delay: 0.1S
  • Over discharge detection voltage: 2.55 ± 0.08V
  • Overcharge release voltage: 4.08 ± 0.05V
  • Over discharge detection delay: 0.1S
  • The over discharge release voltage: 2.9 ± 0.1V
  • Overcurrent detection voltage: 150mV
  • Overcurrent detection delay: 9MS
  • The Overcurrent protection current: 30 ± 3A
  • Overcurrent protection release condition: Disconnect the load
  • Short circuit detection delay: 250uS
  • Short circuit protection Release condition: disconnect negative open
  • Main circuit conduction resistance: ≤20mΩ
  • Working current: ≤30uA
  • Sleep current (battery over discharge) ≤10uA
  • Temperature range: -30 / + 80 ℃

Package Included:

1 x 6S 20A Li-ion Lithium Battery 24V 18650 Charger Protection Board Module
