Description:
6mm Electrical Waterproof Seal Heat Shrink Splice Wire Sleeve White-Yellow; is designed for electrical termination of multiple-wire combinations. They provide a reliable alternative to crimping, welding; or conventional twist-on-style closed-end connectors. Their unique combination of wire fixtures and controlled soldering technology provides dependable electrical termination.
Specifications:
- Shrink Ratio: 2:1
- Tubing: Polyolefin
- Plating: Tin
- Allowed Wire Size: 12 ~ 10AWG
- Terminal Body: Copper
- Colour: Yellow
- Operating Temperature: -55 to 125
- Shrink Temperature: 80
Features:

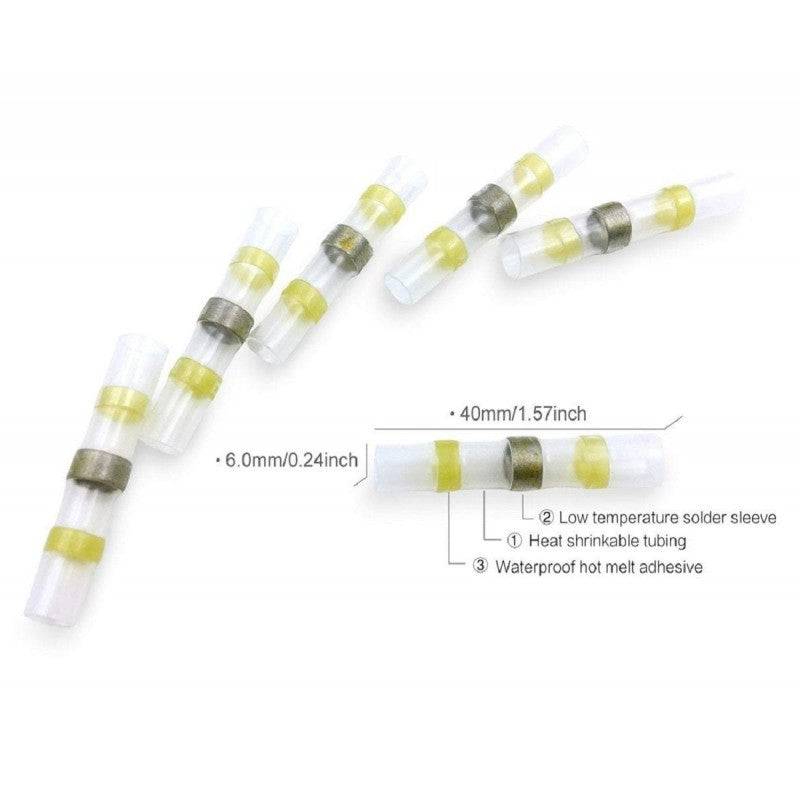

- 6mm Waterproof Heatshrink has Waterproof Protection Hot Melt Adhesive & Solder inside the insulated polyolefin tubing to create a durable waterproof seal between the wire and the connector; and prevent any corrosion.

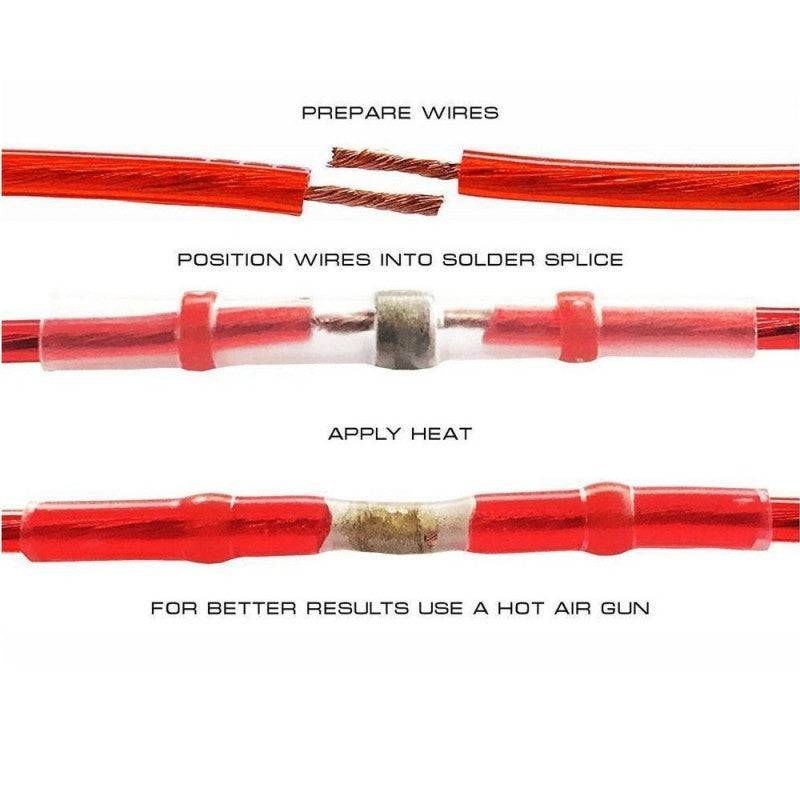

- 6mm Waterproof Heatshrink has Fast & Easy Operation No need to crimp, just strip your wires, insert them into the solder sleeve and apply heat to finish the connection. Use a heat gun to heat until the heat shrink tube wrap terminal.
- 6mm Waterproof Heatshrink has No Slip Wire Contact When heat is applied, tubing reduces in size and melted solder flows through the stripped wires; ensure strong holding and avoid wires slipping out from the terminal.
- 6mm Waterproof Heatshrink is widely used for marine, aviation; and automobile applications, maintenance operations, and other wiring projects.
Package Included:
1 x 6mm Waterproof Heatshrink 6mm Electrical Waterproof Seal Heat Shrink Splice Wire Sleeve - Yellow
