Description:

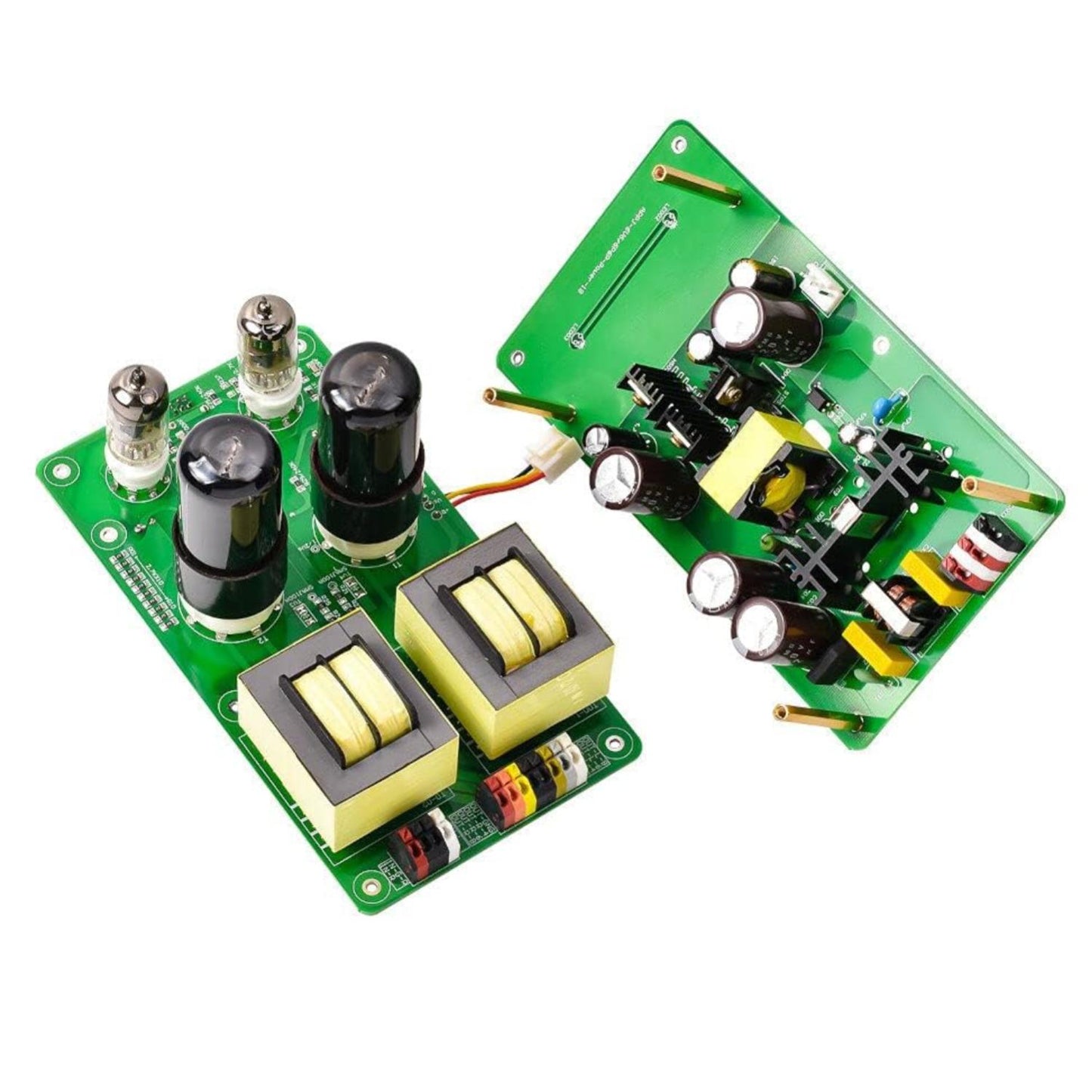

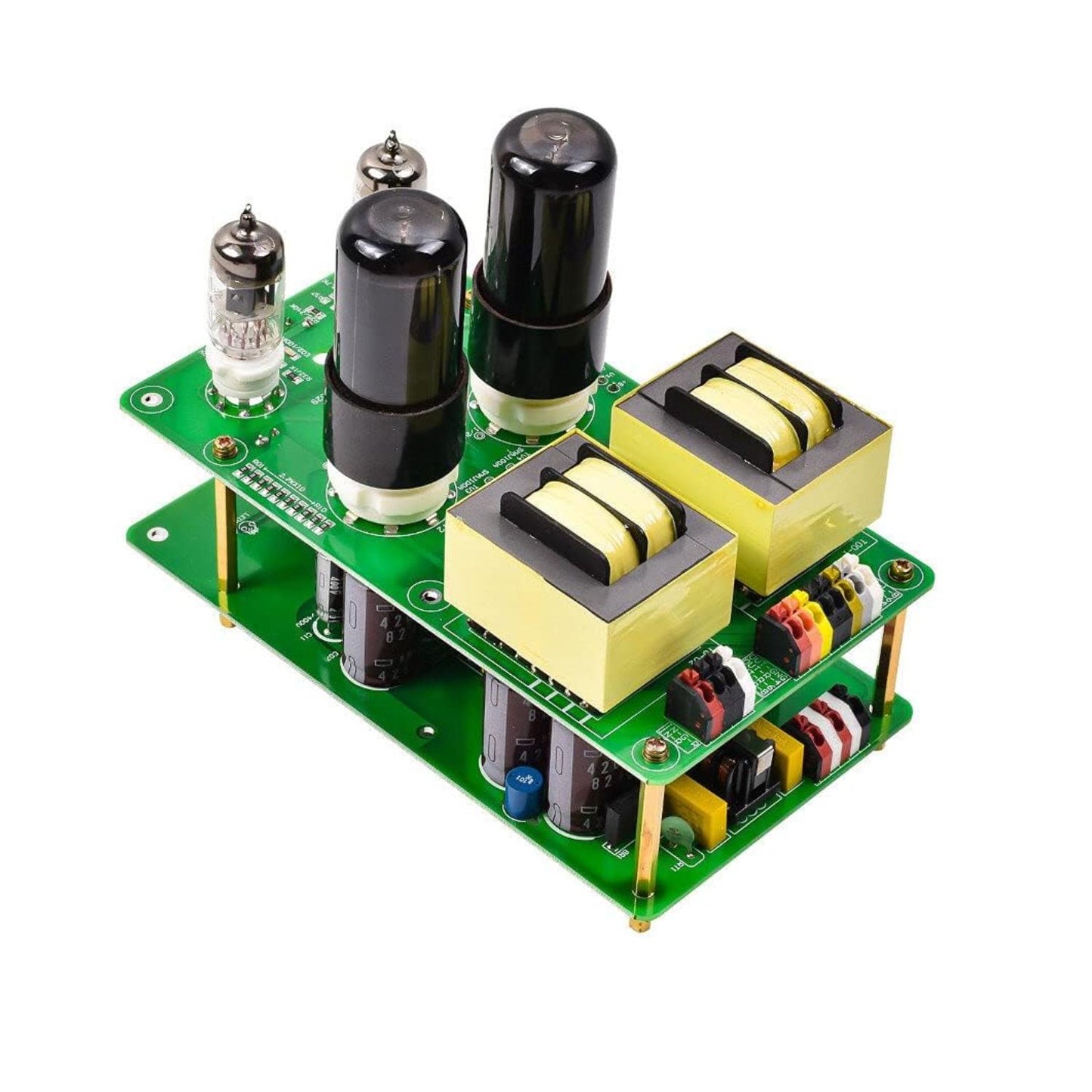

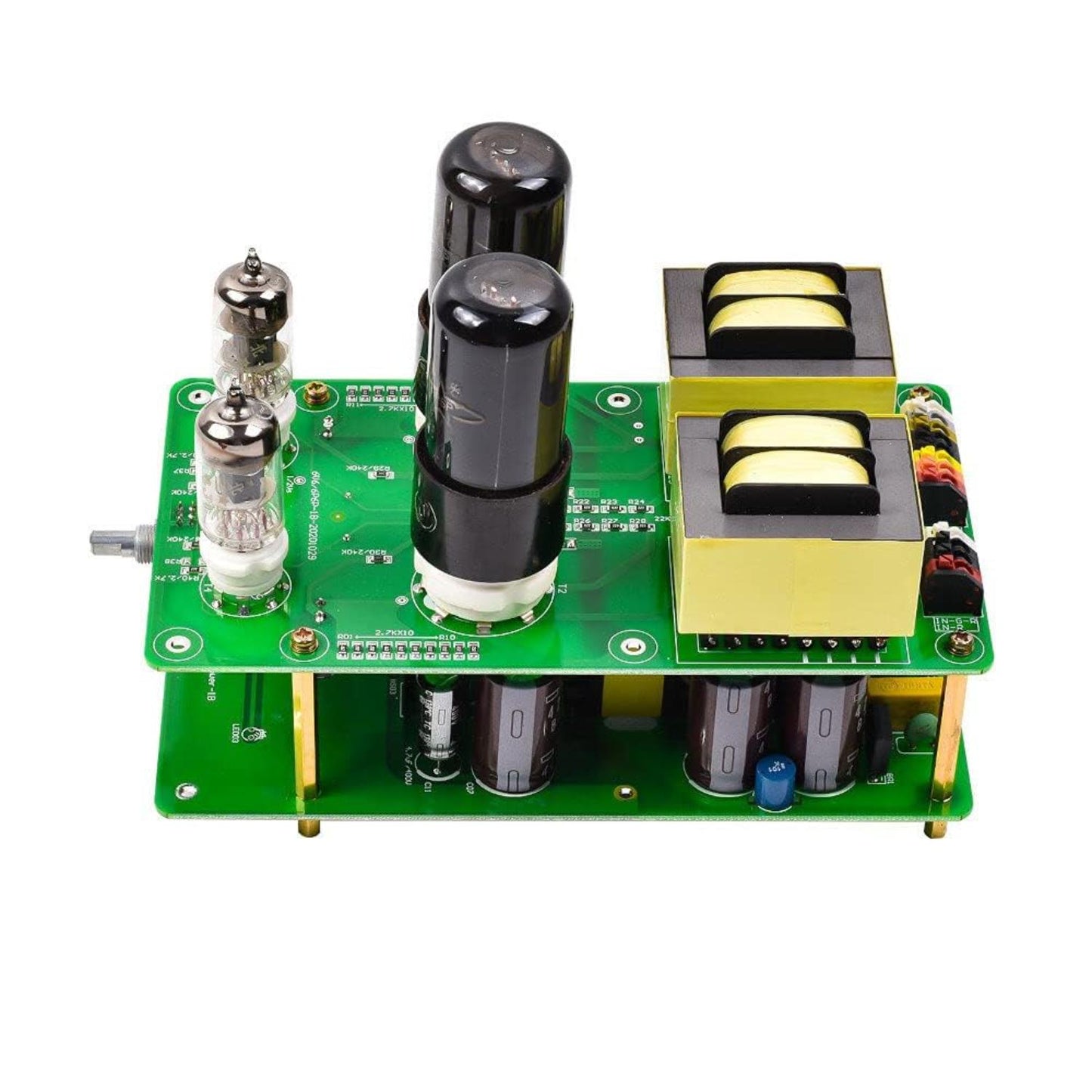

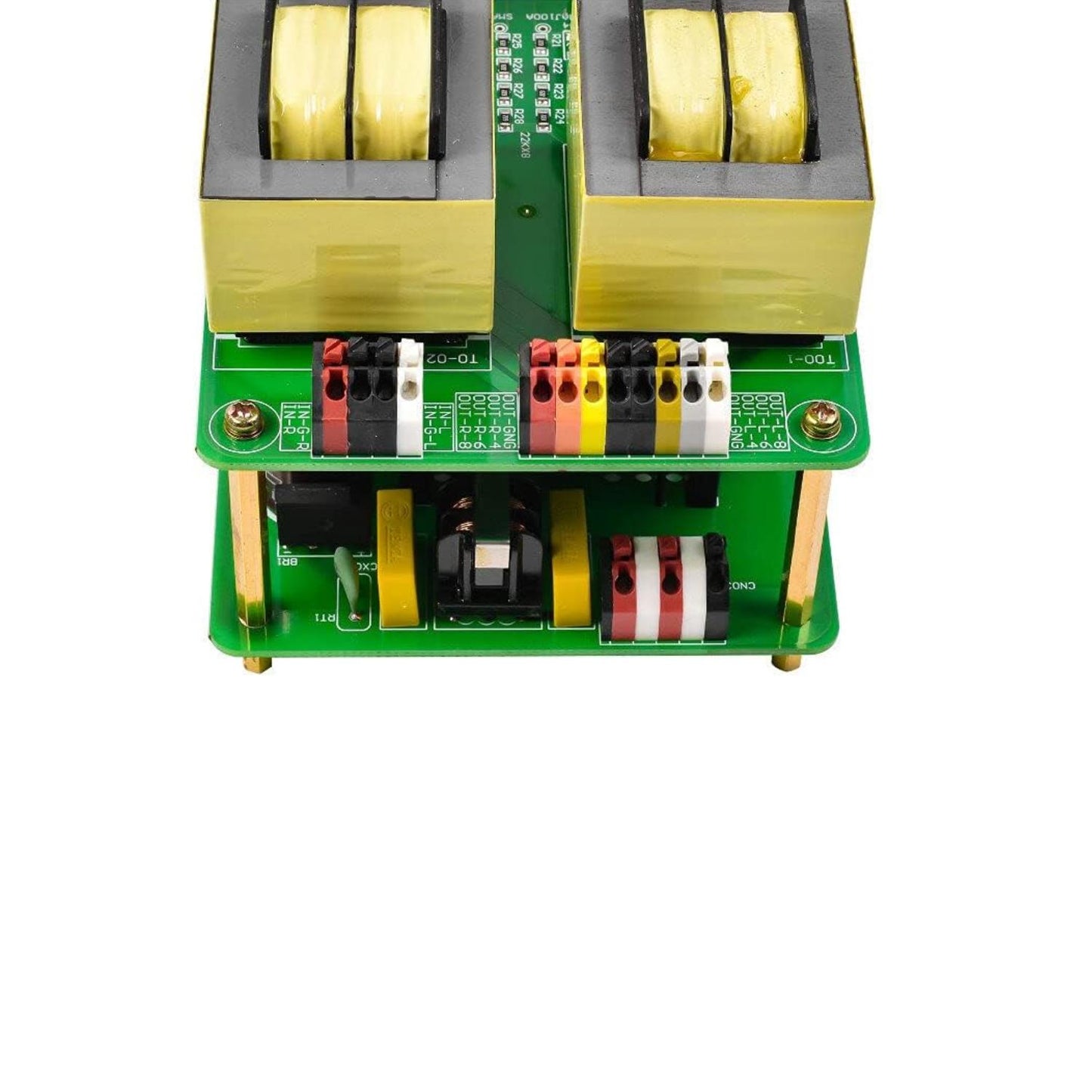

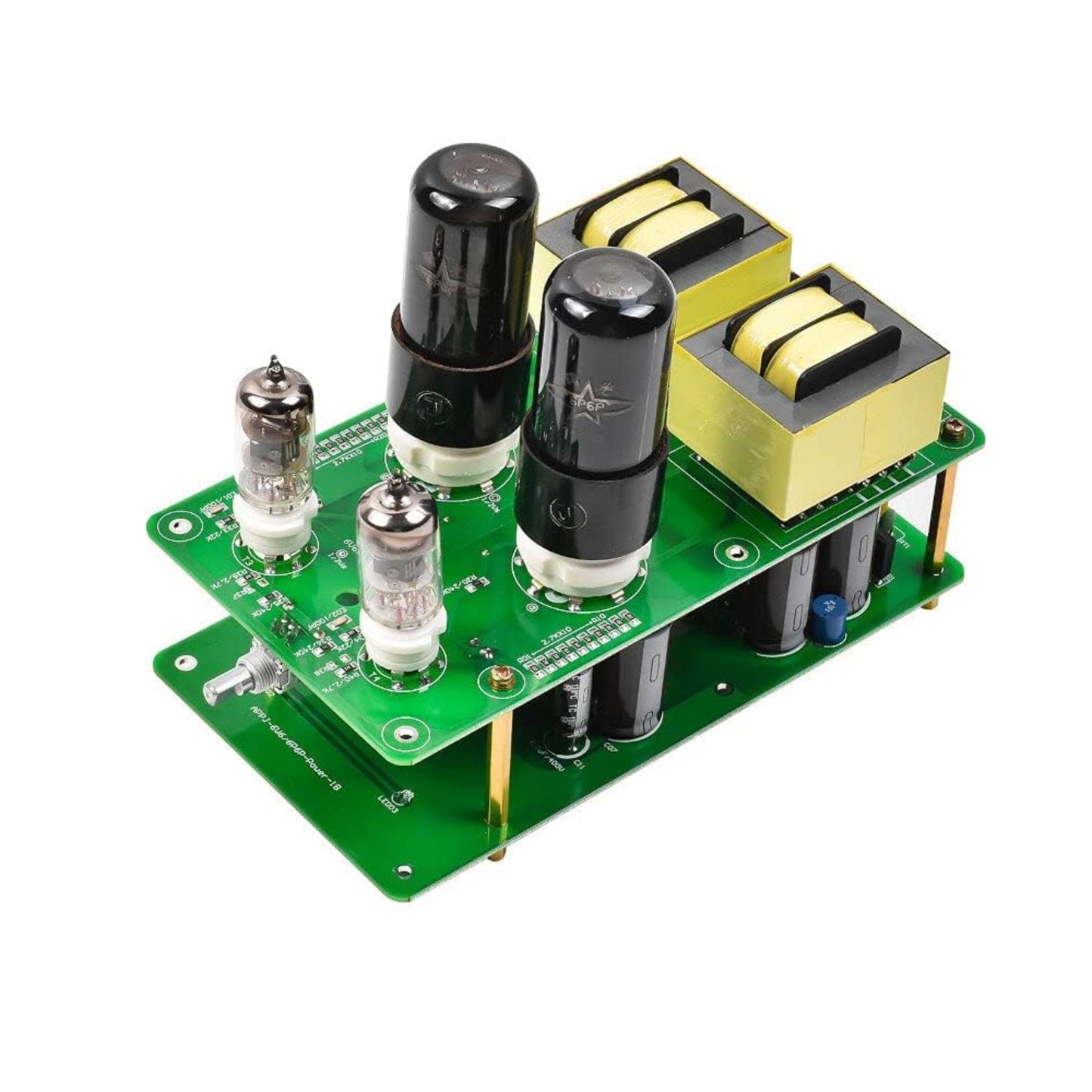

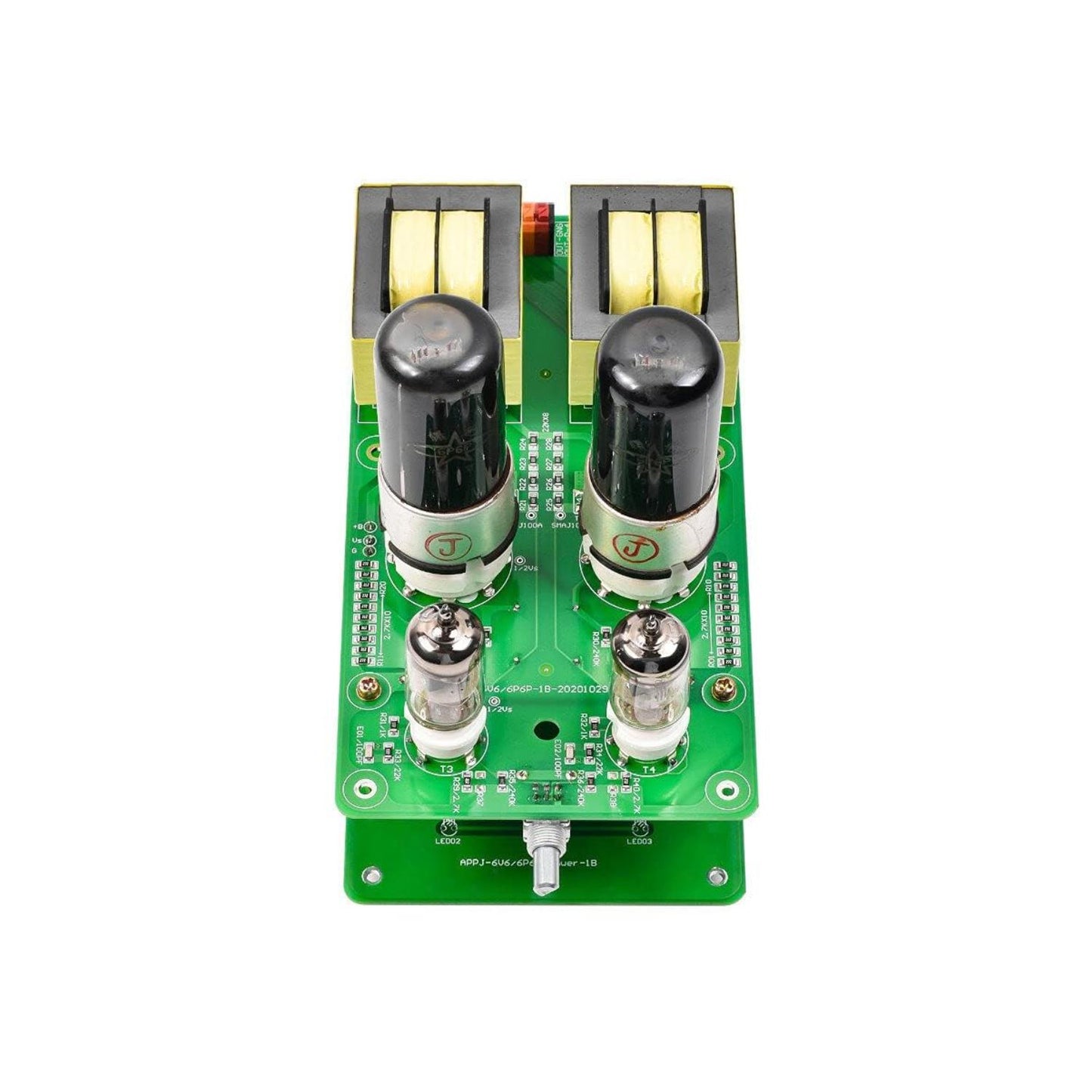

6J1 + 6P6P Tube Amplifier Board is design, providing a warm and analog sound signature amplifier that uses a 6J1 tube, which is a classic match. This is a preamplifier + headphone amplifier, which can be used in conjunction with a post amplifier or active speakers, or it can be used in conjunction with headphones.
Specifications:
-
Voltage amplification tube: 2 6J1 (can be replaced by WE403/CV4010/6AK5/EF95)
-
Power amplifier tube: 2 6P6P (can be replaced by 6V6)
-
Input impedance: 10K ohm
-
Output impedance: 4 ohm/6 ohm/8 ohm/16 ohm
-
Output power: 3W+3W
-
Frequency response: 30-40KHz (-1dB)
-
Input sensitivity: 500mV
-
Signal-to-noise ratio: -80dB/3W
-
Residual noise: 0.5mVac
-
Input AC working voltage: 85-264Vac (Global)
- Current consumption power: 36W
Features:
- Uses high-quality 6J1 and 6P6P tubes for excellent sound quality.
- Operates in Class A mode, delivering high-quality sound with minimal distortion.
- Offers a simple and elegant design that emphasizes musicality and warmth.
- Comes pre-assembled, saving you time and effort.
Package Included:
1 x 6J1 + 6P6P Tube Amplifier Board
