Description:

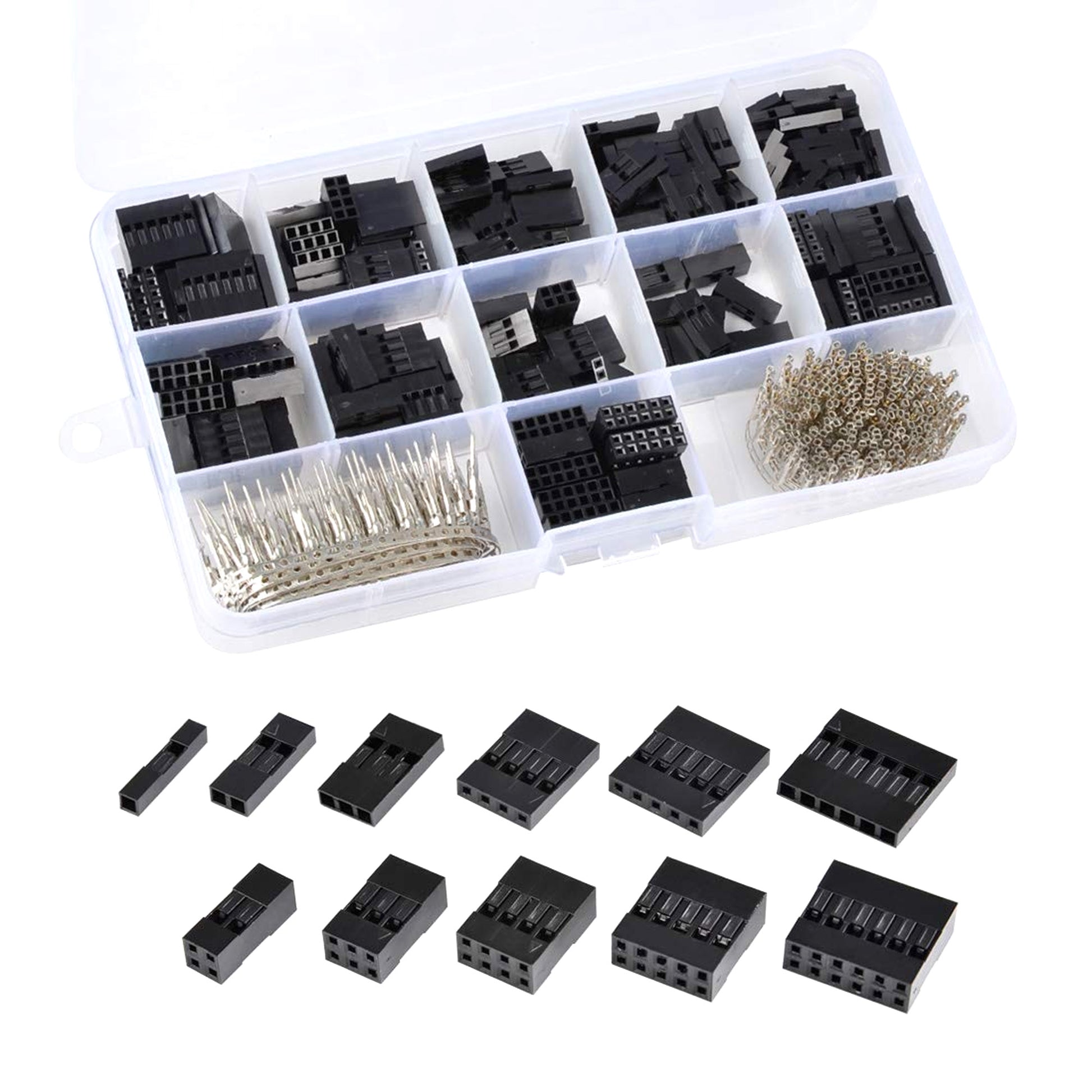

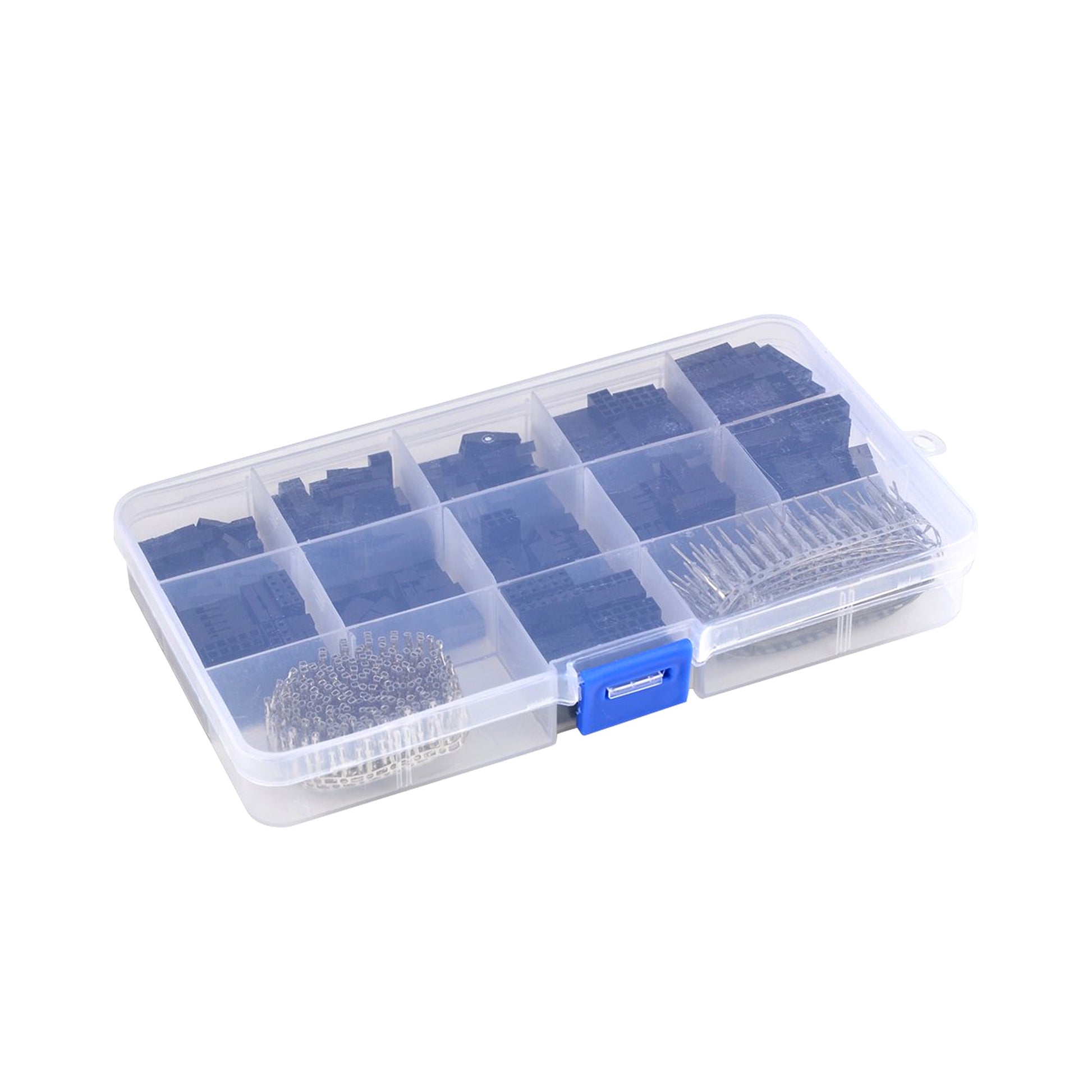

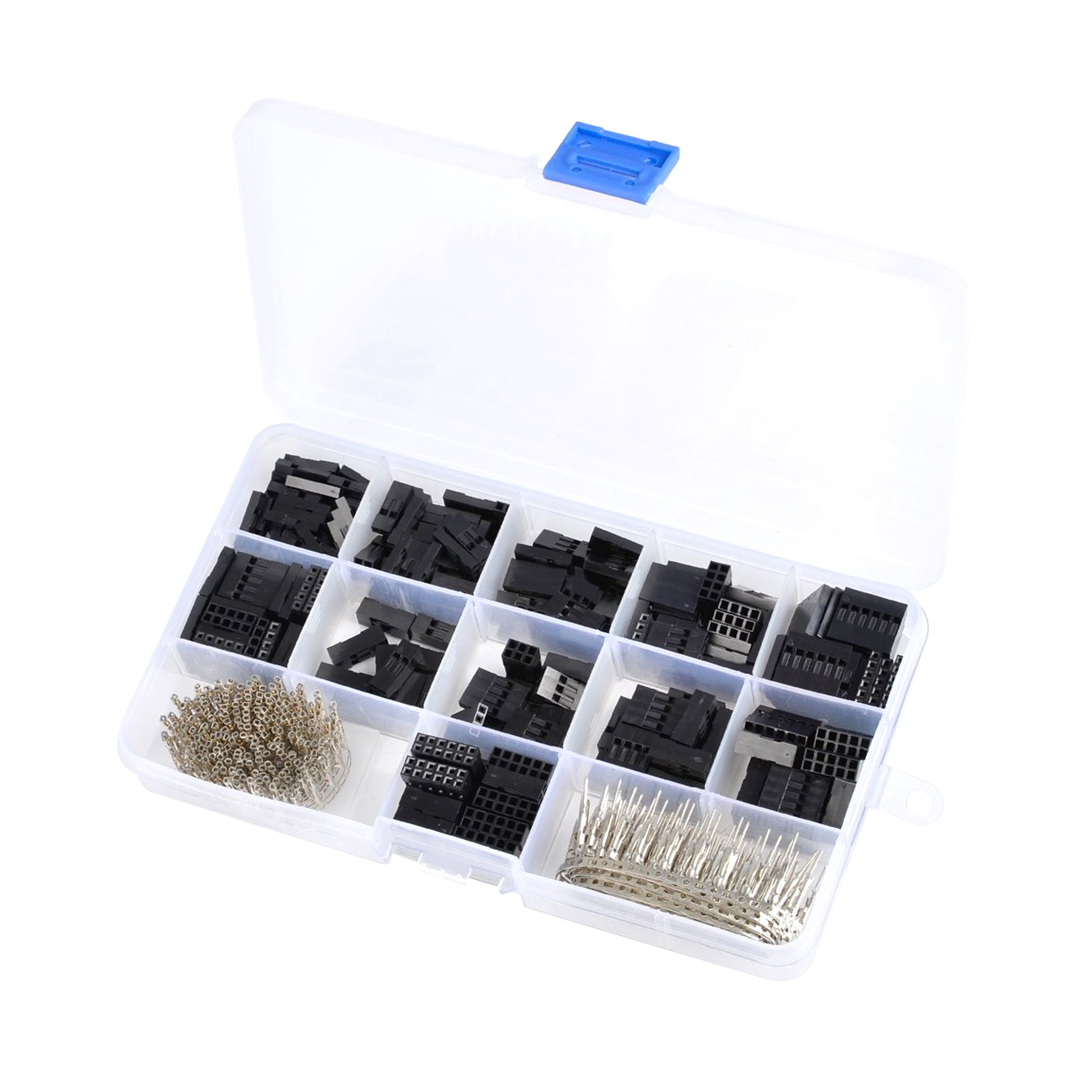

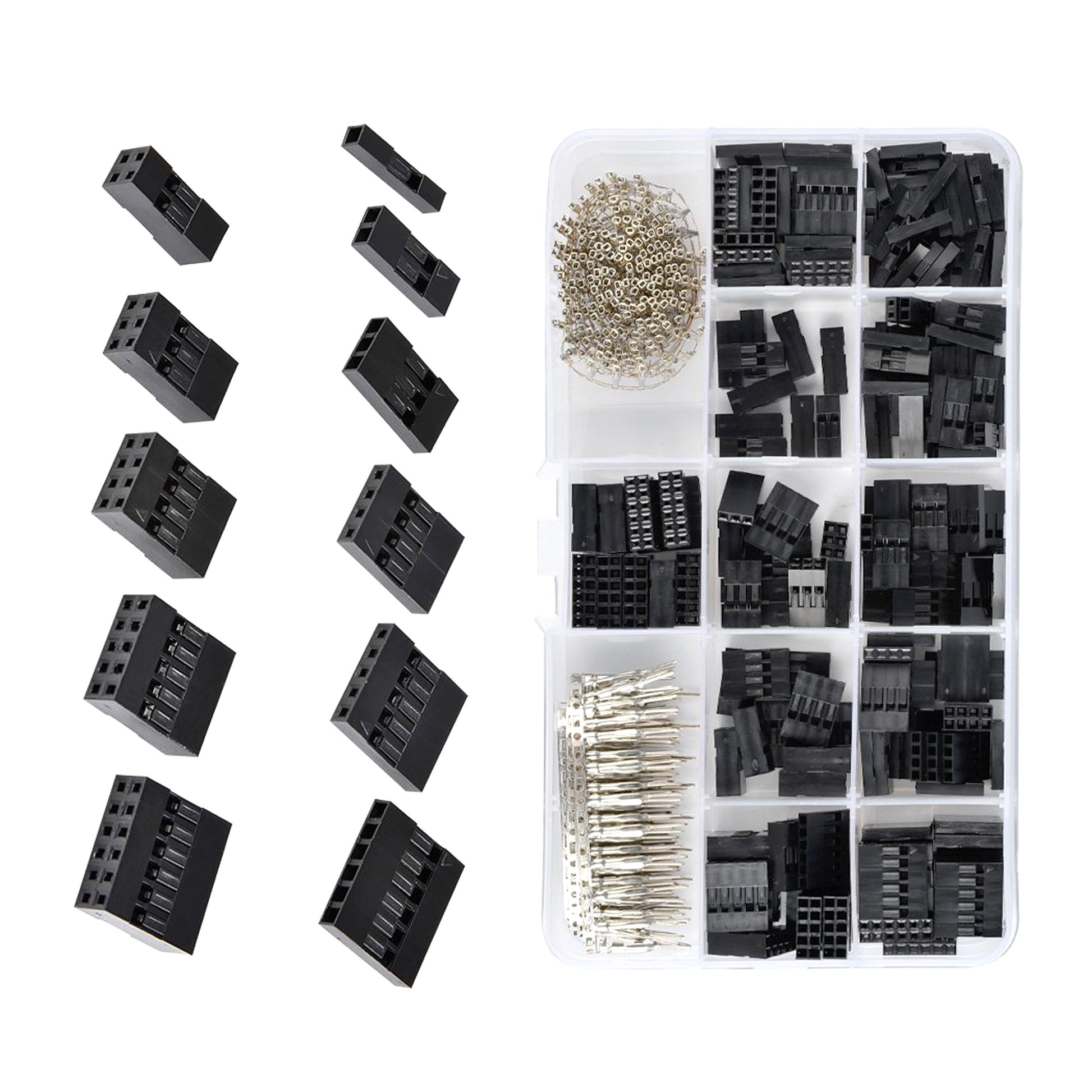

In electronics, DIY Dupont cable is the most commonly used wire. As Dupont cable is more flexible to use you need such a flexible connector set. Here in this kit, in which you can find a variety of one-row and two-row reusable connectors from 1pin to 6pin which is a must-have for your workstation. You’ll have enough sockets and plugs for your all-purpose daily DIY needs. This Dupont Connector 2.54mm, Dupont Cable Jumper Wire Pin Header Housing Assorted Kit contain a Total of 220 pieces of Dupont female Connectors housing along with 200 pairs of metal pins. These connectors are common in electronics, we use the 2 pin ones for our batteries and battery packs. The 3 pins and 4 pins are used for STEMMA connectors. The 4 pin size is even compatible with Grove! They are large enough that you can crimp without too much difficulty, but not as chunky as 0.1″ / 2.5mm JST XH. The kit comes with Good Quality Plastic box with a separator to keep the connector in a sorted manner.
Specifications:
- Connector Type: Dupont
- Wire Gauge: 18-26 AWG
- Pin Spacing: 2.54 mm (0.1")
- Rated Voltage: 250V
- Rated Current: 3A
- Working Temperature: 25~85℃
Features:
- Compatible with Arduino and breadboard style pin connectors and sockets, like 3d printer boards etc.
- Just put the crimps in the tool and press them, make the crimp so the insulation is toward the wire
Package Included:
- 1x 1 pin Plug Housing x 50 pcs
- 1x 2 pin Plug Housing x 40 pcs
- 1x 3 pin Plug Housing x 20 pcs
- 1x 4 pin Plug Housing x 20 pcs
- 1x 5 pin Plug Housing x 20 pcs
- 1x 6 pin Plug Housing x 20 pcs
- 2x 2 pin Plug Housing x 10 pcs
- 2x 3 pin Plug Housing x 10 pcs
- 2x 4 pin Plug Housing x 10 pcs
- 2x 5 pin Plug Housing x 10 pcs
- 200PCS Male Pin Crimp Terminal
- 200PCS Female Pin Crimp Terminal
