Description:

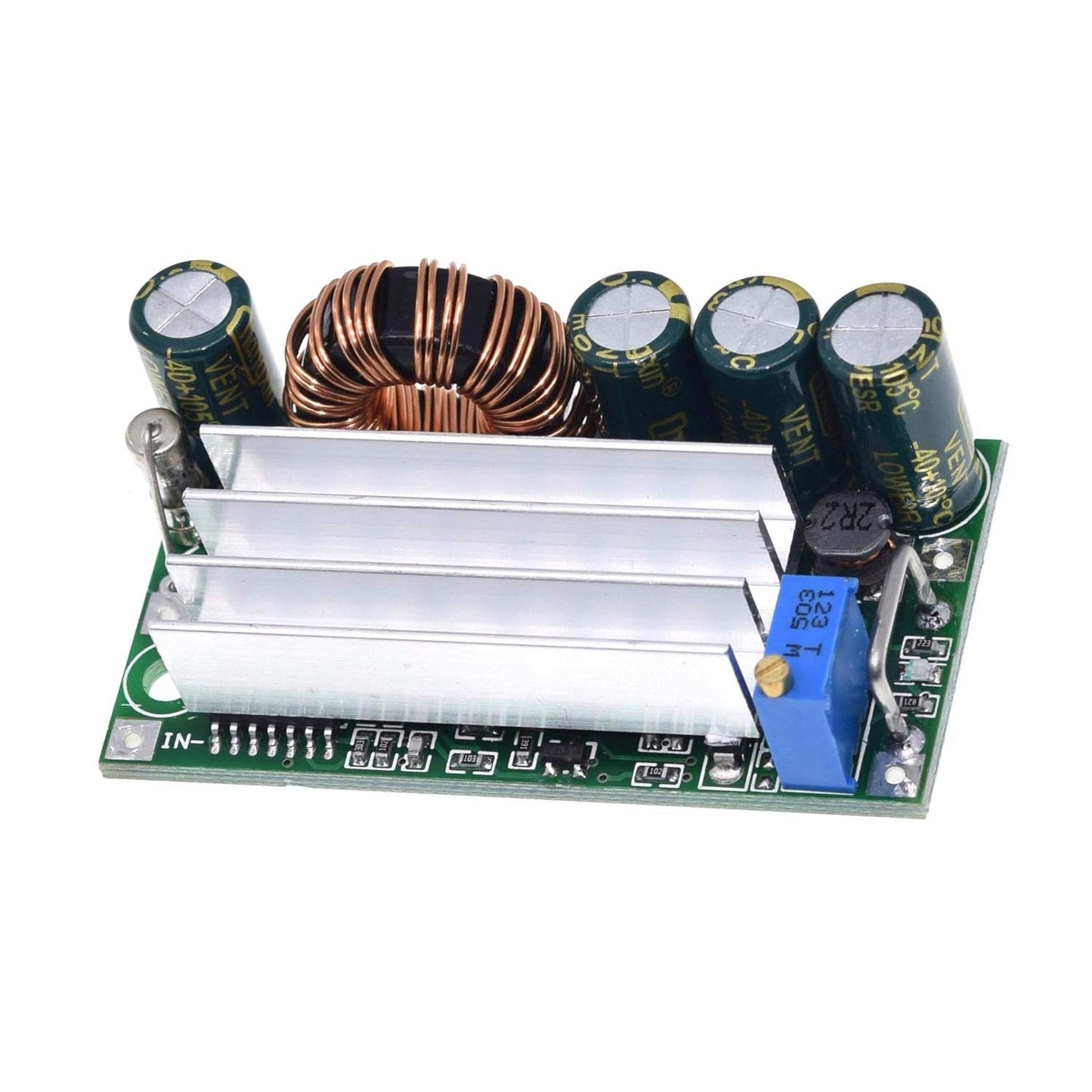

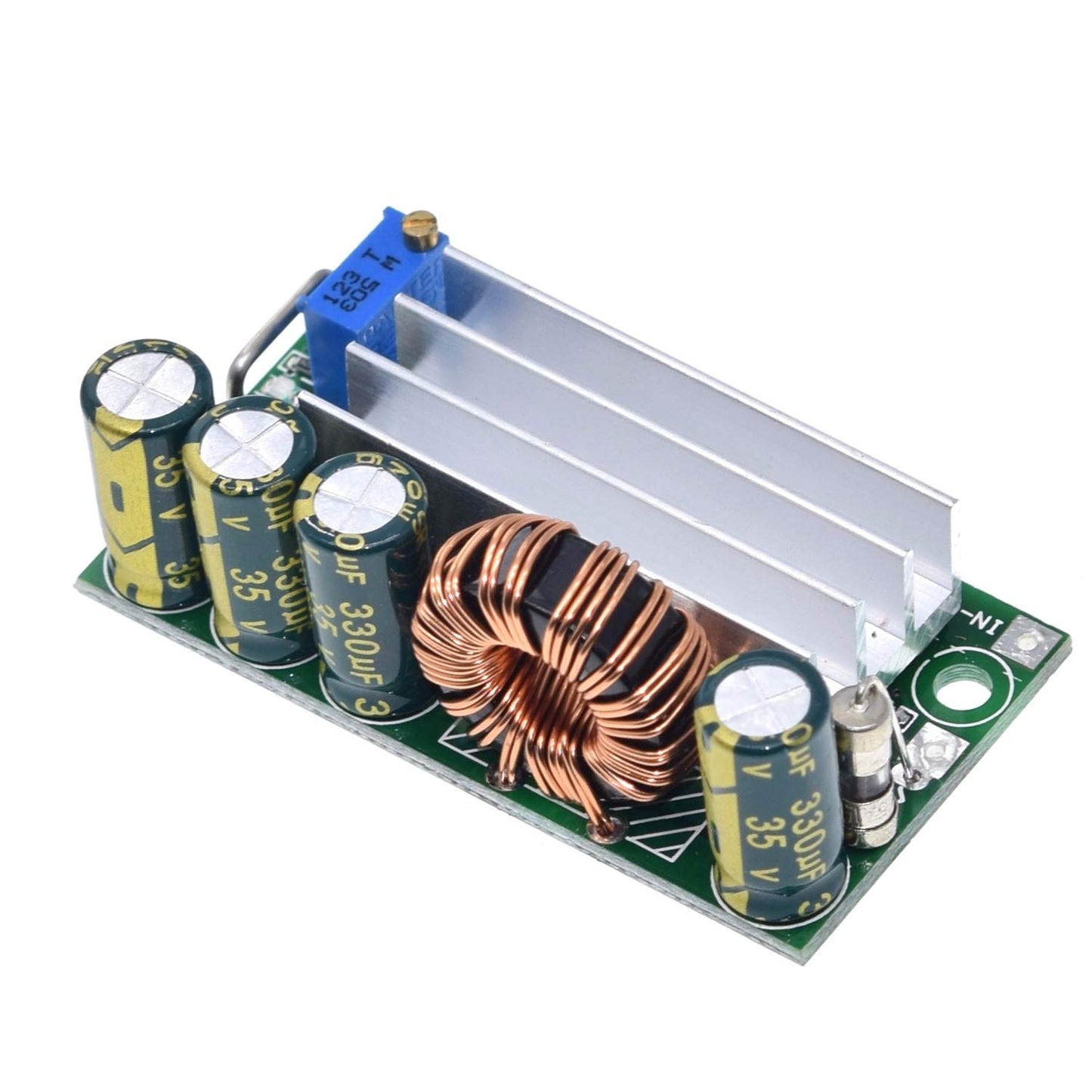

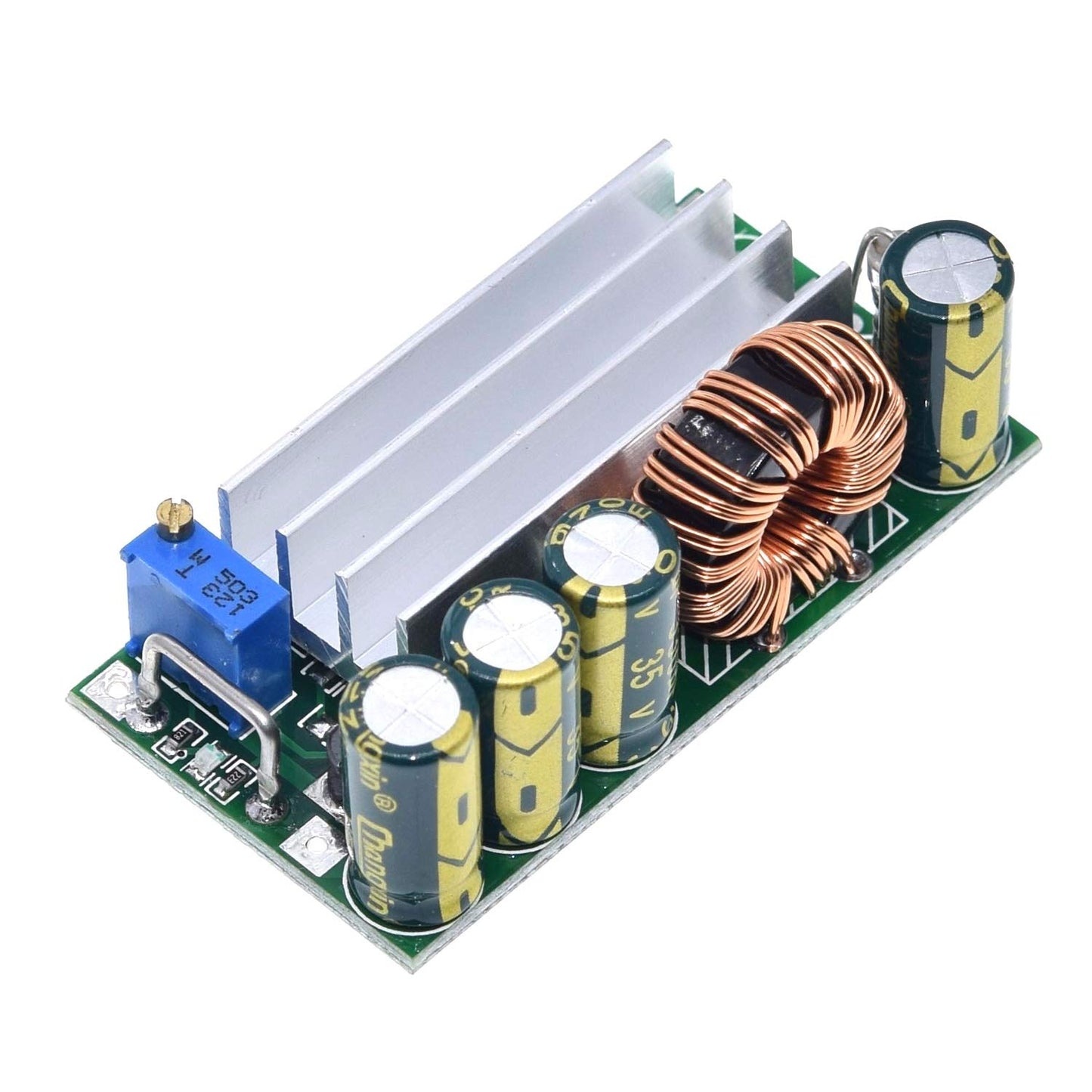

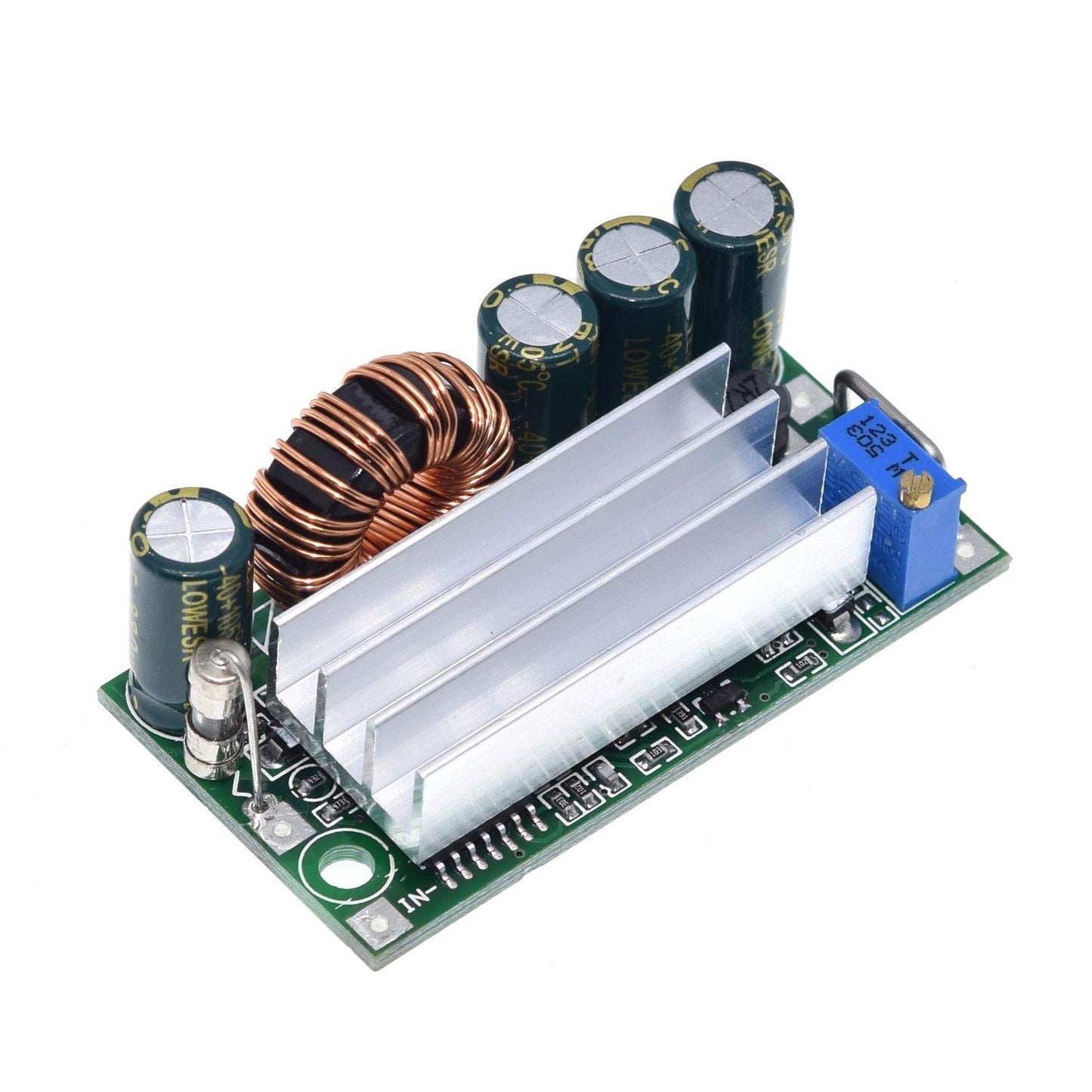

This is DC/DC buck-boost DC-DC converter module is based on SEPIC (Single-Ended Primary-Inductor Converter) design topology. The (SEPIC) is a type of DC/DC converter allowing the electrical output potential (voltage) at its output to be greater than, less than, or equal to that at its input voltage. Ideal for a USB power bank or battery-operated projects requiring a higher or lower regulated output power supply. The applications include LED drivers, Solar battery chargers, robotic car, and regulated variable power supply. This converter operated in buck-boost topology, i.e. step down or step-up converter in the same board.
Specifications:
- Input voltage: 4.4~30V.
- Output voltage: 0.5~30V.
- Output current: 3A (4A with cooling fan).
- Output power: 30W without cooling fan, 60W with the cooling fan.
- Output ripple: 30mV (Full output voltage)
- Conversion Efficiency: Boost 88%-91%; Buck 87%-90%.
- Short circuit protection: Yes.
- Working Frequency: 180-kHz
Features:
- It's cao buck and performance-enhancing.
- It is more efficient, and more power than the XL6009-type module.
- Extremely low ripple output voltage
- With a mobile phone charger or battery-powered, you can reach 0.5 to 30V adjustable DC power supply, very convenient.
Package Included:
1 x 60W Buck-Boost Converter Module Efficient & Powerful For 60W DC-DC Converter Is Isolated 60W Buck-Boost Converter With Wide Input Voltage Range
