Description:

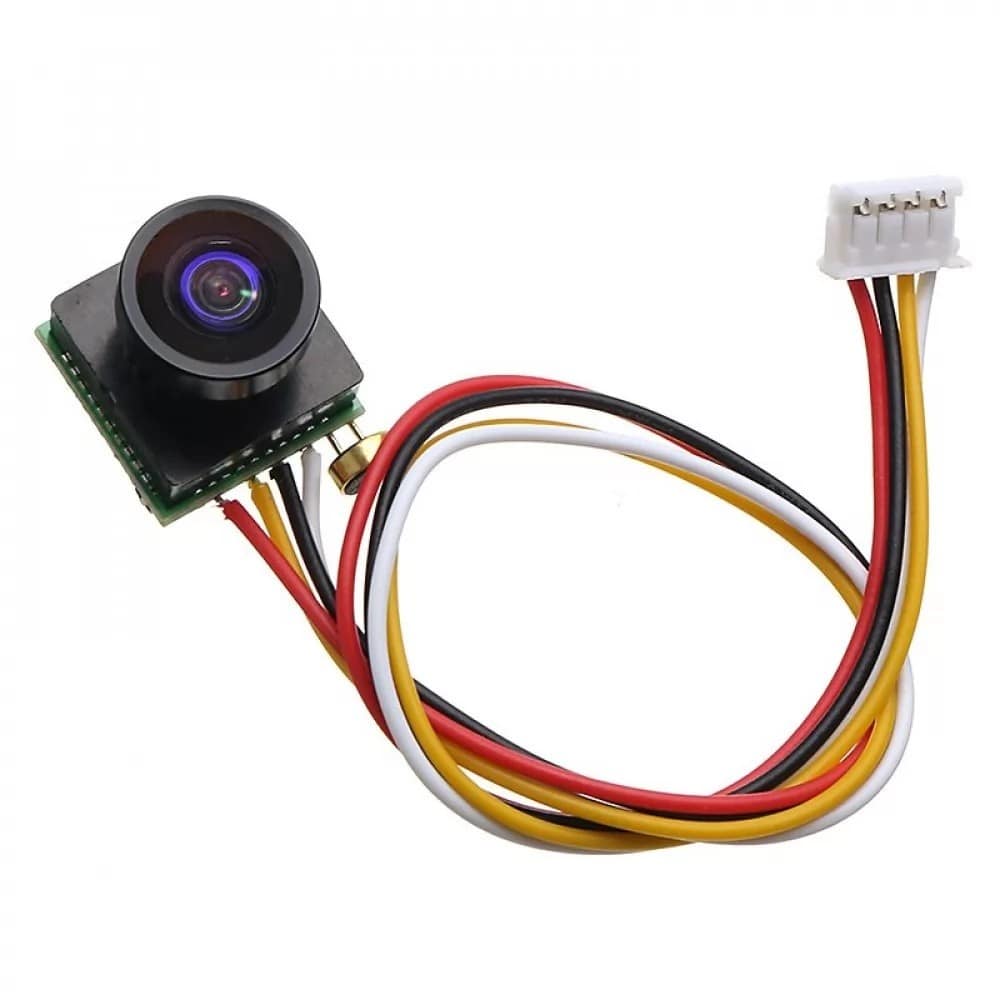

This 600TVL 170 degree super small colour video mini FPV camera with audio can be used for Mini 200 250 300 Quad-copter. Its tiny and lightweight size with the best features in the class like 3.7-5V 100mA operating power requirement, 1280 x 960 recording resolution, and great capturing capability even in low light conditions makes it suitable for your quad-copter Application and many more markable features are listed below.
Specifications:
| Lense Viewing Angle |
170 FOV |
| Gamma Correction |
0.45. |
| Horizontal Resolution |
600 TVL |
| Image Sensor |
1/4 CMOS image sensor |
| Minimum Illumination |
0.1 Lux / F1.2 |
| Operating Temperature Range |
-10 to 50C |
| Operating Voltage |
3.7 ~ 5V DC |
| Pixel Resolution |
1280 x 960 |
| S/N Ratio |
48dB |
| Video Output |
1.0Vp P75 |
| Working Current |
100 mA |
Features:
- Illumination: 0.5LUX
- Format:PAL / NTSC
- Audio Lens: Wide-angle 1.8mm (170 degree)
- Sensitive area: 3.5964mm x 2.7084mm
- 648 pixels (horizontal) 488 (vertical) 648 (horizontal) 488 (vertical)
- Scanning Frequency Horizontal: 15.625KHz
- Vertical: 50Hz
- level: 15.7343KHz
- Vertical: 60Hz
- Electronic Shutter 1 / 50-1 / 80000 (sec) 1 / 60-1 / 80000 (sec)
- Standard Lens : 1.8 mm
- Size of the lens : M10
- Power: DC5V 10% 70mA 10%
- Operating temperature Range: -10 C ~ 60 CRH95% Max
Note:
- This FPV supports a 3.7-5V voltage range only
- Image may vary from actual product in terms of IC branding and PCB design
Package Included:
1 x 600TVL 170 Degree Mini FPV AV Camera with Audio for Mini 200 250 300 Drone
