  • Trigger Voltage: 24V DC
  • Trigger Current: 20mA
  • Switching Voltage: 250@10A V AC
  • Switching Voltage: 30@10A V DC

Description:

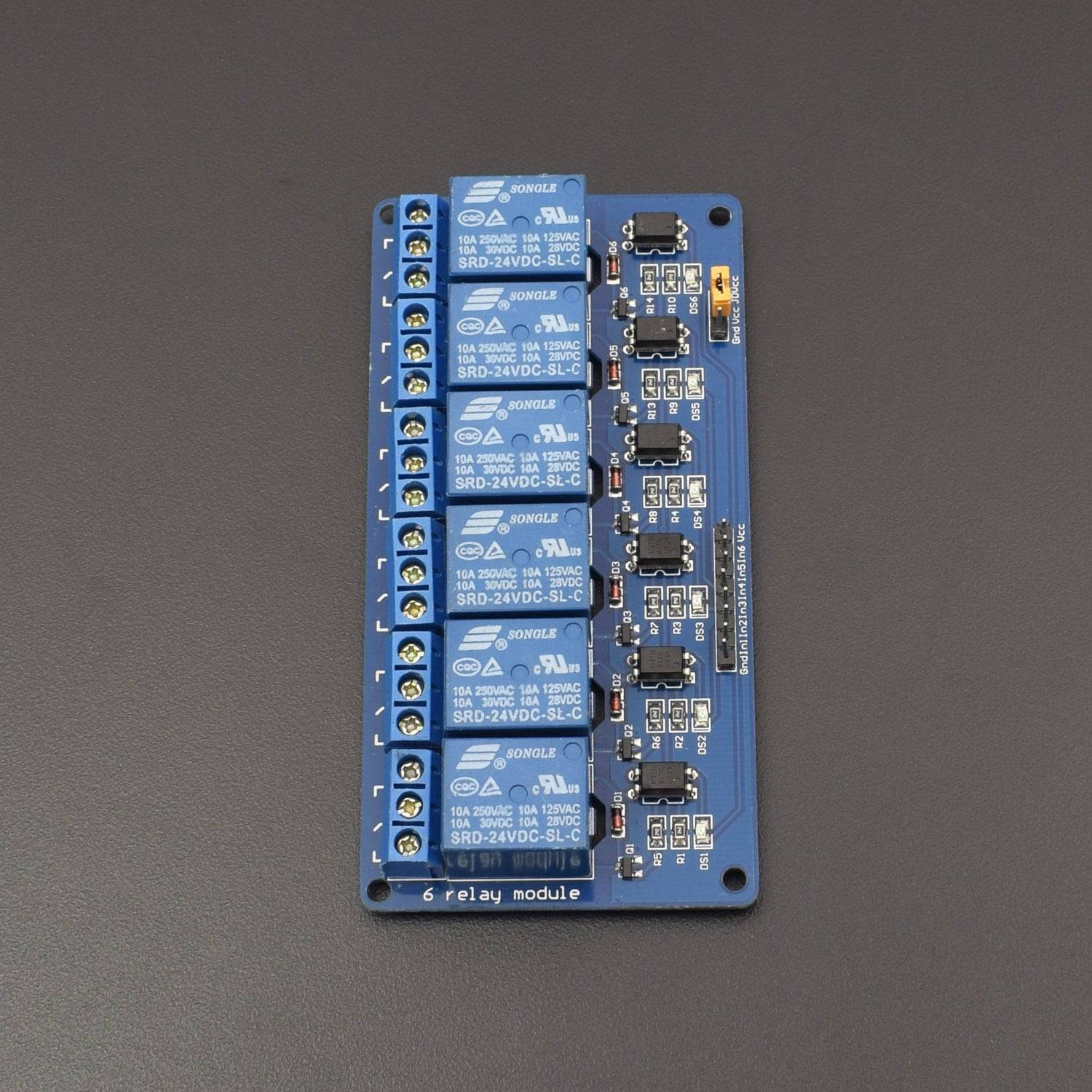

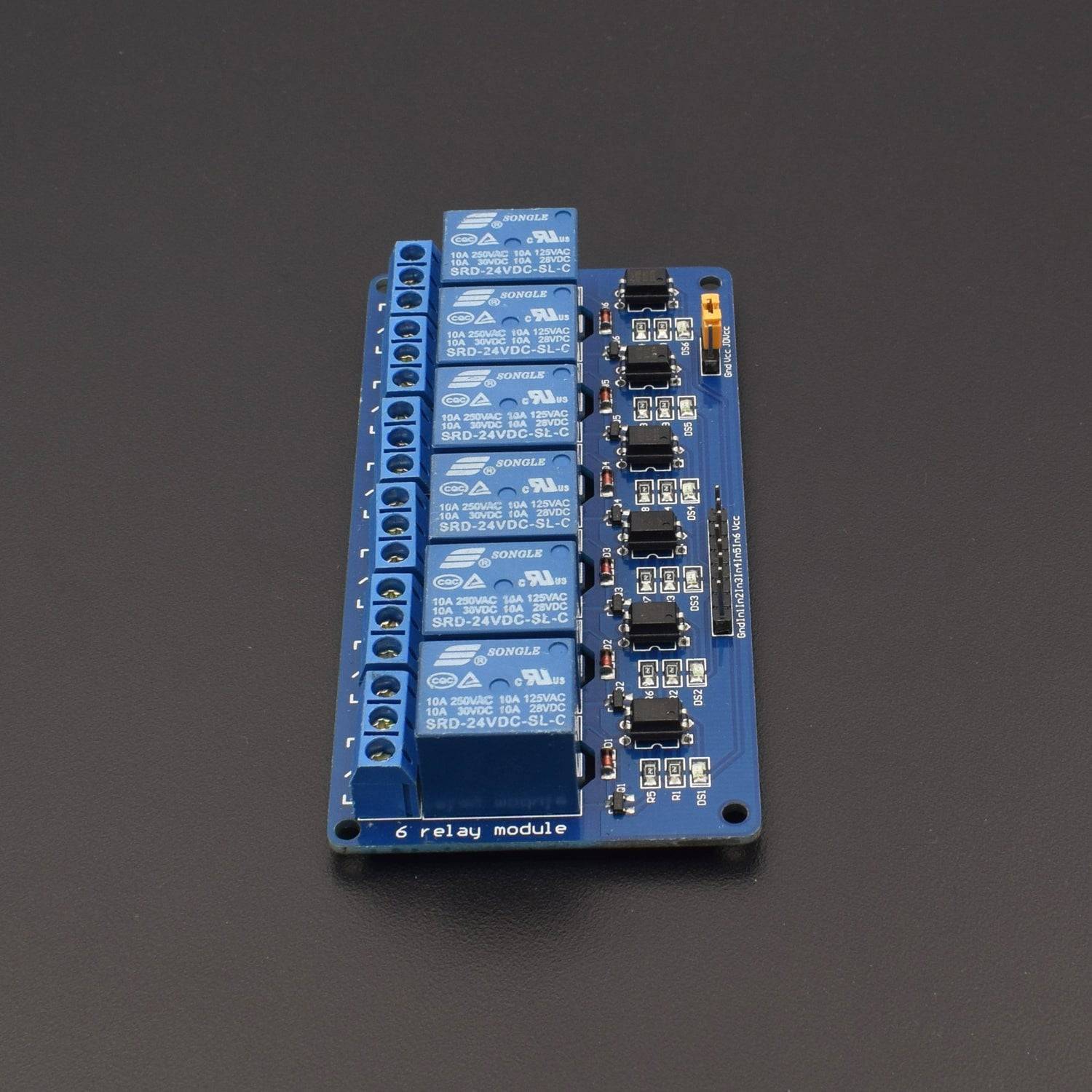

This is a 24V 6 Channel Relay Module with Light Coupling. To be able to control various appliances and other equipment with a large current. It can be controlled directly by Micro-controller (Arduino, 8051, AVR, PIC, DSP, ARM, MSP430, TTL logic). This is a 24V 6-Channel Relay interface board and each one of the individual relays needs 15-20mA Driver Current. The board features an indication LED for Relay output status and the standard interface that can be controlled directly by many widely used microcontrollers like Arduino etc. The 24V electromechanical relay module with AC contact capacity of 250V which also includes light coupling protection(optocoupler) for isolation of control circuitry. The plate load power module doesn’t need an external power supply. It supports all SCM Drive. The LM2596S buck chip in this relay module shows a slight fever which is a normal phenomenon as relays, long working hours have normal fever characteristics.

Specification:

Trigger Voltage

24V DC
Trigger Current

20mA
Switching Voltage

250@10A V AC
Switching Voltage

30@10A V DC
Operating Temperature

-40 to 100℃
Opt. Relative Humidity

20% ～ 85%RH
Storage Condition

-40 to 125℃

Features:

  • 24V relay with AC contact capacity of 10A 250V and optocoupler protection.
  • The onboard power supply module does not need an external power supply. I / O port driver is active low.
  • The module can be used as a microcontroller development board module and also as appliance control, PLC extended output.
  • It is using the industry’s top-quality isolation optocouplers, strong anti-jamming ability, stable performance.
  • The 1-6 road can be any full-on/off or any road.
  • Each relay common terminal “COM” is independent, user-friendly access to different signals, each relay are normally closed and normally open with the port.
  • Each relay is equipped with motion lights.
  • All interfaces can be directly connected through the terminal leads, very convenient.

Module Interface:

  • DC+: Connect the power positive pole
  • DC-: Connect the power negative pole.
  • IN1-IN6: According to the setting of each way, the corresponding relay-operating can be controlled by high or low level.
Relay Output: There is an 18 wire interface, all interfaces can be directly connected to lead to facilitate user use.
  • NO1--NO6: Relay normal open, the relay suspends before pulling in, and then short-connect with the COM.
  • COM1--COM6: Relay common interface
  • NC1--NC6: Relay normal close, short connected with COM before pulling inand suspended after pulling in.

High and low-level trigger option:

  • S1-S6 is the high-level trigger selection of relay 1 Channel - 6 Channel.
  • When COM is short connected with LOW, the corresponding relay is a Low-level trigger, while when COM is short connected with high end is the high-level trigger.

Package Included:

1 x 6 Channel Relay Module DC 24V with Optocoupler isolation H / L high / low Level Triger for Arduino
