Description:

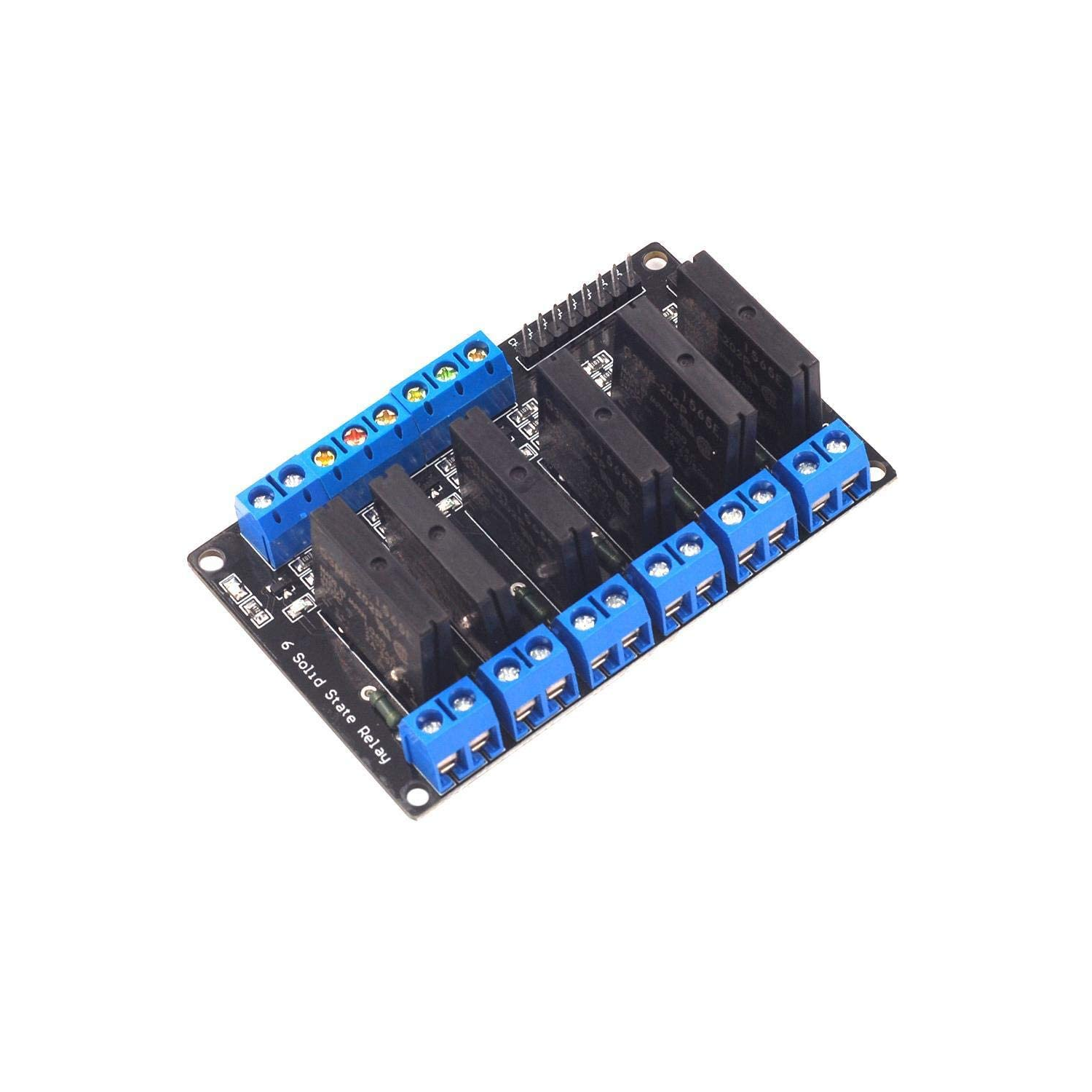

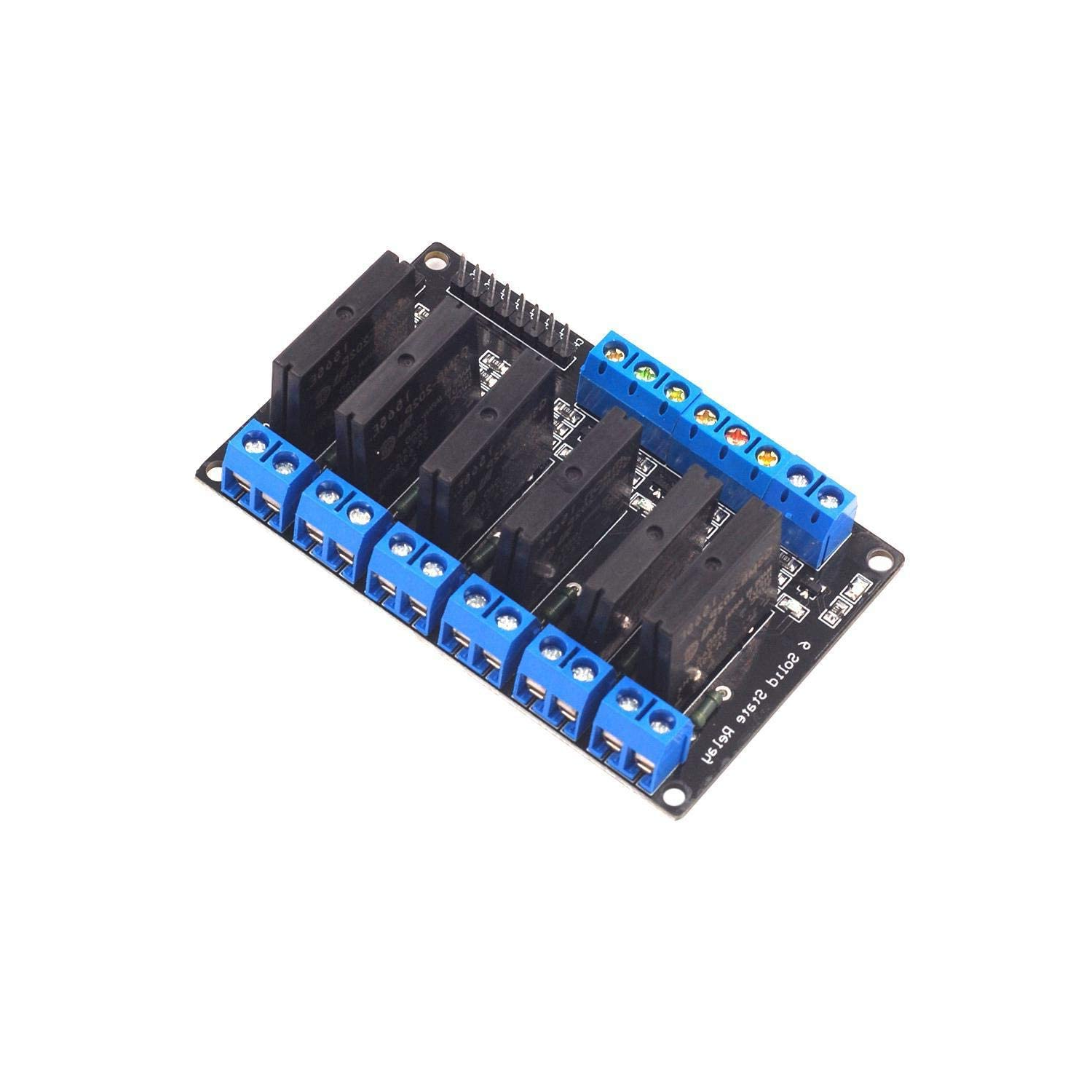

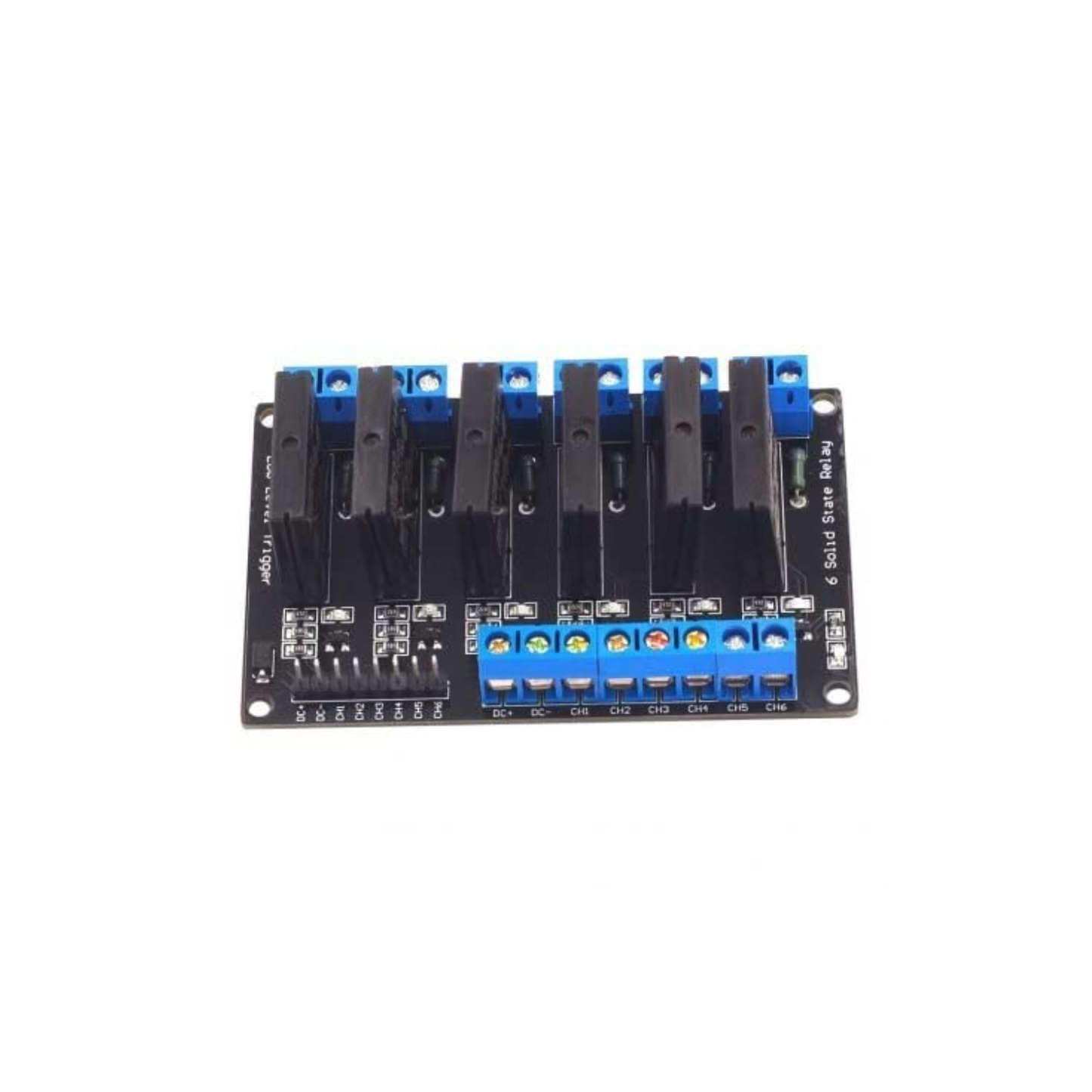

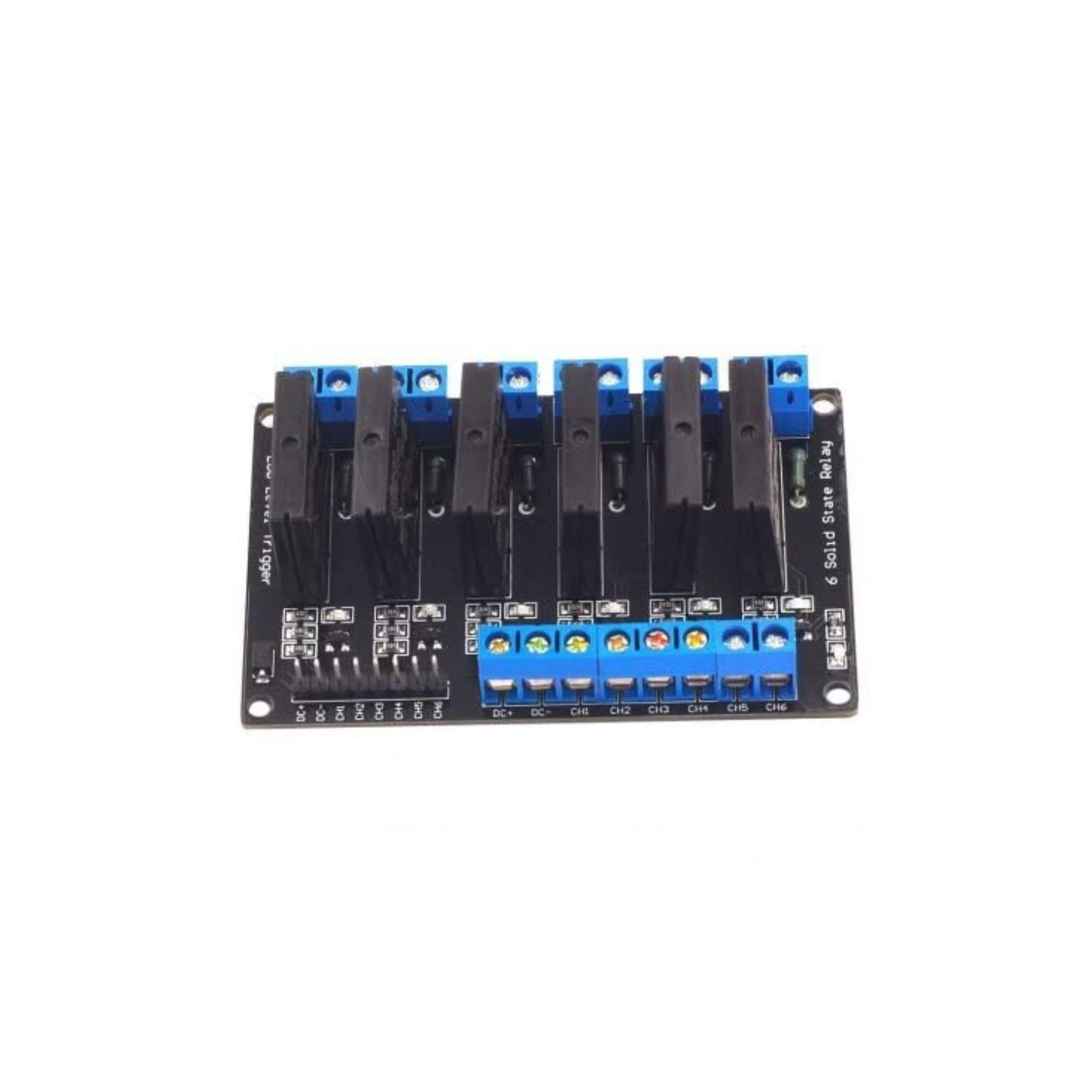

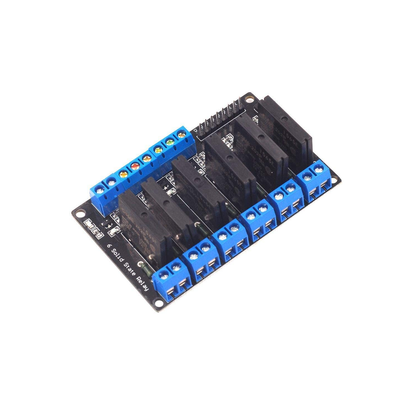

The 6-Channel 24V Relay Module is a high-performance Solid-State Relay (SSR) board designed for reliable and fast switching of AC loads using DC control signals. Operating on a 24V DC input and supporting low-level trigger control, this module is ideal for applications requiring silent, spark-free switching. Each channel can control loads up to 250V AC at 2A, making it perfect for automation, home control, industrial machinery, and other electronic projects.
Specifications:
- Model Type: Relay Module
- No. of Channels: 6
- Part No.: G3MB-202P
- Working Current: 12.5mA
- Trigger Current: 2mA
- Trigger Voltage: 25VDC
- Switching Voltage: 240@2A
- Max Load: 2A @240V AC
Features:
- Fully assembled and tested for reliability
- LED indicator on each relay channel
- Supports control of high-current devices and appliances
- Directly controllable via microcontroller
Package Included:
1 x 6-Channel Solid State Relay Module
