5V Ultrasonic Sensor Module Obstacle Avoidance Sensor With RGB Colorful LED Lights For Arduino, Robotics and DIY Electronics Projects
5V Ultrasonic Sensor Module Obstacle Avoidance Sensor With RGB Colorful LED Lights For Arduino, Robotics and DIY Electronics Projects
SKU:
In stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Descriptions:

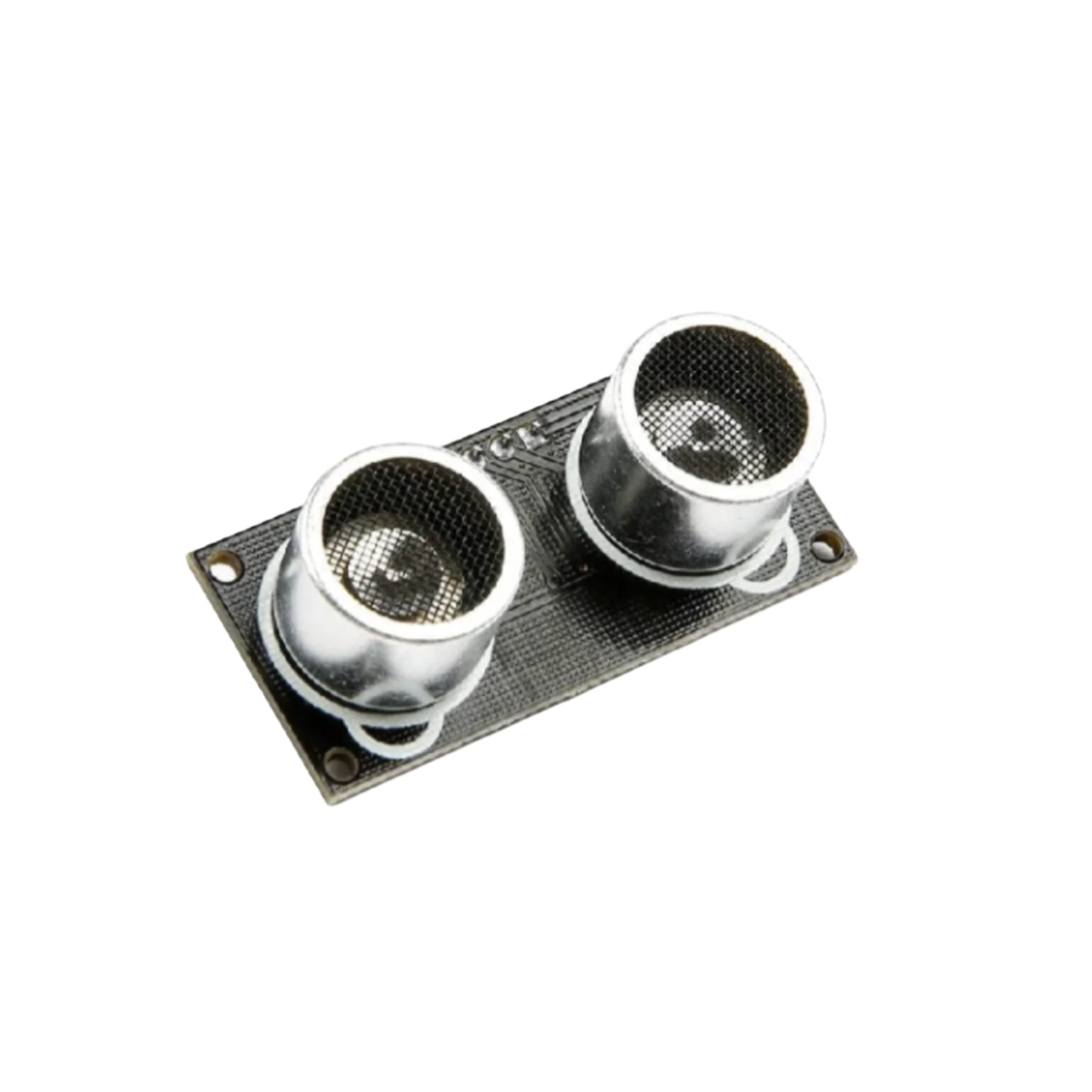

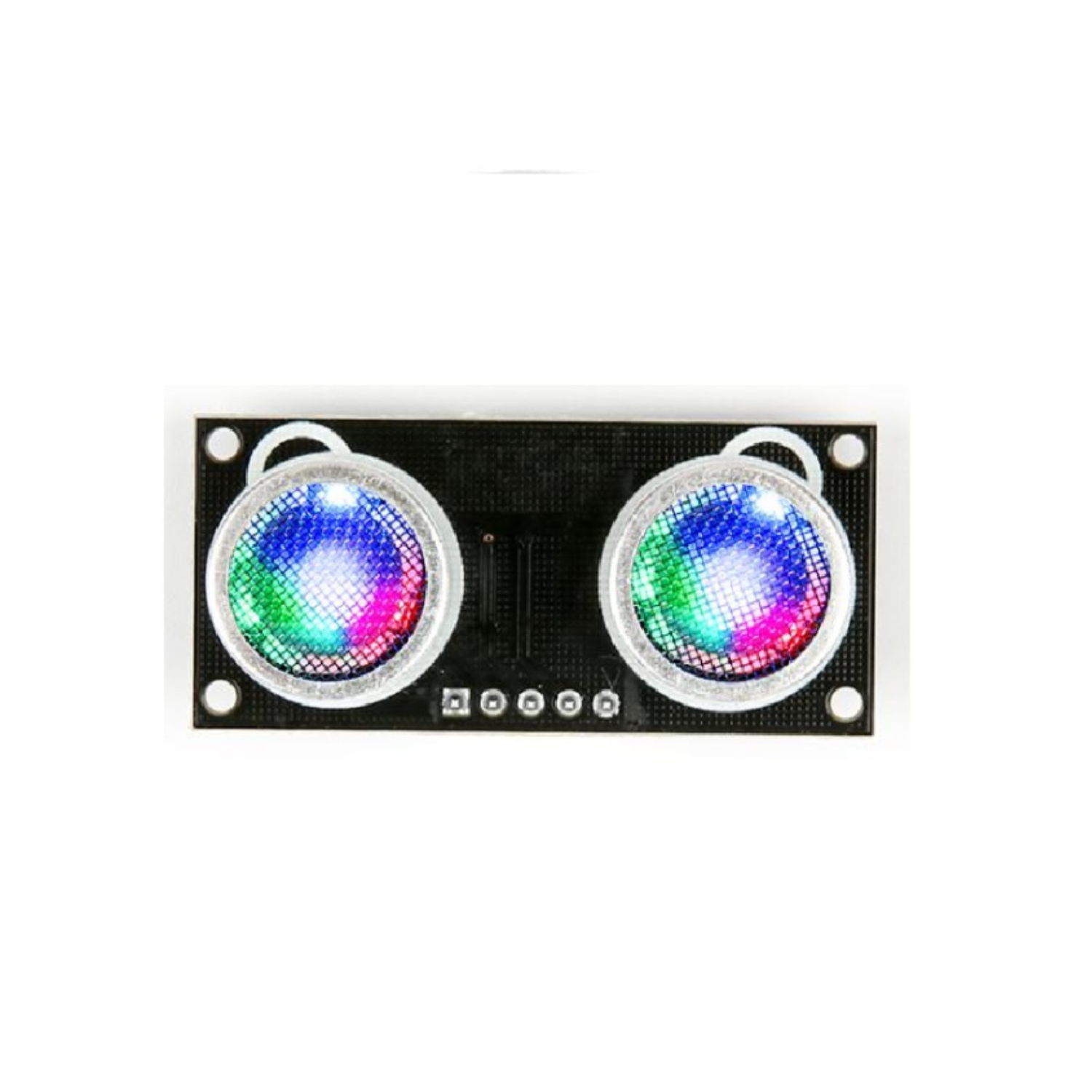

The Ultrasonic Module with RGB Light is a compact distance sensor compatible with the HC-SR04, designed for Arduino-based smart car and obstacle avoidance projects. It offers precise, non-contact distance measurement from 2cm to 400cm with up to 3mm accuracy.

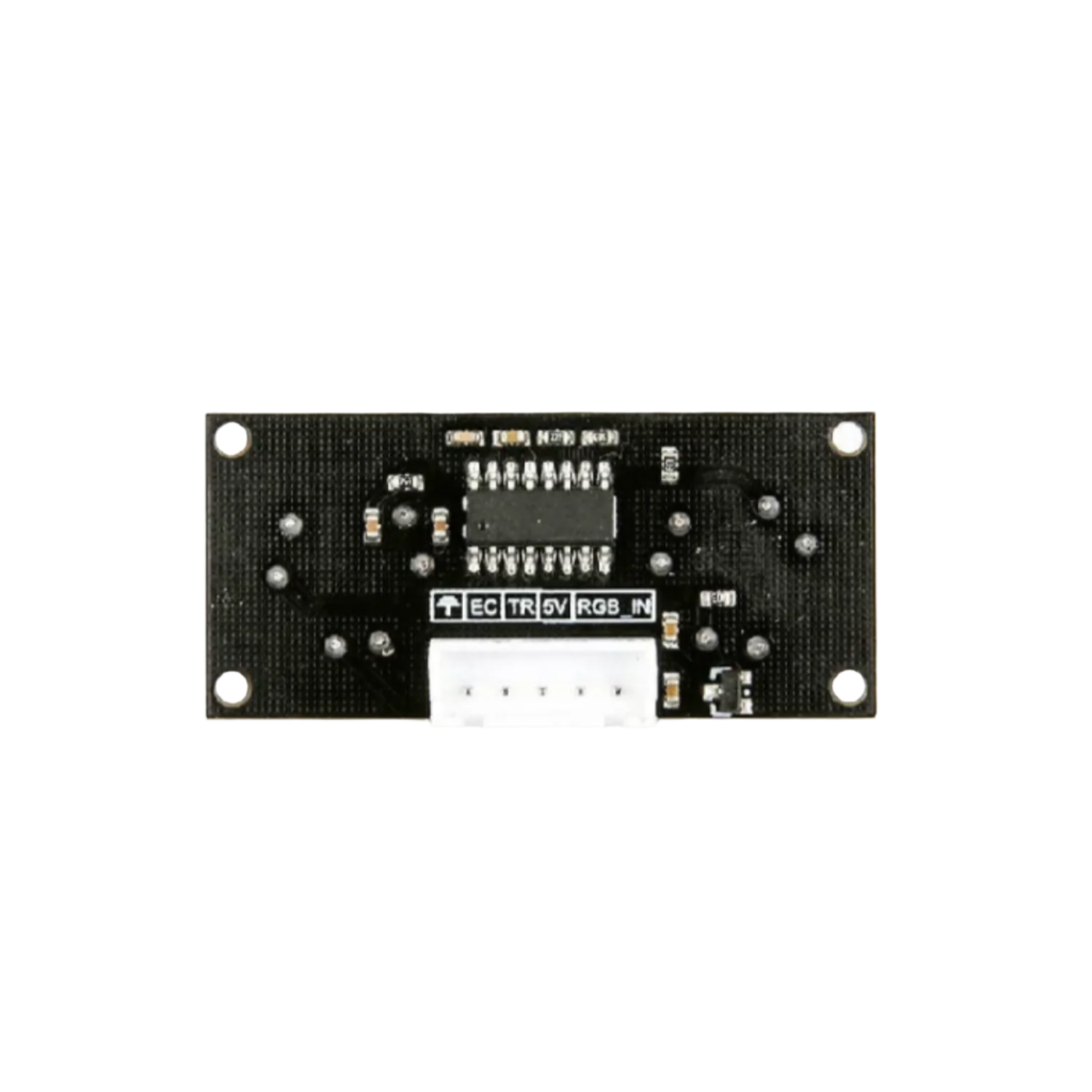

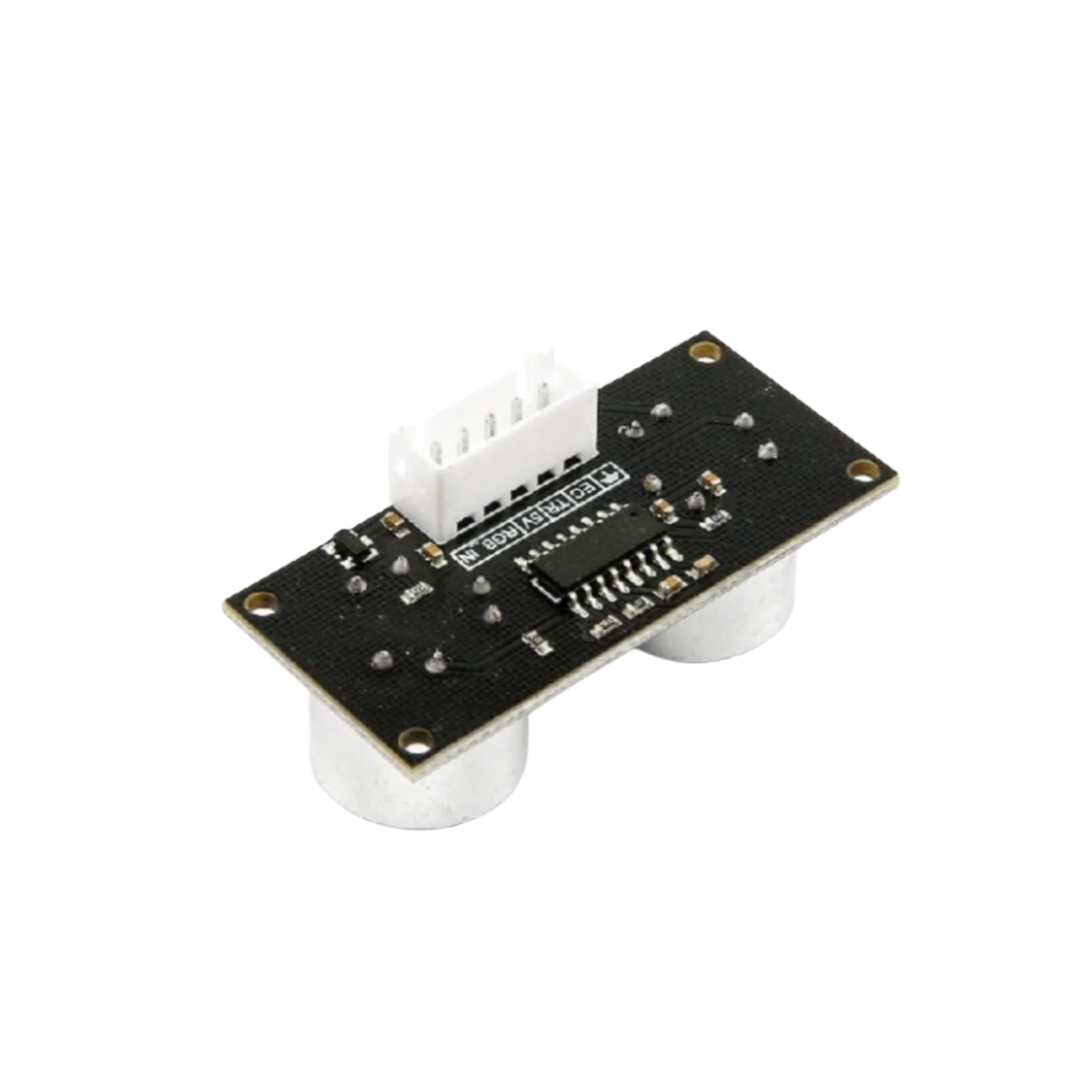

Featuring an integrated ultrasonic transmitter, receiver, and control circuit, it uses simple 6-pin connectivity: VCC, Trig, Echo, RGB, In, and GND. Its operation is based on emitting ultrasonic waves and measuring the time it takes for the echo to return, making it ideal for robotics and interactive sensing applications.
Specification:
- Model Type: Ultrasonic Sensor
- Operating Voltage (V): 3.5 to 5.5
- Operating Temperature (°C): -40℃ to 100℃
- Detecting Range: 2cm-4m
- Length (mm): 46
- Width (mm): 21
- Height (mm): 22
Features:
- Operates on 5V.
- Uses Ultrasonic waves.
- Multi-Color illumination.
- Suitable for Diverse Projects.
- Light Changes Based on Input.
- Easy to Incorporate.
Package Included:
1 x 5V Ultrasonic Sensor Module
