5V 4-Channel Solid State Relay Board, Solid State Relay Modul, High and Low Level Trigger - NA169

5V 4-Channel Solid State Relay Board, Solid State Relay Modul, High and Low Level Trigger - NA169

SKU:NA169

91 in stock

Regular price Rs. 455.00
Regular price Sale price Rs. 455.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

View full details
  • Part Number: G3MB-202P
  • Voltage: 5V
  • Working Current: 12.5 mA
  • Trigger Voltage: 3.3~5V

Description:

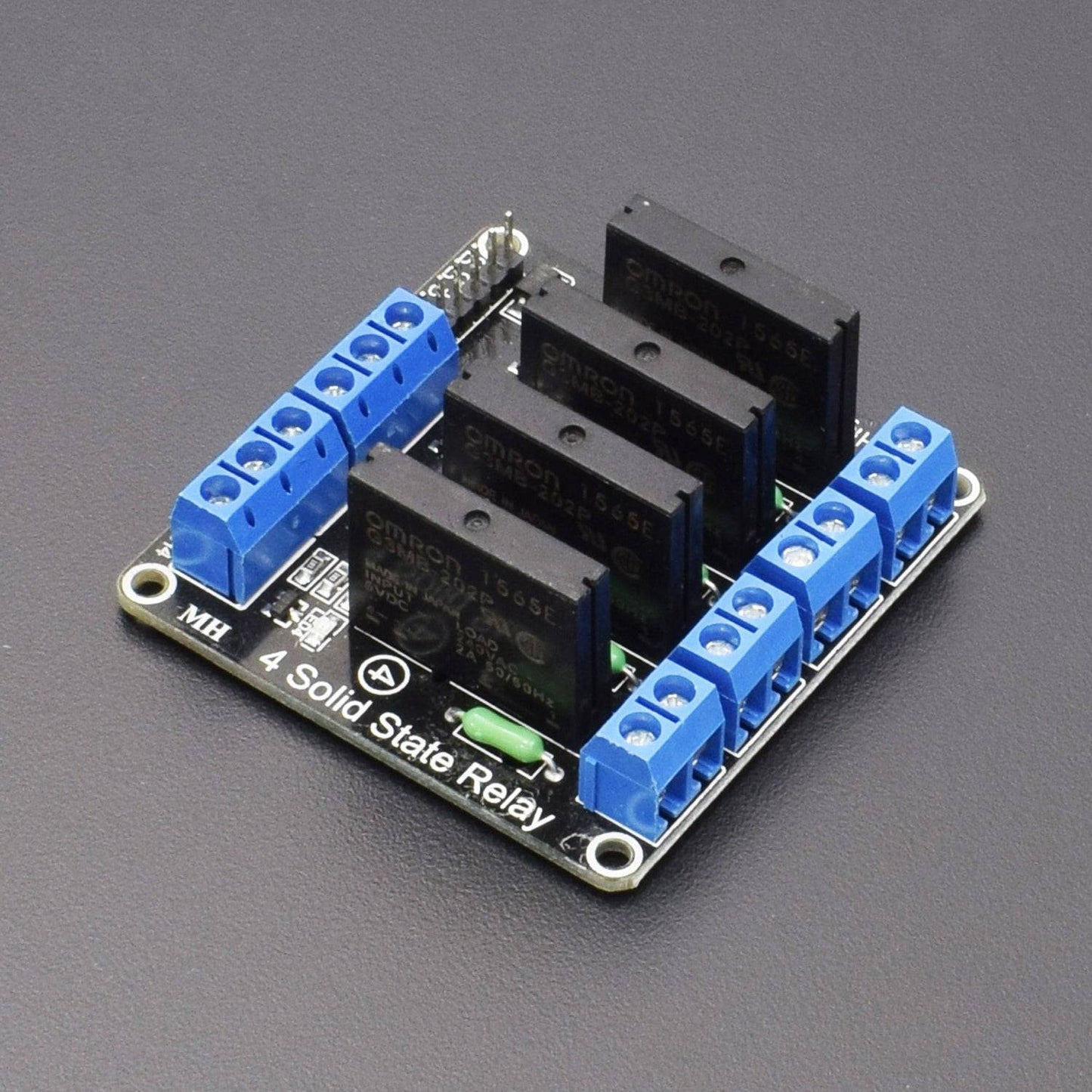

This 5V 4 Channel SSR Solid State Relay Module 240V 2A Output with Resistive Fuse is based on the G3MB SSR relay which can control up to 2A at 240VAC. This is a 4 Channel SSR relay module, each relay channel has 3 separate terminals, NO (Normal Open), COM (Common), NC (Normal Closed). A solid-state relay is similar to a mechanic relay where it can be controlled through a digital signal. Solid State Relay generates no noise and has a much longer lifespan in compared to the traditional mechanic relay. When the input logic voltage is applied to the coil, the NC will disconnect from the COM breaking the conductivity between the two. At the same time, the NO will connect with the COM allowing conductivity between them. Depending on your wiring this will turn on or off the connected load.

Specification:

Part Number

G3MB-202P

Voltage

5V

Working Current

12.5 mA

Trigger Voltage

3.3 to 5V

Trigger Current

2 mA

Max. Load

2A @240V AC

Features:

  • Has been assembled, and the electrical test passed.
  • Led indicator for each relay.
  • Use it to control various appliances and other equipment with a large current.
  • It can be controlled directly by a Microcontroller
  • Input control signal voltage:
    • 0-2.5V status low level, relay OFF
    • 3-5V status high level, relay ON

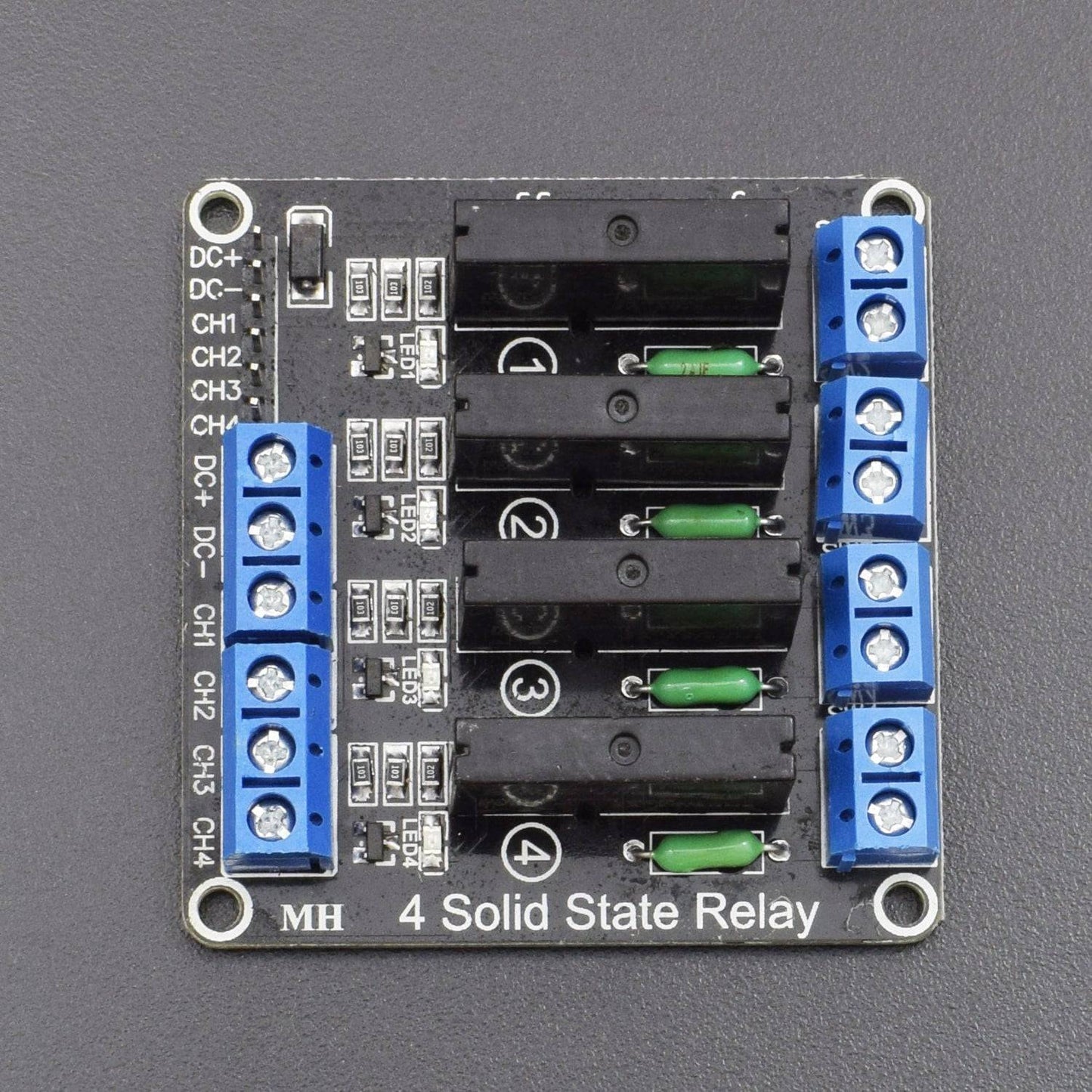

Input Section:

  • DC +: positive power supply (by relay voltage power supply)
  • DC-: connect power negative
  • CH1: 1 relay module signal to trigger the end (high-level trigger effective)
  • CH2: 2-channel relay module signal to trigger the end (high-level trigger effective)
  • CH3: 3 relay module signal to trigger the end (high-level trigger effective)
  • CH4: 4-channel relay module signal to trigger the end (high-level trigger effective)
Voltage version static current working current trigger voltage trigger current
1 road 5v 0mA 13.8mA 3.3-5V 2mA
2 road 5v 0mA 26.8mA 3.3-5V 2mA
3 road 5v 0mA 37mA 3.3-5V 2mA
4 road 5v 0mA 48mA 3.3-5V 2mA

Package Included:

1 x 5V 4-Channel Solid State Relay Board, Solid State Relay Modul, High and Low-Level Trigger
